ASROCK 748-M Manuel utilisateur

748-M

User Manual

Version 1.0

Published May 2004

No part of this manual may be reproduced, transcribed, transmitted, or translated in

any language, in any form or by any means, except duplication of documentation by

the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this manual may or may not be regis-

tered trademarks or copyrights of their respective companies, and are used only for

identification or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:

Specifications and information contained in this manual are furnished for informa-

tional use only and subject to change without notice, and should not be constructed

as a commitment by ASRock. ASRock assumes no responsibility for any errors or

omissions that may appear in this manual.

With respect to the contents of this manual, ASRock does not provide warranty of

any kind, either expressed or implied, including but not limited to the implied warran-

ties or conditions of merchantability or fitness for a particular purpose.

In no event shall ASRock, its directors, officers, employees, or agents be liable for

any indirect, special, incidental, or consequential damages (including damages for

loss of profits, loss of business, loss of data, interruption of business and the like),

even if ASRock has been advised of the possibility of such damages arising from any

defect or error in the manual or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

ASRock Website: http://www.asrock.com

Contents

1 Introduction.................................................... 4

1.1 Package Contents ........................................................... 4

1.2 Specifications ................................................................. 5

1.3 Motherboard Layout ....................................................... 7

1.4 I/OPanel .......................................................................... 8

2 Installation...................................................... 9

2.1 Screw Holes................................................................... 9

2.2 Pre-installation Precautions ............................................ 9

2.3 CPUInstallation ............................................................... 10

2.4 Installation of CPU Fan and Heatsink.............................. 10

2.5 Installation of Memory Modules (DIMM) .......................... 11

2.6 Expansion Slots (PCI and AGP Slots)............................. 12

2.7 Jumpers Setup................................................................ 13

2.8 Connectors ..................................................................... 14

3 BIOS Setup ...................................................... 16

3.1 BIOS Setup Utility ............................................................ 16

3.1.1 BIOS Menu Bar ..................................................... 16

3.1.2 Legend Bar ........................................................... 16

3.2 MainMenu ....................................................................... 17

3.3 Advanced, Security, Power, Boot, and Exit Menus ...... 19

4 Software Support ........................................... 20

4.1 Installing Operating System ............................................ 20

4.2 Support CD Information ................................................... 20

4.2.1 Running Support CD ............................................. 20

4.2.2 Drivers Menu ........................................................ 20

4.2.3 Utilities Menu ......................................................... 20

4.2.4 ASRock “PC-DIY LiveDemo” Program ................. 20

4.2.5 Contact Information............................................... 20

Appendix ........................................................... 21

1. Advanced BIOS Setup Menu.......................................... 21

2. Security Setup Menu ...................................................... 26

3. Power Setup Menu......................................................... 27

4. Boot Setup Menu ............................................................ 28

5. Exit Menu......................................................................... 29

Chapter 1 Introduction

Thank you for purchasing ASRock 748-M motherboard, a reliable motherboard

produced under ASRock’s consistently stringent quality control. It delivers excellent

performance with robust design conforming to ASRock’s commitment to quality and

endurance.

Chapter 1 and 2 of this manual contain introduction of the motherboard and step-by-

step installation guide. Chapter 3 and 4 contain basic BIOS setup and support CD

information. More information of advanced BIOS setup is offered on page 21 for

advanced users’ reference.

Because the motherboard specifications and the BIOS software

might be updated, the content of this manual will be subject to

change without notice. In case any modifications of this manual

occur, the updated version will be available on ASRock website

without further notice. You may find the latest memory and CPU

support lists on ASRock website as well.

ASRock website http://www.asrock.com

1.1 Package Contents

ASRock 748-M Motherboard

Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

ASRock 748-M Quick InstallationGuide

ASRock 748-M Support CD

One 80-conductor Ultra ATA 66/100/133 IDE Ribbon Cable

One Ribbon Cable for a 3.5-in Floppy Drive

One I/O Shield

1.2 Specifications

Platform: Micro ATX Form Factor: 9.6-in x 8.0-in, 24.4 cm x 20.3 cm

CPU: Supports Socket A (462 pins) for

AMDAthlonTM XP / DuronTM processor

Chipsets: North Bridge:

SiS 748, FSB@400 MHz, AGP 8X/4X

South Bridge:

SiS 963L, supports USB 2.0, ATA 133

Memory: 2DDRDIMM Slots:DDR1andDDR2

PC3200 (DDR400) for 1DDRDIMM slot, Max. 1GB,

PC2100 (DDR266) / PC2700 (DDR333)

for 2DDRDIMM slots, Max. 2GB

IDE: IDE1:ATA133 / UltraDMAMode 6,

IDE2:ATA133 / UltraDMAMode 6,

Supports up to 4 IDE devices

Floppy Port: Supports up to 2 floppy disk drives

Audio: 5.1 channels AC’97 Audio

LAN: Speed: 802.3u (10/100 Ethernet), supports Wake-On-LAN

Hardware Monitor:CPU temperature sensing,

Motherboard temperature sensing,

CPU overheat shutdown to protect CPU life

(ASRock U-COP)(see CAUTION 1),

CPU fan tachometer, Chassis fan tachometer,

Voltage monitoring: +12V, +5V, +3.3V, Vcore

PCI slots: 3 slots with PCI Specification 2.2

AGP slot: 1 AGP slot, supports 1.5V, 8X/4X AGP card (see CAUTION 2)

USB 2.0: 6 USB 2.0 ports:

includes 4 default USB 2.0 ports on the rear panel,

plus one header to support 2 additional USB 2.0 ports

(see CAUTION 3)

I/O Panel: 1 PS/2 keyboard port, 1 PS/2 mouse port,

1 parallel port: ECP/EPP support,

2 serial ports: COM1 and COM2,

1 RJ 45 port,

4 default USB 2.0 ports,

Audio Jack: Line In / Line Out / Microphone

BIOS: AMI legal BIOS, Supports “Plug and Play”,

ACPI 1.1 compliance wake up events,

SMBIOS 2.3.1 support,

CPU frequency stepless control

(only for advanced users’ reference, see CAUTION 4)

OS: Microsoft® Windows® 98 SE / ME / 2000 / XP compliant

CAUTION!

1. While CPU overheat is detected, the system will automatically shutdown.

Please check if the CPU fan on the motherboard functions properly before

you resume the system. To improve heat dissipation, remember to spray

thermal grease between the CPU and the heatsink when you install the PC

system.

2. Do NOT use a 3.3V AGP card on the AGP slot of this motherboard!

It may cause permanent damage!

3. Power Management for USB 2.0 works fine under Microsoft®Windows®

XP SP1/2000 SP4. It may not work properly under Microsoft®Windows®

98/ME. Please refer to Microsoft®official document at

http://www.microsoft.com/whdc/hwdev/bus/USB/USB2support.mspx

4. Although this motherboard offers stepless control, it is not recommended

to perform over clocking. Frequencies other than the recommended CPU

bus frequencies may cause the instability of the system or damage the

CPU. The CPU host frequency of this motherboard is determined by the

jumper-setting. You must set the FSB jumper according to your AMD CPU

before you use the “Manual” option as the FSB setting in BIOS setup to

perform over clocking. Please check page 21 for details.

DDR1 (64/72 bit, 184-pin module)

DDR2 (64/72 bit, 184-pin module)

IDE2 IDE1

PCI 1

PCI 3

PCI 2

1.5V_AGP1

FLOPPY1

USB45

IR1

SPEAKER1

HDLED RESET

PLED PWRBTN

PAN EL 1

CLRCMOS2

CMOS

Battery

FSB_SEL0

FSB_SEL1

CHA_FAN1

SiS

963L

SiS

748

Chipset

748-M

CPU_FAN1

PS2_USB_PW1

ATXPWR1

2MB

BIOS

Super

I/O

AUDIO1

JR1 JL1

AUX1 CD1

AUDIO

CODEC

PCI

LAN

AGP 8X

USB2.0

ATA133

PS/2KBMS

T: Mouse

B: Keyboard

USB 2.0

T: USB2

B: USB3

USB 2.0

T: USB0

B: USB1

Top:

RJ-45

Top:

Line In

Center:

Line Out

Bottom:

Mic In

DDR400

5.1CH

PARALLEL PORT

COM1 COM2

GAME1

20.3cm (8.0-in)

24.4cm (9.6-in)

124

14151617

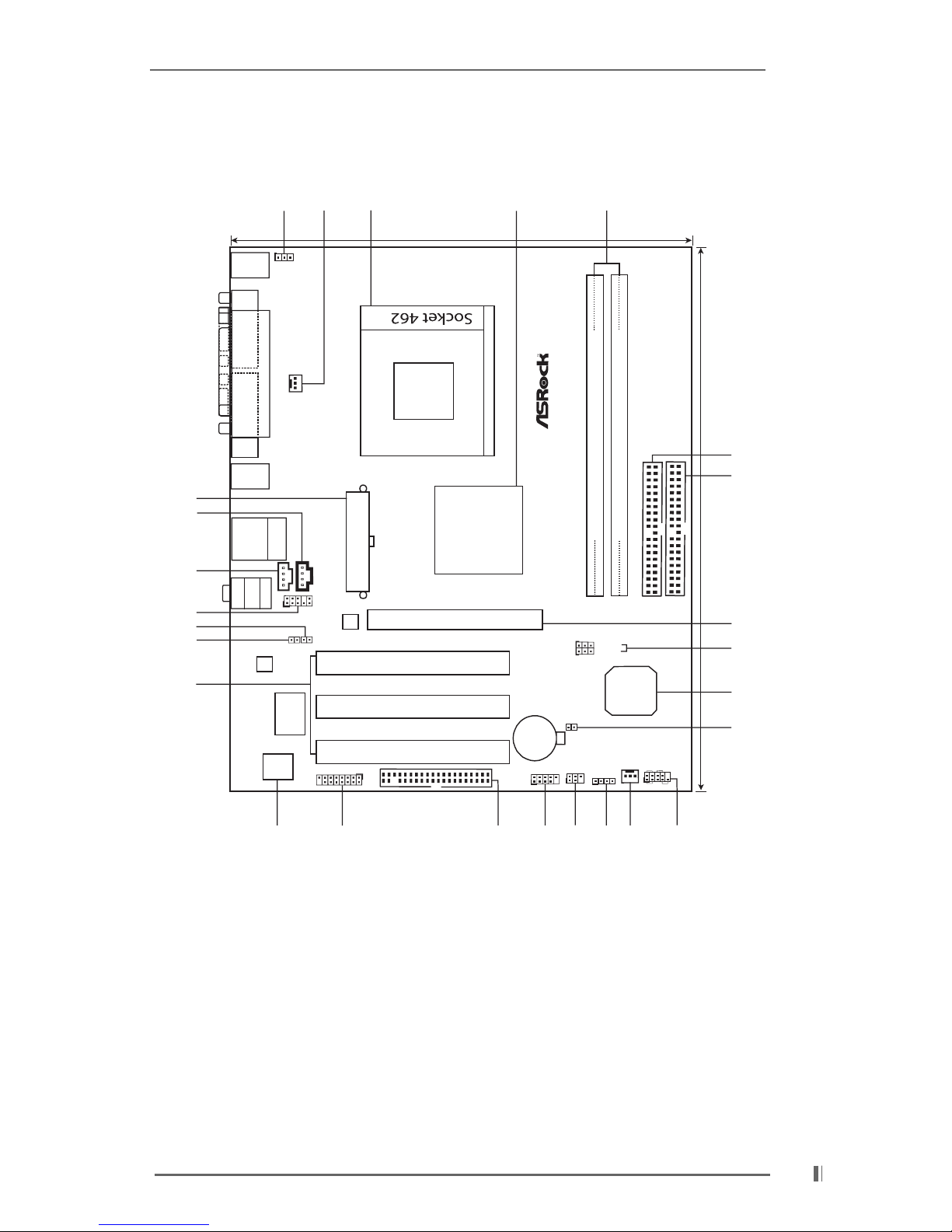

1.3 Motherboard Layout

1 PS2_USB_PW1 Jumper 14 Chassis Speaker Connector (SPEAKER1)

2 CPU Fan Connector (CPU_FAN1) 15 Infrared Module Connector (IR1)

3 CPU Socket 16 USB 2.0 Connector (USB45, Blue)

4 North Bridge Controller 17 Floppy Connector (FLOPPY1)

5 184-pin DDR DIMM Slots (DDR 1- 2) 18 Game Connector (GAME1)

6 Secondary IDE Connector (IDE2, Black) 19 Flash Memory

7 Primary IDE Connector (IDE1, Blue) 20 PCI Slots (PCI 1- 3)

8 AGP Slot (1.5V_AGP1) 21 JR1 Jumper

9 FSB Select Jumper (FSB_SEL0, FSB_SEL1) 22 JL1 Jumper

10 South Bridge Controller 23 Front Panel Audio Connector (AUDIO1)

11 Clear CMOS (CLRCMOS2, 2-pin jumper) 24 Internal Audio Connector: AUX1 (White)

12 System Panel Connector (PANEL1) 25 Internal Audio Connector: CD1 (Black)

13 Chassis Fan Connector (CHA_FAN1) 26 ATX Power Connector (ATXPWR1)

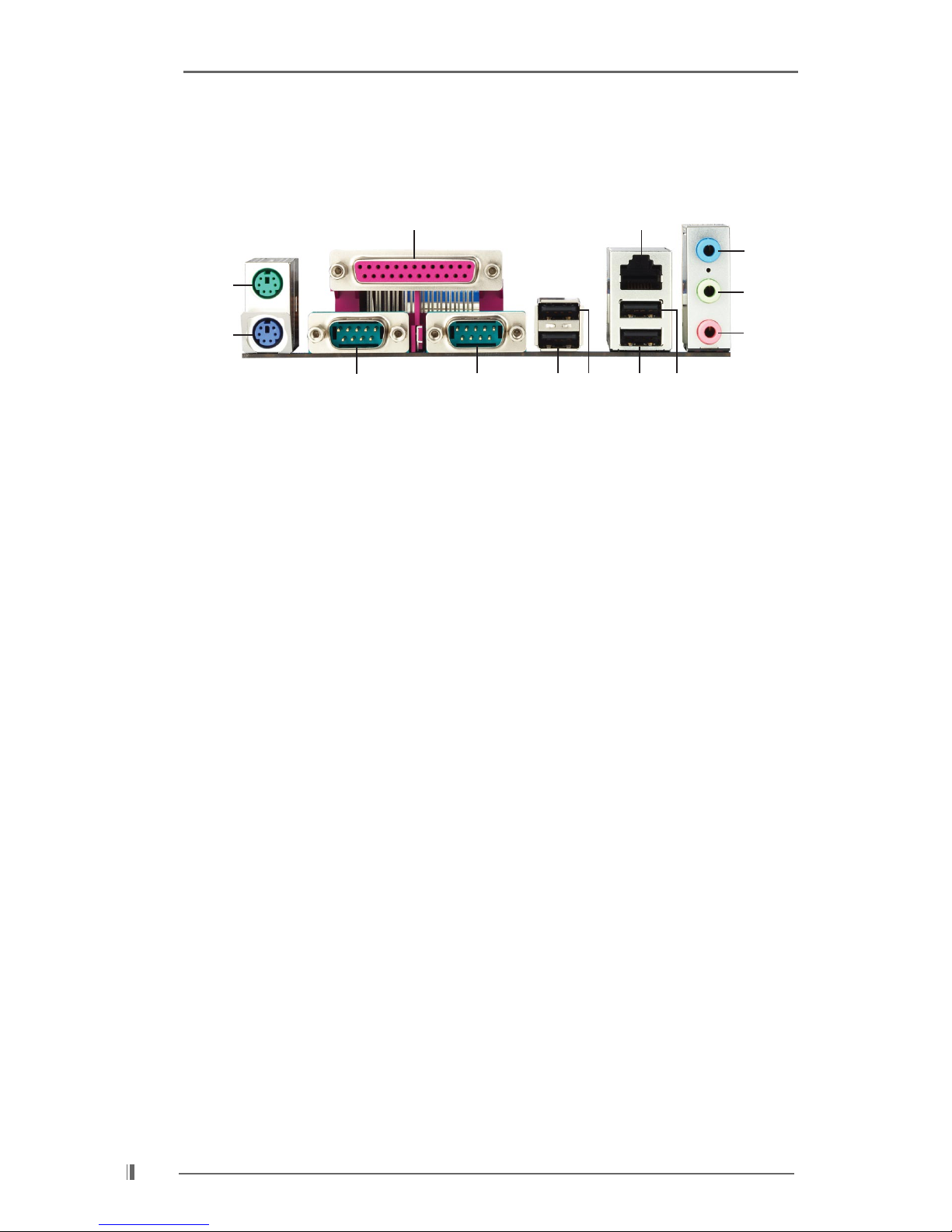

1.4 I/O Panel

1 PS/2 Keyboard Port (Purple) 8 USB 2.0 Port (USB0)

2 PS/2 Mouse Port (Green) 9 USB 2.0 Port (USB1)

3 Parallel Port 10 USB 2.0 Port (USB2)

4 RJ-45 Port 11 USB 2.0 Port (USB3)

5 Line In (Light Blue) 12 Serial Port (COM2)

6 Line Out (Lime) 13 Serial Port (COM1)

7 Microphone (Pink)

910

Chapter 2 Installation

748-M is a Micro ATX form factor (9.6-in x 8.0-in, 24.4 cm x 20.3 cm) motherboard.

Before you install the motherboard, please study the configuration of your chassis to

ensure that the motherboard fits into it.

Make sure to unplug the power cord before installing or

removing the motherboard. Failure to do so may cause physical

injuries to you and damages to motherboard components.

2.1 Screw Holes

Place screws into the holes indicated by circles to secure the motherboard to the

chassis.

Do not over-tighten the screws! Doing so may damage the

motherboard.

2.2 Pre-installation Precautions

Take note of the following precautions before you install motherboard components

or change any motherboard settings.

1. Unplug the power cord from the wall socket before touching any

component.

2. To avoid damaging the motherboard components due to static

electricity, NEVER place your motherboard directly on the carpet or

the like. Also remember to use a grounded wrist strap or touch a

safety grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded

antistatic pad or in the bag that comes with the component.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

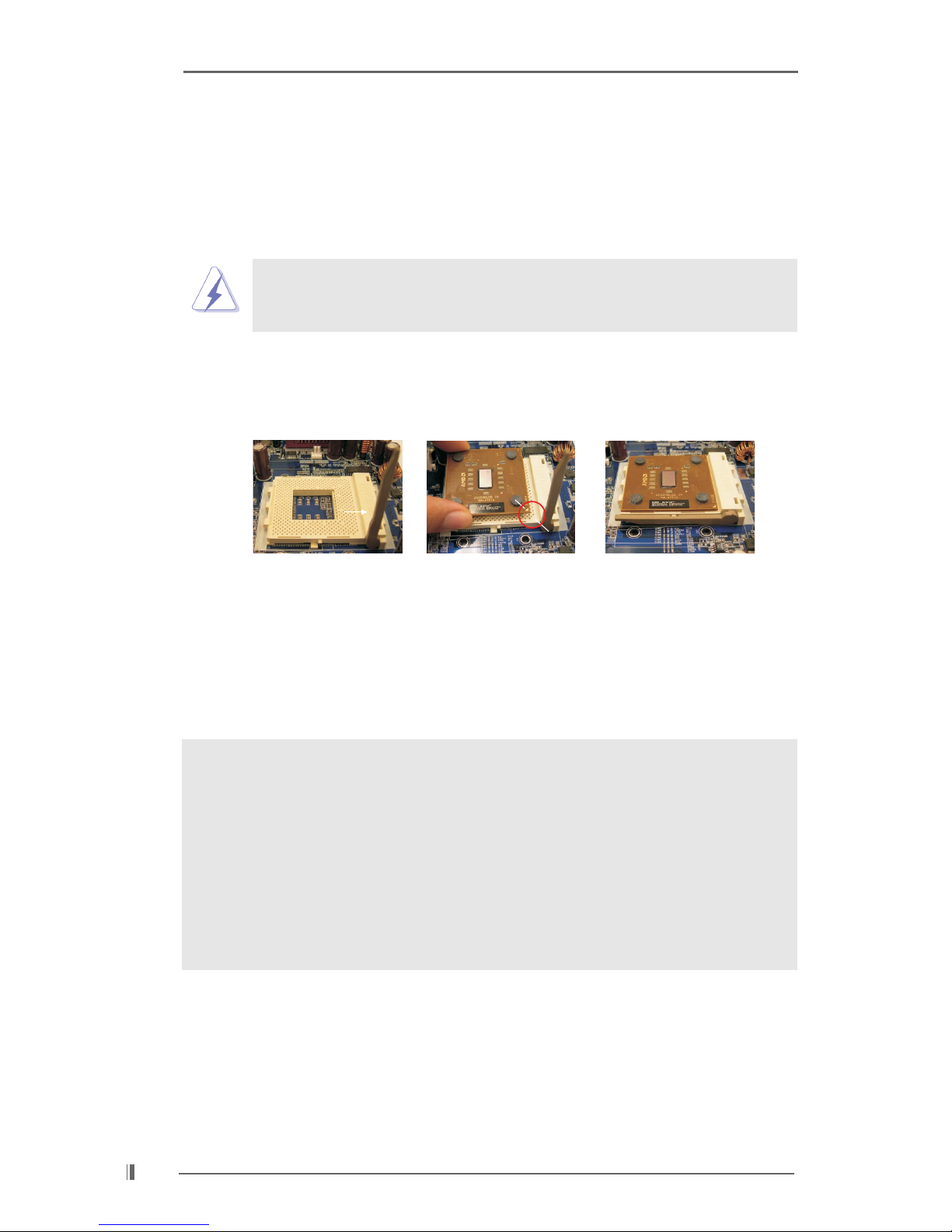

2.3 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90oangle.

Step 2. Position the CPU directly above the socket such that its marked corner

matches the base of the socket lever.

Step 3. Carefully insert the CPU into the socket until it fits in place.

The CPU fits only in one correct orientation. DO NOT force the

CPU into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it firmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.4 Installation of CPU Fan and Heatsink

This motherboard adopts 462-pin CPU socket to support AMD Athlon XP /

DuronCPU. It requires larger heatsink and cooling fan to dissipate heat. You

also need to spray thermal grease between the CPU and the heatsink to

improve heat dissipation. Make sure that the CPU and the heatsink are se-

curely fastened and in good contact with each other. Then connect the CPU

fan to the CPU_FAN connector (CPU_FAN1, see page 7, No. 2). For proper

installation, please kindly refer to the instruction manuals of the CPU fan and

the heatsink.

STEP 1:

Lift Up The Socket Lever

STEP 2/STEP 3:

Match The CPU Marked Corner

To The Socket Marked Corner

STEP 4:

Push Down And Lock

The Socket Lever

Lever 90° Up CPU Marked Corner

Socket Marked Corner

Table des matières

Autres manuels ASROCK Carte mère

ASROCK

ASROCK B150M-ITX/D3 Manuel utilisateur

ASROCK

ASROCK B760M-H2/M.2 Manuel utilisateur

ASROCK

ASROCK H61M-PS2 Manuel utilisateur

ASROCK

ASROCK Z77 Extreme6 Manuel utilisateur

ASROCK

ASROCK IMB-V2000 Manuel utilisateur

ASROCK

ASROCK B460 STEEL LEGEND Manuel utilisateur

ASROCK

ASROCK Z490 Phantom Gaming 4/2.5G Manuel utilisateur

ASROCK

ASROCK H61M-HVGS Manuel utilisateur

ASROCK

ASROCK A785GM Manuel utilisateur

ASROCK

ASROCK Z77 Pro4-M Manuel utilisateur

ASROCK

ASROCK P45R2000-WiFi Manuel utilisateur

ASROCK

ASROCK B85M Pro4 Manuel utilisateur

ASROCK

ASROCK 4CORE1600-GLAN/M Manuel utilisateur

ASROCK

ASROCK Z590 PHANTOM GAMING 4 Manuel utilisateur

ASROCK

ASROCK Q1900B-ITX Manuel utilisateur

ASROCK

ASROCK FM2A58M-VG3+ R2.0 Manuel utilisateur

ASROCK

ASROCK Z270 SUPERCARRIER Manuel utilisateur

ASROCK

ASROCK X99 Extreme4 Manuel utilisateur

ASROCK

ASROCK H61M-DG4 Manuel utilisateur

ASROCK

ASROCK FM2A85X Extreme6 Manuel utilisateur

ASROCK

ASROCK Fatal1ty Z170 Gaming K4 Series Manuel utilisateur

ASROCK

ASROCK B550M-HVS SE Manuel utilisateur

ASROCK

ASROCK P45XE Manuel utilisateur

ASROCK

ASROCK A770CROSSFIRE - V1.0 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manuel utilisateur
