AOpen I865PEa-7ILFR Fiche technique

AGP 8X Expansion Slot that

supports 8X AGP card (2.1GB/s)

(for i865Ga series, it also

supports ADD card)

Intel®865PE/865G/848P/ICH5

ICH5 Chipsets that support

533/800 MHz FSB,

DDR 400/333/266 and AGP 8X

JP28 PS2 KB/Mouse Wakeup

Jumper

ATX Power Connector

LGA775 CPU Socket with Voltage

and Frequency Auto-detection

that supports Intel®FC-LGA4 CPU

IrDA Connector

Onboard AC’97 CODEC

32-bit PCI Expansion Slots x 5

SYSFAN2 Connector

JP14 CMOS Data Clear Jumper

Functional Polymer Capacitor

IN Connector

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.

S/PDIF Connector

Front Audio Connector

USB 2.0 Connectors x 2

Front Panel Connector

Serial ATA Ports x2

Supports 100 MB/s Transfer Rate

FDD Connector

CPUFAN Connector

4-pin 12V ATX Power Connector

Intel Gigabit LAN chip

(for i865PEa-7LFR & i865Ga-7IL)

Resetable fuse

i865PEa-7ILFR / i865PEa-7IF / i865Ga-7lL / i865Ga-7IF

i800Pa-7I

184-pin DIMMsx4 support 128bit

Dual channel DDR400/333/266

Max. To 4GB

(for i865PEa and i865Ga series)

184-pin DIMMsx2 support Single

channel DDR400/333/266

Max. To 2GB

(for i800Pa-7I)

IDE Connectors x 2

(ATA33/66/100 supported)

Speaker

Out

PS/2 Mouse

Connector SPP/EPP/ECP Parallel Port

USB 2.0

Ports

RJ45

LAN Jack

PS/2

Keyboard COM Port VGA Port

(for i865Ga series)

Line-In

MIC-In

Case Open Connector

AGP Protection LED

STBY LED

SYSFAN1 connector

COM2 Connector

(for i865Ga series)

IEEE1394 Connectors x 2

(for ILFR & IF series)

Game

Port Connector

Die-hard BIOS

BOOT LED

IEEE 1394

port

Rear SUR

Side SUR

Center /

Subwoofer

Easy Installation Guide x 1

Enhanced Full Pictured Manual x 1

Bonus Pack CD x 1

Norton Anti-Virus CD x 1

ICH5R RAID Driver Diskette x 1

(for i865PEa-7ILFR only)

Floppy Disk Cable x 1

80-Wire IDE Cable x 1

Serial ATA Cable x 1

Serial ATA Power Cable x 1

IEEE1394 cable x 1

(for ILFR & IF series only)

I/O Shield x 1

CPU Retention Module x 1

PART NO: 49.8EA04.EE2

DOC. NO:I865PEA7ILFR-EG- E0408B

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD. Thanks for the

help of saving our earth.

1. Installing CPU

2. Installing CPU Fan

& System Fan

3. Installing

Memory Module

4. Installing HD,

CD-ROM and SATA

Disk

etc

6. Connecting ATX

Power Cable

5. Connecting Front

Panel Cable

7. Installing AGP & PCI Cards

8. Installing Other Devices

(USB, Front Audio, etc)

9. Connecting Back

Panel Ports

(Keyboard, Mouse,

etc)

10. Loading Default

BIOS, Setting CPU

Frequency

11. Installing Operating

System (such as,

Windows XP)

12. Installing Drivers & Utilities

This socket supports FC-LGA4 CPU, which is the latest CPU package developed by

Intel. Other forms of CPU package are impossible to be fitted in.

1. Pull CPU socket lever and plate up.

2. Remove plastic cap from CPU

socket plate.

3. Locate Pin 1 in the socket and look

for a golden arrow on the CPU

upper interface. Match Pin 1 and

golden arrow. Then insert the CPU

into the socket.

4. Press down CPU socket plate and

lever to finish CPU installation.

Primary

Master (1st)

Primary

Slave (2nd)

Secondary

Slave (4th)

Secondary

Master (3rd)

Pin 1

Socket Pin 1 Warning: If you do not match the CPU

socket Pin 1 and CPU golden arrow well, you

may damage the CPU. And please don’t

touch CPU socket pins when installing CPU.

CPU socket plate

Plastic ca

Golden arrow

CPU socket lever Note: It’s strongly recommended by

Intel to use thermal paste properly to avoid

over-heat generated From Prescott CPU.

3. Installing Memory Modules

2. Installing CPU & System Fans

1. Installing CPU

Plug in the CPU fan cable to the 4-pin CPUFAN connector. If you have chassis fan,

you can also plug it in SYSFAN1 or SYSFAN2 connector.

CPUFAN Connector

SYSFAN2 Connector

DIMM slots are designed in Electronic Blue and Navy Blue which are very easy to

recognize. Insert the module straight down to the DIMM slot with both hands and

press down firmly until the DIMM module is securely in place.

4. Connecting IDE and Floppy Cables

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDD

and IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause

system damage.

Pin 1

ATA 66/100 IDE

Connector

IDE 1 (Primary)

IDE 2 (Secondary)

FDD Connector

Note: The tabs of

the DIMM slot will clip

to hold the DIMM in

place when the DIMM

touches the slot’s

bottom.

Note: Some CPU fans

do not have sensor pin so

they cannot support fan

monitoring.

Tab

Pin 1

Key

GND

+12V

SENSOR

SYSFAN1 Connector

GND

+12V

SENSOR

GND

+12V

SENSOR

PWM

This motherboard comes with a 24-pin and 4-pin ATX power connector as shown

below. Make sure you plug in the right direction. We strongly recommend you to

insert the 4-pin connector before connecting the 24-pin connector.

After you finish the setting of jumpers and connect correct cables. Power

on and enter the BIOS Setup, press <Del> during POST (Power On Self

Test). Choose "Load Setup Defaults" for recommended optimal

performance.

5. Connecting Front Panel Cable

6. Connecting ATX Power Cable

Attach the power LED, speaker, and reset switch connectors to the corresponding

pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED

will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female

connector from the housing front panel. Plug this connector to the soft-power

switch connector marked SPWR.

7. Power-on and Loading BIOS Setup

Del

8. AOpen Bonus Pack CD

Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your

system components (CPU, RAM, HDD, etc.) are good enough for turbo setting.

+12V

Ground

You can use the autorun menu of Bonus CD disc. Choose the utility and driver

from the icons at left side, and then click on the “GO” button to complete

installation automatically.

Click to install

online manual

Install utility

Browse

Read me

Exit CD

Install driver

Setting CPU Voltage & Frequency

ett

CPU C

ore

tage

This motherboard supports Voltage ID (VID) function to detect CPU voltage

automatically during power-on.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through

1MHz stepping CPU Overclocking in the BIOS. CPU Core Frequency = CPU FSB

clock x CPU Ratio. However, all CPU now selling in the market belong to "Fixed

Multiplier". That means users can not adjust the CPU Ratio but only change CPU

FSB clock to achieve overclocking.

(Users do the overclocking at their own risk!!)

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup

CPU Ratio 8x, 10x… 24x, 25x, 26x, 27x, 28x

CPU FSB

(Adjustment manually) FSB = 100MHz-400MHz by 1MHz Stepping CPU Overclocking

Processor Number Processor Frequency

FSB CPU Ratio Cache

5 Series

580 4.00G 800MHZ 20x 1MB L2

570 3.80G 800MHZ 19x 1MB L2

560 3.60G 800MHZ 18x 1MB L2

550 3.40G 800MHZ 17x 1MB L2

540 3.20G 800MHZ 16x 1MB L2

530 3.00G 800MHZ 15x 1MB L2

520 2.80G 800MHZ 14x 1MB L2

3 Series 350 3.20G 533MHZ 24x 256K L2

345 3.06G 533MHZ 23x 256K L2

340 2.93G 533MHZ 22x 256K L2

335 2.80G 533MHZ 21x 256K L2

Note:With CPU speed changing rapidly, there might be faster CPU on the market by the

time you received this installation guide. This table is kindly for your references only.

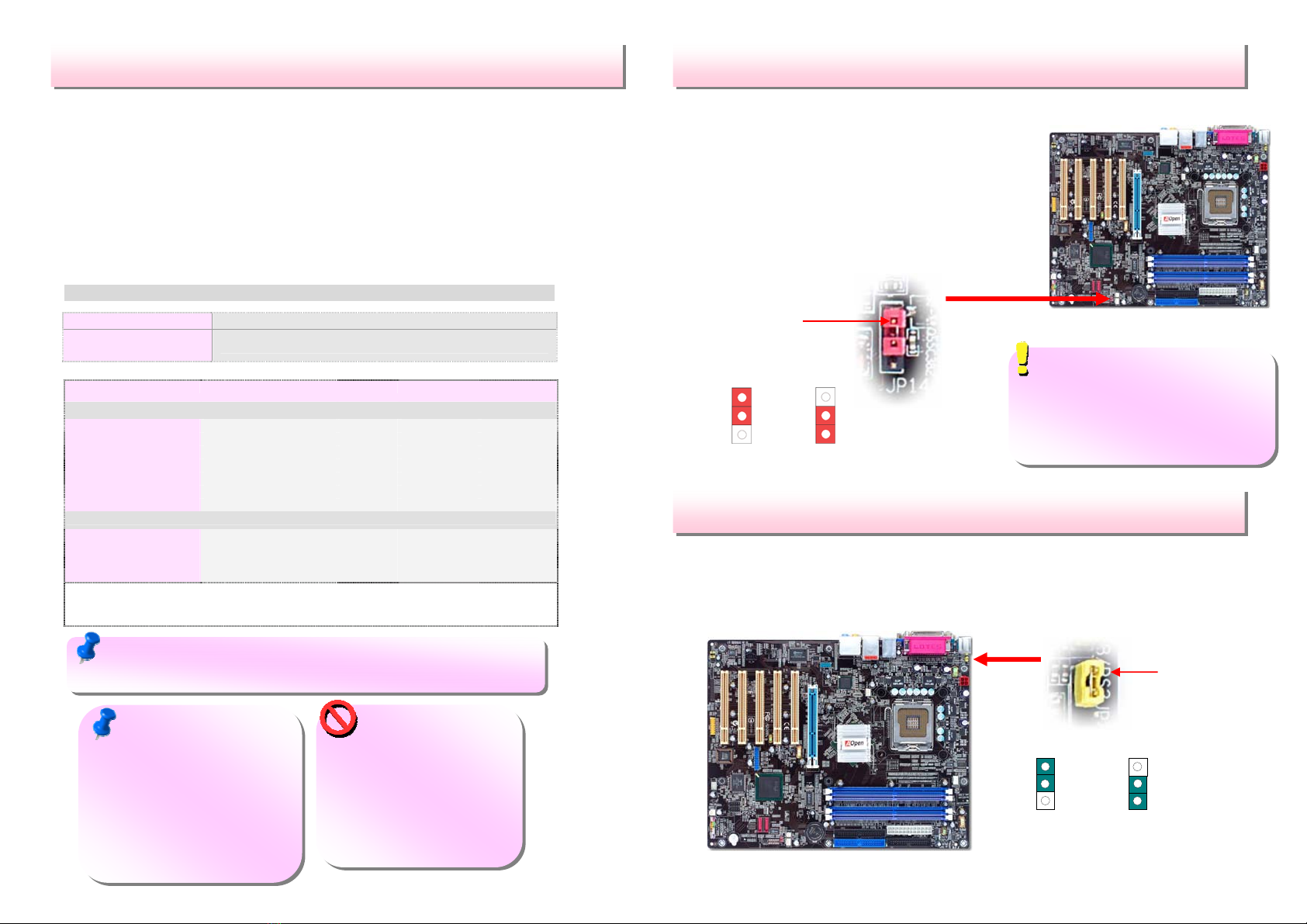

JP14 Clear CMOS

JP28 Keyboard/Mouse Wakeup Jumper

This motherboard provides keyboard / mouse wake-up function. You can use JP28

to enable or disable this function, which could resume your system from suspend

mode with keyboard or mouse. The factory default setting is “Disable” (1-2), and

you may enable this function by setting the jumper to 2-3.

You can clear CMOS to restore system default

setting. To clear the CMOS, follow the procedure

below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR3.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1

& pin 2.

5. Connect ATX power cable back to connector PWR3.

Pin 1

Tip: When should I Clear CMOS?

1. Boot fails because of overclocking…

2. Forget password…

3. Troubleshooting…

Note: Some CPU fans do not have sensor pin so they cannot

support fan monitoring.

Warning: Intel

865PE/865G/848P chipset

support maximum 800MHz

(200MHz*4) system bus;

higher clock setting may

cause serious system

damage.

Note: Intel

865PE/865G/848P chipset

support LGA 775 CPU. LGA

775 processor could detect

the clock ratio automatically;

you may not be able to adjust

the clock ratio in BIOS

manual.

Normal

(

default

)

Clear CMOS

Enable

Disable

(Default)

1 1

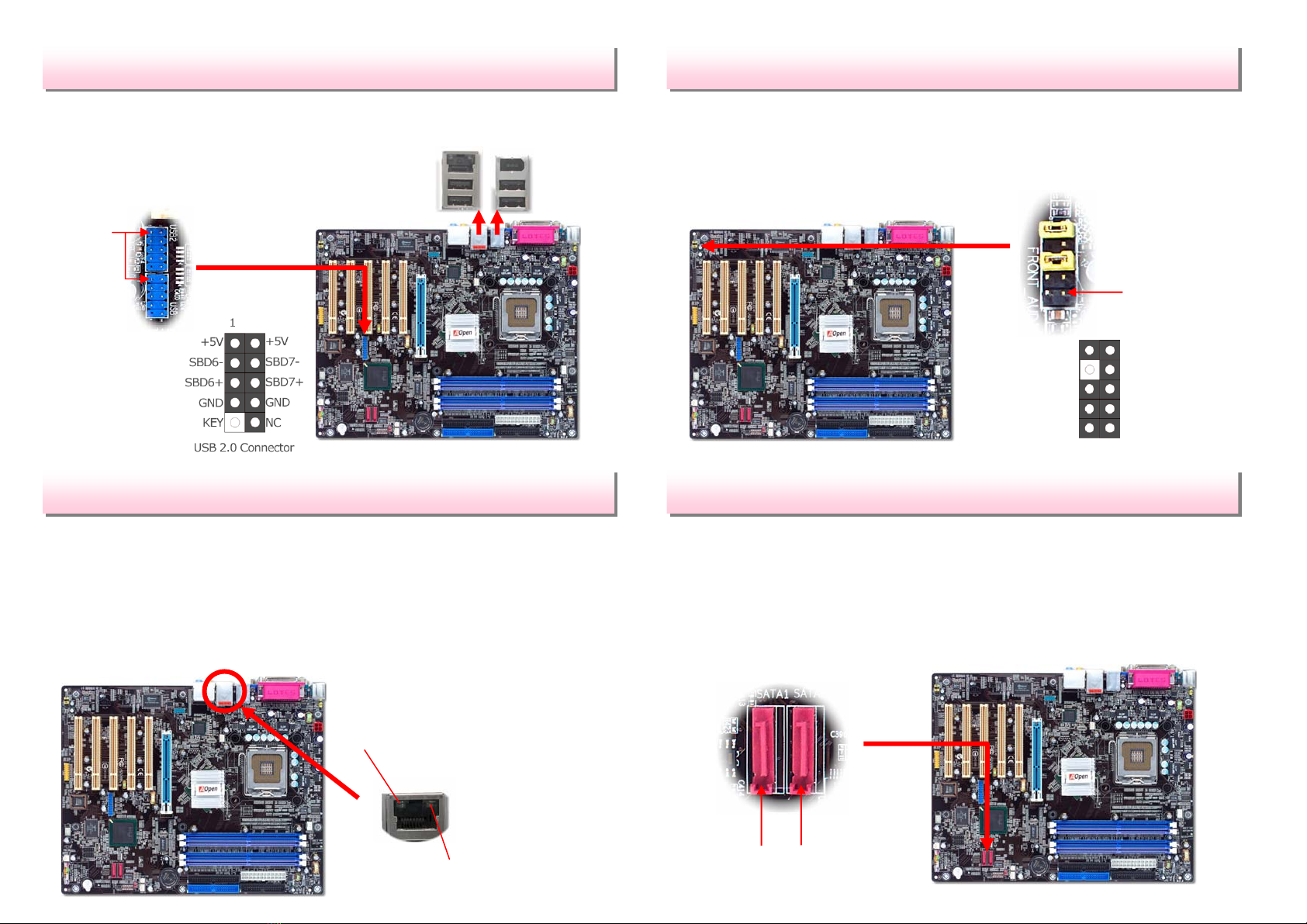

USB 2.0 Connectors

This motherboard provides eight USB 2.0 ports to connect USB devices, such as

mouse, keyboard, modem, printer, etc. There are four ports on the back panel.

You can use proper cables to connect the Front USB connector to USB modules or

front panel of chassis.

Pin 1

Gigabit LAN onboard (for i865PEa-7ILFR & i865Ga-7IL)

On the strength of Gigabit LAN controller on board, i865PEa-7ILFR and

i865Ga-7IL provide 10/100/1000 Mbps Ethernet for office and home use. The

Ethernet RJ45 connector is located on top of USB connectors. The right hand side

LED indicates link mode, it lights in yellow whenever linking to network. The left

hand side LED indicates the transfer mode and it lights in green when data is

transferring in 100Mbps (never lights while in 10Mbps), but lights in orange when

transferring in Gigabit’s mode. To enable or disable this function, you may simply

adjust it through BIOS.

Transferring (Left)

Green 100Mbps

Orange Gigabit mode

Linking (Right)

Yellow

Front Audio Connectors

If the housing has been designed with an audio port on the front panel, you’ll be

able to connect onboard audio to front panel through this connector. By the way,

please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before

connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper

caps if there’s no audio port on the front panel.

Serial ATA Connectors

To connect a serial ATA disk, you have to have a 7-pin serial ATA cable. Connect

two ends of the serial ATA cable to the serial ATA header on the motherboard and

the disk. Like every other traditional disk, you also have to connect a power cable.

Please be noted that it is a jumper free implement; you don’t need to set jumpers

to define a master or slave disk. When serial ATA hard disks are installed on serial

ATA ports, the one connected on SATA1 will be set as the first boot device

automatically. Please note that it doesn’t support Hot-Plug in function.

Pin 1

SATA1 SATA2

AUD_RET_L

KEY

AUD_RET_R

AUD_VCC

AUD_GND

AUD_FPOUT_ L

AUD_FPOUT_R

AUD_MIC_BIAS

AUD_MIC

Front Audio Connector

Phoenix-Award BIOS ERROR Message

Beep Sound Message

1 short(Beep) System booting is normally.

1 long - 1 short(Beep) DRAM ERROR

1 long - 2 short(Beep) Display card or monitor connected error

1 long - 3 short(Beep) Keyboard Error

Long(Beep) continuous DRAM hasn't inset correctly.

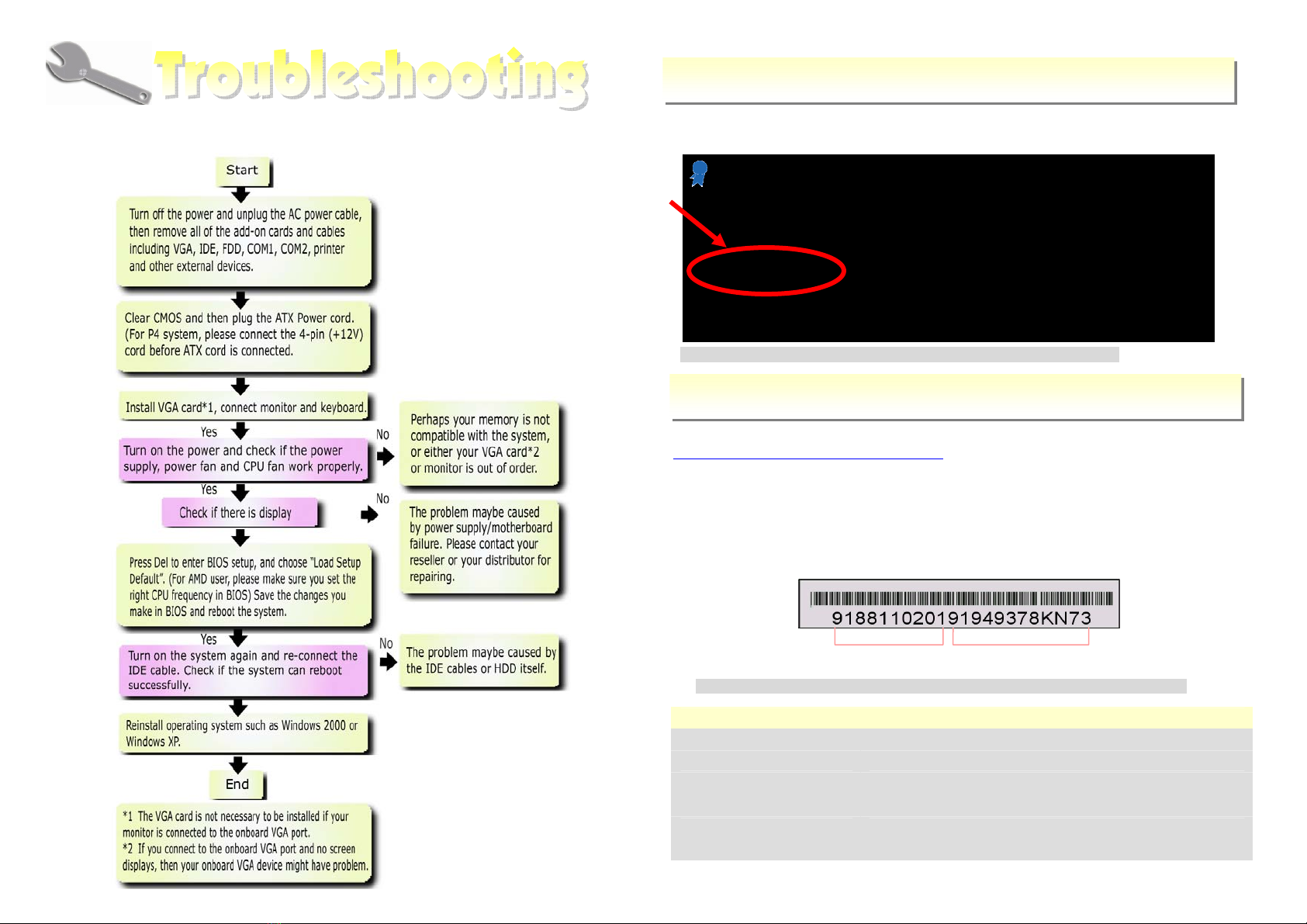

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Phoenix - AwardBIOS v6.00PG, An Energy Star Ally

i865PEa-7ILFR R1.02 June. 01. 2004 AOpen Inc.

Model name and BIOS version

Model name and BIOS version can be found on upper left corner of first boot

screen (POST screen). For example:

i865PEa-7ILFR is model name of motherboard; R1.02 is BIOS version

Thanks for choosing AOpen product, please register this motherboard at

http://club.aopen.com.tw/productreg/ to become a Gold member of Club AOpen,

and to ensure high service quality and priority from AOpen. You will also have a

chance to play slot machine game to win prize from AOpen. Please prepare the

following information before you start: Model Name, Part Number (P/N),

Serial Number (S/N) and Purchase Date. The Part Number and Serial

number are printed on bar code label. You can find this bar code label on the

outside packing or on component side of PCB. For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. We invite you to register at

http://www.aopen.com to become a Gold Member of Club AOpen so as to ensure

quality service in the future. In order to maintain the best service to every

customer of us, we recommend you to follow the procedures below and seek help

from our branches according to the region you buy the product. With your help, we

can then continue to provide efficient and the best quality service to every

customer.

Thanks very much for your understanding!

Europe Email: Support@AOpen.NL

Pacific Rim http://www.aopen.com.tw/tech/default.htm

China http://www.aopen.com.cn/tech/default.htm

Germany http://www.aopencom.de/tech/default.htm

America http://usa.aopen.com/tech/default.htm

Japan http://www.aopen.co.jp/tech/default.htm

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Email: [email protected]

China

艾爾鵬國際貿易(上海)有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

America

AOpen America Inc.

Tel: 1-510-489-8928

Fax: 1-510-489-1998

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

Germany

AOpen Computer GmbH.

Tel: 49-2131-1243-710

Fax: 49-2131-1243-999

Autres manuels pour i865PEa-7ILFR

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen AX4B-533 Tube Manuel utilisateur

AOpen

AOpen AP5VM Manuel utilisateur

AOpen

AOpen AX45F-1394 Fiche technique

AOpen

AOpen MK86-L Guide de configuration

AOpen

AOpen MX4SGI-4DN2 Manuel utilisateur

AOpen

AOpen AX4GER Fiche technique

AOpen

AOpen AX6BC PROII Manuel utilisateur

AOpen

AOpen AX63 Guide de configuration

AOpen

AOpen s651M Fiche technique

AOpen

AOpen AK79G MAX Manuel utilisateur

AOpen

AOpen AX4B Pro-533 Guide de configuration

AOpen

AOpen AX4C-G Fiche technique

AOpen

AOpen MK33M(A) Fiche technique

AOpen

AOpen Fortress 9000 Guide de configuration

AOpen

AOpen AX4B-533 Plus Guide de configuration

AOpen

AOpen AX6BC Pro II Millennium Edition Manuel utilisateur

AOpen

AOpen s661FXm-S Manuel utilisateur

AOpen

AOpen i945Ga-PLF Fiche technique

AOpen

AOpen AX59PRO Manuel utilisateur

AOpen

AOpen I865Gm-7L/7N Manuel utilisateur

AOpen

AOpen AX3S-1394 Manuel utilisateur

AOpen

AOpen AX45-8X Max Guide de configuration

AOpen

AOpen MX4GVR Fiche technique

AOpen

AOpen AX4B-533 Tube Fiche technique

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

AOpen i865PEa-7ILFR Fiche technique

Manuels Carte mère populaires d'autres marques
