AOpen I945Ga-PLF Fiche technique

JP28 PS2 KB/Mouse Wakeup

Jumper

ATX Power Connector

SYSFAN1

Connector

Onboard AC’97 CODEC

32-bit PCI Expansion Slots x 3

JP14 CMOS Data Clear Jumper

Functional Polymer Capacitor

AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.

Front Audio Connector

USB 2.0 Connectors x 2

Front Panel Connector

Serial ATA

II Ports x 4

Supports 300 MB/s Transfer Rate

FDD Connector

CPUFAN Connector

DieHard

BIOS Lite

4-pin 12V ATX Power Connector

Realtek

Gigabit LAN Chip

CD_IN Connector

i945Ga-PLF / i945Pa-PLF

240-pin DIMMs x 4 support

Dual Channel DDR400/533/667

Max. To 4GB

IDE Connectors x 2

(iTE IT8211F)

(ATA 66/100/133 supported)

Case Open

Connector

IRDA

Connector

STBY LED

BOOT LED

PCI Express x 16 Graphics

Slot (8.0GB/s)

LGA 775 CPU Socket with Voltage

and Frequency Auto-detection

that supports Intel®FC-LGA4 CPU

Intel®

945G / ICH7 (i945Ga-PLF)

945P / ICH7 (i945Pa-PLF) Chipsets

that support 1066MHz FSB, DDRII

667 and PCI Express x16

Game Connector

PCI Express x1 Slots x 2

IEEE 1394

Connector x 1

SYSFAN2

Connector

S/PDIF

Connector

FAN Connector

Power Temperature Connector

COM2

Connector (i945Ga-PLF)

Speaker

Out

PS/2 Mouse

Connector

SPP/EPP/ECP Parallel Port

USB 2.0 Ports

RJ45

LAN Jack

PS/2

Keyboard COM Port VGA Port

(for i945Ga-PLF)

Line-In

MIC-In

IEEE 1394

port

Rear SUR

Side SUR

Center /

Subwoofer

IrDA Connector

IDE Connector

(ATA 33/66/100 supported)

Easy Installation Guide x 1

Enhanced Full Pictured Manual x 1

80-Wire IDE Cable x 1

Floppy Drive Cable x 1

Serial ATA Cable x 1

Serial ATA Power Cable x 1

Back Panel I/O Shield x 1

Bonus Pack CD x 1

PART NO: 49.8EA0B.EE1

DOC. NO: I945GAPLF-EG-E0504A

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD. Thanks for the

help of saving our earth.

1. Installing CPU

2. Installing CPU Fan

& System Fan

3. Installing

Memory Module

4. Installing HD,

CD-ROM and SATA

Disk

etc

6. Connecting ATX

Power Cable

5. Connecting Front

Panel Cable

7. Installing PCI Express x16

Graphics card & PCI Express x1

Cards & PCI Cards

8. Installing Other Devices

(USB, Front Audio, etc)

9. Connecting Back

Panel Ports

(Keyboard, Mouse,

etc)

10. Loading Default

BIOS, Setting CPU

Frequency

11. Installing Operating

System (such as,

Windows XP)

12. Installing Drivers & Utilities

Pin 1

This socket supports FC-LGA4 CPU, which is the latest CPU package developed by

Intel. Other forms of CPU package are impossible to be fitted in.

1. Pull CPU socket lever and plate up.

2. Remove plastic cap from CPU

socket plate.

3. Locate Pin 1 in the socket and look

for a golden arrow on the CPU

upper interface. Match Pin 1 and

golden arrow. Then insert the CPU

into the socket.

4. Press down CPU socket plate and

lever to finish CPU installation.

Primary

Master (1st)

Primary

Slave (2nd)

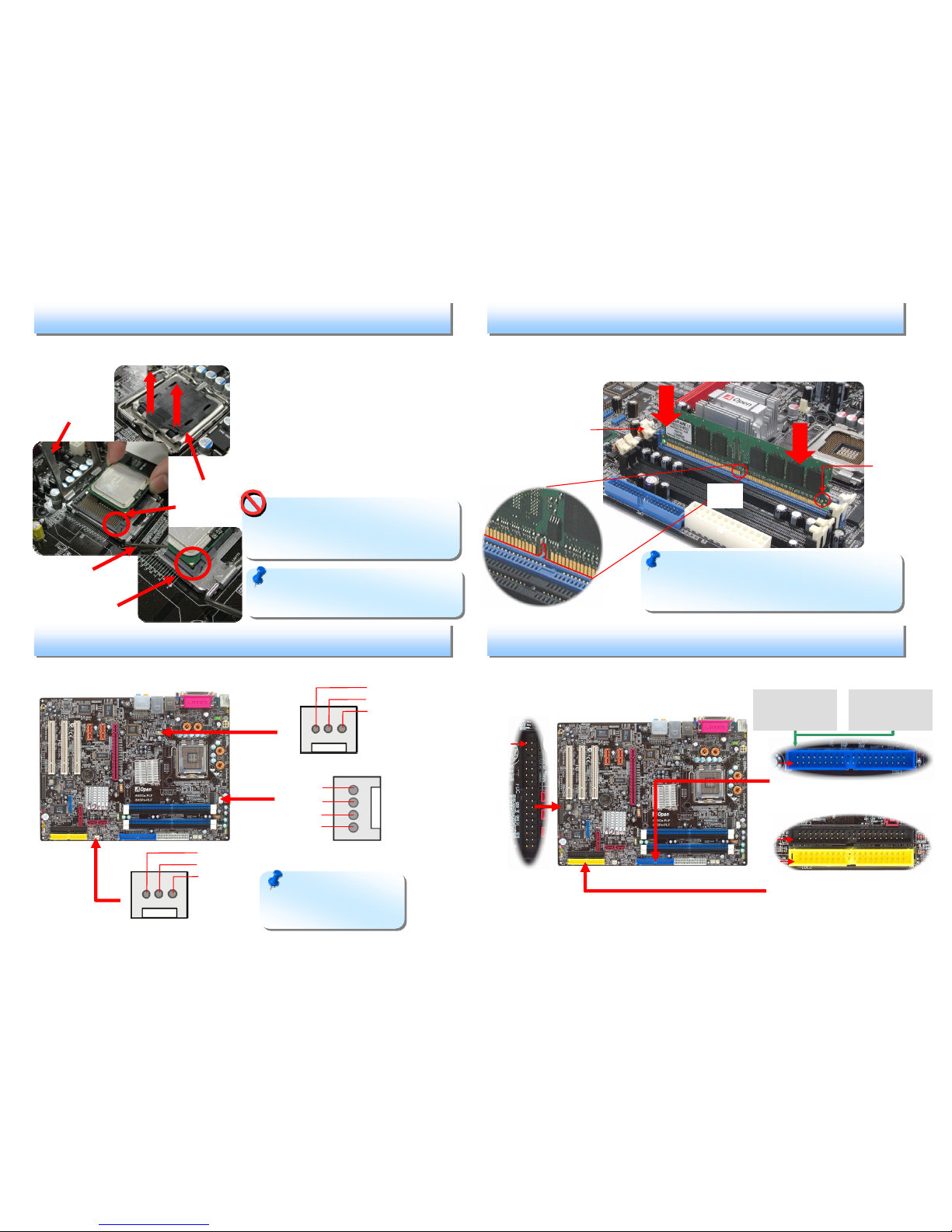

3. Installing Memory Modules

2. Installing CPU & System Fans

1. Installing CPU

Plug in the CPU fan cable to the 4-pin CPUFAN connector. If you have chassis fan,

you can also plug it in SYSFAN1 or SYSFAN2 connector.

DIMM slots are designed in balck and navy blue which are very easy to recognize.

Insert the module straight down to the DIMM slot with both hands and press down

firmly until the DIMM module is securely in place.

4. Connecting IDE and Floppy Cables

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDD

and IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause

system damage.

FDD Connector

Note: Some CPU fans

do not have sensor pin so

they cannot support fan

monitoring.

Warning: If you do not match the CPU

socket Pin 1 and CPU golden arrow well, you

may damage the CPU. And please don’t

touch CPU socket pins when installing CPU.

CPU socket plate

Socket Pin 1

Plastic ca

Golden arrow

CPU socket lever Note: It’s strongly recommended by

Intel to use thermal paste properly to avoid

over-heat generated From CPU.

Pin 1

ATA 66/100 IDE Connector

Note: The tabs of the DIMM slot will close-up to

hold the DIMM in place when the DIMM touches the

slot’s bottom.

Tab

Key

SYSFAN1 Connector

+12V

Senso

GND

CPUFAN Connector

PWM

SENSOR

GND

+12V

Senso

GND

SYSFAN2 Connector

Pin 1

ATA 66/100/133 IDE Connector

(iTE IT8211F)

This motherboard comes with a 24-pin and 4-pin ATX power connector as shown

below. Make sure you plug in the right direction. We strongly recommend you to

insert the 4-pin connector before connecting the 24-pin connector.

After you finish the setting of jumpers and connect correct cables. Power

on and enter the BIOS Setup, press <Del> during POST (Power On Self

Test). Choose "Load Setup Defaults" for recommended optimal

performance.

5. Connecting Front Panel cable

6. Connecting ATX Power Cables

Attach the power LED, speaker, and reset switch connectors to the corresponding

pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED

will keep flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is 2-pin female

connector from the housing front panel. Plug this connector to the soft-power

switch connector marked SPWR.

7. Power-on and Loading BIOS Setup

Del

8. AOpen EzInstall and Bonus Pack CD

You can use the autorun menu of Bonus CD disc. Choose the utility and driver

from the icons at left side, and then click on the “GO” button to complete

installation automatically.

Warning: Please avoid of using "Load Turbo Defaults", unless you are sure your

system components (CPU, RAM, HDD, etc.) are good enough for turbo setting.

Click to install

online manual

Install utility

Browse

Read me

Exit CD

Install driver

Power Switch

Front Panel Connector

GND

Power LED-

GND

Power LED+

GND

RESET

GND

+5V

HDD LED

+5V

GND

SPEAKER

+12V

Ground

Setting CPU Voltage & Frequency

ett

CPU C

ore

tage

This motherboard supports Voltage ID (VID) function to detect CPU voltage

automatically during power-on. It’s not necessary to set CPU core voltage.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through

1MHz stepping CPU Overclocking in the BIOS. CPU Core Frequency = CPU FSB

clock x CPU Ratio. However, all CPU now selling in the market belong to "Fixed

Multiplier". That means users can not adjust the CPU Ratio but only change CPU

FSB clock to achieve overclocking.

(Users do the overclocking at their own risk!!)

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup

CPU Ratio 8x, 10x… 24x, 25x, 26x, 27x, 28x

CPU FSB

(Adjustment manually)

FSB = 100MHz-400MHz by 1MHz Stepping CPU Overclocking

Processor

Number

Processor

Frequency

FSB CPU Ratio

Cache

Extreme Edition Processor

- 3.73G

1066MHz 14x 2MB L2

8 Series

840 3.20G

800MHz 16x 2 x 1MB L2

830 3.00G

800MHz 15x 2 x 1MB L2

820 2.80G

800MHz 14x 2 x 1MB L2

6 Series

670 3.80G

800MHz 19x 2MB L2

660 3.60G

800MHz 18x 2MB L2

650 3.40G

800MHz 17x 2MB L2

640 3.20G

800MHz 16x 2MB L2

630 3.00G

800MHz 15x 2MB L2

5 Series

570 3.80G

800MHz 19x 1MB L2

560 3.60G

800MHz 18x 1MB L2

550 3.40G

800MHz 17x 1MB L2

540 3.20G

800MHz 16x 1MB L2

530 3.00G

800MHz 15x 1MB L2

520 2.80G

800MHz 14x 1MB L2

3 Series

355 3.33G

533MHz 25x 256K L2

350 3.20G

533MHz 24x 256K L2

345 3.06G

533MHz 23x 256K L2

340 2.93G

533MHz 22x 256K L2

335 2.80G

533MHz 21x 256K L2

Note:With CPU speed changing rapidly, there might be faster CPU on the market

by the time you received this installation guide. This table is kindly for your

references only.

JP14 Clear CMOS

JP28 Keyboard/Mouse Wakeup Jumper

This motherboard provides keyboard / mouse wake-up function. You can use JP28

to enable or disable this function, which could resume your system from suspend

mode with keyboard or mouse. The factory default setting is “Disable” (1-2), and

you may enable this function by setting the jumper to 2-3.

You can clear CMOS to restore system default setting. To clear the CMOS, follow

the

rocedure below.

Pin 1

Note:

Some CPU

fans do not

have sensor

pin so they

cannot

support fan

monitoring.

Warning: Intel 945G / 945P chipset support maximum 1066MHz (266MHz*4)

system bus; higher clock setting may cause serious system damage.

Tip: When should I Clear CMOS?

1. Boot fails because of overclocking…

2. Forget password…

3. Troubleshooting…

1. Turn off the system and unplug the AC

power.

2. Remove ATX power cable from

connector PWR3.

3. Locate JP14 and short pins 2-3 for a few

seconds.

4. Return JP14 to its normal setting by

shorting pin 1 & pin 2.

5. Connect ATX power cable back to

connector PWR3.

Normal

(Default)

Clear CMOS

1 1

Disable

(Default)

Enable

IEEE 1394 Connectors

With IEEE1394 Chip on board (AGERE 1394), having its data transfer rate up to

400Mb/s, this interface can connect to devices that require high data transferring

performance such as digital camera, scanner or others IEEE 1394 devices. Please

use appropriate cables to connect IEEE1394 devices.

Gigabit LAN onboard

On the strength of Realtek Gigabit LAN chip on board, the motherboard provides

10/100/1000Mbps Ethernet for home and office use. The Ethernet RJ45 connector

is located on top of USB connectors. The right hand side LED indicates link mode,

it lights in yellow whenever linking to network. The left hand side LED indicates the

transfer mode and it lights in green when data is transferring in 100Mbps (never

lights while in 10Mbps), but lights in orange when transferring in Gigabit’s mode.

To enable or disable this function, you may simply adjust it through BIOS.

Transferring (Left)

Green 100Mbps

Orange Gigabit mode

Linking (Right)

Yellow

Front Audio Connectors

If the housing has been designed with an audio port on the front panel, you’ll be

able to connect onboard audio to front panel through this connector. By the way,

please remove 5-6 and 9-10 jumper caps from the Front Audio Connector before

connecting the cable. Please do not remove these 5-6 and 9-10 yellow jumper

caps if there’s no audio port on the front panel.

Serial ATA II Connectors

To connect a serial ATA II disk, you have to have a 7-pin serial ATA cable. Connect

two ends of the serial ATA II cable to the serial ATA II header on the motherboard

and the disk. Like every other traditional disk, you also have to connect a power

cable. Please be noted that it is a jumper free implement; you don’t need to set

jumpers to define a master or slave disk. When serial ATA II hard disks are

installed on serial ATA II ports, the one connected on Port0 (SATA1) will be set as

the first boot device automatically. Please note that it doesn’t support

Hot-Plug in function.

Pin 1

AUD_GND

AUD_VCC

Front Audio Connecto

AUD_RET_R

AUD_FPOUT_L

AUD

FPOUT

AUD MIC BIAS

AUD

MIC

AUD_RET_L

Pin1

1 2

TPA-

GND

TPB-

+12V (Fused)

SHIED GND

+12V (Fused)

TPB+

GND

TPA+

IEEE 1394 Connecto

SATA 2.0

Port1

SATA 2.0

Port2

SATA 2.0

Port3

SATA 2.0

Port4

Phoenix-Award BIOS ERROR Message

Beep Sound Message

1 short(Beep) System booting is normally.

1 long - 1 short(Beep) DRAM ERROR

1 long - 2 short(Beep) Display card or monitor connected error

1 long - 3 short(Beep) Keyboard Error

Long(Beep) continuous DRAM hasn't inset correctly.

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Phoenix - AwardBIOS v6.00PG, An Energy Star Ally

i945Ga-PLF R1.00 May 01. 2005 AOpen Inc.

Model name and BIOS version

Model name and BIOS version can be found on upper left corner of first boot

screen (POST screen). For example:

i945Ga-PLF is model name of motherboard; R1.00 is BIOS version

Thanks for choosing AOpen product, please register this motherboard at

http://club.aopen.com.tw/productreg/ to become a Gold member of Club AOpen,

and to ensure high service quality and priority from AOpen. You will also have a

chance to play slot machine game to win prize from AOpen. Please prepare the

following information before you start: Model Name, Part Number (P/N),

Serial Number (S/N) and Purchase Date. The Part Number and Serial

number are printed on bar code label. You can find this bar code label on the

outside packing or on component side of PCB. For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. We invite you to register at

http://www.aopen.com to become a Gold Member of Club AOpen so as to ensure

quality service in the future. In order to maintain the best service to every

customer of us, we recommend you to follow the procedures below and seek help

from our branches according to the region you buy the product. With your help, we

can then continue to provide efficient and the best quality service to every

customer.

Thanks very much for your understanding!

Europe Email: [email protected]

Pacific Rim http://www.aopen.com.tw/tech/default.htm

China: http://www.aopen.com.cn/tech/default.htm

Germany http://www.aopencom.de/tech/default.htm

America http://usa.aopen.com/tech/default.htm

Japan http://aopen.jp/tech/index.html

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Email: [email protected]

China

艾爾鵬國際貿易(上海)有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

America

AOpen America Inc.

Tel: 1-510-489-8928

Fax: 1-510-489-1998

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

Germany

AOpen Computer GmbH.

Tel: 49-2131-1243-710

Fax: 49-2131-1243-999

Autres manuels pour i945Ga-PLF

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels AOpen Carte mère

AOpen

AOpen i975Xa- YDG Manuel utilisateur

AOpen

AOpen i915Ga-EFRII Manuel utilisateur

AOpen

AOpen AX37D Pro Guide de configuration

AOpen

AOpen MX3W-E2 Manuel utilisateur

AOpen

AOpen DX37PU-OL-E0112B Manuel utilisateur

AOpen

AOpen MX4SGI-4DN Guide de configuration

AOpen

AOpen AX4S-U Manuel utilisateur

AOpen

AOpen AX4T II-133 Guide de configuration

AOpen

AOpen AX45F-4D Guide de configuration

AOpen

AOpen MX3S-U Guide de configuration

AOpen

AOpen MX4PER Guide de configuration

AOpen

AOpen Fortress 7000 Manuel utilisateur

AOpen

AOpen AX6BC PROII Manuel utilisateur

AOpen

AOpen AP55CS Manuel utilisateur

AOpen

AOpen AP57 Manuel utilisateur

AOpen

AOpen MX36CE Guide de configuration

AOpen

AOpen AX45-533 Max Fiche technique

AOpen

AOpen AX4SG-GN Guide de configuration

AOpen

AOpen AK79G-V Fiche technique

AOpen

AOpen MX4SGI-N Guide de configuration

AOpen

AOpen AX4GE Tube-G Manuel utilisateur

AOpen

AOpen AX45H-8X Max Fiche technique

AOpen

AOpen s661FXm-S Manuel utilisateur

AOpen

AOpen AX3S Pro-U Fiche technique

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur

AOpen i945Ga-PLF Fiche technique

Manuels Carte mère populaires d'autres marques
