ANTAIRA LNX-1202G-10G-SFP Manuel utilisateur

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

LNX-1202G-10G-SFP

12-Port Industrial Gigabit Unmanaged Ethernet Switch with

10*10/100/1000Tx + 2*10G SFP+ Slots

Version 1.0

(May 2017)

User Manual

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•Reorient or relocate the receiving antenna.

•Increase the separation between the equipment and receiver.

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment, this product may cause radio interference in which case

the user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Ethernet Switches

This manual supports the following models:

•LNX-1202G-10G-SFP

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

Table of Contents

1.Overview....................................................................... 1

1.1Key Features...................................................... 1

1.2Package Contents.............................................. 2

1.3 Safety Precaution............................................... 2

2.Hardware Description.................................................. 3

2.1Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 Top View............................................................ 4

2.4LED Indicators.................................................... 5

2.5Ethernet Ports..................................................... 5

2.6 Cabling............................................................... 6

2.7 Wiring the Power Inputs..................................... 8

2.8Wiring the Fault Alarm Contact .......................... 8

3.Mounting Installation .................................................. 9

3.1DIN-Rail Mounting.............................................. 9

3.2Wall Mounting................................................... 10

4.Hardware Installation................................................. 11

4.1Installation Steps.............................................. 11

5.Network Applications ................................................ 12

6.Trouble Shooting ....................................................... 13

7.Technical Specifications........................................... 14

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

1. Overview

Antaira Technologies’ LNX-1202G-10G-SFP is a 12-port industrial grade gigabit Ethernet

unmanaged switch. This rugged switch is enclosed in a metal IP30 rated design with a full

gigabit high port count which allows for a more versatile implementation. The LNX-1202G-10G-

SFP series is equipped with 10*10/100/1000 Ethernet ports and 2*100/1000 SFP+ slots. This

unit is the perfect solution for any application requiring high bandwidth and long distance

communication.

The LNX-1202G-10G-SFP supports high EFT & ESD protection to prevent damage from

unregulated power coming into the unit. It has built-in redundant power inputs that support

reverse polarity and overload current protection. It supports DIN-rail as well as wall mountable

orientations and provides an operating temperature range of -40°C to 60°C. This is an industrial

grade unit made for any harsh or outdoor networking environment in factory automation, ITS,

power/utility, and water wastewater treatment plants. This device is also ideal for any other

application requiring a high port count solution.

1.1 Key Features

System Interface/Performance

•All RJ45 ports support the auto MDI/MDI-X function

•Ethernet connectivity 10*10/100/1000Tx RJ45 ports

•Fiber connectivity with 2*10G SFP+ slots

•Store-and-forward switching architecture

•16K MAC address table

•Jumbo frame support up to 9,216 bytes

•12 Mbits memory buffer

•Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

Power Input

•DC 12~48V redundant power, with a 6-pin removal terminal block

Operating Temperature

•Standard operating temperature model: -40°C ~ 60°C

Case/Installation

•IP30 protection

•DIN-Rail and wall mount design

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

1.2 Package Contents

➢1 –Quick installation guide

➢1 –LNX-1202G-10G-SFP

➢1 –Set of wall mounting brackets and screws

➢1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

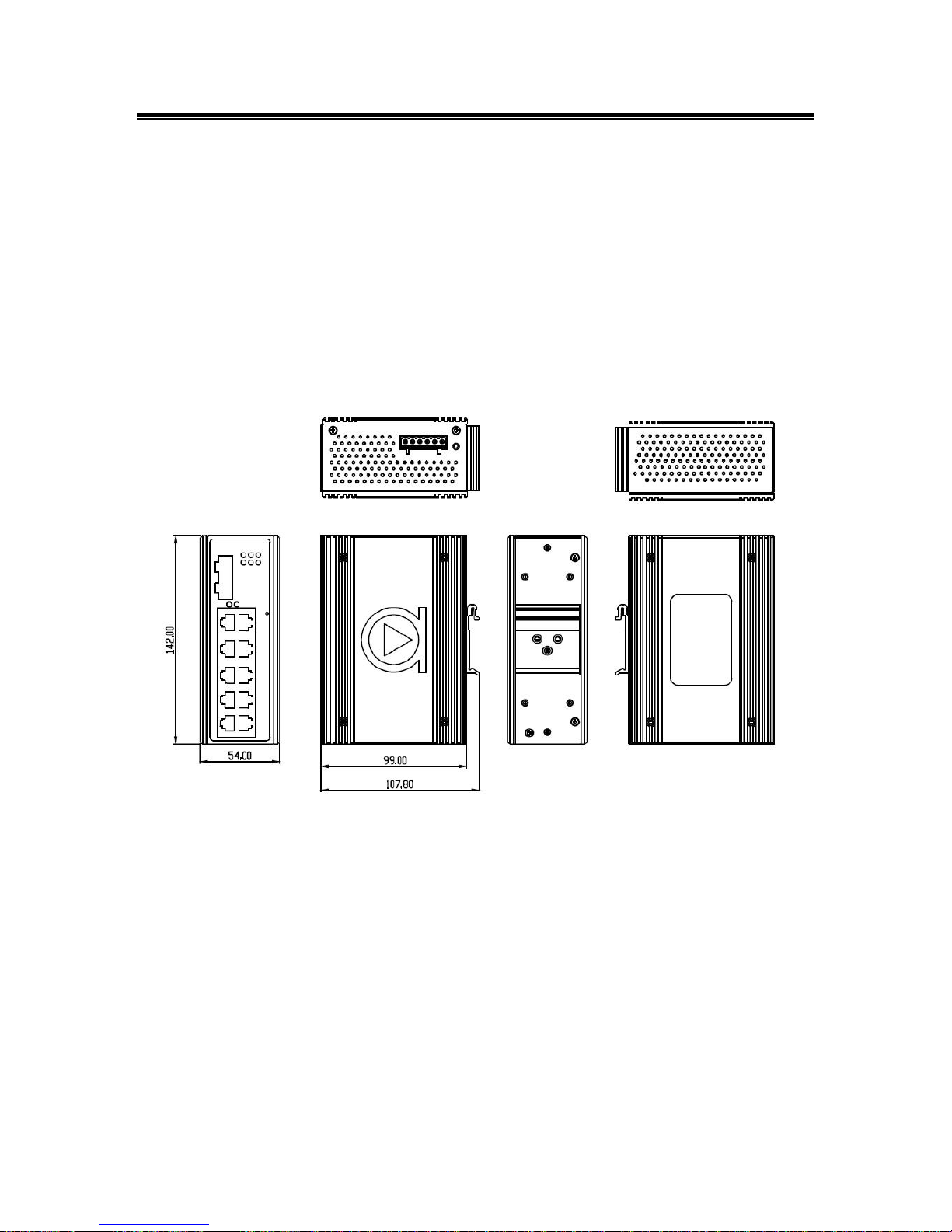

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNX-1202G-10G-SFP

series: 12-port industrial gigabit unmanaged Ethernet switch with 10*10/100/1000Tx RJ45 +

2*100/1000Fx SFP+ slots.

(W x D x H) is 54mm x 99mm x 142mm

Figure 2.1

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

2.2 Front Panel

The front panel of the LNX-1202G-10G-SFP: 12-port industrial gigabit unmanaged Ethernet

switch with 10*10/100/1000Tx RJ45 and 2*100/1000 SFP+ slots. See Figure 2.2.

2.3 Top View

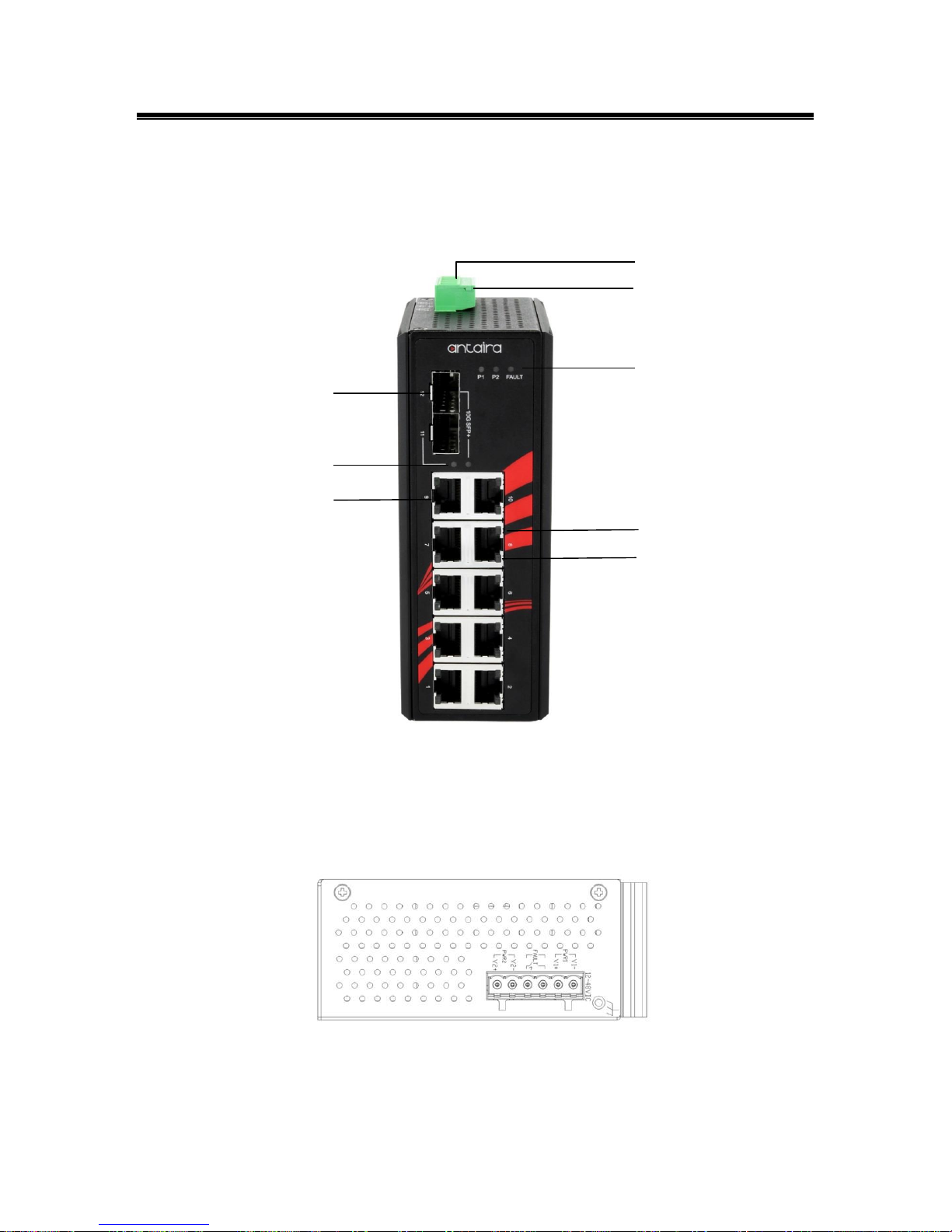

Figure 2.3, below, shows the top panel of the LNX-1202G-10G-SFP switch that is equipped

with one 6-pin removal terminal block connector for dual DC power inputs (12-48 VDC).

SFP# 11~12 –SFP+ Slots

SFP# 11~12 –LED Network Activity

LAN# 1~10 –10/100/1000Tx RJ45

Grounding Screw

6-Pin Removal Terminal Block

(Power Input)

LED for Power 1, Power 2, and Fault

LAN# 1~10 –LED Link/Activity

Status 1000Mbps

LAN# 1~10 –LED Link/Activity

Status 10/100Mbps

Figure 2.2

Figure 2.3

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

2.4 LED Indicators

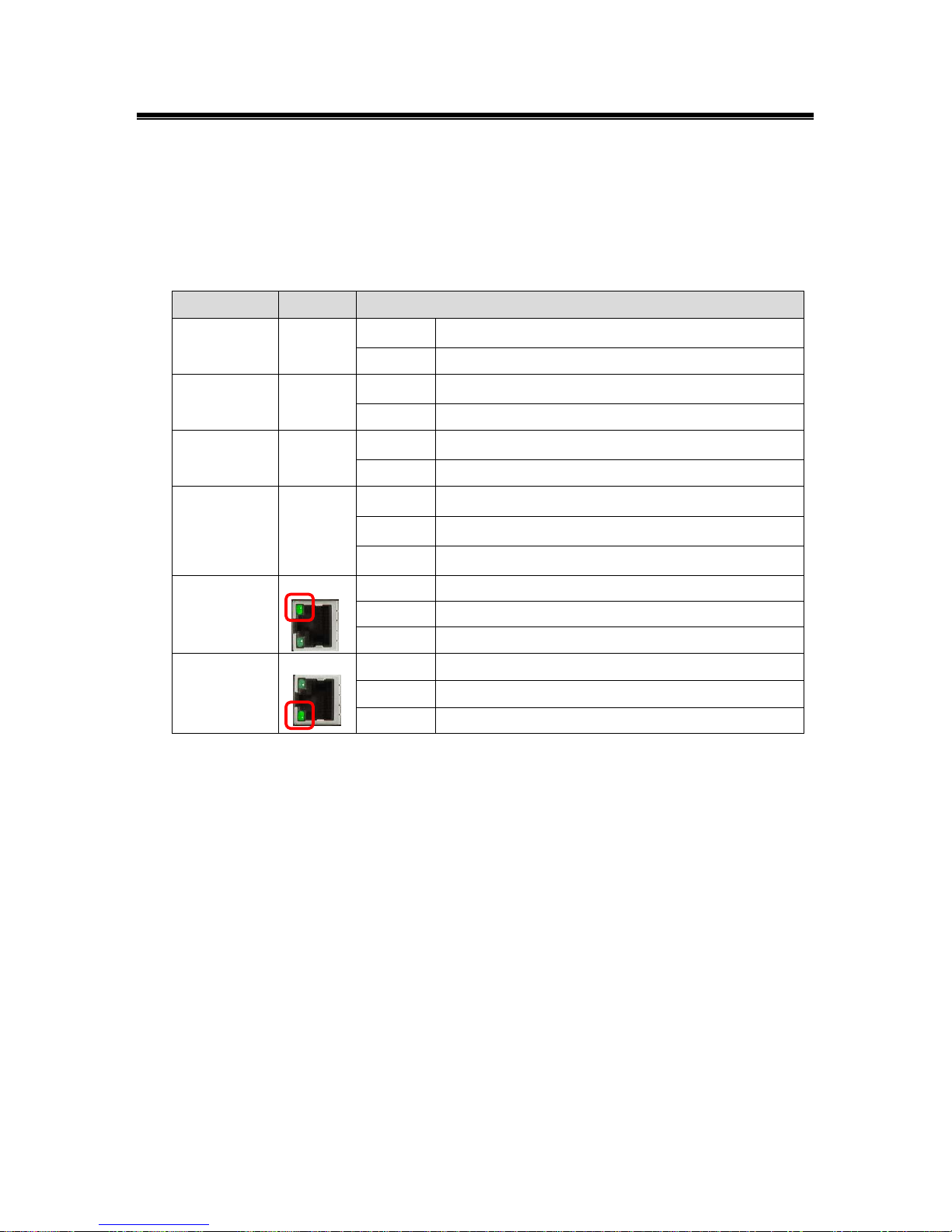

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED

Color

Description

Power 1

Green

Power input 1 is active

Off

Power input is inactive

Power 2

Green

Power input 2 is active

Off

Power input is inactive

Fault

Red

Power input 1 or 2 is inactive

Off

Both power input 1 and 2 are active

Link Activity

(SFP Port)

Green

Connected to the network

Flashing

Networking is active with 10G

Off

Not connected to the network

LAN Port 1 ~ 10

(Upper LED)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 1 ~ 10

(Lower LED)

Green

Connected to network, 10/100Mbps

Flashing

Networking is active

Off

Not connected to network

2.5 Ethernet Ports

RJ45 Ports (Auto MDI/MDIX):

The RJ45 ports are auto-sensing for 10/100/1000Base-Tx devices connections. Auto MDI/MDIX

means that the switch can connect to another switch or workstation without changing the straight-

through or crossover cabling. See the figures shown below for straight-through and crossover

cabling schematics.

Table 2.1

Antaira Technologies - Industrial Ethernet Switches

LNX-1202G-10G-SFP User Manual V1.0

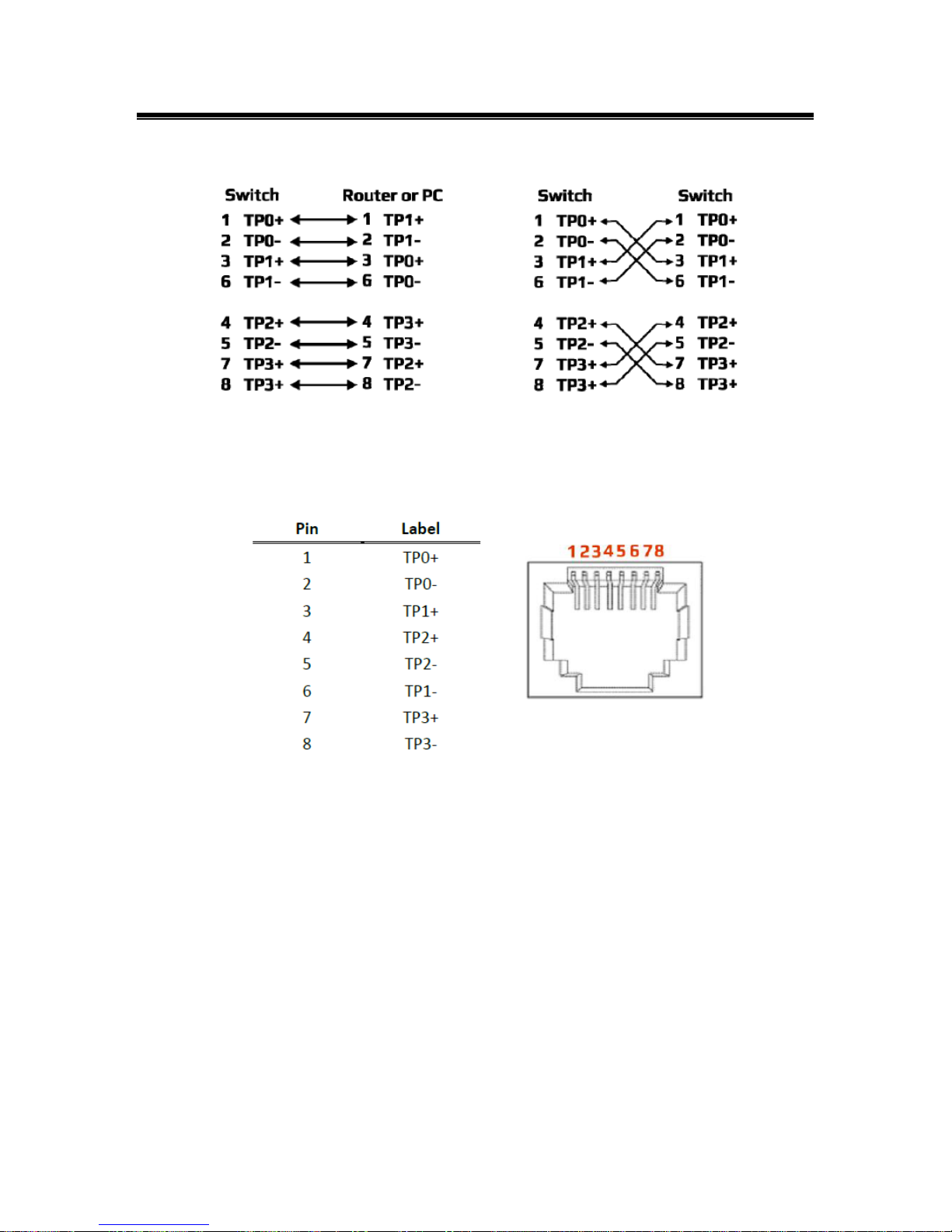

The following figures show the cabling schematics for straight-through and crossover cables.

The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs.

2.6 Cabling

Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded

Twisted Pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard

(e.g. Category 5, 5e, or 6, 6e). The cable between the equipment and the link partner (switch,

hub, workstation, etc.) must be less than 100 meters (328 ft.) long.

*Note: Cable size should be between 18~20 AWG and the torque should be tightened to

5lbs.

The Small Form-factor Pluggable (SFP) is a compact optical transceiver used in optical

communications for both telecommunication and data communication applications.

Figure 2.4 Figure 2.5

Straight-Through Cables Schematic Crossover Cables Schematic

Figure 2.6

RJ45 Ethernet Port Pin Outs
