LNP-1002G-10G-SFP-24 User Manual V1.1

LNP-1002G-10G-SFP-24

10-Port Industrial PoE+ Gigabit Unmanaged Ethernet Switch with

8*10/100/1000Tx (PSE: 30W/Port) + 2*10G SFP+ Slots; 24~55VDC

Version 1.1 (July 2018)

User Manual

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

iii

FCC Notice

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna

 Increase the separation between the equipment and receiver

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

 Consult the dealer or an experienced radio/TV technician for help

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment, this product may cause radio interference in which case

the user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Unmanaged Ethernet Switches

This manual supports the following models:

 LNP-1002G-10G-SFP-24

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

Table of Contents

1.Overview ....................................................................... 1

1.1 Key Features ...................................................... 1

1.2 Package Contents .............................................. 1

1.3 Safety Precaution ............................................... 2

2. Hardware Description ................................................. 3

2.1 Physical Dimensions .......................................... 3

2.2 Front Panel ........................................................ 4

2.3 Top View ............................................................ 4

2.4 LED Indicators .................................................... 5

2.5 Ethernet Ports .................................................... 5

2.6 Cabling ............................................................... 6

2.7 Wiring the Power Inputs ..................................... 8

2.8 Wiring the Fault Alarm Contact .......................... 8

3. Mounting Installation .................................................. 9

3.1 DIN-Rail Mounting .............................................. 9

3.2 Wall Mounting .................................................. 10

4. Hardware Installation ................................................ 11

4.1 Installation Steps .............................................. 11

5. Network Applications ................................................ 12

6. Trouble Shooting ...................................................... 13

7. Technical Specifications .......................................... 14

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

1. Overview

Antaira Technologies’ new compact DIN-Rail industrial gigabit PoE+ unmanaged switch, LNP-

1002G-10G-SFP, features 8*10/100/1000Tx Ethernet ports that support IEEE 802.3at high power

PoE (30W/Port), and two 10G SFP+ slots for long distance fiber connections. The device is

designed with high EFT and ESD protection and supports extreme operating temperature

environments (-40° to 60°C).

The LNP-1002G-10G-SFP provides extensive connectivity solutions for the continuously growing

demand for bandwidth to support applications under a variety of outdoor or harsh environments,

such as security surveillance, traffic monitoring, and campus or sport venue-wide network

infrastructure.

1.1 Key Features

 System Interface/Performance

 All RJ45 ports support the auto MDI/MDI-X function

 Ethernet connectivity 8*10/100/1000Tx RJ45 ports (PSE: 30W/Port)

 Fiber connectivity with 2*10G SFP+ slots

 Store-and-forward switching architecture

 16K MAC address table

 Jumbo frame support up to 9,216 bytes

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 24~55V redundant power, with a 6-pin removal terminal block

 Operating Temperature

 Standard operating temperature model: -40°C ~ 60°C

 Case/Installation

 IP30 protection

 DIN-Rail and wall mount design

1.2 Package Contents

 1 – Quick Installation Guide

 1 – LNP-1002G-10G-SFP-24

 1 – Set of wall-mounting brackets and screws

 1 – DC cable – 18 AWG & DC jack 5.5 x 2.1mm

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s hardware

specs, ports, cabling information, and wiring installation will be described

within this user manual.

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

2. Hardware Description

2.1 Physical Dimensions

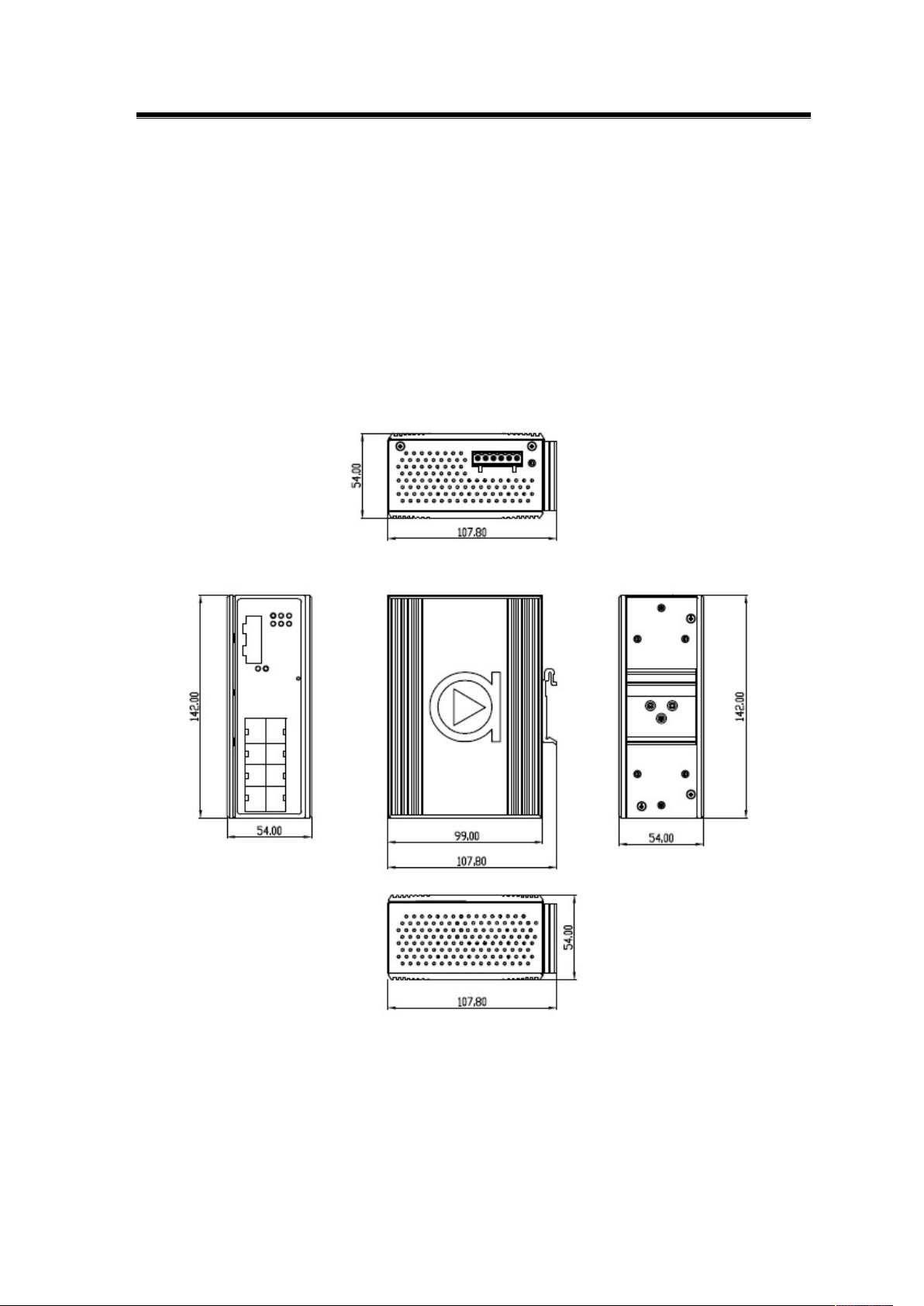

Figure 2.1, below, shows the physical dimensions of Antaira Technologies’ LNP-1002G-10G-SFP-

24: 10-port industrial PoE+ gigabit unmanaged Ethernet switch with 8*10/100/1000Tx (PSE:

30W/Port) + 2*10G SFP+ slots; 24~55VDC.

(W x D x H) is 54mm x 99mm x 142mm

Figure 2.1

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

2.2 Front Panel

The front panel of the LNP-1002G-10G-SFP-24: 10-port Industrial PoE+ Gigabit unmanaged

Ethernet switch with 8*10/100/1000Tx (PSE: 30W/Port) and 2*10G SFP+ Slot; 24~55VDC. See

Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNP-1002G-10G-SFP-24 switch that is

equipped with one 6-pin removal terminal block connector for dual DC power inputs (24~55 VDC).

Figure 2.2

Grounding Screw

SFP# 9~10 – SFP+ Slots

SFP# 9~10 - LED Network Activity

LAN# 1~8 – 10/100/1000 RJ45

Figure 2.3

6-Pin Removal Terminal Block (Power Input)

LED for Power 1, Power 2, and Fault

LAN# 1~8 – LED Link/Activity Status

LAN# 1~8 – PoE Status

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has its

own specific meaning, see below in Table 2.1.

LED Color Description

Power 1

Green On Power input 1 is active

Off Power input is inactive

Power 2

Green On Power input 2 is active

Off Power input is inactive

Fault

Red On Power input 1 or 2 is inactive

Off Both power input 1 and 2 are active

Link Activity

(SFP Port)

Green

On Connected to the network

Flashing

Networking is active with 10G

Off Not connected to the network

LAN Port 1 ~ 8

(Upper LED)

Green

On Connected to network, 10/100/1000Mbps

Flashing Networking is active

Off Not connected to network

LAN Port 1 ~ 8

(Lower LED)

Green

On The port is supplying power to the powered-device

Off No powered-device connected or power supplying fails

2.5 Ethernet Ports

 RJ45 Ports (Auto MDI/MDIX):

The RJ45 ports are auto-sensing for 10/100/1000Base-Tx devices connections. Auto MDI/MDIX

means that the switch can connect to another switch or workstation without changing the straight-

through or crossover cabling. See the figures shown on the top of the next page for straight-through

and crossover cabling schematics.

Table 2.1

Antaira Technologies - Industrial Ethernet Switches

LNP-1002G-10G-SFP-24 User Manual V1.1

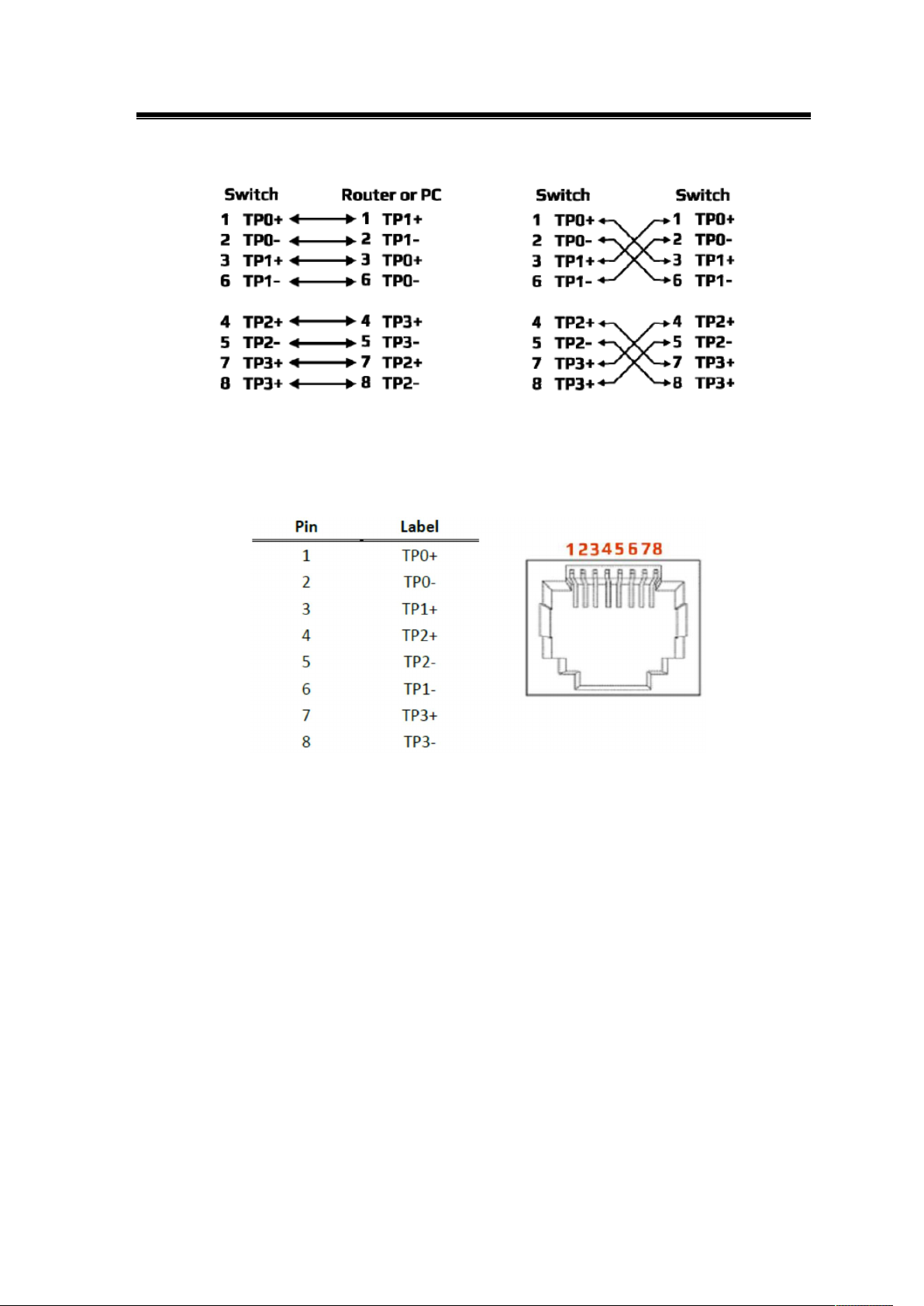

The following figures show the cabling schematics for straight-through and crossover cables.

The following figures show the 10,100, and 1000 Ethernet RJ‐45 pin outs.

2.6 Cabling

 Twisted-pair segments can be connected with an unshielded twisted pair (UTP) or shielded

twisted pair (STP) cable. The cable must comply with the IEEE 802.3u 100Base TX standard

(e.g. Category 5, 5e, or 6, 6e). The cable between the equipment and the link partner (switch,

hub, workstation, etc.) must be less than 100 meters (328 ft.) long.

 Note: Cable size should be between 18~20 AWG and the torque should be tightened to 5lbs.

The small form-factor pluggable (SFP) is a compact optical transceiver used in optical

communications for both telecommunication and data communication applications.

Figure 2.4 Figure 2.5

Straight-Through Cables Schematic Crossover Cables Schematic

Figure 2.6

RJ45 Ethernet Port Pin Outs
