ANTAIRA LMP-2602G-SFP Series Manuel utilisateur

LMP-2602G-SFP Series

26-PortIndustrialPoE+GigabitManagedEthernetSwitch, with 24*10/100/1000Tx RJ45

(30W/Port) and 2*Gigabit Combo Ports (2*10/100/1000Tx RJ45 and 2*100/1000 SFP)

Hardware Manual

Version 1.0

(April 2020)

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment and receiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit PoE Managed Ethernet Switches

Hardware Manual

Version 1.0 (April 2020)

This manual supports the following models:

•

LMP-2602G-SFP

•

LMP-2602G-SFP-T

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

Table of Contents

1. Introduction............................................................... 1

1.1 Product Overview 1

1.2 Product Software Features 1

1.3 Product Hardware Features 2

1.4 Package Contents 2

1.5 Safety Precaution 2

2. Hardware Description............................................... 4

2.1 Physical Dimensions 4

2.2 Front Panel 5

2.3 Top View 5

2.4 LED Indicators 6

2.5 Reset Button 7

2.6 Ethernet Ports 7

2.7 Cabling 8

2.8 Wiring the Power Inputs 9

2.9 Wiring the Fault Alarm Contact 10

2.10 Grounding Note 10

3.Mounting Installation................................................11

3.1 DIN-Rail Mounting 11

4.Hardware Installation ...............................................12

4.1 Installation Steps 12

4.2 Maintenance and Service 12

5. Technical Specifications..........................................13

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple

Network Management Protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMP-2602G-SFP series is a 26-port industrial gigabit PoE+ managed

Ethernet switch features 24*10/100/1000Tx Ethernet ports with IEEE 802.3at high power PoE

(30W/Port) and also provides 2*gigabit combo ports with 2*10/100/1000Tx RJ45 and 2*100/1000Fx

SFP slots for fiber or twisted pair connections, making it ideal for applications that demand high

density of PoE+ port connectivity, wide bandwidth, and long-distance communication. LMP-2602G-

SFP series is a fully manageable Layer 2 Ethernet switch that is pre-loaded with a user-friendly web

management console design. It supports the ring network redundancy function using the market’s open

standard ITU-T G.8032 ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network

recovery time. The advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP,

port lock, RMON, Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network

management for remote SCADA systems or control networks.

The LMP-2602G-SFP series is designed with IP40 rated 1U 19” rackmount and provides high EFT and

ESD protection to prevent any unregulated voltage. Supporting the two wide operating temperature

models with the standard version in -10° to 65˚C or extended version in -40° to 75˚C also makes it the

best solution for any harsh and extreme ambient weather environment applications, such as, power/utility,

transportation, water wastewater treatment plant, oil/gas, and security surveillance system industries.

1.2 Product Software Features

◼Network Redundancy

➢

STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy

◼Network Management

➢

Web UI based management, SNMP v1/v2/v3, Serial Console

➢

Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

➢

IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

➢

IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 1024 group

➢

Supports IPv4/IPv6, RMON, event syslog, DNS, NTP/SNTP, HTTPS, SSH

◼Port Configuration

➢

Status, statistics, rate limiting, event syslog

◼Event Handling

➢

Fault Alarm Relay Output

◼Software Upgrade via TFTP and HTTP

◼Configuration Backup –USB Port

1.3 Product Hardware Features

◼System Interface and Performance

•

All RJ-45 ports support Auto MDI Function

•

Embedded 24*10/100/1000Tx (PSE: 30W/Port) RJ45 Ports and 2*100/1000 SFP slots

•

Store-and-forward switching architecture

•

8K MAC address table

◼Power Input

•

DC 48~55V redundant, with a 8-pin and 2-pin removal terminal block

◼Operating Temperature

•

LMP-2602G-SFP: -10°C to65°C

•

LMP-2602G-SFP-T: -40°C to75°C

◼Case/Installation

•

IP-40 protection metal housing

•

Rack Mounted

1.4 Package Contents

◼1 –LMP-2602G-SFP(-T)

◼1 –Quick Installation Guide

◼1 –Rack mount kit

◼1 –RJ45 to DB9 serial console cable

1.5 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

described within this user manual.

Warning Labels

The caution label means that you should check the certain information on user manual when working with the

device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

This warning label is on the device, and means that the surface of the device is hot. (Shown in Figure 1.2)

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

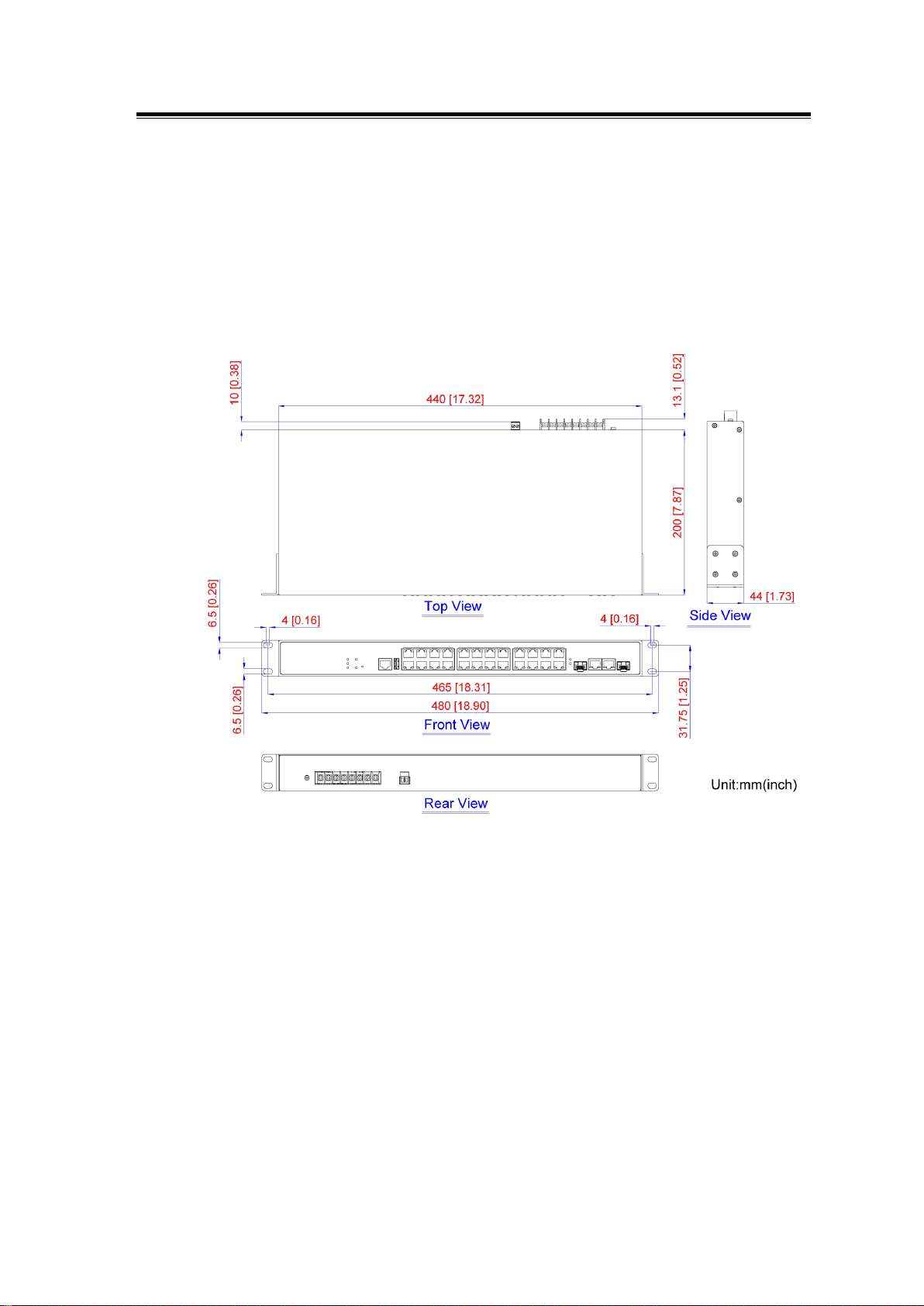

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-2602G-SFP series:

(W x D x H) is 440mm x 200mm x 44mm

Figure 2.1

LMP-2602G-SFP Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

2.2 Front Panel

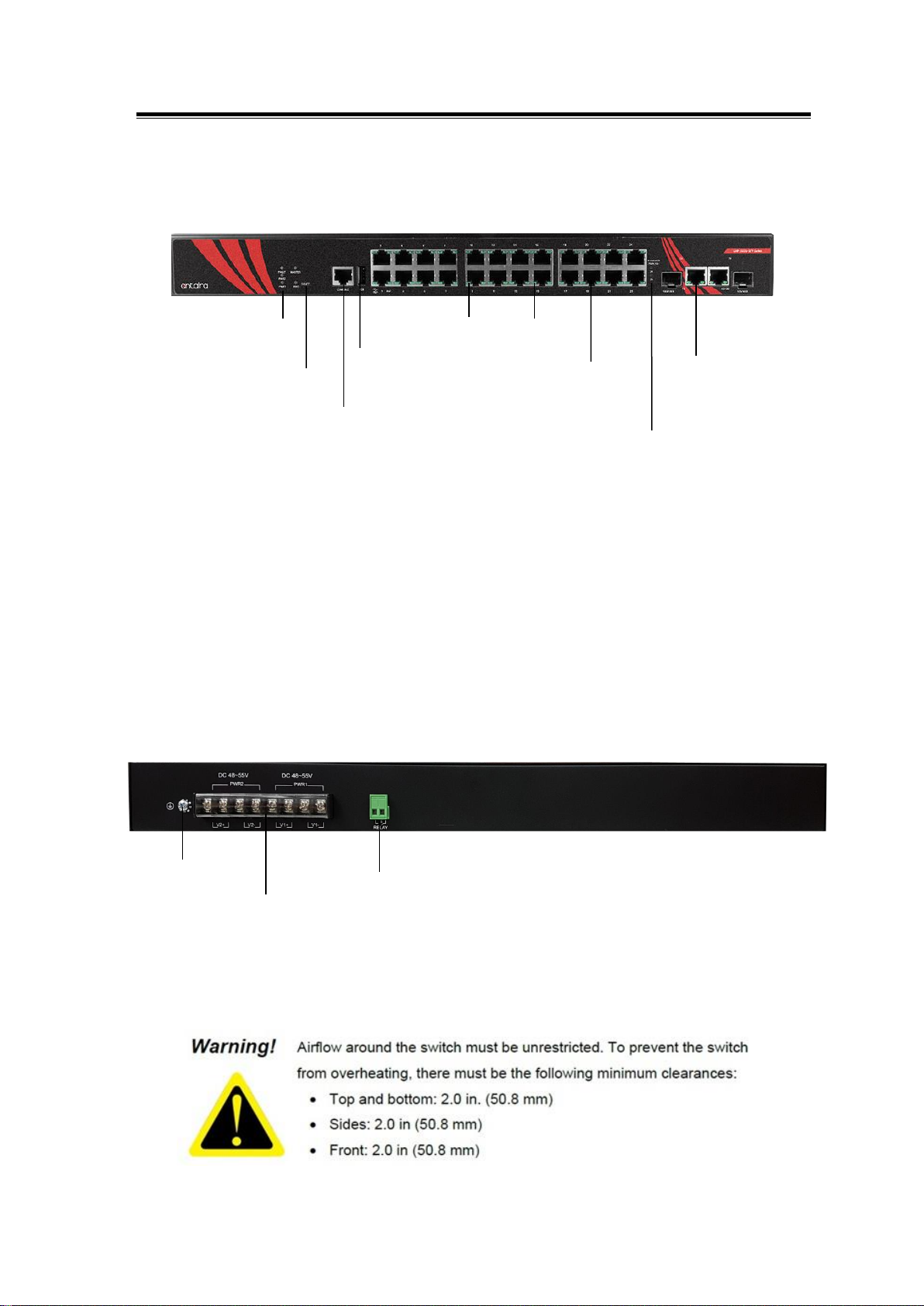

The front panel of the LMP-2602G-SFP series industrial gigabit PoE+ managed Ethernet switch is

shown below in Figure 2.2.

Figure 2.2 - The Front Panel of LMP-2602G-SFP Series

2.3 Rear Panel

Figure 2.3, below, shows the top panel of the LMP-2602G-SFP series switch that is equipped

with one 8-connector redundant power inputs (48-55VDC) and one 2-pin terminal block for

replay output

Figure2.3

Top Panel View of LMP-2602G-SFP Series

USB Port

LED for SFP

Reset Button

Grounding Screw

Console Port

LNK/ACT

PoE LED

Gigabit Combo Port-

2*10/100/1000Tx RJ45

2*100/1000 SFP

24*10/100/1000Tx RJ45

8-connector Power Input

Relay Output

Power, Fault, Master,

and Ring LED

Antaira Technologies - Industrial EthernetSwitches

LMP-2602G-SFP Series Hardware Manual V1.0

2.4 LED Indicators

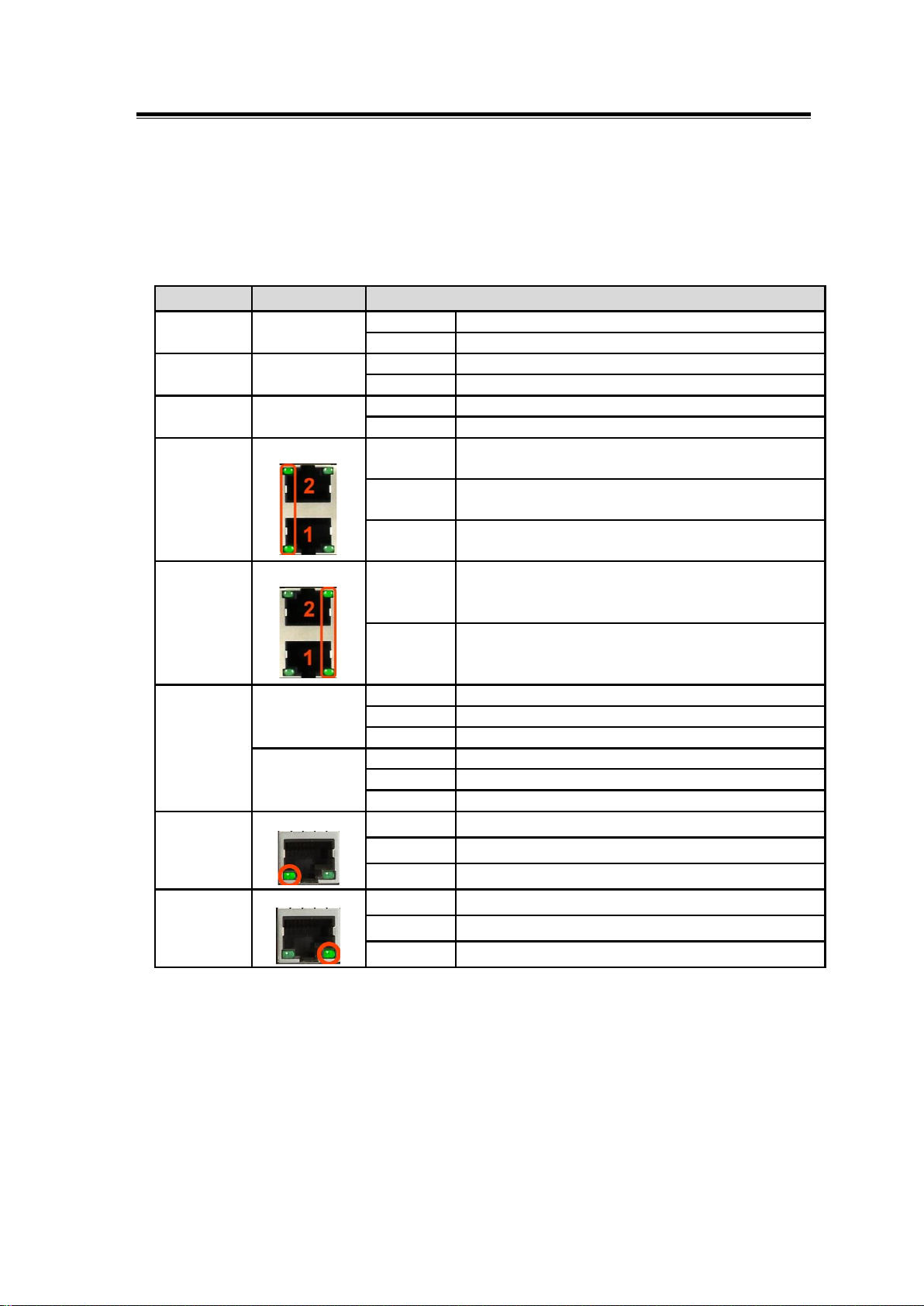

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and

has its own specific meaning, see below in Table 2.1.

LED

Color

Description

PWR1

Green

Power input 1 is active

Off

Power input 1 is inactive

PWR2

(Optional)

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Red

Extension power source 1 or 2 is inactive

Off

Extension power source 1 and 2 are both functional

LAN Port

(Port 1-24)

Green

Connected to network, 10/100/1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port

(Port 1-24)

Green

The port is supplying power to the powered-device (30W

per port)

Off

No powered-device attached or power supplying fails

SFP Port with

combo port

LINK/ACT

(Port 25-26)

Green

Connected to network

Flashing

Networking is active with 1000Mbps

Off

Not connected to network

Amber

Connected to network

Flashing

Networking is active with 100Mbps

Off

Not connected to network

LAN Port with

combo port

(Port 25-26)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port with

combo port

(Port 25-26)

Green

Connected to network, 10/100Mbps

Flashing

Networking is active

Off

Not connected to network

Table 2.1 - LED Indicators for LMP-2602G-SFP Series

Table 2.1

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ANTAIRA Changer

ANTAIRA

ANTAIRA LMP-1600G-M12-67-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C501G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0500G-bt-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1002G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0804G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1002C-SFP Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0800 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-C602G-SFP-bt-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-2004G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-0501-24-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-1002C-SFP-T Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0804G-SFP-T Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0702G-SFP-24 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-0800-T Manuel utilisateur

ANTAIRA

ANTAIRA LMX-1802G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-0500-M12-67 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-C800G Series Manuel utilisateur

ANTAIRA

ANTAIRA LNP-2602G-SFP Series Manuel utilisateur

ANTAIRA

ANTAIRA LMP-1600G Series Manuel utilisateur

ANTAIRA

ANTAIRA LMX-0702G-SFP-V2 Series Manuel utilisateur

ANTAIRA

ANTAIRA LNX-C500-T-CC Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
