ANTAIRA ARY-7235-AC-PD Manuel utilisateur



ARY-7235-AC-PD

Industrial Outdoor IP67 Plastic Housing IEEE 802.11a/b/g/n/ac Wireless

Access Point/Client/Bridge/Repeater/Router with PoE PD

Hardware Manual



Version 1.0

(November 2020)

 

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

This document contains information, which is protected by copyright. Reproduction, adaptation, or

translation without prior permission is prohibited, except as allowed under the copyright laws.



Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo

are the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA

are the registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or

registered trademarks of their respective owners.



translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under

the copyright laws.



Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied,

including but not limited to the implied warranties of merchantability and fitness for a particular purpose.

Antaira Technologies, LLC may make improvements and/or changes to the product and/or specifications

of the product described in this manual, without prior notice. Antaira Technologies, LLC will not be liable

for any technical inaccuracies or typographical errors found in this guide. Changes are periodically made

to the information contained herein and will be incorporated into later versions of the manual. The

information contained is subject to change without prior notice.



FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant

to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses, and can radiate radio frequency

energy. It may cause harmful interference to radio communications if the equipment is not installed and

used in accordance with the instructions. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

●Reorient or relocate the receiving antenna.

●Increase the separation between the equipment and receiver.

●Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

●Consult the dealer or an experienced radio/TV technician for help.



Caution: Any changes or modifications not expressly approved by the grantee of this device could void

the user’s authority to operate the equipment.



Avertissement FCC

Cet équipement a été testé et déclaré conforme aux limites d'un appareil numérique de classe A,

conformément à la partie 15 des règles de la FCC. Ces limites sont conçues pour fournir une protection

raisonnable contre les interférences nuisibles dans une installation résidentielle. Cet équipement génère,

utilise et peut émettre de l'énergie radiofréquence. Cela peut provoquer des interférences nuisibles aux

communications radio si l'équipement n'est pas installé et utilisé conformément aux instructions.

Cependant, il n'y a aucune garantie qu'aucune interférence ne se produira dans une installation

particulière. Si cet équipement provoque des interférences nuisibles à la réception radio ou télévision, ce

qui peut être déterminé en éteignant puis en rallumant l'équipement, l'utilisateur est encouragé à essayer

de corriger les interférences par une ou plusieurs des mesures suivantes:

●Réorientez ou déplacez l'antenne de réception.

●Augmentez la distance entre l'équipement et le récepteur.

●Connectez l'équipement à une prise sur un circuit différent de celui auquel le récepteur est

connecté.

●Consultez le revendeur ou un technicien radio / TV expérimenté pour obtenir de l'aide.



CE Mark Warning

This is a Class-A product. In a domestic environment, this product may cause radio interference in which

case the user may be required to take adequate measures.

Avertissement de marque CE

Ceci est un produit de classe A. Dans un environnement domestique, ce produit peut provoquer des

interférences radio, auquel cas l'utilisateur peut être amené à prendre des mesures adéquates.

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

Industrial Wireless Access Points

Industrial Grade Wireless Access Point



Hardware Manual

Version 1.0 (November 2020)



The manual supports the following models:

●ARY-7235-AC-PD



This document is the current official release hardware manual. Please check our website

(www.antaira.com) for any updated manual or contact us by e-mail ([email protected]). 

Antaira Technologies - Industrial Wireless Access Points
ARY-7235-AC-PD - Hardware Manual - v1.0

Table of Contents
Overview 1
1 Product Hardware Features 1
2 Product Software Features 1
3 Package Contents 2
4 Safety Precaution 2
Hardware Description 4
1 Physical Dimensions 4
2 Front View Panel 5
3 Top View Panel 5
4 LED Indicators 6
5 Reset Button 7
6 Ethernet Ports 7
7 Cabling 8
8 Wiring the Power Inputs 8
9 Wiring the Fault Alarm Contact 9
10 Grounding Note 10
Mounting Installation 12
1 DIN-Rail Mounting 12
2 Wall Mounting 13
Hardware Installation 15
1 Installation Steps 15
2 Maintenance and Service 15
3 Troubleshooting 16
Technical Specifications 17


Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

1 Overview

Antaira Technologies’ ARY-7235-AC-PD is designed for industrial and enterprise outdoor wireless access

applications. Embedded with the Qualcomm IPQ4029 SoC chipset, it boasts network robustness, stability

and a wider network coverage. Based on IEEE 802.11a/b/g/n/ac, the access point supports high-speed

data transmission of up to 867Mbps.

The ARY-7235-AC-PD is capable of operating in different modes, which makes it suitable for a wide

variety of wireless applications including long-distance deployments. With the standard operating

temperature range of -40°C to 50°C and the plastic housing IP67 rated, this wireless access point is built

for applications where extreme dust and other harsh environmental conditions exist.

1.1 Product Hardware Features

System Interface and Performance

- Qualcomm IPQ4029 Quad-Core Wi-Fi SoC

- WAN 1*10/100/1000Tx

- LAN 1*10/100/1000Tx (with PoE PD)

- WLAN supports concurrent 2.4G/5GHz Wi-Fi

Product Input

- PoE PD: 48~56VDC

- The power input specification complies with the requirements of SELV (Safety Extra Low Voltage)

and the power supply should comply with UL 61010-1 & UL 61010-2-201

Operating Temperature

- Standard operating temperature model: -40°C to 50°C

Case / Installation

- IP67 protection plastic housing

- Pole mount and wall-mount design

1.2 Package Contents

- ARY-7235-AC-PD

- Quick Installation Guide

- Pole mounting bracket set with screws

1

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

- Set of antennas

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection device on the power

supply input. The industrial wireless access point’s hardware specs, ports, cabling information, and wiring

installation will be described within this hardware manual.



Attention: Si la tension CC est fournie par un circuit externe, veuillez utiliser un dispositif de protection sur

l'entrée d'alimentation. Les spécifications matérielles, les ports, les informations de câblage et

l'installation du câblage du point d'accès sans fil industriel seront décrits dans ce manuel du matériel.



Warning Labels

The caution label means that you should check certain information on the user manual when working

with the device. (Shown in Figure 1.1)



Étiquettes d'avertissement

L'étiquette d'avertissement signifie que vous devez vérifier certaines informations du manuel d'utilisation

lorsque vous travaillez avec l'appareil. (Illustré à la figure 1.1)

Figure 1.1 - Caution Label

Figure 1.1 - Étiquette de mise en garde

Figure 1.2 - Hot Surface Warning Label

Figure 1.2 - Étiquette d'avertissement de surface chaude

 

2

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

2 Hardware Description

2.1 Physical Dimensions

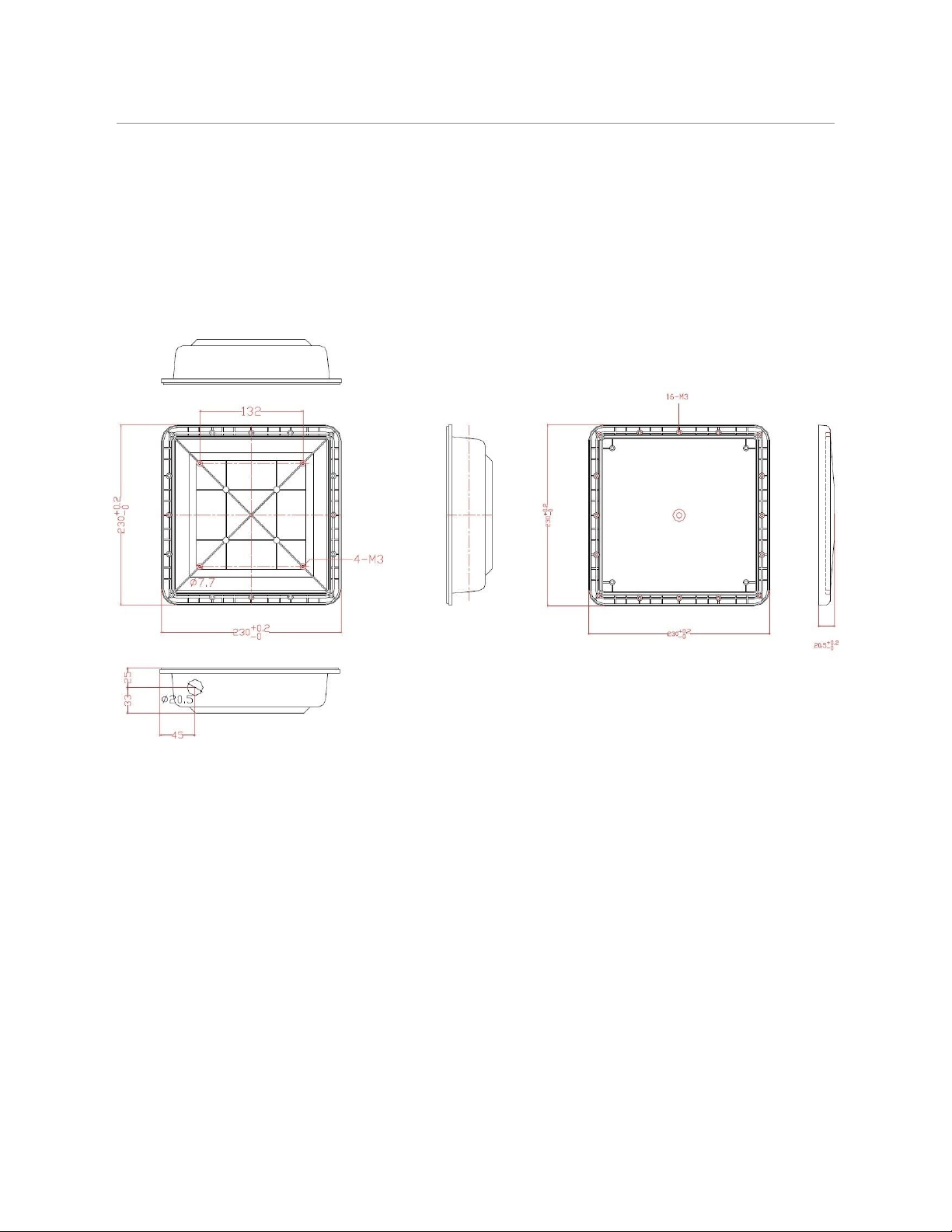

Figure 2.1, below, shows the physical dimensions of this product:



(W x D x H) is 230mm x 230mm x 58mm

Figure 2.1 - Physical Dimensions

 

3

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

2.2 Front View Panel

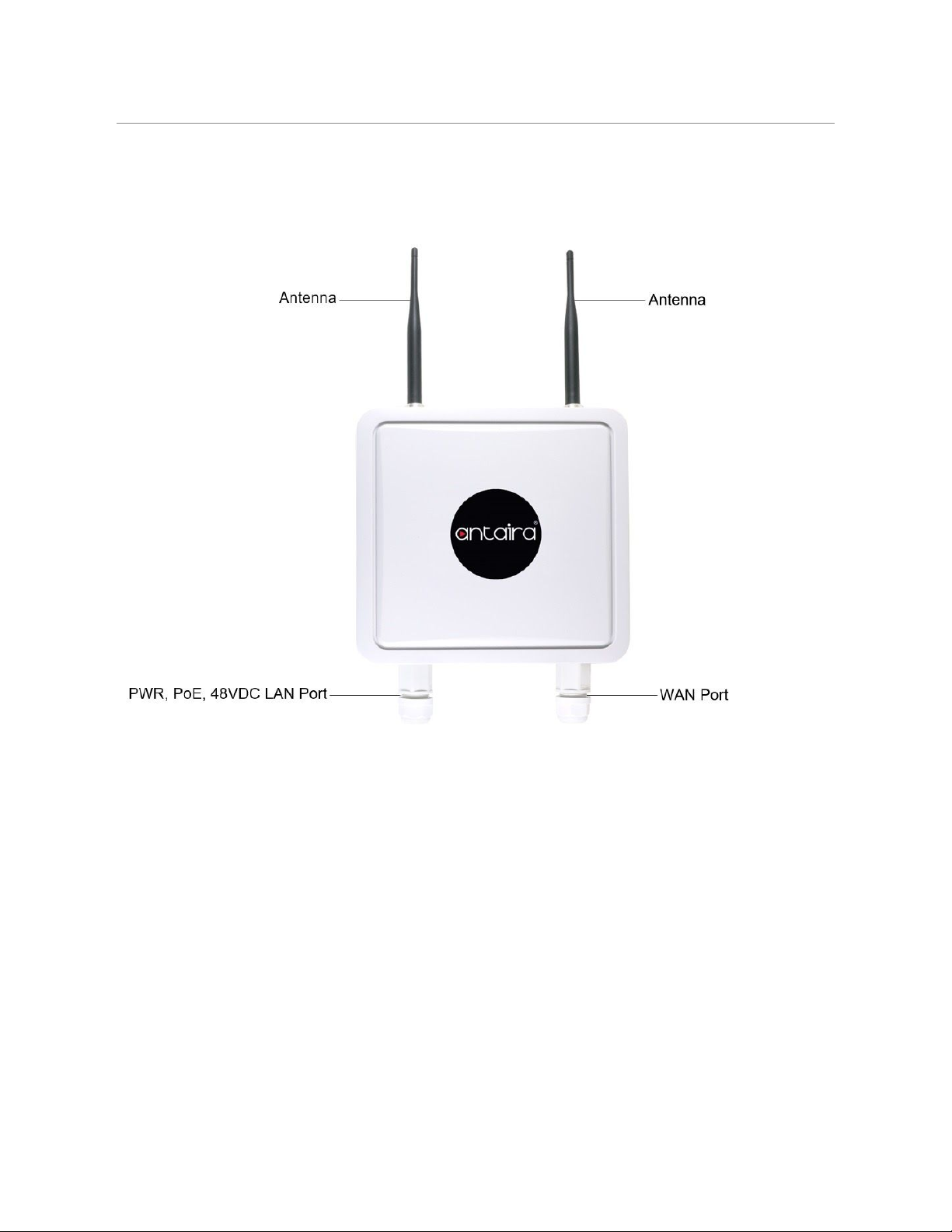

Figure 2.2, below, shows the front panel of the product:

Figure 2.2 - Front View Panel

2.3 Ethernet Ports

●RJ45 Ports

RJ45 Ports (Auto MDI/MDI-X): The RJ45 ports are auto-sensing for 10Base-T, 100Base-TX, or

1000Base-T connections. Auto MDI means that the switch can connect to another switch or workstation

without changing the straight-through or crossover cabling. See the figures below for straight-through and

crossover cabling schematics.

 

4

Antaira Technologies - Industrial Wireless Access Points

ARY-7235-AC-PD - Hardware Manual - v1.0

●RJ45 Pin Assignments

Table 2.2 - 10/100Base-T(X) RJ45 Pin Assignments



Table 2.3 - 1000Base-T RJ45 Pin Assignments

Note: “+” and “-” signs represent the polarity of the wires that make up each wire pair.

2.4 Cabling

Twisted-pair segments can be connected with an Unshielded Twisted Pair (UTP) or Shielded Twisted Pair

(STP) cable. The cable between the switch and the link partner (wireless AP, switch, hub, workstation,

etc.) must be less than 100 meters (328 ft.) in length.

5

Crossover Cable

Straight-Through Cable

Pin Number / Signal

1 / RX+

3 / TX+

1 / RX+

1 / TX+

2 / RX-

6 / TX-

2 / RX-

2 / TX-

3 / TX+

1 / RX+

3 / TX+

3 / RX+

6 / TX-

2 / RX-

6 / TX-

6 / RX-

Crossover Cable

Straight-Through Cable

Pin Number / Signal

1 / TP0+

3 / TP1+

1 / TP0+

1 / TP1+

2 / TP0-

6 / TP1-

2 / TP0-

2 / TP1-

3 / TP1+

1 / TP0+

3 / TP1+

3 / TP0+

4 / TP2+

7 / TP3+

4 / TP2+

4 / TP3+

5 / TP2-

8 / TP3-

5 / TP2-

5 / TP3-

6 / TP1-

2 / TP0-

6 / TP1-

6 / TP0-

7 / TP3+

4 / TP2+

7 / TP3+

7 / TP2+

8 / TP3-

5 / TP2-

8 / TP3-

8 / TP2-
