Industrial PoE Splitter for 10/100/1000T
Wide Operating Temperature
User Manual
ii
FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy. It may cause harmful interference
to radio communications if the equipment is not installed and used in
accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.
iii
Content
FCC Warning ......................................................i
CE Mark Warning...............................................ii
Content ............................................................. iii
Introduction ........................................................1
Features................................................................... 1
Package Contents.................................................... 2
Hardware Description.........................................3
Physical Dimension.................................................. 3
Front Panel............................................................... 3
Top View .................................................................. 4
Wiring the Power Outputs........................................ 4
LED Indicators.......................................................... 5
Ports......................................................................... 5
Cabling..................................................................... 5
Mounting Installation..........................................6
DIN-Rail Mounting.................................................... 6
Wall Mount Plate Mounting......................................8
Hardware Installation .........................................9
Installation Steps...................................................... 9
Network Application .........................................10
Troubles shooting.............................................11
Technical Specification ....................................12
1
Introduction
The Industrial Power over Ethernet Splitter receives a unified PoE signal
(data and power) via UTP/STP cable, and then separates the data and
power onto two different outputs for non-PoE devices which is not
compliant with IEEE802.3af standard. The network device can accept the
power and Ethernet data from the Splitter.
Features
Supports 10/100/1000T for PoE in and Data out
Power Isolation and Short circuit protection for power output
Auto disconnection for over power voltage input
Supports Output power up to 12.95W at 24VDC
Wide-range Power Design
IP-30 Protection
DIN Rail and Wall Mount Design
Provides EFT protection 3,000VDC for power line
Supports 6,000 VDC Ethernet ESD protection
2
Package Contents
Please refer to the package content to verify them against the checklist
below.
Industrial PoE Splitter x 1
Pluggable block connector x 1
Wall-Mount rack x 2
User manual x 1
Compare the contents with the standard checklist above. If any item is
damaged or missing, please contact your local dealer for service.
3
Hardware Description
In this paragraph, we will introduce the hardware spec, port, cabling
information, and wiring installation.
Physical Dimension
Industrial PoE Splitter dimension (W x D x H) is 30mm x 95mm x 140mm
Front Panel

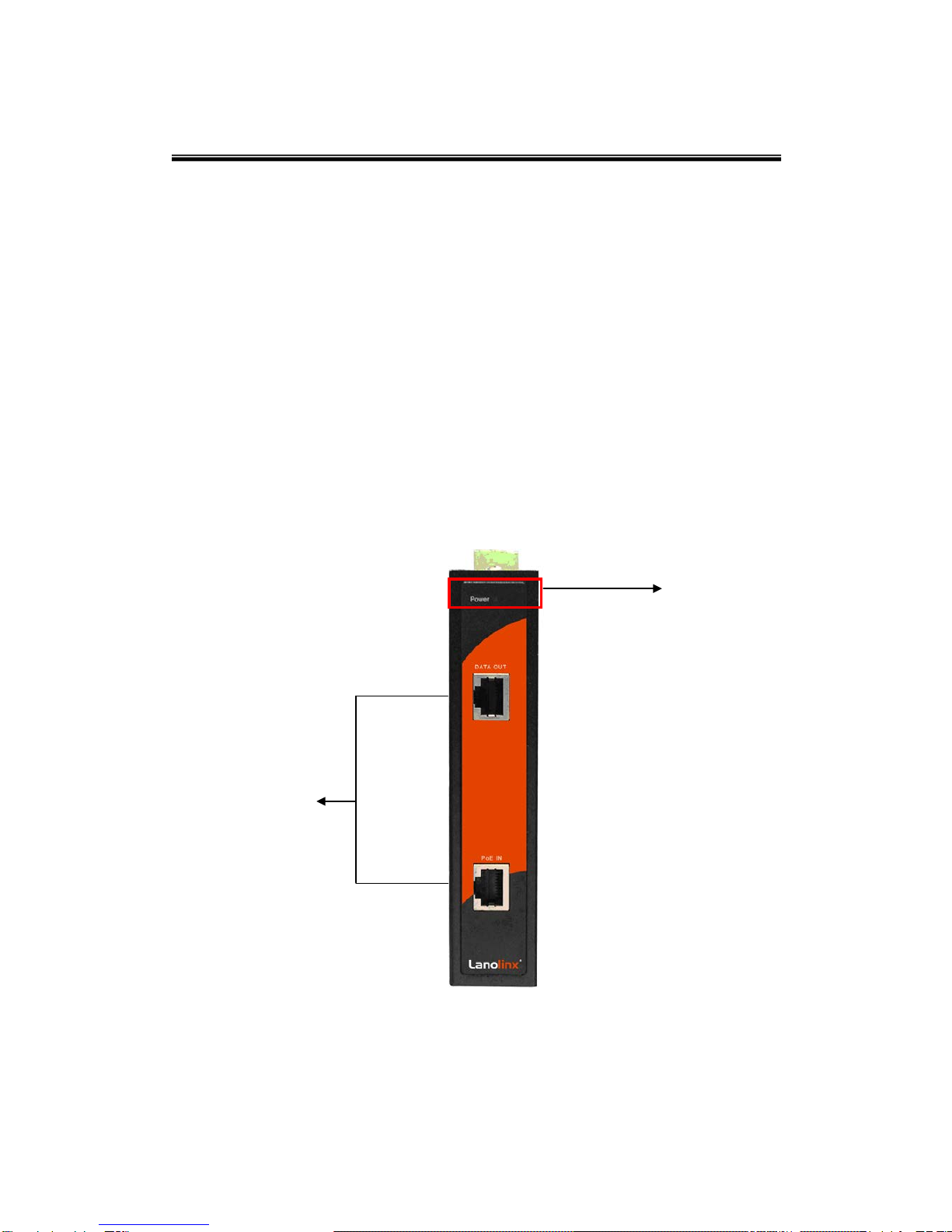

The Front Panel of the Industrial PoE Splitter is shown as below.
Front Panel of the Industrial PoE Splitter
LED Indicator
RJ-45 Port
4
Top View

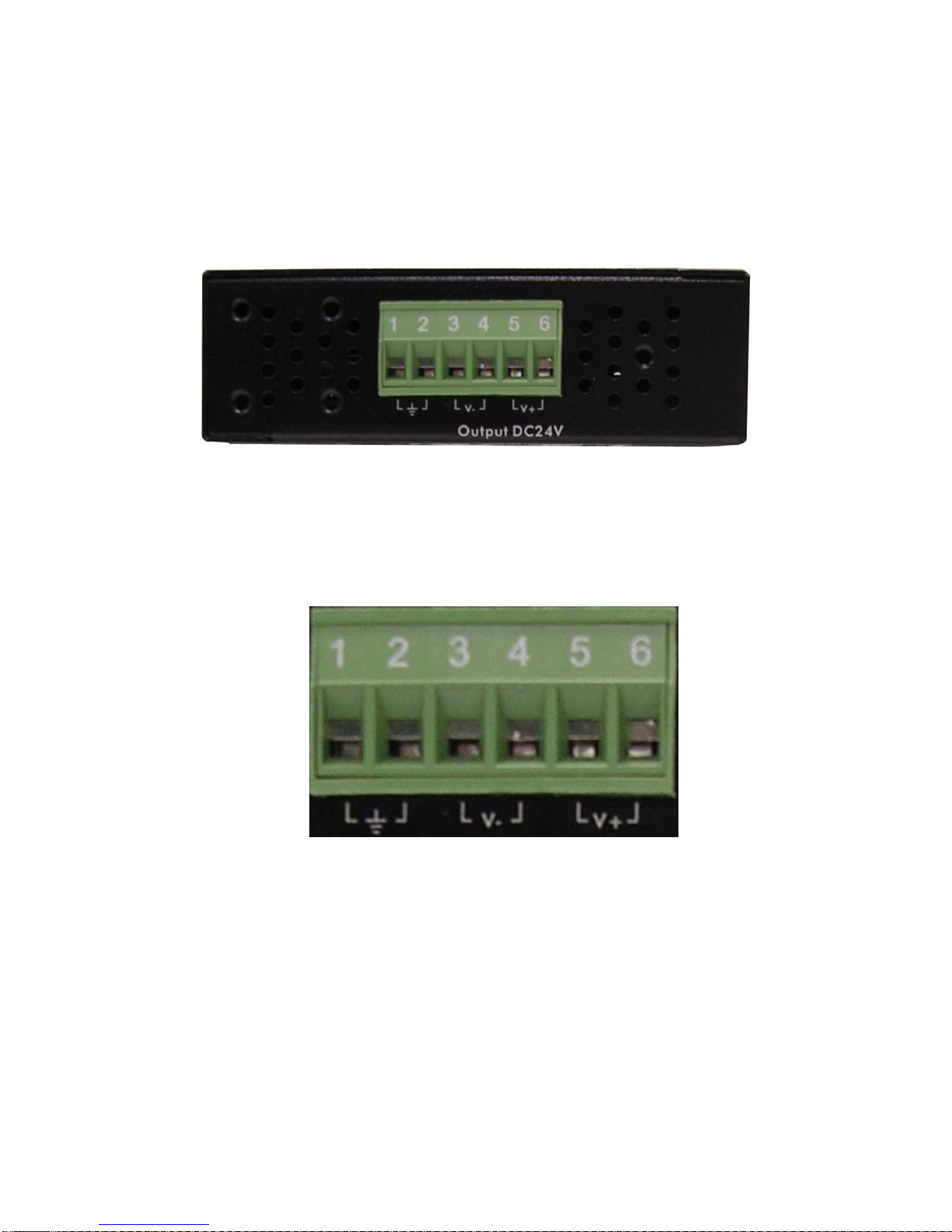

The top panel of the Industrial PoE Splitter has one terminal block
connector of two DC power outputs.
Top Panel of the Industrial PoE Splitter
Wiring the Power Outputs
Please follow the steps below to insert the power wire.

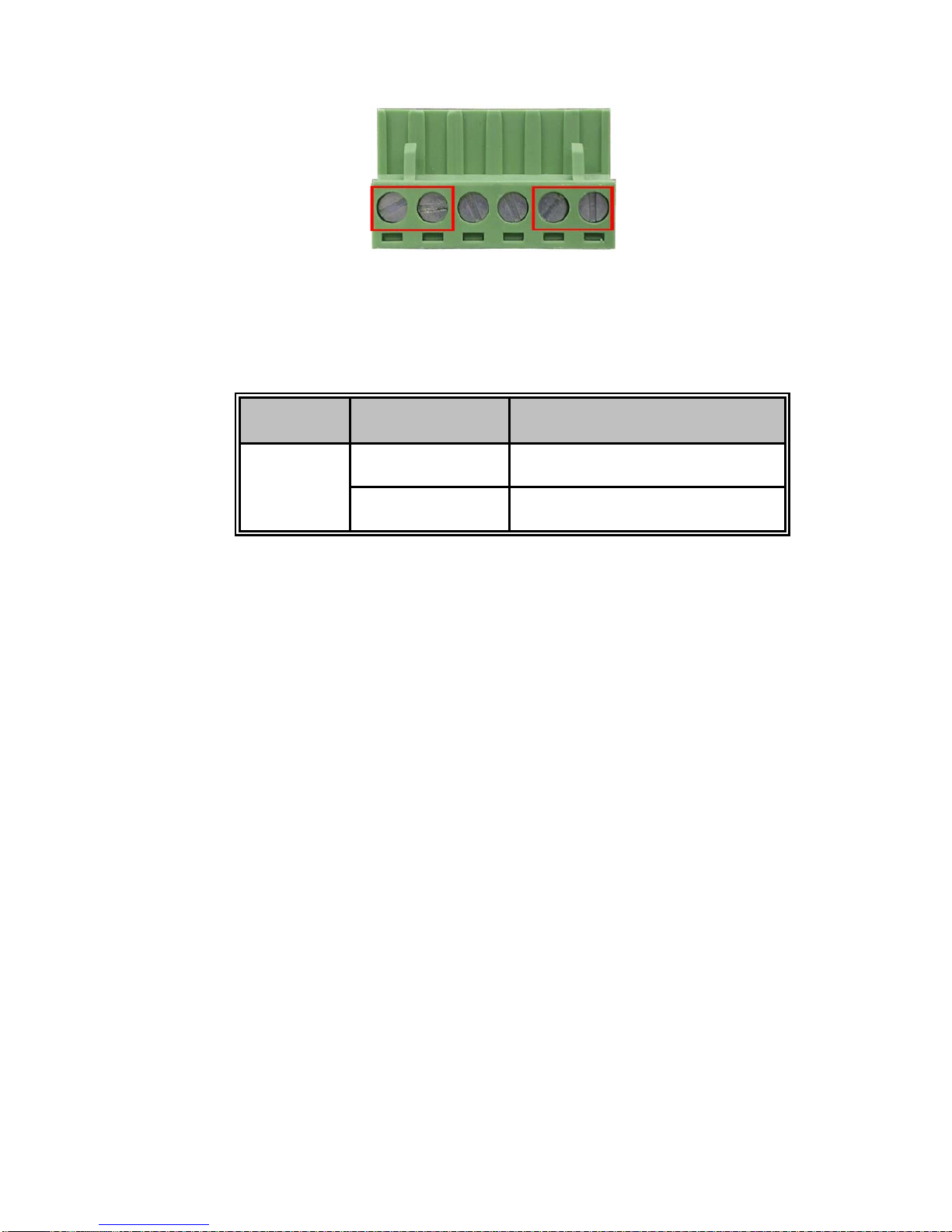

Insert the positive and negative wires into the V+ and V- contacts on the
terminal block connector.
Note
The wire gauge for the terminal block should be in the range
between 12~24 AWG.
5
Tighten the wire-clamp screws for preventing the wires from loosing.
LED Indicators
LED Status Meaning
Power Green Power is active
Off No power inputs
Ports
RJ-45 ports: 10/100/1000Mbps ports are auto-sensing for 10Base-T,
100Base-TX, or 1000Base-T connections.
Data pins for PoE IN port: 1, 2, 3, 6, 4, 5, 7, and 8
Power pins for PoE IN port: 4, 5 (V+); 7, 8 (V-) or 1, 2 (V+); 3, 6 (V-);
Data pins for DATA OUT port: 1, 2, 3, 6, 4, 5, 7, and 8
Power output (located on the top side): 1 x 6 pin terminal block
Cabling
Use the four twisted-pair, Category 5e cabling for RJ-45 port connection.
The cable between the splitter and the non-PoE device must be less than
100 meters (328 ft.) long.
6
Mounting Installation
DIN-Rail Mounting
The DIN-Rail is screwed on the Industrial PoE Splitter when out of factory.
If the DIN-Rail is not screwed on the Industrial PoE Splitter, please see the
following pictures to screw the DIN-Rail on the splitter. Follow the steps
below to hang the Industrial PoE Splitter.

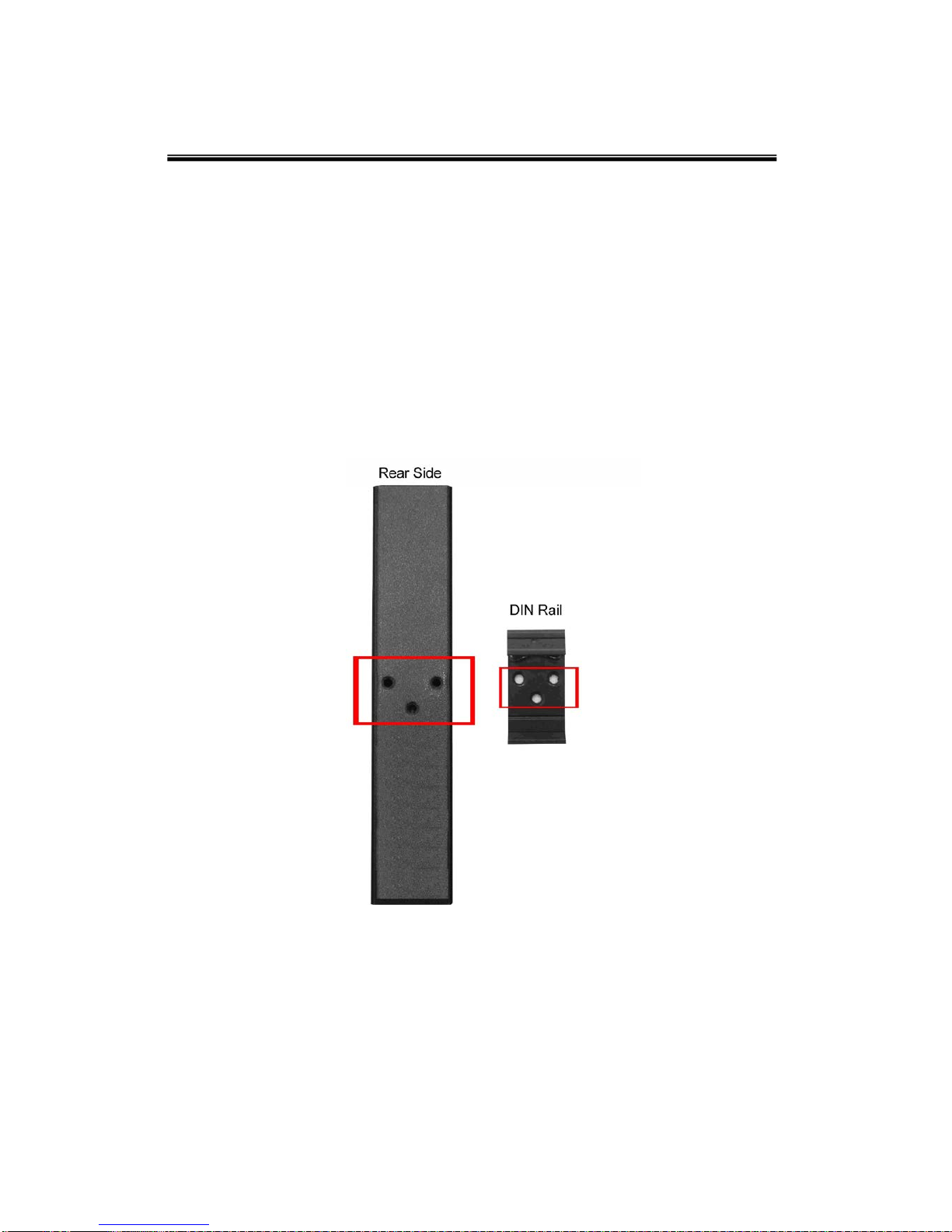

1. Use the screws to screw the DIN-Rail on the rear side of the Industrial
PoE Splitter.
2. To remove the DIN-Rail, reverse step 1.
7

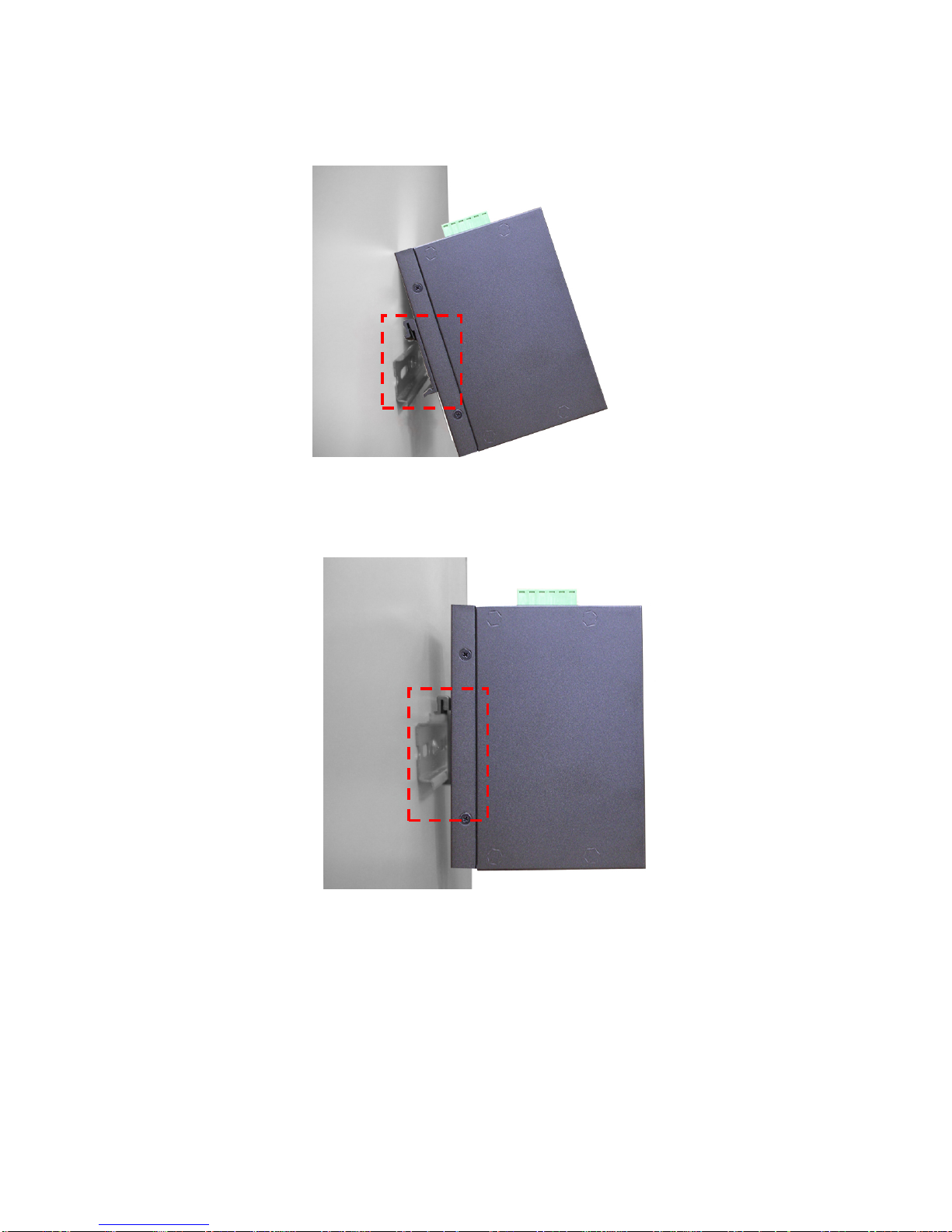

3. Insert the top of DIN-Rail into the track.
4. Then, lightly push the button of DIN-Rail into the track.
5. Check the DIN-Rail is tightly on the track.
6. To remove the Industrial PoE Splitter from the track, reverse steps
above.
