ANTAIRA FCU-1802Px Manuel utilisateur

100Base-FX to 10/100Base-TX

PoE

Media Converter

FCU-1802Px

User’s Manual

Trademarks

Contents subject to revision without prior notice.

Antaira is a registered trademark of Antaira Technologies. The

information in this manual is subject to change without notice.

All other trademarks belongs to their respective owners.

Disclaimer

Antaira Technologies does not warrant that the hardware will

work properly in all environments and applications, and makes

no warranty and representation, either implied or expressed,

with respect to the quality, performance, merchantability, or

tness for a particular purpose.

Antaira has made every effort to ensure that this User’s Manual

is accurate; Antaira disclaims liability for any inaccuracies or

omissions that may have occurred.

Information in this User’s Manual is subject to change without

notice and does not represent a commitment on the part of

Antaira. Antaira assumes no responsibility for any inaccuracies

that may be contained in this User’s Manual. Antaira makes no

commitment to update or keep current the information in this

User’s Manual, and reserves the right to make improvements

to this User’s Manual and/or to the products described in this

User’s Manual, at any time without notice.

If you nd information in this manual that is incorrect,

misleading, or incomplete, we would appreciate your comments

and suggestions.

FCC Warning

This equipment has been tested and found to comply with the

regulations for a Class A digital device, pursuant to Part 15 of

the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment

is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with this user’s guide, may

cause harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause harmful

interference, in which case the user will be required to correct

the interference at his own expense.

CE Mark Warning

This is a Class A product. In a domestic environment, this

product may cause radio interference, in which case the user

may be required to take adequate measures.

Energy Saving Note of the Device

This power required device does not support Standby mode

operation.

For energy saving, please remove the DC-plug or push the

hardware Power Switch to OFF position to disconnect the device

from the power circuit.

Without removing the DC-Plug or switching to OFF, the device

will still consume power from the power source. In the view of

Saving Energy and reducing unnecessary power consumption, it

is strongly suggested to power off or to remove the DC-plug for

the device if this device is not intended to be active.

WEEE Warning

To avoid the potential effects on the environment and

human health as a result of the presence of hazardous

substances in electrical and electronic equipment, end

users of electrical and electronic equipment should

understand the meaning of the crossed-out wheeled bin symbol.

Do not dispose of WEEE as unsorted municipal waste and have

to collect such WEEE separately.

Revision

User’s manual for Antaira 100Base-FX to 10/100Base-TX PoE

Media Converter

Rev 1.1 (April 2013)

Part No. 2350-AA3540-470

Table of Contents

1. Overview ......................................................................... 6

2. Model List ........................................................................ 7

3. Checklist .......................................................................... 7

4. Product Outlook................................................................ 8

5. Link Fault Pass through (LFP)........................................... 10

6. Installing the Converter................................................... 13

7. PoE function ................................................................... 14

8. LED indication ................................................................ 15

9. Cable Connection Parameter ............................................ 16

10. FCU-1802Px Technical Specications ............................... 17

APPENDIX A ....................................................................... 18

A.1 Device's RJ-45 Pin Assignments ................................. 18

A.2 RJ-45 cable pin assignment ....................................... 18

A.3 Fiber Optical Cable Connection Parameter ................... 19

1. Overview

Thank you for purchasing Antaira's FCU-1802Px family of

10/100Mbps Ethernet Twisted pair to 100Base-FX Fiber-optic

PoE Bridge Converter. This converter is used to convert one type

media signal to another easily, efciently and inexpensively. The

converter provides Power over Ethernet power injector function

which is able to drive one IEEE 802.3af compliant powered

devices.

About the Power over Ethernet Injector

The FCU-1802Px has an IEEE 802.3af Power over Ethernet

Injector that provides DC 48V over Ethernet cables. The

FCU-1802Px IEEE 802.3af Power over Ethernet Injector inserts

DC Voltage into Cat.5 cable, allowing the cable between the

Injector (FCU-1802Px) and PoE PD (Powered Device) to transfer

data and power simultaneously. The maximum distance between

the Injector (FCU-1802Px) and PoE PD is 100 meters. With

the FCU-1802Px installed, it combines the Ethernet digital data

with power over the twisted pair cables as an IEEE 802.3af

Power over Ethernet Injector. And the IEEE 802.3af Power over

Ethernet splitter shall separate the digital data and the power

into two outputs.

With IEEE 802.3af Power over Ethernet devices installed, the

system administrator only has to use a single RJ-45 Ethernet

cable to carriy both power and data to each device. Aside from

connecting through the FCU-1802Px and PoE PD, you can also

have the benet of cost saving, easy for networking planning,

and higher reliability. Moreover, upon any IEEE 802.3af device

installation, the FCU-1802Px or PD can make the connection

while migrating the Ethernet digital packets, such as connecting

the FCU-1802Px to an IEEE 802.3af complied devices, AP or IP

Camera.

2. Checklist

Your FCU-1802Px package should contain the following items:

●100Base-FX to 10/100Base-TX PoE Media Converter x 1

●AC-DC Power Adapter (Input: 48V DC, 0.4A max.) x 1

●User’s Manual x 1

If any items are missing or damaged, please consult the dealer

from which you purchased your PoE Media Converter.

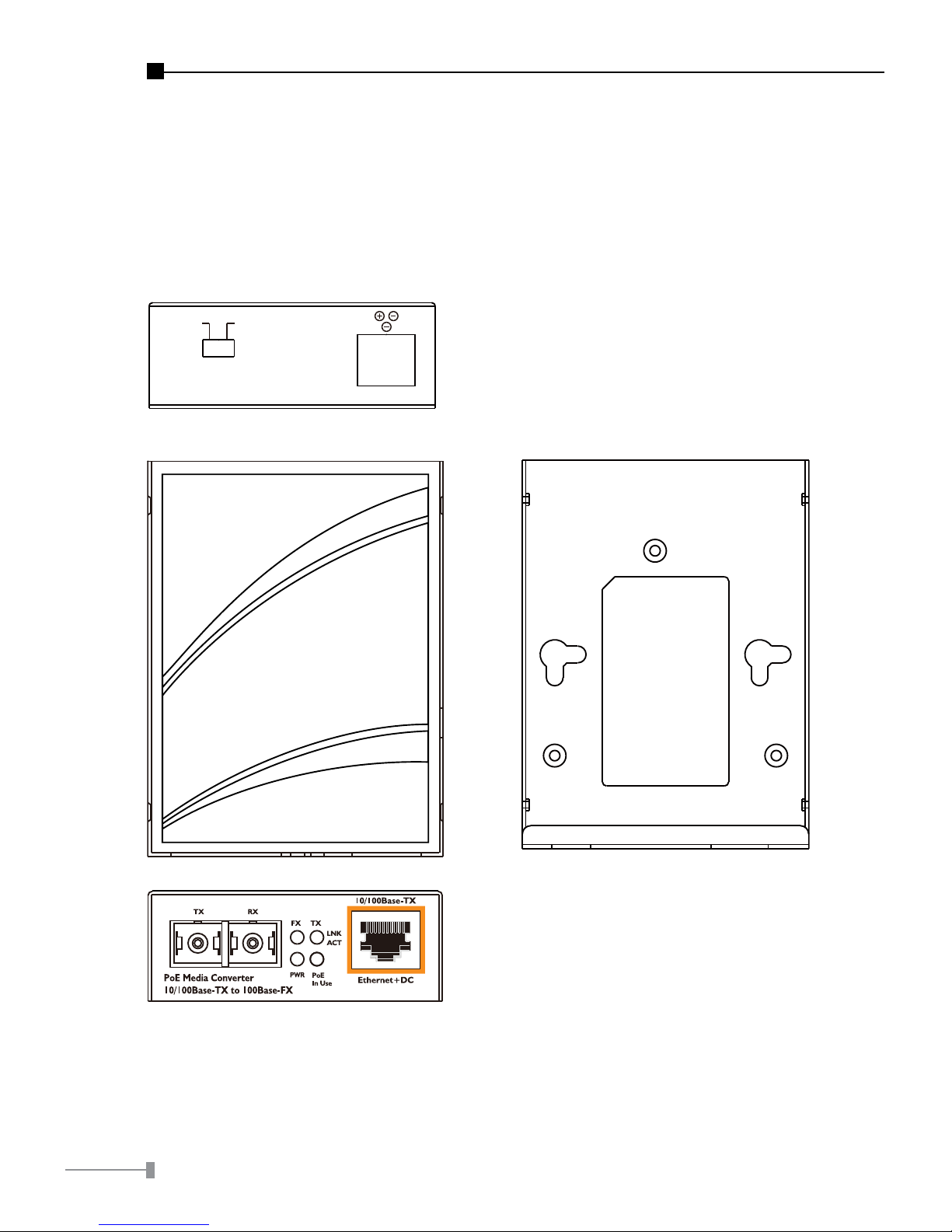

3. Product Outlook

Overview

Layout of the FCU-1802Px.

Bottom

Rear Panel

TOP Panel

Front Panel

48V DC

OFF

LFP

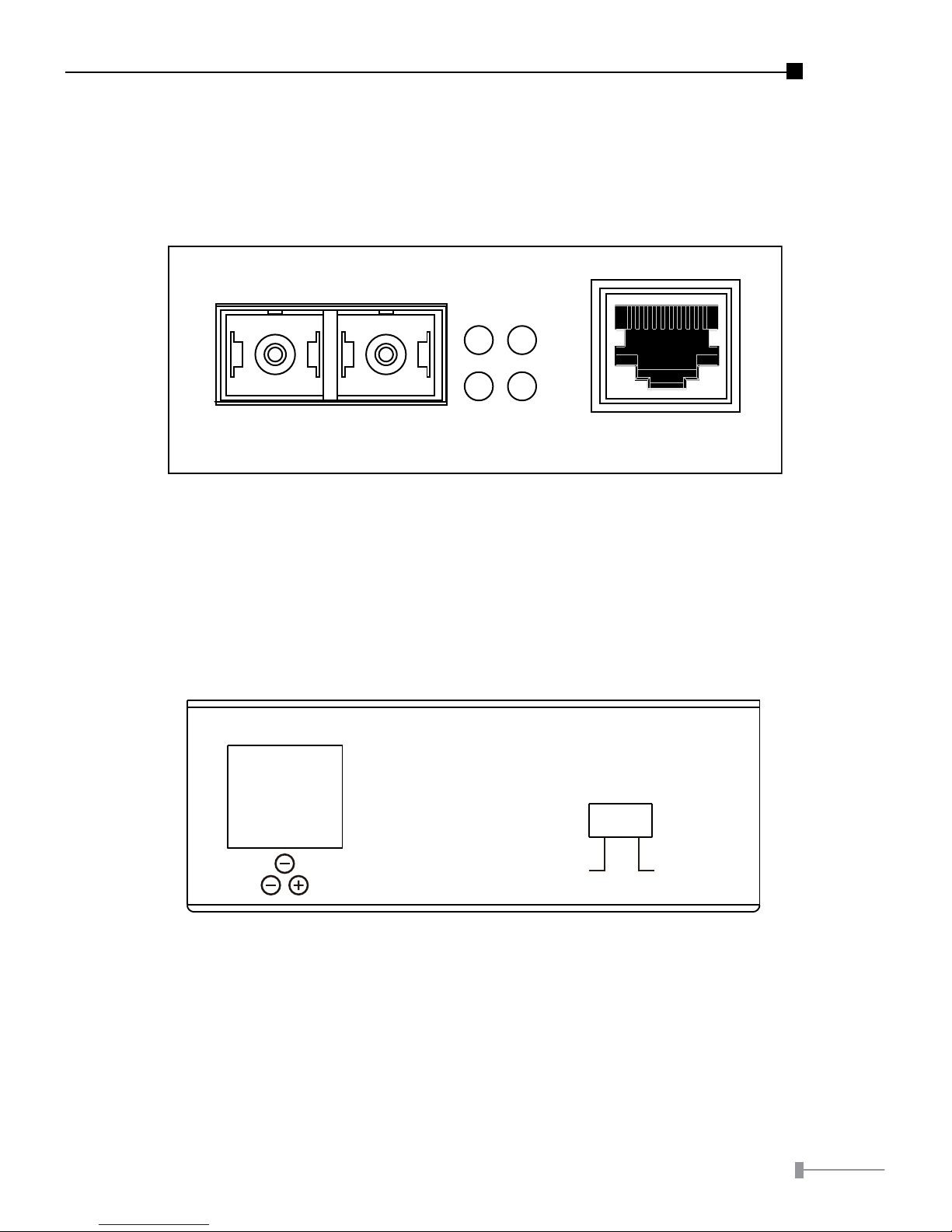

Left View

There are one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one

ber-optic connector (vary by model) and four LED indicators.

PWR

TX RX

FX TP

PoE

In Use 10/100Base-TX

PoE Media Converter

10/100Base-TX to 100Base-FX

LNK/

ACT

Right View

One DIP switch for Link Fault Pass Through (LFP) feature,

“ON” to turn-on the LLCF and LLR detection. And “OFF” to turn

–off this feature. Please refer to the following sections for more.

Also one DC 48V power socket for the PoE Media Converter.

48V DC

OFF

LFP

4. Link Fault Pass through (LFP)

The LFP function includes the Link Fault Pass Through

function (LLCF/LLR) and the DIP Switch design. LLCF/LLR can

immediately alert administrators about problems with the link

media and provide an efcient solution to monitor the net. The

DIP Switch can disable or enable the LFP function.

With LLCF (Link Loss Carry Forward), when a device connected

to the converter loses the TP line link, the converter’s ber will

disconnect the link of transmit. With LLR (Link Loss Return),

when a device connected to the converter and loses the ber

line link, the converter’s ber will disconnect the link of transmit.

Both can immediately alert administrators about link media

problems and provide an efcient solution to monitor the net.

Link Loss Carry Forward (LLCF)

The FCU-1802Px incorporates an LLCF function for

troubleshooting a remote connection. When LFP function is

enabled, the FL/TP ports do not transmit a link signal until they

receive a link signal from the opposite port.

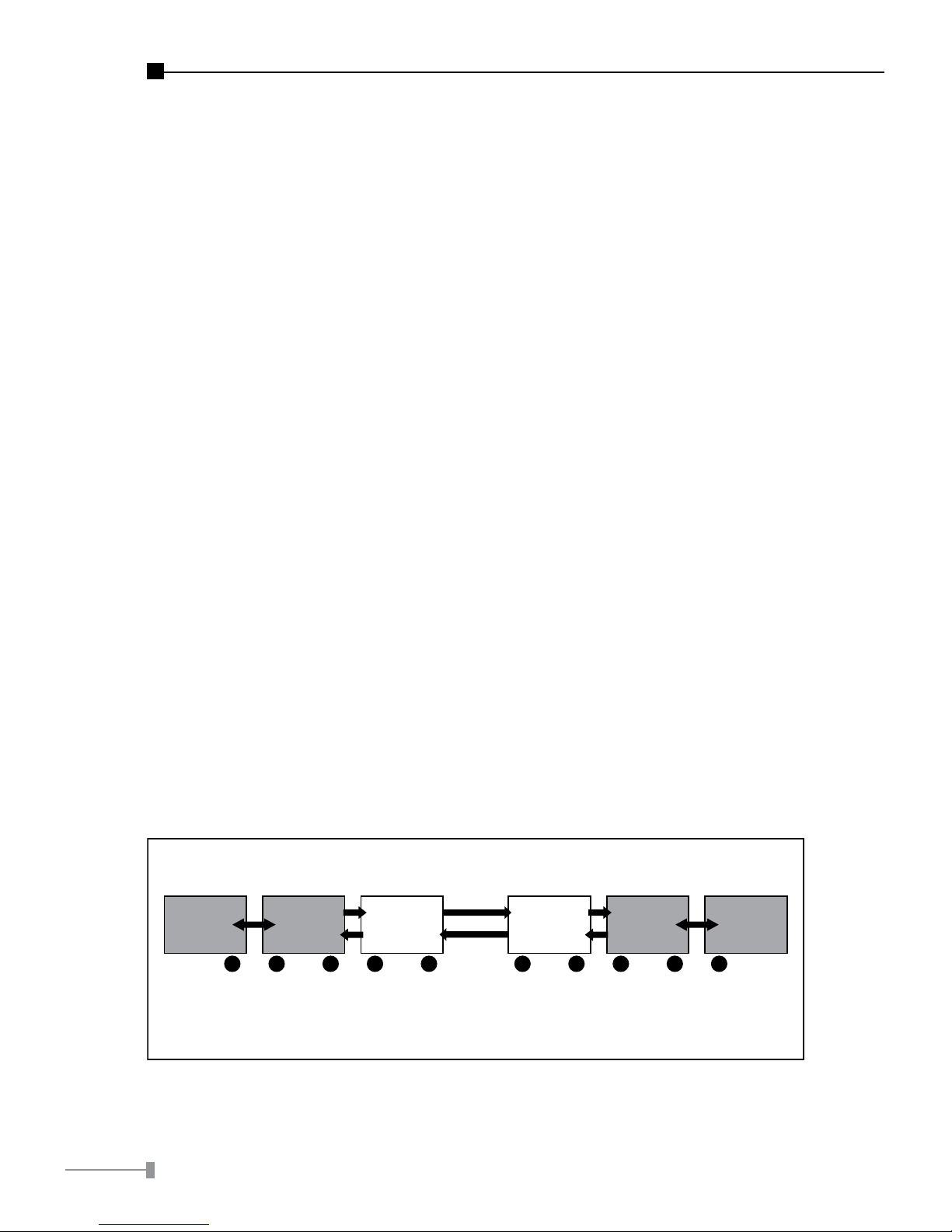

The diagram below shows a typical network conguration with a

good link status using the FCU-1802Px for remote connectivity.

Media

Converter

Management

Station

Switch/Hub

w/SNMP

Management

Station

Media

Converter

Switch/Hub

w/SNMP

TP TP

Fiber

Cable

LFP ONLFP ON

lLED lit = established link °LED unlit = no link

Media

Converter

Management

Station

Switch/Hub

w/SNMP

Management

Station

Media

Converter

Switch/Hub

w/SNMP

TP TP

Broken

Fiber

Cable

LFP ONLFP ON

lLED lit = established link °LED unlit = no link

If the connection breaks, the FCU-1802Px link loss forwards

to the switch/hub that generates a trap to the management
