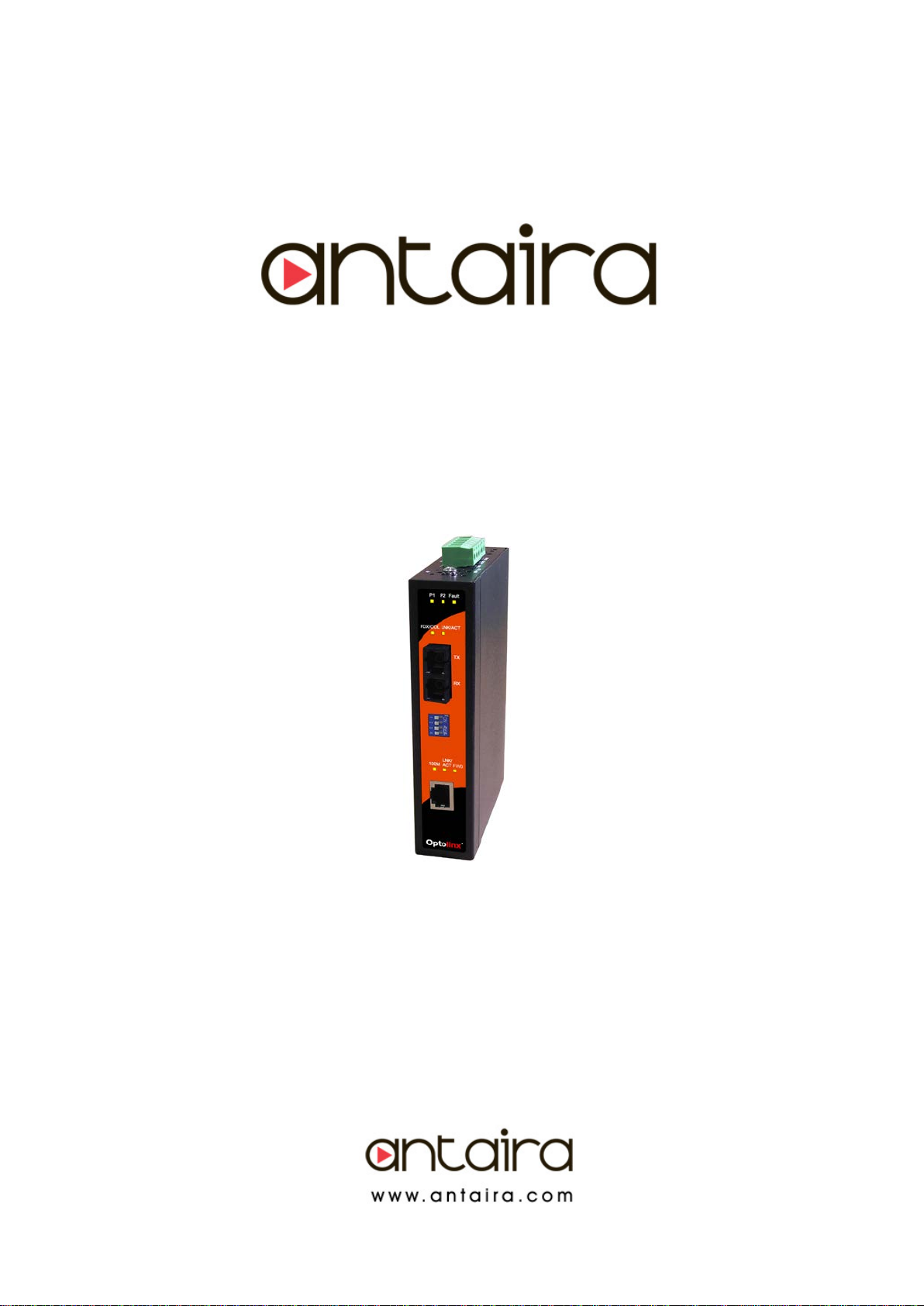

ANTAIRA Optolinx IMP-100A Manuel utilisateur

10/100TX to 100FX w/ 1 PoE Injector

Industrial Media Converter

User Manual

v1.02

FCC Warning

This Equipment has been tested and found to comply with the limits for a

Class-A digital device, pursuant to Part 15 of the FCC rules. These limits

are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can

radiate radio frequency energy. It may cause harmful interference to radio

communications if this equipment is not installed and used in accordance

with the instructions. However, there is no guarantee that interference will

not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct

the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

Content

Introduction................................................................ 1

Features................................................................... 1

Package Contents.................................................... 2

Hardware Description ............................................... 3

Physical Dimension.................................................. 3

Front Panel .............................................................. 3

Top View.................................................................. 4

LED Indicators ......................................................... 5

DIP-Switch ............................................................... 6

Ports......................................................................... 7

Cabling..................................................................... 9

Wiring the Power Inputs......................................... 10

Wiring the Fault Alarm Contact.............................. 11

Mounting Installation .............................................. 12

DIN-Rail Mounting.................................................. 12

Wall Mount Plate Mounting.................................... 14

Hardware Installation .............................................. 15

Installation Steps.................................................... 15

Network Application................................................ 16

Troubles shooting ................................................... 17

Technical Specification........................................... 18

Introduction

The 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter is a cost-effective

solution and meets the high reliability requirements demanded by industrial applications.

Use of the fiber port can extend the connection distance and increase the network

elasticity and performance. The industrial media converter also provides the PoE

function for various kinds of Powered Devices that can receive power as well as data

over the RJ-45 cable.

Features

System Interface/Performance

RJ-45 ports support Auto MDI/MDI-X Function

Embedded 1-port PoE Injection

Store-and-Forward Switching Architecture

Built-in Link Loss Forwarding Technology

Supports Wide Operating Temperature (-40oC ~ 80oC)

Power Supply

DC 48V Redundant Power

Case/Installation

IP-30 Protection

DIN Rail and Wall Mount Design

Provides EFT protection 3,000 VDC for power line

Supports 6,000 VDC Ethernet ESD protection

Package Contents

Please refer to the package content list below to verify with package.

1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter

User manual

Pluggable Terminal Block

2 wall mount plates with screws

One DIN-Rail (attached on the unit)

Compare the contents of the industrial media converter with the checklist above. If any

items are damaged or missing, please contact your local dealer for service.

Hardware Description

In this section, the Industrial Media Converter’s hardware specifications, port, cabling,

and wiring installation will be provided.

Physical Dimension

1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter dimension (W x D x H)

is 30mm x 95mm x 140mm

Front Panel

The Front Panel of the 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media

Converter is shown as below:

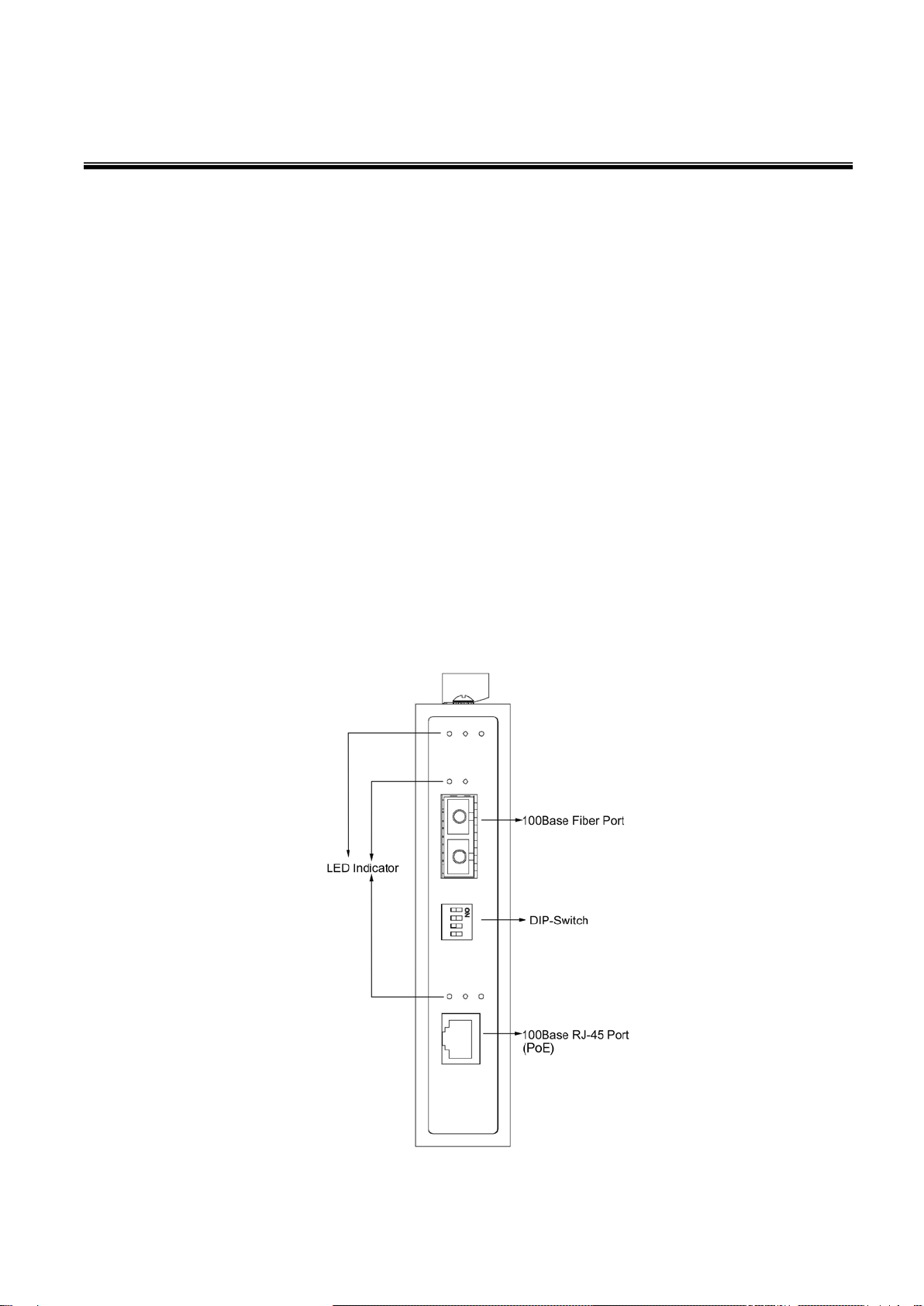

Front Panel of the PoE Injectors Industrial Media Converter

Top View

The top view of the 1 10/100TX + 100FX w/ 1 PoE Injector Industrial Media Converter

has one terminal block connector of two DC power inputs.

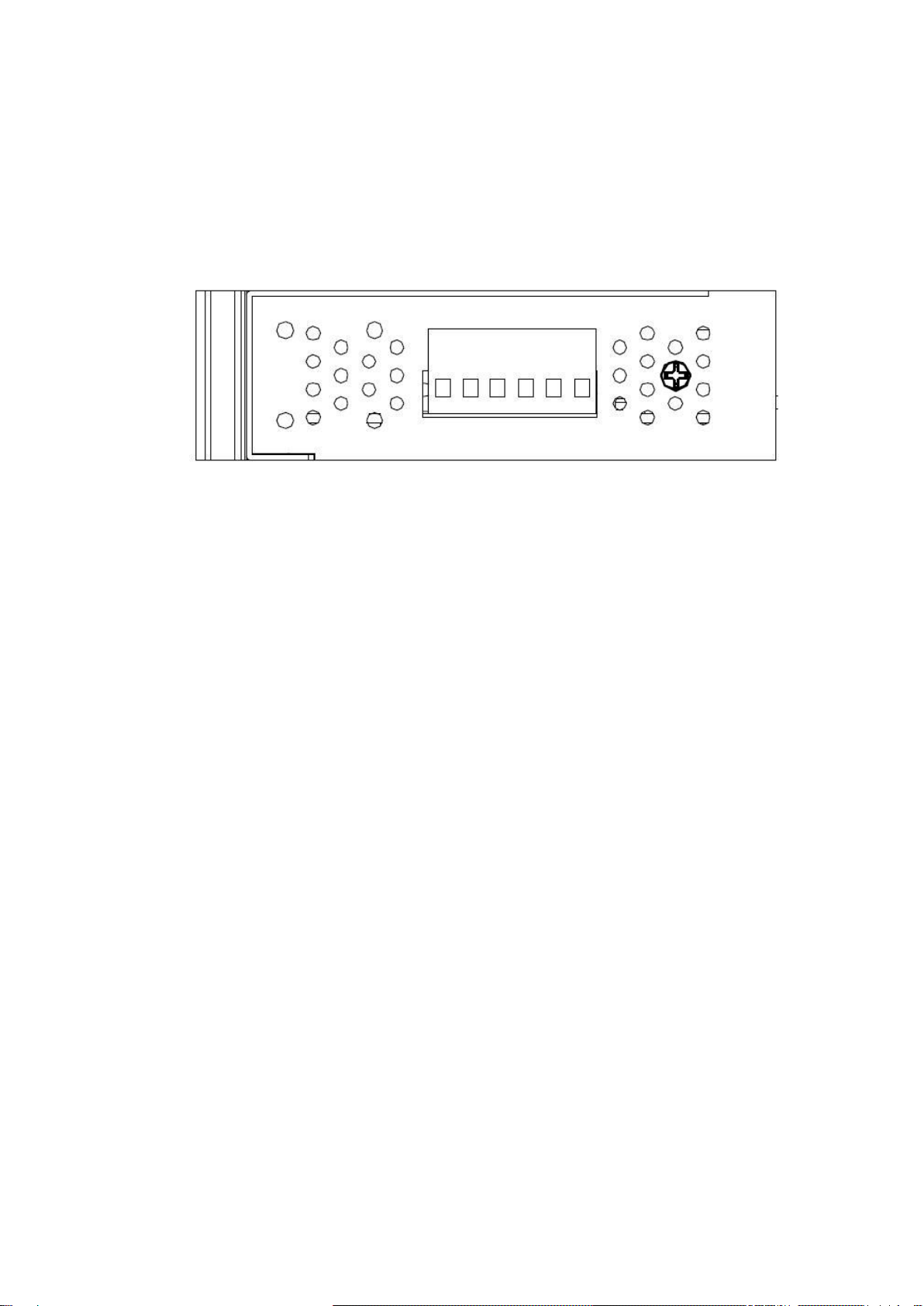

Top View of the PoE Injectors Industrial Media Converter

LED Indicators

The diagnostic LEDs located on the front panel of the industrial media converter provide

real-time system information and optional status. The table below describes the LED

status and their meaning for the media converter.

LED

Color Description

P1 Green On Power input 1 is active

Off Power input 1 is inactive

P2 Green On Power input 2 is active

Off Power input 2 is inactive

Fault Red

On Power input 1/2 or port connections failed

Off Power input 1/2 and port connections are functional, or

no power inputs

FDX/COL

(fiber port) Yellow On Full-duplex mode

Flashing Collision occurs

LNK/ACT

(fiber port) Green

On Connected to network

Flashing Networking is active

Off Not connected to network

100M (RJ-45) Yellow On Linking to 100Mbps network

Off Linking to 10Mbps network or disconnected

LNK/ACT (RJ-

45) Green

On Connected to network

Flashing Networking is active

Off Not connected to network

FWD Green On The port is supplying power to the powered-device

Off No powered-device attached or power supplying failed

DIP-Switch

The DIP-Switch is used to configure operation mode for LLF (Link Loss

Forwarding)/LFP (Link Fault Pass-Through), and operation mode for UTP/Fiber port.

The default value of the DIP-switch is OFF.

S/W No

Status Description

1 ON Enables Port/Power Alarm

OFF Disable Port/Power Alarm

2 ON Enables LLF/LFP

OFF Disables LLF/LFP

3 ON 100Base-FX Half-mode

OFF 100Base-FX Full-mode

4 ON Media mode (100TX to 100FX)

OFF Switching mode

LLF/LFP (DIP-Switch 2): Enabling LLF/LFP allows UTP/STP link failures to be

reported to the fiber side and also allow Fiber link failures to be reported to the

UTP/STP side. Therefore, the LLF/LFP feature is available in both UTP/STP and Fiber

side.

Media mode (DIP-Switch 4): When media mode is enabled (ON), it operates with

minimum latency. The transmission flow does not wait until the entire frame is ready,

but instead forwards the received data immediately while data is being received. The

TP port should be forced at 100M in this application. When the DIP-Switch is set at

switching mode (OFF), the function is the same as a Switch/Hub.

Note

Please don’t change the DIP-switch setting when UTP/STP or

fiber port is transmitting or receiving data. It may cause data

errors. If you change the DIP-switch setting, please power off the

media converter and power on again to make the setting

effective.

Ports

RJ-45 ports

The UTP (RJ-45) Fast Ethernet ports will auto-sense 10Base-T or 100Base-TX

connections. Auto MDI/MDIX means that the media converter can connect to another

switch or workstation without changing straight through or crossover cabling. See the

figures below for straight through and crossover cable schematic.

RJ-45 Pin Assignments

Pin Number

Assignment

1 Tx+

Tx-

Rx+

Rx-

Note

“+” and “-” signs represent the polarity of the wires that make up each wire

pair.

All ports on this industrial media converter supports automatic MDI/MDI-X operation,

user can use straight-through cables (See figure below) for all network connections to

PCs/servers, or to switches/hubs. For straight-through cable, pins 1, 2, 3, and 6, at one

end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of

the cable. The table below shows the 10BASE-T/100BASE-TX MDI and MDI-X port pin

outs.

Pin MDI-X Signal Name MDI Signal Name

Receive Data plus (RD+)

Transmit Data plus (TD+)

Receive Data minus (RD-)

Transmit Data minus (TD-)

Transmit Data plus (TD+)

Receive Data plus (RD+)

Transmit Data minus (TD-)

Receive Data minus (RD-)
