ANTAIRA BTS-1000A Manuel utilisateur

BTS-1000A

Bluetooth to RS-232 Converter

Operation Manual

Version 1.0

Table of Contents

1. Introduction ……………………………………………………………….. 2

2. Package checklist………………………………………………………….. 3

3. Product Specification …………………………………………………...4

4. Product Panel View Description ……………………………………. 5

BTS-1000A Product View …………………………………………………… 5

DC-In Power Outlet …………………………………………………………...5

Antenna Connecter …………………………………………………………… 6

Serial I/O Port of RS-232 …………………………………………………….. 6

Synchronous Button …………………………………………………………...6

LED Indicators ………………………………………………………………...7

5. Hardware Installation …………………………………………………… 8

6. BT RS232 Config Tool Installation & Setup ……………………. 9

Tool Installation ………………………………………………………………. 9

BT RS232 Config Tool Parameter Configuration .………………………….. 10

Apply “Connect” ………………………………………………………………12

Apply “Write” ………………………………………………………………… 13

Apply “Read”…………………………………………………………………. 13

Appendix A - Pin Outs and Cable Wiring ………………………. 14

DC Power Outlet ………………………………………………………………14

RS-232 Pin Assignment ………………………………………………………..14

RS-232 Wiring Diagram ………………………………………………………14

Introduction

Thank you for purchasing the BTS-1000A Bluetooth to Serial Adapter. The

BTS-1000A replaces standard RS-232 cables by utilizing Bluetooth wireless

technology. The BTS-1000A uses standard RS-232 interface, so it can be easily

adapted for industrial machines with RS-232 connection.The BTS-1000A is fully

compatible with Bluetooth v2.0 and is backward compatible with v1.1/1.2 devices.

With the BTS-1000A, you can easily connect your computers (Master) to RS-232

devices (Slave) 100 meters away without needing cables in your working

environments.

The BTS-1000A uses the frequency hopping and 128bit encryption in the 2.4 GHz

frequency range to ensure a secure connection.Configuration and setup is very

simple with the BTS-1000A.Once paired, a pair of BTS-1000A will try to

automatically connect when powered on. The BTS-1000A does not require

driver installation or extra software to operate.

Package checklist

The BTS-1000A is shipped with the following items:

1 x BTS-1000A Bluetooth to RS-232 Adapter with Antenna

1 x Power Adapter (5V DC, 200mA)

Quick Installation Guide

Setup Utility Software CD

NOTE: Notify your sales representative if any of the above items are missing or

damaged

Product Specification

Serial Port

No. of Ports: RS-232 * 1 Port

●Port Type: DB-9 female

●Speed: 1200 bps ~ 115.2K bps

●Parity: None , Odd , Even

●Data Bit: 8

●Stop Bit: 1 , 2

●Flow Control: DTR / DSR

●RS-232 Signals: Rx , Tx , GND , RTS , CTS , DTR , DSR

Bluetooth I/O Port

No. of Ports: Bluetooth * 1 Port

●Compliant with Bluetooth v2.0+EDR

●Supports Bluetooth Serial port profile(SPP)

●Operates in 2.4GHz – 2.483GHz ISM Band

●Supports Bluetooth Radio with Class 1 RF

●Operating Distance up to 100 Meters

Power: 5V DC / 200mA, Consumption 80mA

LED Indicator: SYS (red), Pairing (green)

Environment: Operating Temperature: 0°~ 60°

Storage Temperature: -25°~ 70°

Dimensions: 65 * 30 * 12 mm ( W * D * H without antenna )

Weight: 35g ( without power adapter )

Product Panel View Description

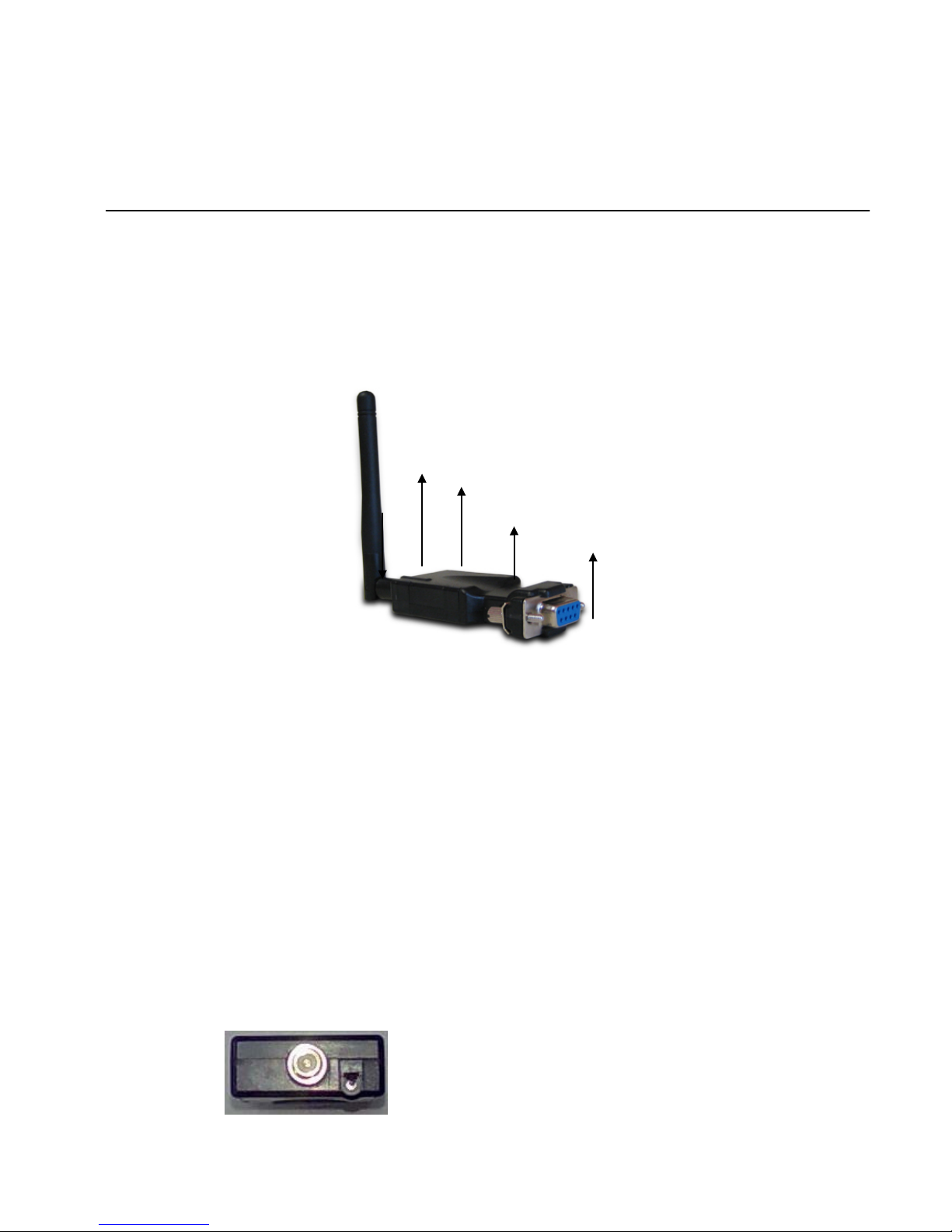

BTS-1000A Product View

DC-In Power Outlet

The BTS-1000A Bluetooth to Serial Adapter is powered by a single 5V DC

(Inner positive / outer negative) power supply and 200mA of current. A

suitable power supply adapter is included in the packaging. Connect the

power line to the power connector next to the antenna connector and plug

the power adapter into a power outlet. If power is properly supplied, the

red LED will turn on.

DC-In

Power Outlet

Serial I/O Port

RS-232

Sync Button

LED Indicators

Antenna

Antenna Connector

The antenna connector is a standard Reverse SMA jack.The 2.0 dBi

dipole antenna has 50 Ohms impedance and can support 2.4GHz frequency.

(The Antenna is changeable for higher gain Antennas)

Serial I/O Port of RS-232

Connect the serial I/O RS-232 connector into devices like computers and

other serial devices. (RS-232 RX/TX has been CROSSED OVER)

Synchronous Button

The Sync button is used to synchronize BTS-1000A devices using the BT

RS232 Config Tool software. After setting the desired parameters and

clicking the “Connect” button in the BT RS232 Config Tool software, use any

point tip to push this button (located on the left side of the device)

immediately. You will see the “Connect” button turn into “Disconnect”,

which means you successfully activated the device.

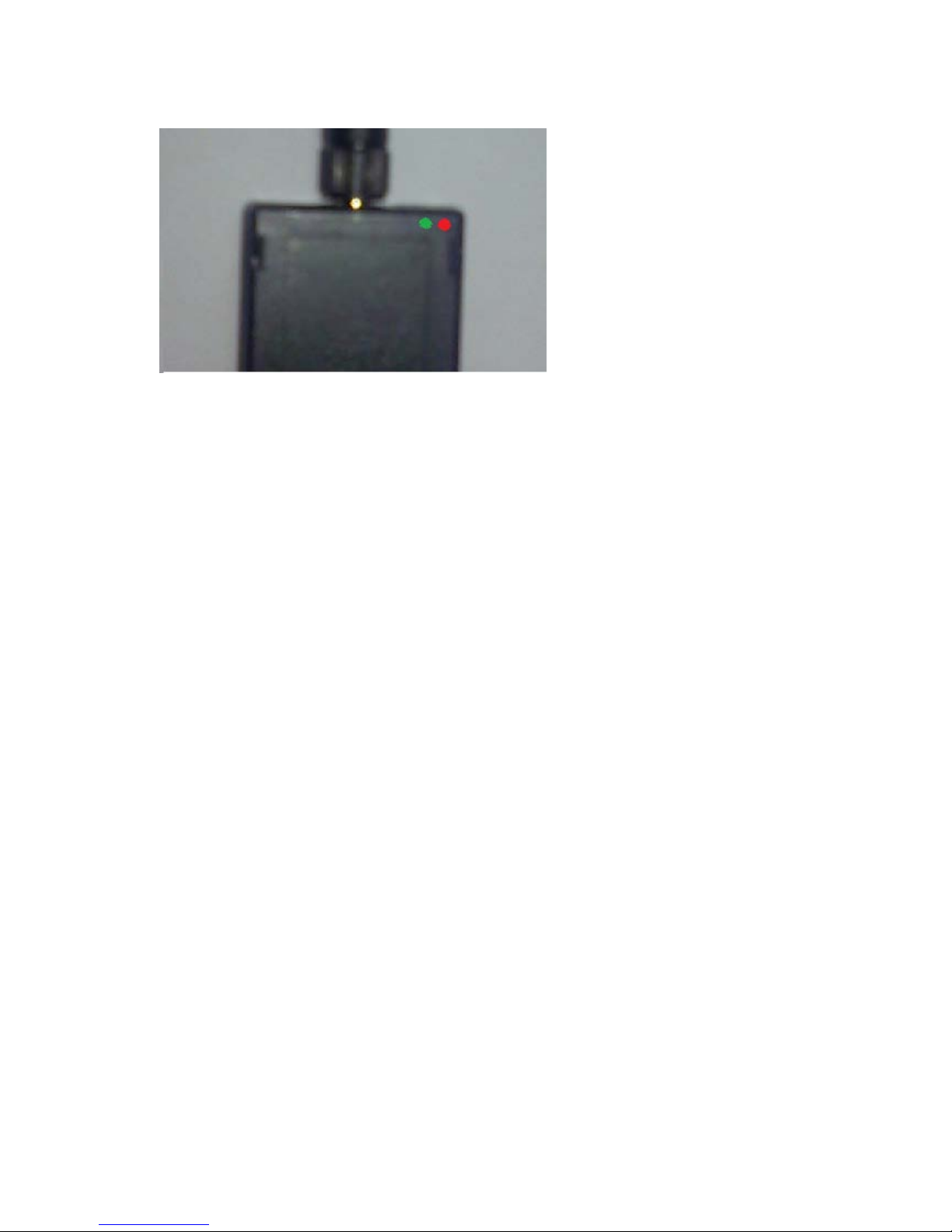

LED Indicators

Red Color LED

：

Power indicator (When the power is on, the red color LED stay lit.

Green Color LED

：

Before connecting to synchronize between the device and the BT RS232

Config Tool software, the green LED will be blinking.

After connecting to synchronize between the device and the BT RS232

Config Tool software, the green & red LED will blink alternately.

BTS-1000A Hardware Installation

1. Connect the BTS-1000A Bluetooth adapter to a COM Port of a PC and then

connect the DC power adapter jack into a power outlet and DC-in outlet.

You will see the red LED turn on and the green LED will blink.

2. After running the BT RS232 Config Tool and finishing configurations. Click

“Connect” and press the Sync button on the BTS-1000A Bluetooth adapter

immediately.

3. The green LED will turn on. The BTS-1000A Bluetooth adapter is now

active.

BT RS232 Config Tool Installation & Setup

When setting up the BTS-1000A adapter for the first time, you have to install and

run the BT RS232 Config Tool (BT1.EXE) first in your computer device. The utility

CD is enclosed in the packaging. Before you use the BTS-1000A adapter, you

have to pair the unit with another BTS-1000A device.

All BTS-1000A Bluetooth to Serial Adapters must be configured first before using.

The purpose of configuration is to pair the two BTS-1000A devices for an

exclusive connection between them. Pairing is done by utilizing a Bluetooth

address and PIN code.

Tool Installation

When setting up the BTS-1000A adapter for the first time, you have to install

the BT RS232 Config Tool utility software in your computer first which is an

executable program in Windows 32-bit environments. The config tool is

used to detect and setup the BTS-1000A.
