DEMO MANUAL DC3123A

Rev. 0

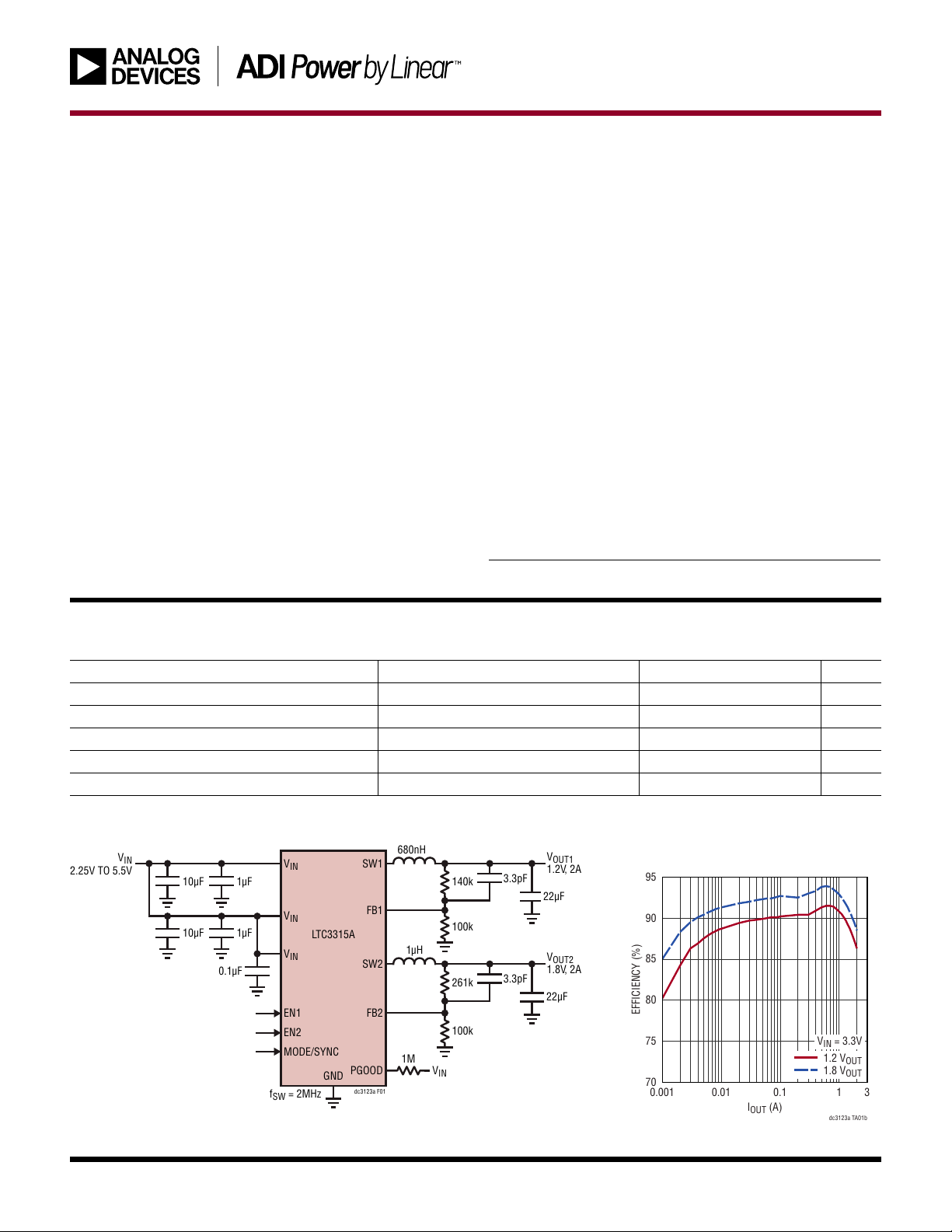

DESCRIPTION

LTC3315A

3.3V VIN, Dual 2A, 2MHz Buck Regulators at

1.2V and 1.8V Outputs in a 74mm2Solution

Demonstration Circuit DC3123A features the LTC©3315A

dual 5V, 2A Synchronous Step-Down DC/DC regulators

operating at 2MHz. One regulator provides a 1.2V output

and the other provides 1.8V, both up to a 2A load. The

LTC3315A supports adjustable output voltages from 0.5V

to VIN, operating frequencies from 1MHz up to 3MHz. The

LTC3315A is a compact, high efficiency, and high speed

synchronous monolithic step-down switching regulator.

Fast minimum on-time of 25ns enables high VIN to low

VOUT conversion at high frequency.

The DC3123A operating mode may be selected as Burst

Mode operation, Skip mode or Forced Continuous (FC)

mode. Setting JP1 to the FC/SYNC position will allow

All registered trademarks and trademarks are the property of their respective owners.

PERFORMANCE SUMMARY

the LTC3315A to sync to a clock frequency from 1MHz

to 3MHz. The LTC3315A operates in Forced Continuous

mode when syncing to an external clock.

The LTC3315A data sheet gives a complete description

of the device, operation and application information. The

data sheet must be read in conjunction with this demo.

The LTC3315A is assembled in a 1.6mm × 1.6mm WLCSP

package.

The Efficiency vs Load graph shows the efficiency and

the power loss of the circuit with a 3.3V input in Burst

Mode operation.

Design files for this circuit board are available.

Specifications are at TA= 25°C

Efficiency vs Load Current Burst

Mode Operation

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Supply Range (VIN) 2.25 5.5 V

Internal Oscillator Frequency (fSW) 1.9 2.0 2.1 MHz

Top Switch On Time 25 ns

VOUT1 0 to 2A 1.2 V

VOUT2 0 to 2A 1.8 V

680nH

22µF

140k

100k

3.3pF

1µF

1µH

261k

100k

1µF

22µF

3.3pF

SW1

FB1

SW2

FB2

PGOOD

dc3123a F01

EN2

MODE/SYNC

GND

VIN

LTC3315A

VIN

2.25V TO 5.5V

OUT1

1.2V, 2A

OUT2

1.8V, 2A

fSW = 2MHz

EN1

0.1µF

10µF

VIN

= 3.3V

1.2 V

OUT

1.8 V

OUT

(A)

0.001

0.01

0.1

EFFICIENCY (%)

dc3123a TA01b

DEMO MANUAL DC3123A

Rev. 0

BOARD PERFORMANCE

BOARD PHOTO

VIN = 3.3V

VOUT1 = 1.2V

FORCED CONTINUOUS MODE

OUT1

(A)

0.0

0.3

0.7

1.0

1.3

1.7

2.0

1.195

1.196

1.197

1.198

1.199

1.200

1.201

1.202

1.203

1.204

1.205

OUT1

(V)

dc3123a G01

VIN = 3.3V

VOUT2 = 1.8V

FORCED CONTINUOUS MODE

OUT2

(A)

0.0

0.3

0.7

1.0

1.3

1.7

2.0

1.795

1.796

1.797

1.798

1.799

1.800

1.801

1.802

1.803

1.804

1.805

OUT2

(V)

dc3123a G02

LTC3315A Load Regulation LTC3315A Load Regulation

DEMO MANUAL DC3123A

Rev. 0

BOARD PERFORMANCE

1.2V Load Transient Response

Forced Continuous Mode

1.8V Load Transient Response

Forced Continuous Mode

3.3V

TO 1.2V

OUT

LOADSTEP 0.4A TO 1.6A 1A/µs

10µs/DIV

SG1

2V/DIV

OUT1

50mV/DIV

RSNS1

50mV/DIV

dc3123a G03

3.3V

TO 1.8V

OUT

LOADSTEP 0.4A TO 1.6A 1A/µs

10µs/DIV

SG2

2V/DIV

OUT

50mV/DIV

RSNS2

50mV/DIV

dc3132a G04

DEMO MANUAL DC3123A

Rev. 0

QUICK START PROCEDURE

The DC3123A is easy to set up to evaluate the perfor-

mance of the LTC3315A. Refer to Figure1 and Figure2

for proper measurement equipment setup and follow the

evaluation procedure below.

NOTE:For accurate VIN, VOUT and efficiency measure-

ments, measure V

at the V

SNSE and GND SNSE turrets

and VOUT at the VOUT SNSE and GND SNSE turrets as illus-

trated as VM1, VM2 and VM3 in Figure1. When measuring

the input or output voltage ripple, care must be taken to

avoid a long ground lead on the oscilloscope probe.

1. Set the JP2 and JP3 jumpers on the DC3123A board

to the HI position.

2. Set the JP1 jumper on the DC3123A board to the

desired position, BURST for best efﬁciency, FC/SYNC

for lowest ripple, and PS for a compromise between

the two.

3. With power off, connect 0V to 6V, 5A power supply,

PS1, between VIN and GND with a series ammeter and

a voltmeter as shown in Figure1.

4. Turn on and set the PS1 input power supply to 3.3V

and observe that VOUT1 regulates to 1.2V and VOUT2

regulates to 1.8V.

NOTE:Makesurethattheinputvoltagedoesnotexceed6V.

5. With power off, connect a 0A to 2A load to VOUT1 and

GND with a series ammeter and a voltmeter as shown

in Figure1.

6. Turn on LOAD1 and slowly increase from 0A to 2A

and observe the output voltage. The output ripple may

also be observed using an oscilloscope with the probe

connected as shown in Figure2.

NOTE: Measure the output voltage ripple by touching the

probe tip directly across the output turrets or to TP1 as

shown in Figure2. TP1 is designed for a 50Ω coax cable

to reduce any high frequency noise that might couple into

the oscilloscope probes.

7. Set LOAD1 to 500mA.

8. With power off, connect a second 0A to 2A load to

VOUT2 and GND with a series ammeter and a voltmeter

as shown in Figure1.

9. Turn on LOAD2 and slowly increase the from 0A to 2A

and observe the output voltage. The output ripple may

also be observed using an oscilloscope with the probe

connected as shown in Figure2.

10. Momentarily short VOUT1 to ground with a clip lead

and observe that the voltage on PGOOD drops to 0V.

11. To change the operating frequency of the LTC3315A,

an external clock must be used. To do this set the JP1

jumperontheDC3123AboardtotheFC/SYNCposition.

12. Set a pulse generator to output a 0V to 3.3V pulse at

2MHz, 50% duty cycle and connect it to the MODE/

SYNC terminal and GND.

13. Changethefrequencyofthepulsegeneratorfrom2MHz

to 3MHz and observe how observe how the frequency

of SW1 follows the pulse generator.

14. Set LOAD1 greater than 1.0A. With an oscilloscope

probe on SW1, remove the pulse signal to the MODE/

SYNC terminal and observe how the switch frequency

settles from 3MHz back to 2MHz.

15. To test the transient response with a base load, turn

off LOADx (LOAD1 or LOAD2) and add the desired

resistortoproduceaminimumloadbetweenVOUTx and

RSNSx turrets (RL shown on Figure1). Note that the

total load resistance will be RL plus RSNSx (100mΩ).

16. Adjust a signal generator with a 10ms period, 10%

duty cycle and an amplitude from 1V to 2V to start.

Measure the RSNSx voltage to observe the current,

VRSNSx/100mΩ. Adjust the amplitude of the pulse to

provide the desired transient. Adjust the rising and

falling edge of the pulse to provide the desired ramp

rate. Refer to the following equations, the LTC3315A

DC3123A transient plots and Figure3.

17. IOUTx = VRSNSx/100mΩ

VRSNSx = VSGx − VGSx

Observe load transient effect on VOUTx

18. Refer to the LTC3315A data sheet for more details on

how the LTC3315A operates.

19. When done, turn off all loads, signal generator and

power supplies.

DEMO MANUAL DC3123A

Rev. 0

QUICK START PROCEDURE

Figure1. Proper Measurement Equipment Setup

Figure2. Measuring Input or Output Ripple

DEMO MANUAL DC3123A

Rev. 0

QUICK START PROCEDURE

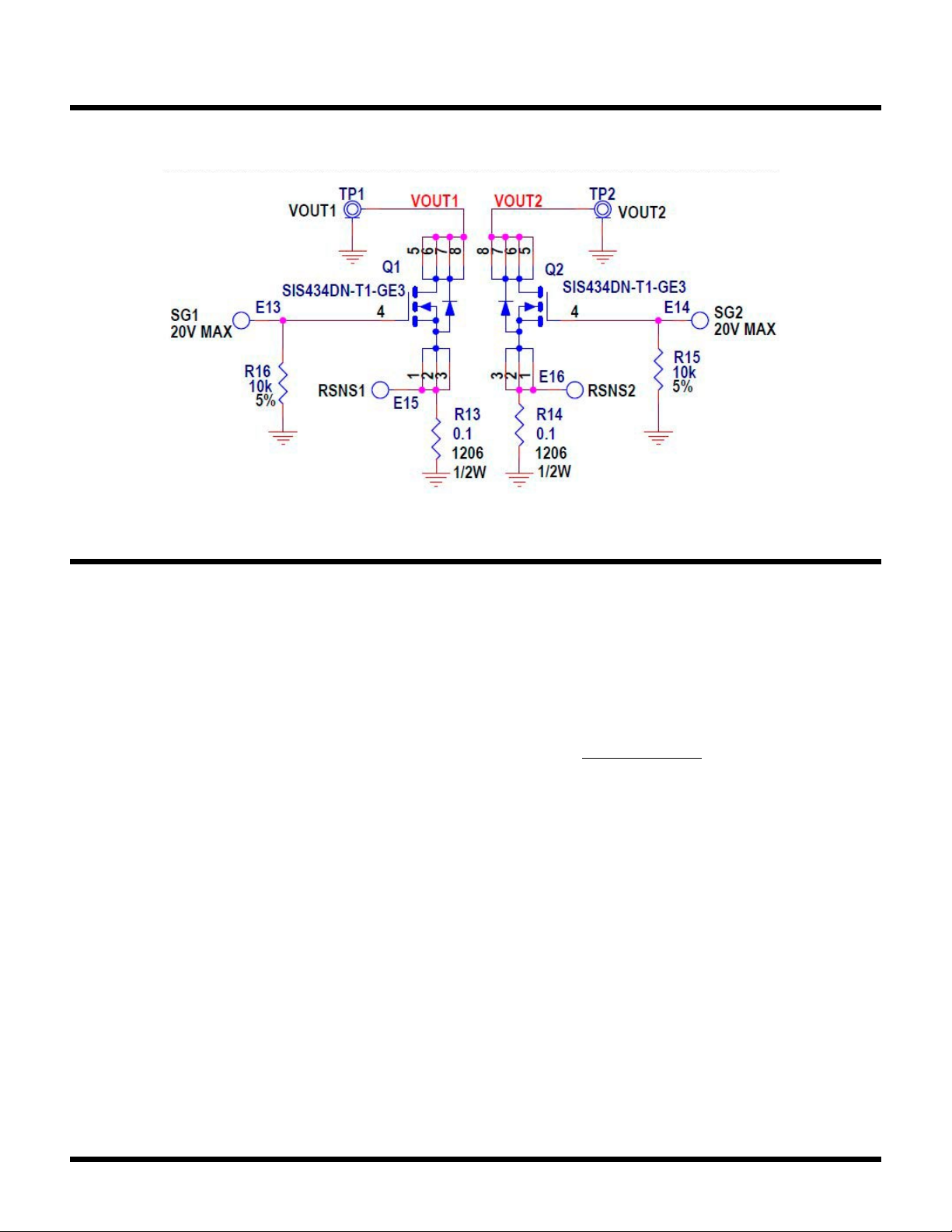

Figure3. Optional Transient Response Circuit

THEORY OF OPERATION

Introduction to the DC3123A

The DC3123A demonstration circuit features the

LTC3315A, a 5V Dual 2A Low voltage Synchronous Step-

Down regulator. The LTC3315A is a monolithic, constant

frequency, current mode step-down DC/DC converter.

An internal oscillator turns on the internal top power

switch at the beginning of each clock cycle. Current in the

inductor then increases until the top switch comparator

trips and turns off the top power switch. If the EN pin is

low, the LTC3315A is in shutdown and in a low quiescent

current state. When the EN pin is above its threshold, the

switching regulator will be enabled. Buck 1 and Buck 2

are 180° out of phase with each other.

The MODE/SYNC pin sets the switching mode to pulse

skip, forced continuous, or burst mode. If an external

1MHz to 3MHz clock is connected to the MODE/SYNC

turret while the JP1 is set to the FC/SYNC position, the

LTC3315A switching frequency will sync to the external

clock while operating in forced continuous mode. See

the LTC3315A data sheet for more detailed information.

The maximum allowable operating frequency is influenced

by the minimum on time of the top switch, the ratio of VOUT

to VIN and the available inductor values. The maximum

allowable operating frequency may be calculated using a

minimum Ton of 45ns in the formula below.

SWMAX =

OUT

INMAX •TonMIN

Select an operating switching frequency below fSWMAX.

The LTC3315A has a requirement that the magnitude of

the ripple current in the output inductor be greater than

0.6A peak to peak. This will determine the maximum

inductor value for the application.

Accurately Measuring Output Ripple of the LTC3315A

With the fast edge rates of the circuit, high frequency

noise can be observed when measuring the output voltage

with 1MΩ terminated oscilloscope probes. To better view

the output ripple with oscilloscopes of 400MHz bandwidth

and above a 50Ω coax cable connected as close to

the output caps as possible should be used with the

DEMO MANUAL DC3123A

Rev. 0

THEORY OF OPERATION

oscilloscope channel terminated to 50Ω at the scope. This

will help to reduce the noise coupling onto and displaying

on the scope. The demo board is set up to solder an

U.FL,RECEPT,ST SMD,0Hz to 6GHz 50Ω connector (TP1)

near the output cap C3 & C4. These pads can also be

used to solder a coax cable or other oscilloscope probe

connector if desired.

The DC3123A uses 3-terminal capacitors, C9 and C10,

on the output to reduce the high frequency spikes that

can be observed with high bandwidth oscilloscopes.

The high frequency spikes are partially attributed to the

interwinding capacitance of the inductor and the voltage

step is partially attributed to the inductance in the output

capacitors. The step can be reduced by choosing low ESL

capacitors as close to the inductor as possible. The high

frequency spikes are reduced with using a small low ESL

3-terminal capacitor with the self-resonant frequency

close to the high frequency spikes. Below is the output

ripple using a 500MHz scope, 50Ω probe measured at

TP1 without the 3-terminal capacitor populated in C9.

TP1

50Ω PROBE

= 3.3V

OUT1

= 1.2V

OUT1

= 2A

C9 = 1nF 3-TERMINAL CAP

1µs/DIV

OUT1

10mV/DIV

dc3132a G05

TP2

50Ω PROBE

= 3.3V

OUT2

= 1.8V

OUT2

= 2A

C10 = 1nF 3-TERMINAL CAP

1µs/DIV

OUT2

10mV/DIV

dc3132a G06

TP1

50Ω PROBE

= 3.3V

OUT1

= 1.2V

OUT1

= 2A

C9 = OPEN

1µs/DIV

OUT1

10mV/DIV

dc3132a G07

DEMO MANUAL DC3123A

Rev. 0

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 2 C1, C2 CAP., 10uF, X5R, 10V, 10%, 0603 MURATA, GRM188R61A106KAALD

2 2 C3, C4 CAP., 22uF, X5R, 10V, 20%, 0603 SAMSUNG, CL10A226MP8NUNE

3 2 C5, C6 CAP., 3.3pF, C0G, 50V, +/-0.25pF, 0402 AVX, 04025A3R3CAT2A

4 2 C7, C11 CAP., 1uF, X7T, 6.3V, 20%, 0201 MURATA, GRM033D70J105ME01D

5 1 C12 CAP., 0.1uF, X5R, 25V, 10%, 0402 AVX, 04023D104KAT2A

6 1 L1 IND., 680nH, FIXED, 20%, 3.5A, 0.033 OHMS, 0806 MURATA, DFE201612E-R68M=P2

7 1 L2 IND., 1uH, POWER, 20%, 2.9A, 48mOHMS, 0806 MURATA, DFE201612E-1R0M=P2

8 1 R1 RES., 140k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402140KFKED

9 2 R2, R4 RES., 100k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402100KFKED

10 1 R3 RES., 261k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402261KFKED

11 1 U1 IC, DUAL 5V, 2A SYNCHRONOUS STEP-DOWN DC/DCs IN 1.6mm x

1.6mm WLCSP

ANALOG DEVICES,

LTC3315AECBZ-R7#PBF

Additional Demo Board Circuit Components

1 1 C8 CAP., 220uF, TANT. POSCAP, 6.3V, 20%, 7343, 18mOHMS, TPE PANASONIC, 6TPE220MI

2 2 C9, C10 CAP., 1000pF, X7R, 50V, 20%, 0402, 3-TERM, X2Y EMI FILTER JOHANSON DIELECTRICS,

500X07W102MV4T

3 2 Q1, Q2 XSTR., MOSFET, N-CH, 40V, 35A, PowerPAK 1212-8 VISHAY, SIS434DN-T1-GE3

4 2 R5, R11 RES., 249k OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW0402249KFKED

5 2 R6, R7 RES., 20 OHMS, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW040220R0FKED

6 1 R8 RES., 10k OHMS, 5%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW040210K0JNED

7 2 R9, R10 RES., 1M OHM, 1%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M00FKED

8 1 R12 RES., 1M OHM, 5%, 1/16W, 0402, AEC-Q200 VISHAY, CRCW04021M00JNED

9 2 R13, R14 RES., 0.1 OHM, 1%, 1/2W, 1206, SENSE, AEC-Q200 IRC, LRC-LR1206LF-01-R100-F

10 2 R15, R16 RES., 10k OHMS, 5%, 1/10W, 0402, AEC-Q200 PANASONIC, ERJ2GEJ103X

Hardware: For Demo Board Only

1 15 E1, E2, E8, E10-E21 TEST POINT, TURRET, 0.064" MTG. HOLE, PCB 0.062" THK MILL-MAX, 2308-2-00-80-00-00-07-0

2 6 E3-E7, E9 TEST POINT, TURRET, 0.094" MTG. HOLE, PCB 0.062" THK MILL-MAX, 2501-2-00-80-00-00-07-0

3 1 JP1 CONN., HDR, MALE, 1x4, 2mm, VERT, ST, THT WURTH ELEKTRONIK, 62000411121

4 2 JP2, JP3 CONN., HDR, MALE, 1x3, 2mm, VERT, ST, THT WURTH ELEKTRONIK, 62000311121

5 4 MP1-MP4 STANDOFF, NYLON, SNAP-ON, 0.25" (6.4mm) KEYSTONE, 8831

6 0 TP1, TP2 CONN., U.FL, RECEPT, ST SMD, 0Hz to 6GHz 50Ohm HIROSE ELECTRIC, U.FL-R-SMT-1(10)

7 3 XJP1-XJP3 CONN., SHUNT, FEMALE, 2 POS, 2mm WURTH ELEKTRONIK, 60800213421

DEMO MANUAL DC3123A

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

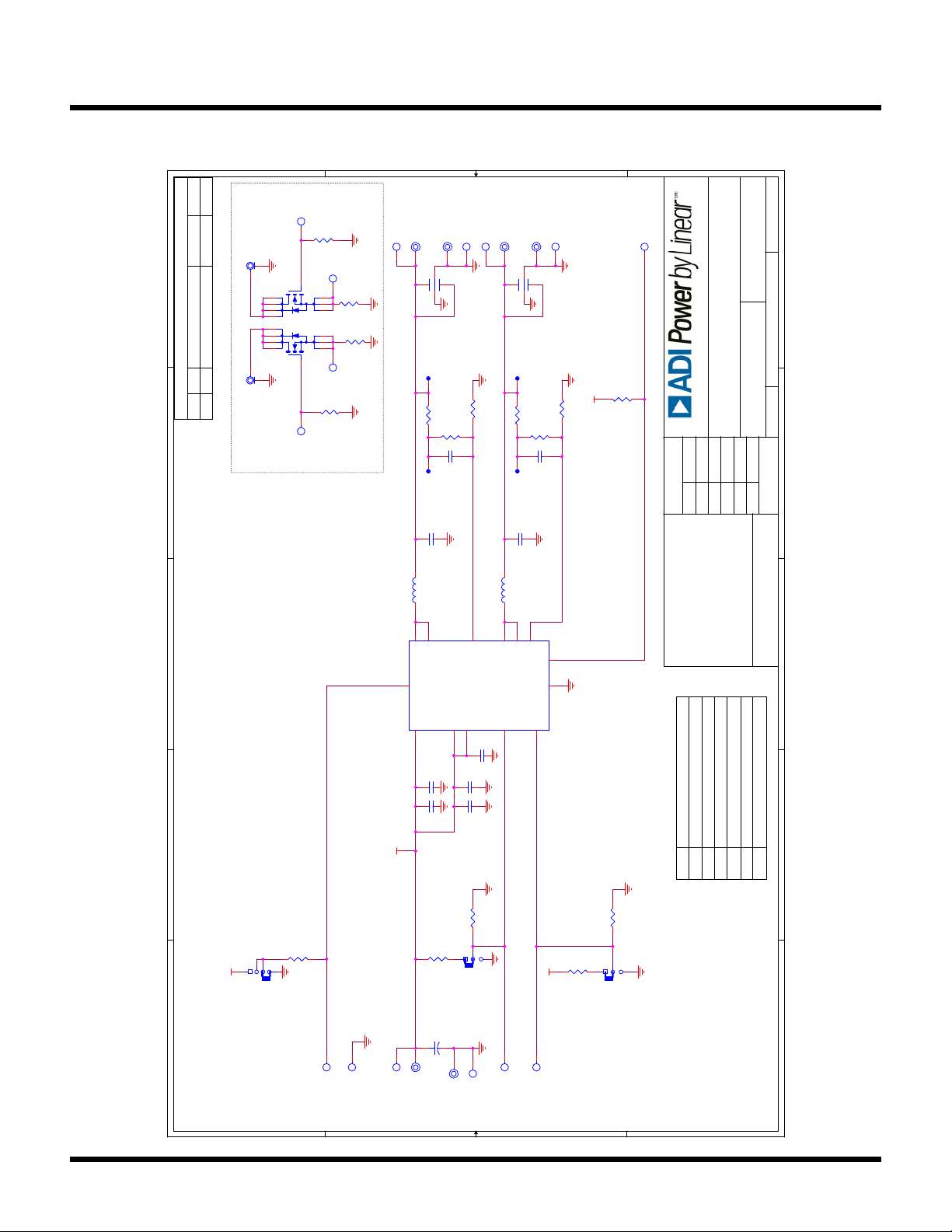

SCHEMATIC DIAGRAM

D D

C C

B B

A A

1.2V

2.25V - 5.5V

BURST

FC/SYNC

SKIP

MODE/SYNC

GND

EN1

PGOOD

MODE/SYNC

EN1

VIN

GND

VOUT1

GND

EN2

1.8V

VOUT2

GND

PCA ADDITIONAL PARTS

NOTES: UNLESS OTHERWISE SPECIFIED

1. RESISTORS: OHMS, 0402, 1%, 1/16W

2. CAPACITORS: 0402, 10V

SG1

20V MAX

SG2

20V MAX

RSNS1 RSNS2

OPTIONAL TRANSIENT RESPONSE CIRCUIT

VOUT1 VOUT2

VOUT1

SNSE

VOUT2

SNSE

GND1

SNSE

GND2

SNSE

GND

SNSE

VIN

SNSE

REV APPROVED

-PRODUCTION

ECO DESCRIPTION DATE

REVISION HISTORY

03 3-22-2021

REGULATORS WITH 1.2V AND 1.8V OUTPUTS, IN A

3.3V VIN, DUAL 2A, 2MHz SYNCHRONOUS STEP-DOWN

74mm² SOLUTION

VIN

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

www.analog.com

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

DC3123A_REV03

N/A

LTC3315A

DC3123A

03-22-2021

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

www.analog.com

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

DC3123A_REV03

N/A

LTC3315A

DC3123A

03-22-2021

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

www.analog.com

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED SPECIFICATIONS;

HOWEVER, IT REMAINS THE CUSTOMER'S RESPONSIBILITY TO

VERIFY PROPER AND RELIABLE OPERATION IN THE ACTUAL

APPLICATION. COMPONENT SUBSTITUTION AND PRINTED

CIRCUIT BOARD LAYOUT MAY SIGNIFICANTLY AFFECT CIRCUIT

PERFORMANCE OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

DC3123A_REV03

N/A

LTC3315A

DC3123A

03-22-2021

140k

MP3 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

E14

E12

R15

10k

22uF

0603

PCB1 PCB, DC3123A REV03

JP2

R11

249k

10k

JP1

R13

0.1

1206

1/2W

1uH

DFE201612E-1R0M=P2

10uF

0603

C11

1uF

0201

6.3V

3.3PF

50V

TP2

100k

1000pF

50V

SIS434DN-T1-GE3

E21

3.3PF

50V

C10

1000pF

50V

LB1 LABEL

249k

22uF

0603

JP3

LTC3315AECBZ

EN1

SW1 C3

FB1 A3

MODE/SYNC

FB2 A2

PGOOD

VIN

PGND

EN2

VIN

SW2 C1

PGND

SW2 C2

SW1 C4

VIN

MP2 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

E11

TPA2

MP4 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

R12

R16

10k

5% R14

0.1

1206

1/2W

SIS434DN-T1-GE3

E19

680nH

DFE201612E-R68M=P2

E16

E17

220uF

6TPE220MI

6.3V

1uF

0201

6.3V

TPB1

E15

R10

C12

0.1uF

25V

E10

E13

E20

TPA1

261k

E18

TPB2

100k

TP1

MP1 STANDOFF,NYLON,SNAP-ON,0.25" (6.4mm)

10uF

0603

VOUT1

SW2 VOUT2

VOUT1 VOUT2

SW1

DEMO MANUAL DC3123A

Rev. 0

 ANALOG DEVICES, INC. 2022

01/22

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted

is expressly made subject to the following additional limitations:Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board;and (ii) permit any Third

Party to access the Evaluation Board. As used herein, the term “Third Party”includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is

NOT sold to Customer;all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all

be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS”AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts

(excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices ADL6012-EVALZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADV7180LFEBZ Manuel utilisateur

Analog Devices

Analog Devices ADP151 Manuel utilisateur

Analog Devices

Analog Devices AD5162 Manuel utilisateur

Analog Devices

Analog Devices ADP1055-EVALZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-SSM4567Z Manuel utilisateur

Analog Devices

Analog Devices AD8476 Manuel utilisateur

Analog Devices

Analog Devices ADAU1772 Manuel utilisateur

Analog Devices

Analog Devices Linear DC2681A-A Guide de configuration rapide

Analog Devices

Analog Devices EVAL-ADFS5758SDZ Manuel utilisateur

Analog Devices

Analog Devices ADP5302-EVALZ Manuel utilisateur

Analog Devices

Analog Devices ADRF5519-EVALZ Manuel utilisateur

Analog Devices

Analog Devices MICROCONVERTER ADUC812 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADAU1401AEBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADIN1300FMCZ Manuel utilisateur

Analog Devices

Analog Devices SCP-LT3483-EVALZ Guide de configuration rapide

Analog Devices

Analog Devices EVAL-ADN4693E-1 Manuel utilisateur

Analog Devices

Analog Devices UG-435 Manuel utilisateur

Analog Devices

Analog Devices AD9522 Series Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADAU1401EBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7176-2SZD Manuel utilisateur

Analog Devices

Analog Devices ADP5350CP-EVALZ Manuel utilisateur

Analog Devices

Analog Devices ADP151 Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADGS1408SDZ Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
