Analog Devices SCP-LT3483-EVALZ Guide de configuration rapide

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

DESCRIPTION

Demonstration circuit SCP-LT3483-EVALZ is an inverting

converter featuring the LT3483ES6. The converter gener-

ates –15V at 8mA to 40mA from a 2.7–12V input using a

dual coupled inductor in an inverting flyback topology.

Like all boards in the Signal Chain Power series, this board

is designed to be easily plugged into other SCP boards to

form a complete signal chain power system, enabling fast

evaluation of low power signal chains. To evaluate this

board, some universal SCP hardware is required, namely:

SCP-INPUT-EVALZ SCP-FILTER-EVALZ

SCP-OUTPUT-EVALZ SCP-1X2BKOUT-EVALZ

SCP-1X5BKOUT-EVALZ SCP-5X1-EVALZ

SCP-THRUBRD-EVALZ

To properly evaluate SCP series demo boards, you will

need the SCP Configurator companion software. SCP

Configurator can help you choose the right board and to-

pology for your design.

Note that this Demo Manual does not cover details im-

portant to the operation and configuration regarding the

LT 3 4 83 buck regulator. Please refer to the LT 3 4 83

datasheet for a complete description of the part.

Design files for this circuit board are available.

All registered trademarks and trademarks are property of their respective owners.

Table 1.

Performance Summary

SYMBOL

PARAMETER

NOTES

MIN

TYP

MAX

UNITS

IN(MAX)

Max Input Voltage

OUT(MAX)

Max Output Voltage

Output capacitor rating limited

Replace for higher V

OUT

setting

–39

SW(LIM)

Switch Current Limit

200

BOARD IMAGE

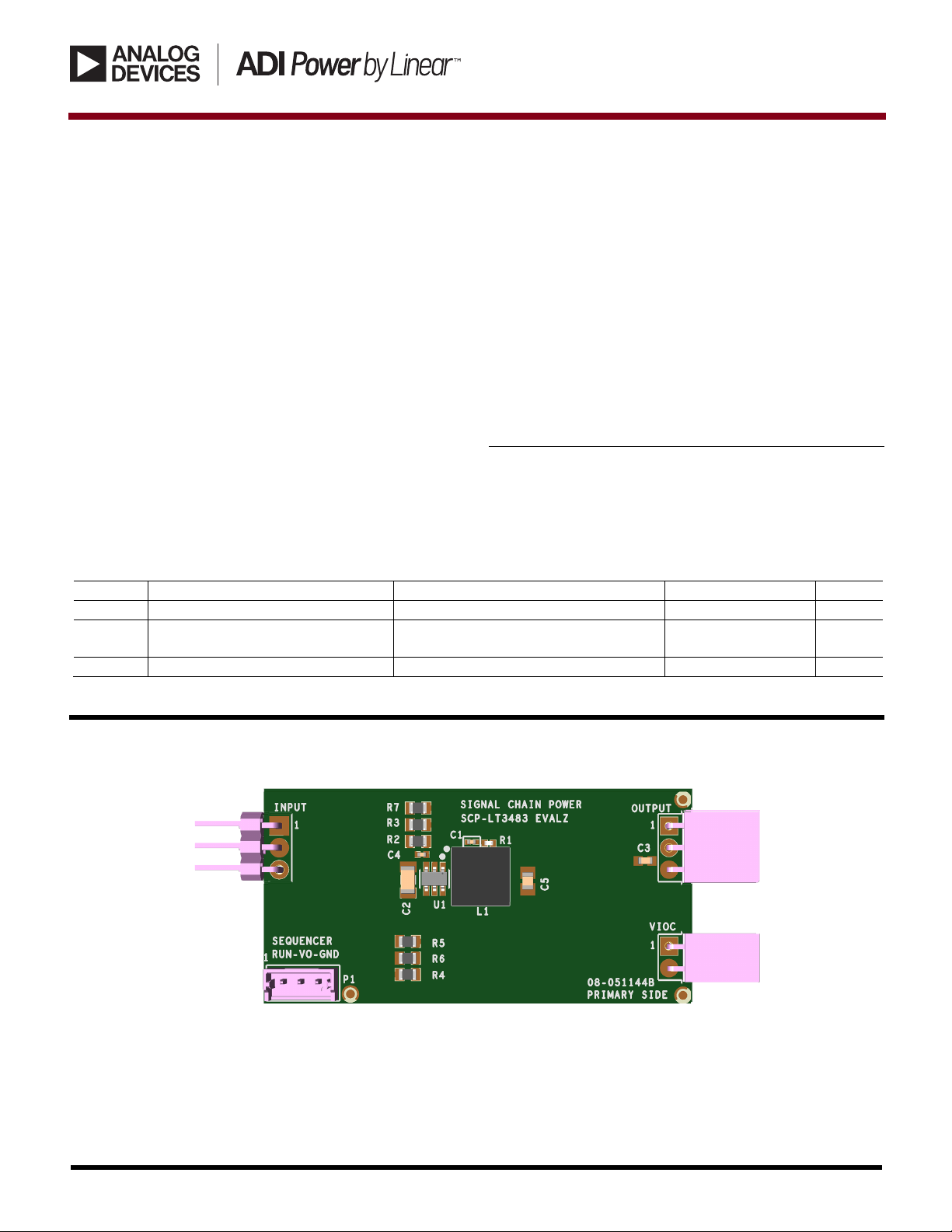

Figure 1. SCP-LT 3 4 8 3 -EVALZ Board

DEMO MANUAL

SCP-LT3483-EVALZ

Signal Chain Power

LT3483 Inverting Converter

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

QUICK START PROCEDURE

Demonstration circuit

SCP-LT3483-EVALZ

is easy to set

up to evaluate the performance of any SCP hardware

configuration. Refer to

Figure 2 and follow these steps

1. The SCP-LT3483-EVALZ ships with a default output

voltage of –15V. To c h a n g e t h e o u t p u t v o l t a g e , s e e

“Configuration Settings” section, and modify the board

accordingly. Be sure to check for open connections or

solder shorts after making any modifications.

2. Connect the SCP-INPUT-EVALZ and SCP-OUTPUT-

EVALZ boards to the SCP-LT3483-EVALZ board (refer

to Figure 2) and connect the input board to a voltage

source, V

SOURCE

. Connect the output board to a volt-

meter or dynamic load. Slowly raise the input voltage

until the SCP-LT3483-EVALZ into regulation and sweep

SOURCE

through the desired range of operation.

NOTE: Make sure that the input voltage is always within

specification. If using a dynamic load to measure out-

put voltage, make sure the load is initially set to zero.

3. Check for proper output voltage. The output should be

regulated at the programmed value (±5%).

4. Once the proper output voltage is established, power

off V

SOURCE

and similarly test other boards in the SCP

system until all elements have been individually verified

prior to assembling into the final circuit configuration.

NOTE: When measuring the input or output voltage rip-

ple, use the optional SMA connector locations available

on the input, output, 1

5, 1

2, and 5

1 breakout

boards. Avoid using the test point connections with

long scope leads.

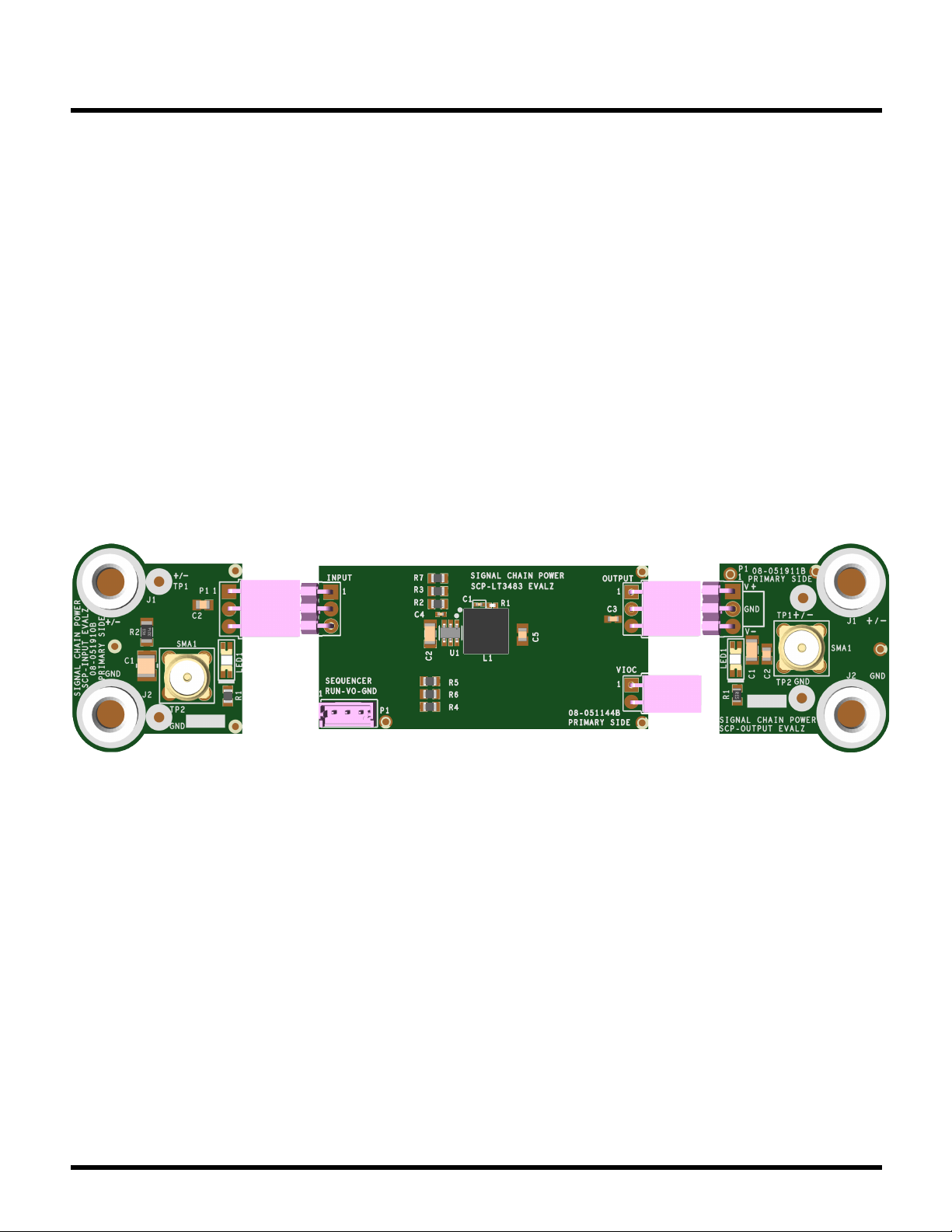

Figure 2. Proper Measurement Equipment Setup (Use SMA connectors for Measuring Input or Output Ripple)

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

CONFIGURATION SETTINGS

Demonstration circuit SCP-LT3483-EVALZ is an inverting

converter featuring the LT3483ES6. The converter gener-

ates –15V at 8mA to 40mA from a 2.7–12V input using a

dual coupled inductor in an inverting flyback topology.

The output of the SCP-LT3483-EVALZ is resistor-program-

mable from –1V to –39V. T h e b o a r d c a n b e also configured

to drive VIOC-capable linear regulators.

OUTPUT VOLTA G E PROGRAMMING

Table 2.

Resistor selection guide for common output voltages

OUT

(V)

R2 (Ω)

–1.0V

100k

–1.5V

150k

–2.0V

200k

–2.5V

249k

–3.0V

301k

–3.5V

348k

–4.0V

402k

–4.5V

453k

–5.0V

499k

–5.5V

549k

–6.0V

604k

–7.0V

698k

–8.0V

806k

–9.0V

909k

–10.0V

1.00M

–11.0V

1.10M

–12.0V

1.21M

–13.0V

1.30M

–14.0V

1.40M

–15.0V

1.50M

–16.0V

1.62M

–17.0V

1.69M

–18.0V

1.82M

–19.0V

1.91M

–20.0V

2.00M

–25.0V

2.49M

–30.0V

3.01M

–35.0V

3.48M

–39.0V

3.92M

SHDN

PIN CONFIGURATION

The

SHDN

pin is tied to the optional SCP Run/Sequence

header P1. To create a harness for this function, use Molex

part 0510650300 with crimp pin 50212-8000.

To use an active run signal, use a 1.00M resistor for either

pull-up or pull-down resistors R5 and R6, short R4 with

, and use the drive signal from connector P1.

VOLTAGE INPUT-TO-OUTPUT CONTROL (VIOC)

IMPLEMENTATION

To implement the VIOC function for this regulator, set R7

to 0

. Refer to the “Configuration Settings” section in the

Demo Manual for the low-dropout (LDO) linear regulator

board and use the following configuration for this board.

Table 3.

VIOC Cross-Reference Designators

VIOC SETTING REFERENCES

BOT

TOP

MAX

OUT

Reference Designators

125kΩ

(internal to LT3483)

Because the V

LDOIN

term is simply the sum of the final

output voltage after the LDO and the difference the LT3483

is adding on top, it can be helpful to take the desired final

output voltage, add 1.0V, and then look up that voltage-

resistor combination from Table 2.

MAX

can then be obtained by figuring out the difference

between the maximum and nominal output voltages of the

LT 3 4 8 3 , d i v i d e d b y t h e 1 0 µA current through the internal

feedback resistor.

VOUT =R2•10µA

VL DOIN −VL DOOUT =VVIOC =1 .2 5 VREF

RTOP

RBOT

⎛

⎝

⎜⎞

⎠

⎟

VMAX

( )

L DOIN =1 .2 5 VREF

RTOP +RMAX

RBOT

⎛

⎝

⎜⎞

⎠

⎟+VVIOC

RMAX

4 0 k

⎛

⎝

⎜⎞

⎠

⎟

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

PARTS LIST

ITEM

QTY

REFERENCE

PART DESCRIPTION

MANUFACTURER/PART NUMBER

PCB

ANALOG DEVICES 08_051144b

CAP CER 330PF 10% 50V X7R 0402

KEMET C0402C331K5RACTU

CAP CER 4.7UF 50V 10% X7R 1206

SAMSUNG CL31B475KBHNNNE

CAP CER 0.1UF 50V 10% X7R 0603

SAMSUNG CL10B104KB8NNNC

CAP CER C0G DIELECTRIC

AVX 04025A5R6CAT2A

CAP CER 10UF 25V 10% X5R 0805

SAMSUNG CL21A106KAYNNNE

INPUT

CONN-PCB MALE HEADER 3POS 2.54MM PITCH R/A GOLD

SULLINS PBC03SBAN

IND POWER SHIELDED WIREWOUND 0.658A/0.329A,

0.5766OHM/2.31OHM DCR

EATON SDQ12-150-R

OUTPUT

CONN FEMALE 3POS 2.54MM PITCH R/A GOLD

SULLINS PPPC031LGBN-RC

CONN-PCB 3POS HEADER WIRE TO BRD WAFER ASSY STRAIGHT

2MM PITCH (Note 1)

MOLEX 53253-0370

RES PRECISION THICK FILM CHIP

PANASONIC ERJ-2RKF10R0X

RES THIN FILM PRECISION

TE CONNECTIVITY CPF0805B1M5E1

RES STANDARD THICK FILM CHIP JUMPER, FOR AUTOMOTIVE

VISHAY CRCW08050000Z0EA

R4, R6, R7

RES THICK FILM 0805 (Note 1)

N/A

RES THICK FILM CHIP, GENERAL PURPOSE

YAGEO RC0805JR-071ML

IC INVERTING MICROPWR DC/DC CONVERTER

LINEAR TECHNOLOGY LT3483ES6#PBF

VIOC

CONN FEMALE 2POS 2.54MM PITCH R/A GOLD

SULLINS PPPC021LGBN-RC

Note 1.

These items are not stuffed (DNI).

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Speciﬁcations

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Speciﬁcations

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

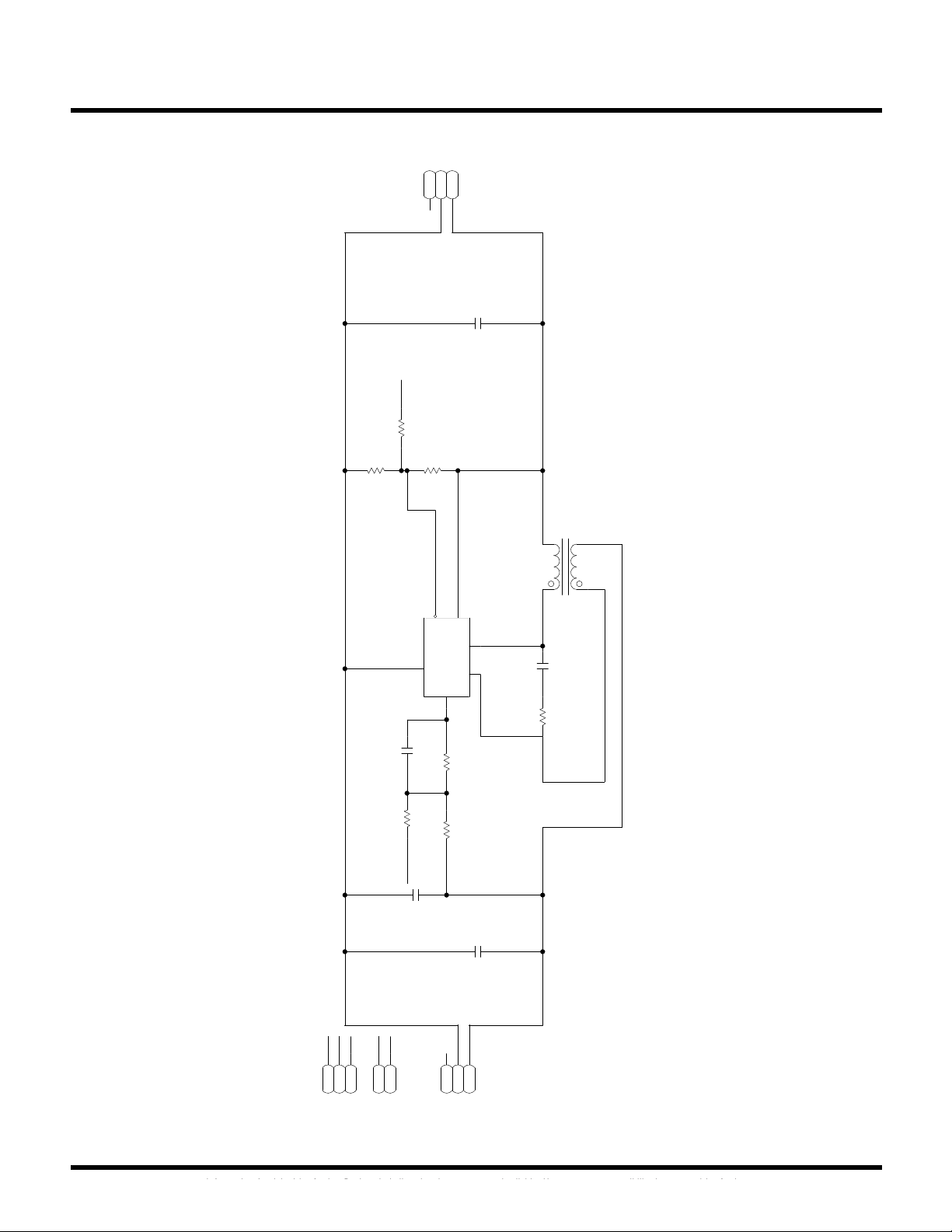

SCHEMATIC DIAGRAM

FE MA LE

LT3483

MA LE 4.7UF

50V

5.6PF

50V

LT3483ES6#PBF

330PF

1.5M

DN I

15.21UH/60.84UH

0.1UF

50V

53253-0370

DN I

25V

10UF

1MEG C4 R7 C5

OUTPUT

VIO C

INPUT

VI OC

GN D

VO -

GN D

VI OC

VO -

GN D

V+ 3

2 4

SHDN_N

VIN

GND

DEMO MANUAL SCP-LT3483-EVALZ

Rev. 0

12/20

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal

Terms and Conditions

using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms

and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluat

ion

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”

)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands

and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license

granted

is expressly made subject to the following additional limitations: Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board; and (ii) permit any

Third

Party to access the Evaluation Board. As used herein, the term “Third Party” includes any entity other than ADI, Customer, their employees, afﬁliates and in-house consultants. The Evaluation Board

NOT sold to Customer; all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall

all

be considered the conﬁdential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble,

decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modiﬁcations or alterations it makes to the Evaluation Board, including but not

limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modiﬁcations to the Evaluation Board must comply with applicable law, including but not limited to the

RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS” AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALL

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO,

THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND IT

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD,

INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF

ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United

States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of

Massachusetts

(excluding conﬂict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby

submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices EVAL-ADGS5412SDZ Manuel utilisateur

Analog Devices

Analog Devices AD9146-M5375-EBZ Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2622A Guide de configuration rapide

Analog Devices

Analog Devices AD9361 Manuel utilisateur

Analog Devices

Analog Devices Lite ADSP-21371 EZ-KIT Guide de l'utilisateur

Analog Devices

Analog Devices EVAL-ADG5404FEBZ Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2668A Guide de configuration rapide

Analog Devices

Analog Devices DC2851A Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD4858FMCZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5344DBZ Manuel utilisateur

Analog Devices

Analog Devices Linear Technology DC2692A Guide de configuration rapide

Analog Devices

Analog Devices AD8147-EVALZ Manuel utilisateur

Analog Devices

Analog Devices AD8224-EVALZ Manuel utilisateur

Analog Devices

Analog Devices UG-173 Manuel utilisateur

Analog Devices

Analog Devices UG-388 Manuel utilisateur

Analog Devices

Analog Devices ADSP-SC589 EZ-Board Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADAQ7768-1 Manuel utilisateur

Analog Devices

Analog Devices UG-893 Manuel utilisateur

Analog Devices

Analog Devices ADN2841 Instructions d'installation et d'utilisation

Analog Devices

Analog Devices Linear ADI Power SCP-LT8618-BEVALZ Guide de configuration rapide

Analog Devices

Analog Devices Hittite HMC1023LP5E Manuel utilisateur

Analog Devices

Analog Devices DC456 Manuel utilisateur

Analog Devices

Analog Devices MAX98365 Manuel utilisateur

Analog Devices

Analog Devices EVAL-SSM3302Z Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
