EVAL-AD5313RDBZ User Guide

UG-965

One Technology Way •P. O. Box 9106 •Norwood, MA 02062-9106, U.S.A. •Tel: 781.329.4700 •Fax: 781.461.3113 •www.analog.com

Evaluating the AD5313R 10-Bit, Dual-Channel Voltage Output Digital-to-Analog

Converter (

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS.Rev. A | Page 1 of 13

FEATURES

Full featured evaluation board (EVAL-AD5313RDBZ)

in conjunction with nanoDAC motherboard

(EVAL-MBnanoDAC-SDZ)

On-board references

Various link options

PC control in conjunction with Analog Devices, Inc., system

demonstration platform (SDP)

EVALUATION KIT CONTENTS

EVAL-AD5313RDBZ evaluation board

EVAL-MBnanoDAC-SDZ motherboard

USB cable

SOFTWARE REQUIRED

EVAL-AD5313RDBZ evaluation software

HARDWARE REQUIRED

EVAL-SDP-CB1Z controller board (SDP-B controller board),

must be purchased separately

GENERAL DESCRIPTION

This user guide details the operation of the E VA L -AD5313RDBZ

evaluation board for the AD5313R dual-channel, voltage output

DAC. The AD5313R operates from a single 2.7 V to 5.5 V supply.

The E VA L -AD5313RDBZ is designed to quickly prototype

AD5313R circuits and reduce design time. The evaluation board

interfaces with the USB port of a PC via the SDP-B controller

board. Software can be downloaded via the EVA L-AD5313RDBZ

product page that allows users to program the AD5313R.

This evaluation board requires the SDP-B controller board,

which is available for order on the Analog Devices, Inc.,

website.

Full data on the AD5313R can be found in the AD5313R data

sheet available from Analog Devices and should be consulted in

conjunction with this user guide when using the evaluation board.

EVAL-AD5313RDBZ, EVAL-MBNANODAC-SDZ, AND EVAL-SDP-CB1Z BOARDS

14440-001

Figure 1.

UG-965 EVAL-AD5313RDBZ User Guide

Rev. A | Page 2 of 13

TABLE OF CONTENTS

Features .............................................................................................. 1

Evaluation Kit Contents................................................................... 1

Software Required ............................................................................ 1

Hardware Required .......................................................................... 1

General Description ......................................................................... 1

E VA L-AD5313RDBZ, E VA L -MBnanoDAC-SDZ, and EVAL-

SDP-CB1Z Boards ............................................................................ 1

Revision History ............................................................................... 2

Evaluation Board Hardware ............................................................ 3

Power Supplies .............................................................................. 3

Link Options ................................................................................. 3

Daughter Board Link Options.....................................................3

Evaluation Software...........................................................................4

Installing the EVAL-AD5313RDBZ evaluation software.............4

Running the Software ...................................................................4

Software Operation .......................................................................5

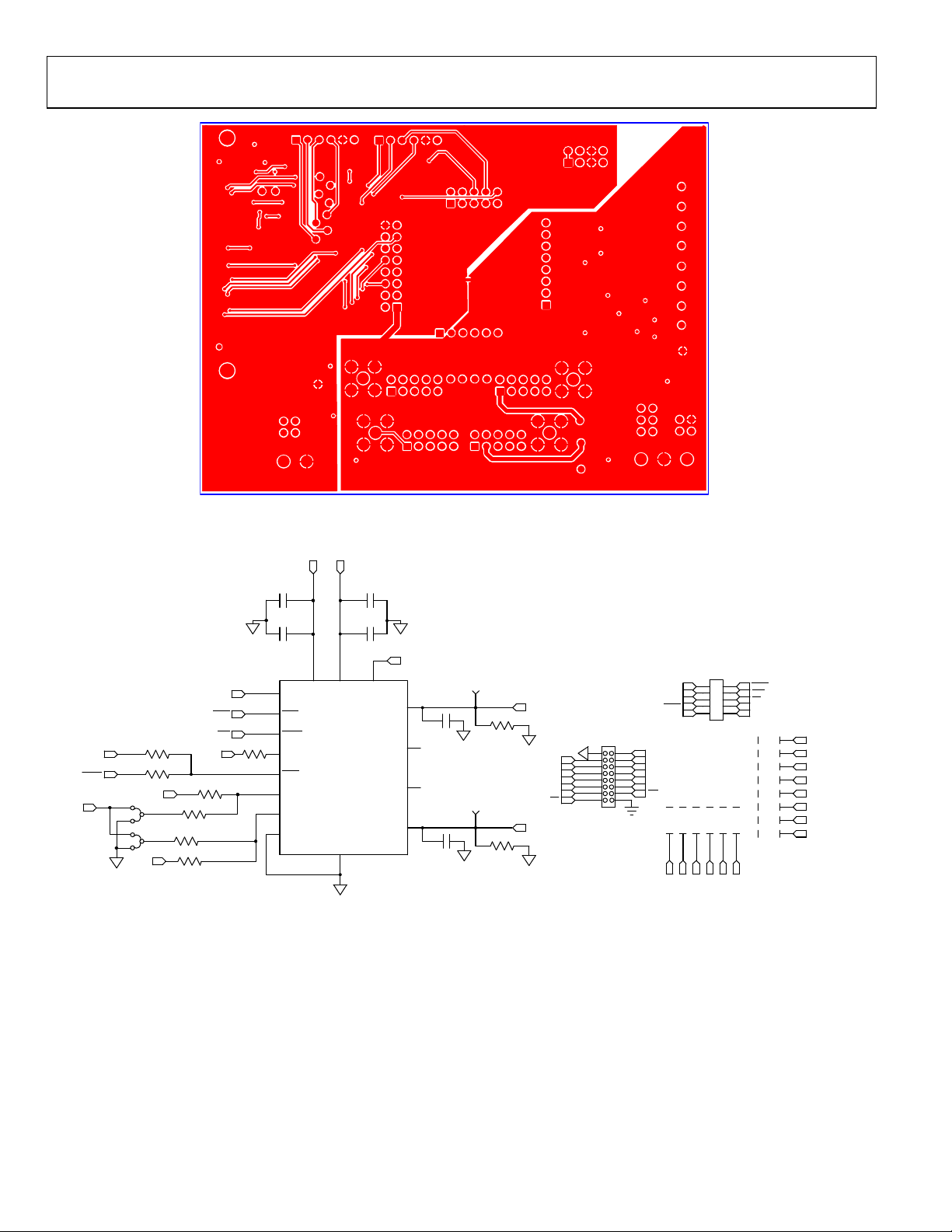

Evaluation Board Schematics and Artwork...................................7

EVAL-MBnanoDAC-SDZ Motherboard ...................................7

E VA L-AD5313RDBZ Daughter Board..................................... 10

Ordering Information.................................................................... 12

Bill of Materials........................................................................... 12

REVISION HISTORY

9/2017—Rev. 0 to Rev. A

Changes to Figure 1.......................................................................... 1

Changes to Daughter Board Link Options Section and Table 3...... 3

3/2017—Revision 0: Initial Version

EVAL-AD5313RDBZ User Guide UG-965

Rev. A | Page 3 of 13

EVALUATION BOARD HARDWARE

POWER SUPPLIES

The nanoDAC® E VA L-MBnanoDAC-SDZ motherboard

supports single and dual power supplies.

The E VA L -AD5313RDBZ evaluation board can be powered

either from the SDP-B port or externally by the J5 and J6

connectors, as described in Table 1.

Both AGND and DGND inputs are provided on the E VA L -

AD5313RDBZ evaluation board. The AGND and DGND planes

connect at one location on the E VA L -MBnanoDAC-SDZ. It is

recommended that AGND and DGND do not connect

elsewhere in the system to avoid ground loop problems.

All supplies are decoupled to ground with a 10 µF tantalum

capacitor and 0.1 µF ceramic capacitor.

Table 1. Power Supply Connectors

Connector No. Label Voltage

J5, Pin 1 (J5-1) VDD Analog positive power supply, VDD;

5.5 V single- and dual-supply

J5, Pin 2 (J5-2)

AGND

Analog ground

J5, Pin 3 (J5-3) VSS Analog negative power supply, VSS;

5.5 V dual-supply

J6, Pin 1 (J6-1) VLOGIC Digital supply from 1.8 V to VDD

J6, Pin 2 (J6-2) DGND Digital ground

LINK OPTIONS

A number of link options are incorporated in the EVA L -

MBnanoDAC-SDZ and must be set for the required operating

conditions before using the EVA L-AD5313RDBZ. Table 2

describes the positions of the links to control the evaluation

board via the SDP-B controller board using a PC and external

power supplies. The functions of these link options are described in

detail in Table 3. The positions listed in Table 2 and Table 3

match the evaluation board imprints (see Figure 12).

Table 2. Link Options Setup for SDP-B Control (Default)

Link Number Position

REF1 2.5V

REF2 EXT

REF3 EXT

REF4 EXT

LK5 C

LK6 +3V3

LK7 B

DAUGHTER BOARD LINK OPTIONS

The E VA L -AD5313RDBZ has two link options, LK1 and LK2,

and it is recommended to remove the link from the E VA L-

AD5313RDBZ.

Table 3. Link Functions

Link Number Position

REF1 to REF4 These links select the reference source.

Position EXT selects an off board voltage reference via the appropriate EXT_REF connector.

Position VDD selects VDD as the reference source.

Position 4.096V selects the on-board 4.096 V reference as the reference source.

Position 2.5V selects the on-board 2.5 V reference as the reference source.

Position 5V selects the on-board 5 V reference as the reference source.

LK5 This link selects the positive DAC analog voltage source.

Position A selects the internal voltage source from the SDP-B controller board. Only the 2.5 V on-board reference can

be used with this configuration.

Position B selects the internal voltage source 3.3 V from the ADP121.

Position C selects an external supply voltage, VDD.

LK6 This link selects the VLOGIC voltage source.

Position +3.3V selects the digital voltage source from the SDP-B controller board (+3V3).

Position VLOGIC selects an external digital supply voltage (VLOGIC).

LK7 This link selects the negative DAC analog voltage source.

Position A selects VSS.

Position B selects AGND.

UG-965 EVAL-AD5313RDBZ User Guide

Rev. A | Page 4 of 13

10954-00 3

EVALUATION SOFTWARE

INSTALLING THE EVAL-AD5313RDBZ EVALUATION

SOFTWARE

The E VA L -AD5313RDBZ evaluation software is compatible with

Windows® Vista (64-bit/32-bit), and Windows 7 (64-bit/32-bit).

Install the software before connecting the SDP-B controller

board to the USB port of the PC to ensure that the SDP-B

controller board is recognized when it connects to the PC.

To install the EVA L-AD5313RDBZ evaluation software, take

the following steps:

1. Start the Windows operating system.

2. Download the installation software from the E VA L-

AD5313RDBZ evaluation board page.

3. Run the setup.exe file from the installer folder if it does not

open automatically.

4. After the installation is complete, power up the evaluation

board as described in the Power Supplies section.

5. Connect the E VA L-AD5313RDBZ to the SDP-B controller

board and the SDP-B controller board to the PC using the

USB cable included in the evaluation kit.

6. When the software detects the E VA L-AD5313RDBZ,

proceed through any dialog boxes that appear to finalize

the installation.

RUNNING THE SOFTWARE

To run the E VA L -AD5313RDBZ evaluation software, proceed

with the following steps:

1. Connect the EVA L -AD5313RDBZ to the SDP-B controller

board and connect the USB cable between the board and

the PC.

2. Power up the E VA L -AD5313RDBZ as described in the

Power Supplies section.

3. Click Start > All Programs > Analog Devices > AD5313R

Evaluation Software to locate the evaluation board.

If the SDP-B controller board is not connected to the USB port

when the software launches, a connectivity error displays (see

Figure 2).

Connect the SDP-B controller board to the USB port of the PC

and wait a few seconds. When the SDP-B controller board and

the E VA L -AD5313RDBZ daughter board are detected, the

display updates (see Figure 3).

14440-002

Figure 2. Connectivity Error

14440-003

Figure 3. Hardware Select Window

EVAL-AD5313RDBZ User Guide UG-965

Rev. A | Page 5 of 13

14440-004

Figure 4. AD5313R Evaluation Software Main Window

Alternatively, the E VA L -AD5313RDBZ evaluation software can

be used without an evaluation board. The EVA L-AD5313RDBZ

evaluation software runs in simulation mode displaying

expected outputs based on the input data. The main window of

the E VA L-AD5313RDBZ evaluation software then opens, as

shown in Figure 4.

SOFTWARE OPERATION

The E VA L -AD5313RDBZ evaluation software allows the user to

program values to the input and DAC registers of each DAC

individually or collectively.

Write to Input Register

Click the Write to Input Register button to load the code of the

input data control to the input register of the selected DAC

(DAC A, DAC B, or All DACs).

Update DAC Register from Input Register

Click the Update DAC Register from Input Register button to

copy the value in the input register to the corresponding DAC

appropriated voltage. Ignore the LDAC MASK indicator LED.

Write to Input and DAC Registers

Click the Write to Input and DAC Registersbutton to load the

code of the input data control to the input register and DAC

updated with the appropriated voltage. Ignore the LDAC MASK

indicator LED.

LDAC Control

Select the Pulse LDAC button to bring the LDAC pin low and

then back to high, copying the data from the input registers to

the DAC registers, and the outputs update accordingly. Ignore

any DAC updates disabled by the LDAC mask settings.

The LDAC pin can also be set high or low by clicking LDAC

HIGH or LDAC LOW, respectively.

LDAC Mask Register

Each DAC can be configured to respond or ignore the LDAC

pin settings in the LDAC Control. Click the blue progressive

disclosure option on the LOGIC INTERFACE block to access

the LDAC Configuration window, as shown in Figure 5.

When the LDAC selections are completed, click OK to write the

appropriate values to the AD5313R. The LDAC MASK indicator

LED lights up accordingly when a DAC LDAC mask is enabled.

14440-105

Figure 5. LDAC Configuration Window

UG-965 EVAL-AD5313RDBZ User Guide

Rev. A | Page 6 of 13

Power-Down Control

DAC A and DAC B in the AD5313R can be powered down

individually. Each of the DACs has a selection box allowing the

selected DAC to operate in normal mode or power-down mode.

Click on the blue progressive disclosure button on the POWER-

DOWN LOGIC block to access the Powerdown Configuration

window, shown in Figure 6. When the power-down setting for

the DAC is selected, click OK to write the appropriate values to

the AD5313R. The POWER DOWN indicator LED lights up

accordingly when a DAC powers down.

14440-106

Figure 6. Powerdown Configuration Window

GAIN Control

Set the GAIN pin high or low by clicking the blue progressive

disclosure button on the GAIN SELECT block to access the Gain

Control window, shown in Figure 7. Select GAIN X1 to give a full-

scale output of 2.5 V or select GAIN X2 to give a full-scale output

of 5 V.

14440-107

Figure 7. Gain Control Window

EVAL-AD5313RDBZ User Guide UG-965

Rev. A | Page 7 of 13

EVALUATION BOARD SCHEMATICS AND ARTWORK

EVAL-MBNANODAC-SDZ MOTHERBOARD

EXT_VDD

VLOGIC

GND

EXT_VSS

CONNECTOR

STANDARD

SDP

PARALLEL

PORT

SPORT

SPI

I2C

GENERAL

INPUT/OUTPUT

TIMERS

*NC ON BLACKFIN SDP 120

119

118

GND

117

GND

116

VIO(+3.3V)

115

GND

114

*PAR_D22

113

*PAR_D20

112

*PAR_D18

111

*PAR_D16

110

PAR_D15

109

GND

108

PAR_D12

107

PAR_D10

106

PAR_D8

105

PAR_D6

104

GND

103

PAR_D4

102

PAR_D2

101

PAR_D0

100

GND

PAR_A2

PAR_A0

PAR_FS2

PAR_CLK

GND

SPORT_RSCLK

SPORT_DR0

SPORT_RFS

SPORT_TFS

SPORT_DT0

SPORT_TSCLK

GND

SPI_SEL_A

SPI_MOSI

SPI_MISO

SPI_CLK

GND

SDA_0

SCL_0

GPIO1

GPIO3

GPIO5

GND

GPIO7

TMR_B

TMR_D

CLK_OUT

GND

WAKE

SLEEP

GND

UART_TX

BMODE1

60 RESET_IN

59 UART_RX

58 GND

57 RESET_OUT

56 EEPROM_A0

55 NC

54 NC

53 NC

52 GND

51 NC

50 NC

49 TMR_C*

48 TMR_A

47 GPIO6

46 GND

45 GPIO4

44 GPIO2

43 GPIO0

42 SCL_1

41 SDA_1

40 GND

39 SPI_SEL1/SPI_SS

38 SPI_SEL_C

37 SPI_SEL_B

36 GND

35 SPORT_INT

34 SPI_D3*

33 SPI_D2*

32 SPORT_DT1

31 SPORT_DR1

30 SPORT1_TDV*

29 SPORT0_TDV*

28 GND

27 PAR_FS1

26 PAR_FS3

25 PAR_A1

24 PAR_A3

23 GND

22 PAR_CS

21 PAR_RD

20 PAR_D1

19 PAR_D3

18 PAR_D5

17 GND

16 PAR_D7

15 PAR_D9

14 PAR_D11

13 PAR_D13

12 PAR_D14

11 GND

10 PAR_D17*

9PAR_D19*

8PAR_D21*

7PAR_D23*

6GND

5USB_VBUS

4GND

3GND

2NC

1VIN

J10

1A0

2A1

3A2

4VSS

VCC 7

WP 6

SCL 5

SDA

24LC32

100kΩ

DNP

100kΩ

DGND AGND

BEAD

1.6Ω

C11

4.7µF

C10

0.1µF

+C7

10µF

1VIN

2GND

3EN 4

VOUT

ADP121-AUJZ33

1µF

LK5

J6-1

J6-2

0.1µF

+C6

10µF

LK6

J5-1

J5-2

J5-3

0.1µF

10µF

LK7

R7 100Ω

R5 100Ω

R6 100Ω

R8 100Ω

R9 100Ω

R10 100Ω

R11 100Ω

R12 100Ω

R13 100Ω

R14

14440-005

100Ω

0.1µF

10µF

R15

100Ω

R16

DNP

SCL

SDA

DB0

DB2

DB4

DB6

DB8

DB10

DB1

DB3

DB5

DB7

DB9

DB11

+3.3V

DGND

+5V

USB_VBUS

+3.3V

VDD

+3.3V

DGND

VLOGIC

DGND

+3.3V

DGNDDGND

VSS

+5V

CLR

LDAC

SCLK

SDO

SDIN

SYNC

EXT_VDD

+5V

DGND

DGND DGND

Figure 8. EVAL-MBnanoDAC-SDZ Motherboard, SDP-B Controller Board Connector, and Power Supply

EX_REF_1 EX_REF_2 EX_REF_3 EX_REF_4

VREF_1 VREF_2 VREF_3 VREF_4

REF3

REF4

REF1

REF2

+5VREF

+2_5VREF

+4_096VREF

VREF1

+5VREF

+2_5VREF

+4_096VREF

VREF2

+5VREF

+2_5VREF

+4_096VREF

VREF3

+5VREF

+2_5VREF

+4_096VREF

VREF4

VDD VDD VDD VDD

14440-006

+2.5V +4.096V

C16

1µF

C15

1µF

OUTPUT

2VS

3SLEEP

GND

REF198

C17

1µF

+5V

+2.5V +4.096V

2VIN

5TRIM

VOUT

GND

ADR445ARMZ

2VIN

GND

TRIM

7COMP

VOUT

ADR431BRZ

+5VREF+2_5VREF +4_096VREF

VDD VDD

VDD

Figure 9. EVAL-MBnanoDAC-SDZ Motherboard Reference Voltage Selector Circuit

UG-965 EVAL-AD5313RDBZ User Guide

Rev. A | Page 8 of 13

DAUGHTER BOARD CONNECTOR

SPI PMOD CONNNECTOR GPIO PMOD CONNNECTOR

I2C PMOD CONNNECTOR

1 2

3 4

5 6

7 8

910

11 12

13 14

15 16

SDIN SDO SCLK SYNC SCL LDAC CLR PD GAIN SDA

1 2

3 4

5 6

7 8

J8-1

J8-2

J8-3

J8-4

J8-5

J8-6

J7-1

J7-2

J7-3

J7-4

J7-5

J7-6

J3-1

J3-2

J3-3

J3-4

J3-5

J3-6

J4-1

J4-2

J4-3

J4-4

J4-5

J4-6

J4-7

J4-8

VDD

VREF1

VREF2

VREF3

VREF4

VLOGIC

SDASCL

SYNC

SCLK

SDO

SDIN LDAC

CLR

GAIN

DB6

DB7

DB8

DB9

DB0

DB1

DB2

DB3

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

SCL

SDA

DGND

VLOGIC

SCL

SDA

DGND

VLOGIC

SYNC

SDO

SDIN

SCLK

DGND

VLOGIC

GAIN

DGND

LDAC

CLR

VLOGIC

DGND

CS WR

DB11

DB5

DB10

DB4

AGND

14440-007

Figure 10. EVAL-MBnanoDAC-SDZ Motherboard Connectors to Daughter board and Serial Interface

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

U10-A

AD8608ARUZ

–

U10-B

AD8608ARUZ

–

U10-C

AD8608ARUZ

–

U10-D

AD8608ARUZ

2–

U7-A

AD8616ARZ

6–

U7-B

AD8616ARZ

V+

V–

U7-C

AD8616ARZ

2–

V–

V+

U11

AD8655

2–

V–

V+

U12

AD8655

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

VDD

VSS

VDD

VSS

14440-008

Figure 11. EVAL-MBnanoDAC-SDZ Motherboard Output Amplifier Circuit

EVAL-AD5313RDBZ User Guide UG-965

Rev. A | Page 9 of 13

14440-009

Figure 12. EVAL-MBnanoDAC-SDZ Motherboard Component Placement

14440-010

Figure 13. EVAL-MBnanoDAC-SDZ Motherboard Top Side Routing

UG-965 EVAL-AD5313RDBZ User Guide

Rev. A | Page 10 of 13

14440-011

Figure 14. EVAL-MBnanoDAC-SDZ Motherboard Bottom Side Routing

EVAL-AD5313RDBZ DAUGHTER BOARD

AD5313R SETUP

0.1uF

+C4

10uF

0.1uF

+C2

10uF

R1 DNP

VOUT_A

R2 DNP

VOUT_B

DNP

R8 DNP

LK2

R7 DNP

LK1

R9 0Ω

R6 0Ω

R4 DNP

R5 0Ω

R3 DNP

J3-1

J3-2

J3-3

J3-4

J3-5

J3-6

J4-1

J4-2

J4-3

J4-4

J4-5

J4-6

J4-7

J4-8

910

11 12

13 14

15 16

VREF

VOUT_A

4GND

VDD

VOUT_B

8SDO

9LDAC

10 GAIN

VLOGIC

12 SCLK

13 SYNC

14 SDIN

15 RESET

16 RSTSEL

AD5313RBRUZ

VDD

VLOGIC

VREF1

VOUT_0

VOUT_1

CLR

LDAC

GAIN

VLOGIC

SDIN

SCLK

SCL

SYNC

SDA

VDD

VREF1

VREF2

VREF3

VREF4

LOGIC

SDASCL

SYNC

SCLK

SDO

SDIN LDAC

CLR

GAIN

VOUT_0

VOUT_1

VOUT_2

VOUT_3

VOUT_4

VOUT_5

VOUT_6

VOUT_7

DB6

DB7

DB8

DB9

DB0

DB1

DB2

DB3

DGND

DB11

DB5

DB10

DB4

AGND

14440-012

Figure 15. EVAL-AD5313RDBZ Daughter Board Schematic

Table des matières

Autres manuels Analog Devices Carte mère

Analog Devices

Analog Devices ADP151 Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5932EBZ Manuel utilisateur

Analog Devices

Analog Devices LTC3315A Manuel utilisateur

Analog Devices

Analog Devices DC2685A Guide de configuration rapide

Analog Devices

Analog Devices UG-469 Manuel utilisateur

Analog Devices

Analog Devices EV-21569-SOM Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADXL362Z-MLP Manuel utilisateur

Analog Devices

Analog Devices DC456 Manuel utilisateur

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF506F Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5142ADBZ Manuel utilisateur

Analog Devices

Analog Devices MAX66301-25x Manuel utilisateur

Analog Devices

Analog Devices iCoupler ADuM4160 Manuel utilisateur

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF538F Guide de l'utilisateur

Analog Devices

Analog Devices AD9912 Manuel utilisateur

Analog Devices

Analog Devices MAX98365A Manuel utilisateur

Analog Devices

Analog Devices EV-SC598-SOM Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7766 Manuel d'instructions

Analog Devices

Analog Devices EVAL-AD2437A1MZ Manuel utilisateur

Analog Devices

Analog Devices EV-AD74412RSDZ Manuel utilisateur

Analog Devices

Analog Devices MAX14916PMB Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD7605-4SDZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-AD5141DBZ Manuel utilisateur

Analog Devices

Analog Devices EVAL-ADG5404FEBZ Manuel utilisateur

Analog Devices

Analog Devices MICROCONVERTER ADUC812 Fiche technique

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
