AMT Datasouth Accel-7350 Manuel utilisateur

Accel-7350

24-Pin Dot Matrix Printer

User’s Guide

Document Number: 130013

CONTENTS

 Chapter 1 - Setting up the printer

 FCC Statement ………………………………………………………… 3

 Copyright Declaration ………………………………………………… 4

 Safety Precautions …………………………………………………… 5

 Unpacking the printer ………………………………………………… 6

 Connecting the printer to power source ……………………………. 7

 Connecting the printer to the computer …………………………….. 7

 Parallel Interface ……………………………………………………. 7

 Serial Interface ………………………………………………….…... 7

 Installing the ribbon cassette ………………………………………… 8

 Setting up the front Paper Rack & Rear Tractor Assembly …....… 10

 Setting up the Manual cut sheet ………………………….………….. 14

 Setting up the Front Tractor …………………………………………. 17

 Setting up the Cut Sheet Feeder (optional) …….…………………… 21

 Installing the printer driver ……………………………………………. 26

 Chapter 2 – Control panel operation

 Control panel ………………………………………………………….. 27

 Control panel view ………………………………………………….. 27

 Function keys ………………………………………………….……. 28

 LCD …………………………………………………………………. 31

 Lamps (LED Indicators) …………………………………………..… 32

 Paper path lever ………………………………………………………. 33

 Head adjustment lever ……………………………………………….. 34

 Key shortcut functions ……………………………………………….. 34

 Chapter 3 – Setup options

 How to use the setup modes ………………………………………… 35

 Keys used for setting ……………………………………………….. 35

 Setting examples ……………………………………………………. 36

 Chapter 4 – How to use SETUP Memory

 How to use Power UP USER Format ……………………………….. 37

Page 1 of 46

CONTENTS

 Chapter 5 - Troubleshooting

 How to solve the problem ……………………………………………. 38

 Printing speed is slow ………………………………………………. 38

 Printing is light ………………………………………………………. 38

 Paper jam often occurs ……………………………………………... 38

 SKEW ERROR ……………………………………………………… 38

 PAPER JAM ………………………………………………………… 39

 Out-of-paper cannot be detected …………………………………… 39

 Not straight in vertical line printing ………………………………….. 39

 Incorrect charters printed …………………………………………… 39

 Unexpected printing results ………………………………………… 40

 How to solve the error message ……………………………………. 40

 Functional error message ………………………………………….. 40

 Operational error message …………………………………………. 41

 Chapter 6 - Specifications

 Printer specifications …………………………………………………. 44

 Other specifications …………………………………………………... 45

 Paper specifications ………………………………………………….. 45

 Options & Consumables ……………………………………………… 45

Page 2 of 46

Chapter 1

Page 3 of 46

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

FCC

Class B

(1) This device may not cause harmful interference,

and (2) this device must accept any interference

received, including interference that may cause

undesired operation.

The manufacturer is not responsible for any radio or

TV interference caused by unauthorized modifications

to this equipment. Such modifications could void the

user’s authority to operate the equipment.

Chapter 1

Page 4 of 46

Information in this manual is subject to change without notice and does not

represent a commitment on the part of AMT Datasouth Corporation. No part of

this manual may be reproduced or transmitted in any form by any means, for any

purpose other than the purchaser’s personal use, without the expressed written

permission of AMT Datasouth Corporation.

As an ENERGY STAR Partner, the manufacturer has determined that this

product meets the ENERGY STAR guidelines for energy efficiency.

- Outline of the International ENERGY STAR Office Equipment Program -

The International ENERGY STAR Office Equipment Program is an international

program that promotes energy saving through the use of computers and other

office equipment. The program backs the development and dissemination of

products with functions that effectively reduce energy consumption. It is an open

system in which business proprietors can participate voluntarily. The targeted

products are office equipment such as computers, displays, printers, facsimiles,

and copiers. Their standards and logos are uniform among participating nations.

Trademark Credits:

• EPSON is a registered trademark of Seiko Epson Corporation.

• LQ-2550 is a registered trademark of Seiko Epson Corporation.

• IBM is a registered trademark of International Business Machines

Corporation.

• IBM 2391 is a registered trademark of International Business Machines

Corporation.

• Windows is a registered trademark of Microsoft Corporation.

Chapter 1

Page 5 of 46

Safety Cautions

Do not touch the print head immediately

after printing because it may be too hot.

 Use two hands and hold firmly at

each end when lifting the cut sheet

feeder. Personal injury can occur if

the CSF unit is dropped.



Do not put your finger under the tractor

cover while loading fanfold paper.



 Do not put your finger on the tractor

gear, when using the rear tractor.

Cautions in setting up

 Place the printer on a rigid,

horizontal base in a location that is

free of vibration.

 Before connecting or disconnecting

the interface cable, be sure to turn

off the printer.

 Do not connect the printer to a non-

standard power source.

Unpack the printer. Make sure that the

printer body and all accessories are

included in the package and no parts are

damaged.



Do not use the printer in a location

exposed to direct sunlight or close to a

heater or other heat generating device.



Do not use the printer in a dusty location

or any location subject to sudden

changes in temperature and humidity.



 If any foreign matter gets into the

printer, turn off the printer

immediately and remove the foreign

matter.

 If the case or cover becomes dirty,

clean it with a soft cloth moistened

with a small quantity of neutral

detergent diluted with water. Never

use a hard cloth or volatile solvent

such as alcohol, thinner, or benzine.

 Take care not to twist the ribbon

while installing the ribbon cassette.

Never try to print without a ribbon

cassette installed and paper loaded.



Push the lock levers of both tractors to

the LOCK positions firmly while loading

fanfold paper or single sheet paper.



Do not turn off the printer during printing,

as this may lead to a malfunction.



Chapter 1

Page 6 of 46

•Unpacking the printer

* The packing style is subject to change without notice.

Chapter 1

Page 7 of 46

• Connecting the printer to the power source

• Make sure that the power switch is set to off. Connect

the printer with the supplied power cord to an AC

outlet.

Connect the AC power plug to an AC outlet of the

voltage designated on the rating label on the back of

the printer.

• The AC outlet shall be installed near the printer and

shall be easil

accessible.

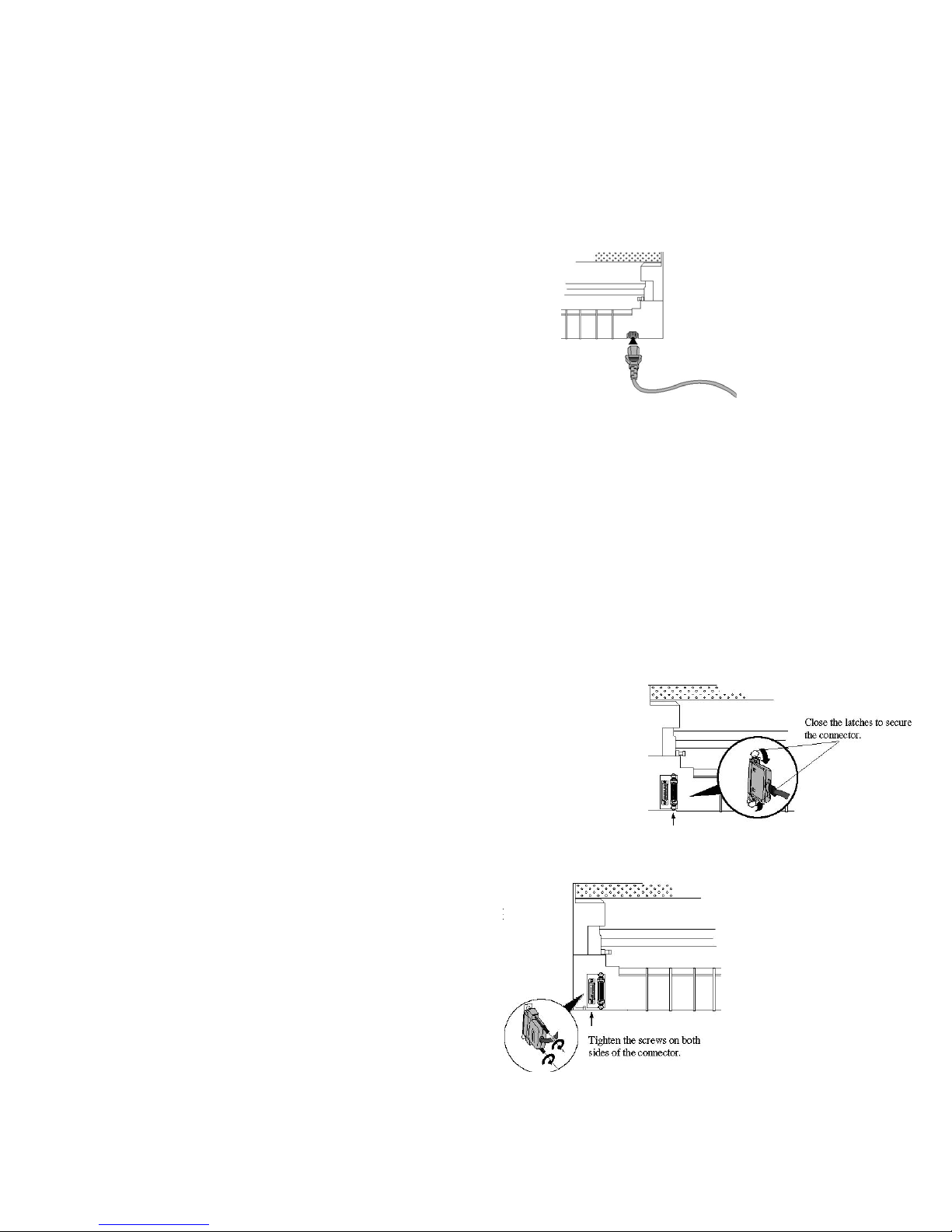

• Connecting the printer to the computer

1. Parallel interface

Make sure the power switch is turned to off.

Connect the signal cable to the printer and the

computer.

2. Serial interface

Make sure that the power

switch is turned to off.

Connect the signal cable to

the printer and the computer.

Chapter 1

• Installing the ribbon cassette

1. Turn off the power. Open the front cover.

Move the print head to the left end position.

Caution Do not touch the print head

immediately after printing because it

may be too hot.

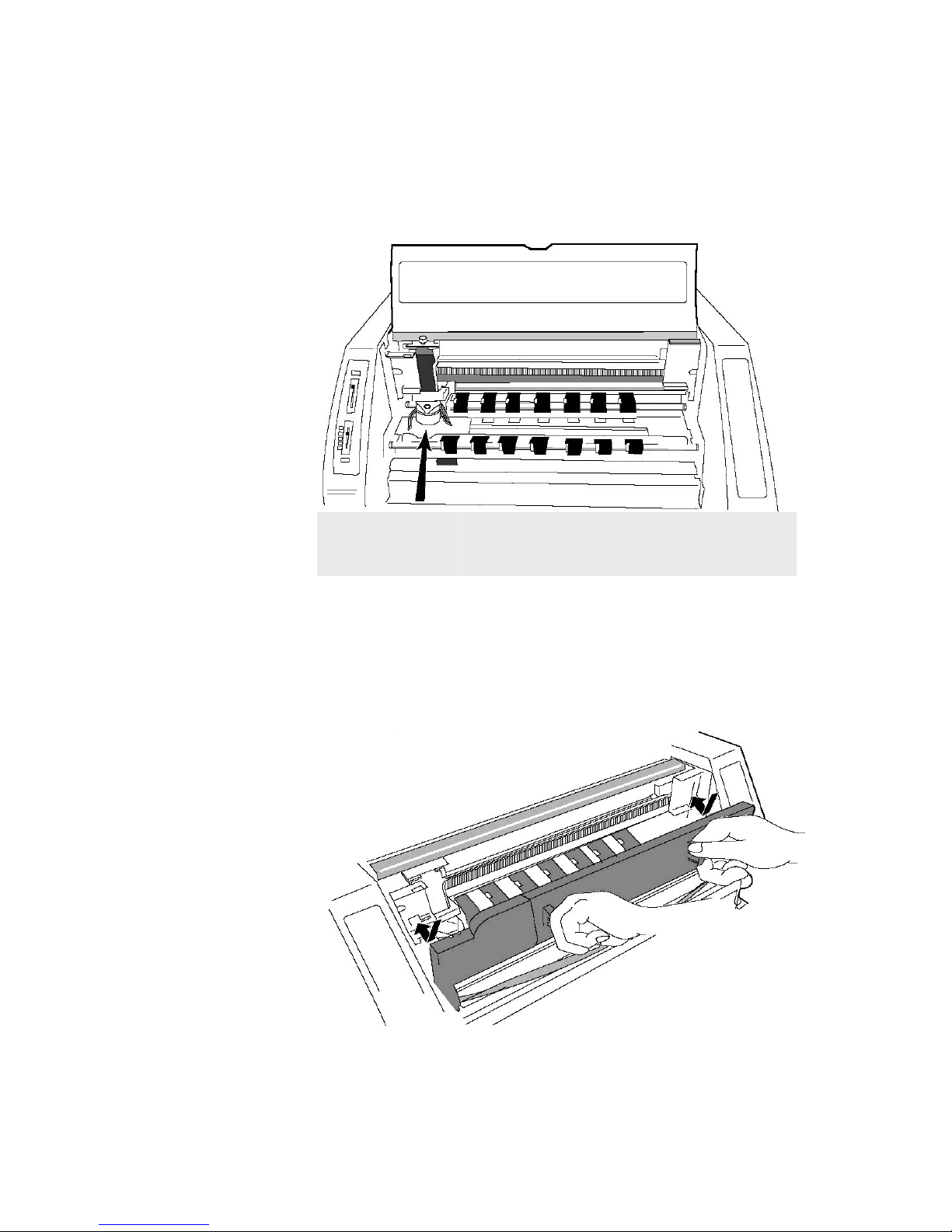

2. Remove the Red Locking material located at the

center of the ribbon cassette, attach the cassette,

as shown below.

Page 8 of 46

Chapter 1

3. Fit the holes in the ribbon attachment

to the right and left projections on the

print head.

Make sure that the ribbon is properly positioned under

the edge of the print head.

4. Turn the ribbon feed knob counterclockwise

to remove any slack in the ribbon.

Page 9 of 46
