Ameriwood HOME 6571846COM Manuel utilisateur

B346571846COM01GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

6571846COM

AQUARIUM STAND 55 GALLON

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1.0 HOUR

Helpful Hints

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Board Identification

Not actual size

ameriwoodhome.com

BOTTOM

T6571846020GO

QTY: 1 PC

LEFT PANEL

T6571846030GO

QTY: 1 PC

TOP

T6571846010GO

QTY: 1 PC

RIGHT PANEL

T6571846040GO

QTY: 1 PC

PARTITION

T6571846050GO

QTY: 1 PC

SHELF

T6571846060GO

QTY: 2 PCS

WOOD BLOCK

T6571846080GO

QTY: 2 PCS

DOOR

T6571846090GO

QTY: 4 PCS

Tube

You

BACK PANEL

T6571846100GO

QTY: 2 PCS

APRON

T6571846070GO

QTY: 2 PCS

LEG CENTER

T6571846110GO

QTY: 1PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

Part List

ameriwoodhome.com

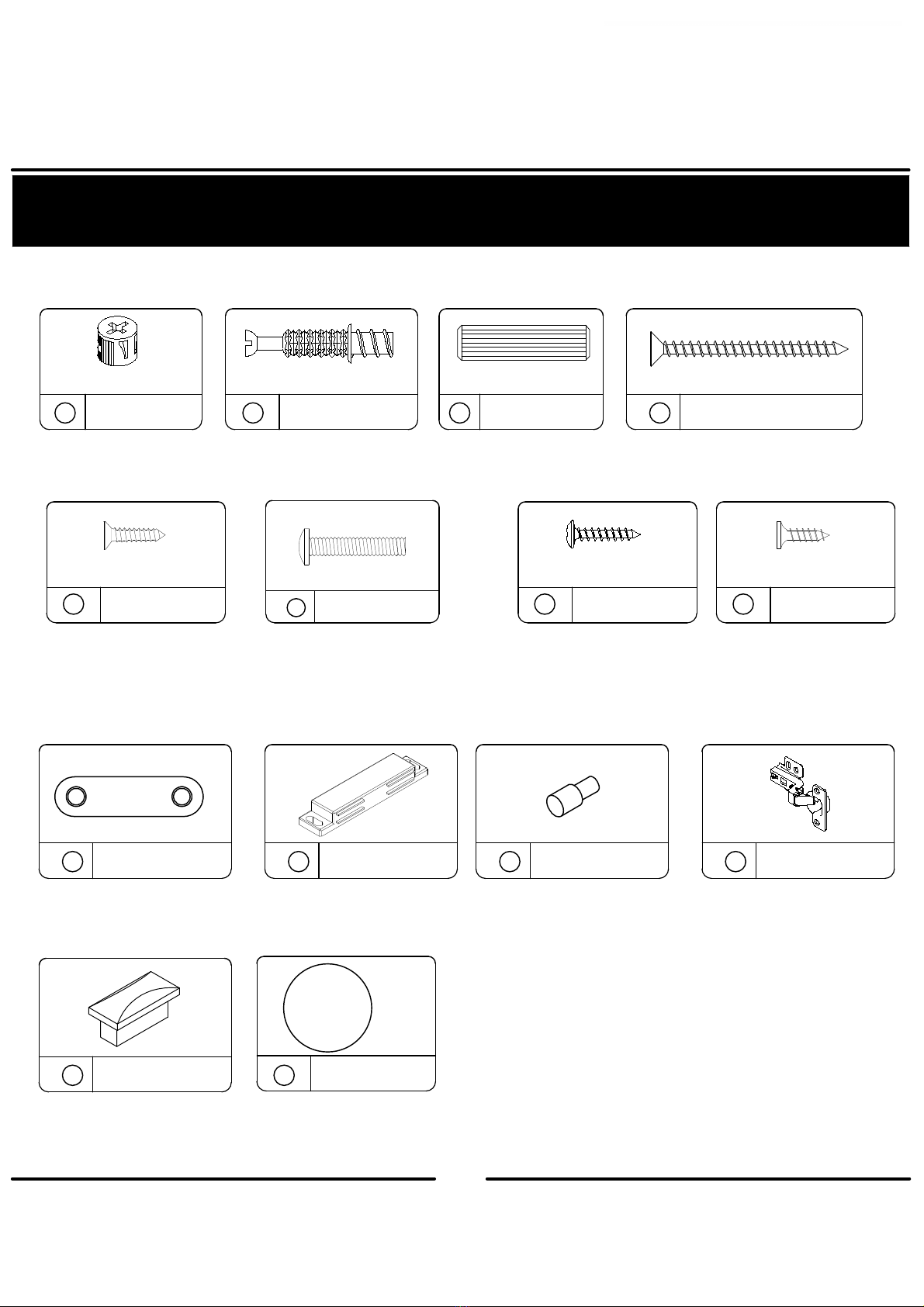

Hardware Bag Reference number:

26571846COM0GO

Actual Size

Tube

You

Not Actual Size

Ø3.5 x 14mm

×48

SCREW

TGO1005

×2

MAGNETIC CATCH

TGO6511

×22 ×30 ×12

CAM LOCK

TGO2101

WOOD DOWEL

TGO2900 SCREW

TGO1008

Ø4.2 x 45mm

Ø8 x 30mmØ15 x 12mm

134

×22

Ø6 x 25mm

CAM BOLT

TGO2001

×4

MAGNETIC PLATE

TGO3525

9 ×8

DOOR HINGE

TGO4311

×8

SHELF SUPPORT

TGO2810

×4

HANDLE

TGO5510

Ø20mm

×6

COVER

TGO2219

Ø3 x 15mm

×4

SCREW

TGO1315

Ø3.5 x 12mm

×8

SCREW

TGO1007

×8

BOLT

TGO1608

M4x19

45 x 12 x 1mm

ameriwoodhome.com

STEP

Tube

You

3 ×22

×14

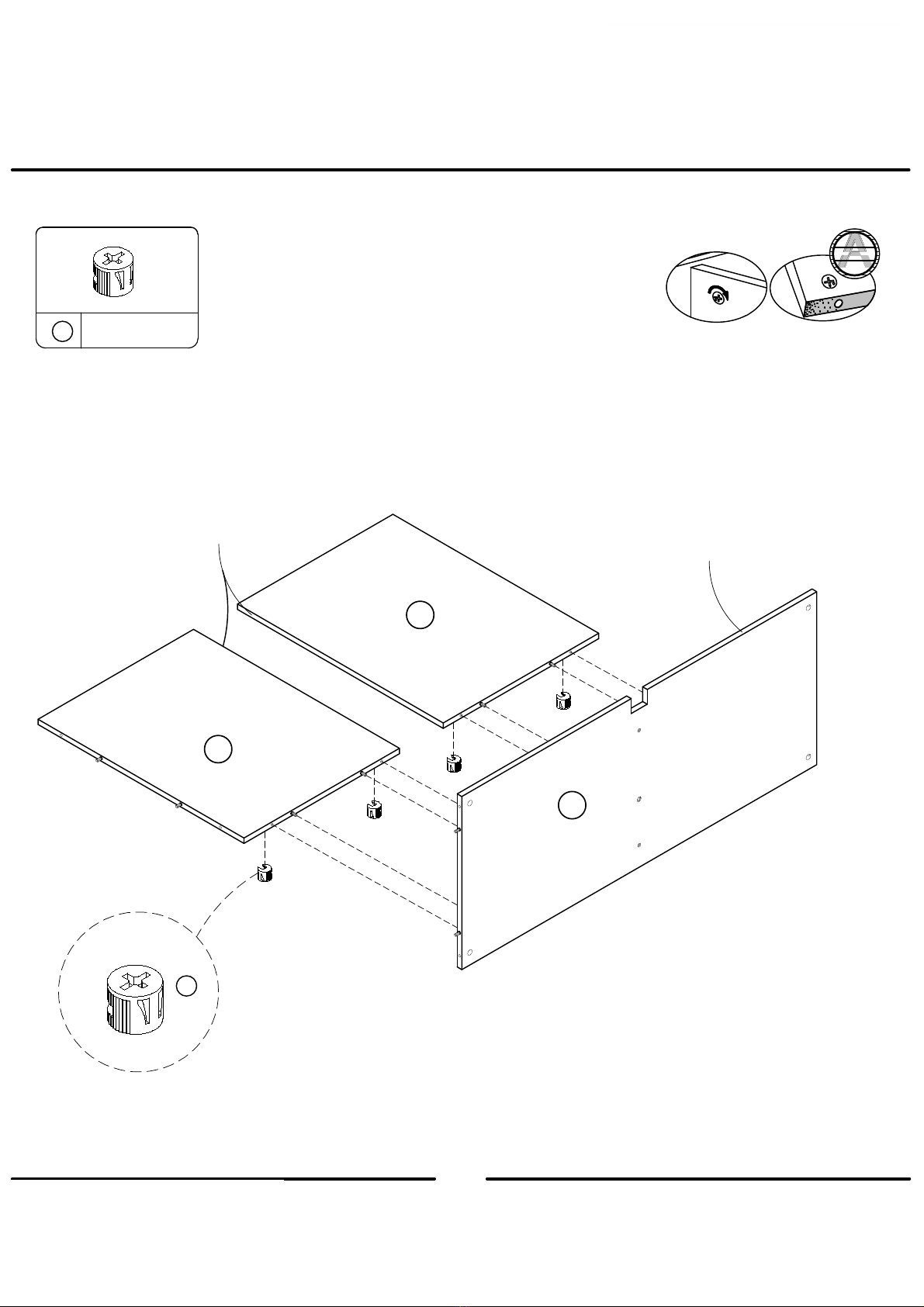

1.1 Cam bolt (2) into (A), (B) as illustrated.

1.2 Insert (3) into (B), (H), (G) and (J) as illustrated.

x 2

ameriwoodhome.com

STEP

2.1 Insert (3) into (C), (D) and (E) as illustrated.

2.2 Cam bolt (2) into (C), (D) as illustrated.

Tube

You

3 ×8

×8

ameriwoodhome.com

STEP

3.1 Attach (J) x 2 into (B) with (1) as illustrated.

Tube

You

1 ×4

Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK

FINISHED EDGE

ameriwoodhome.com

STEP

4.1 Attach (E) into (B) with (4) as illustrated.

Tube

You

4 ×2
