THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

32399015010

Right Panel

32399015020

Bottom

36972015050

Top

32399015040

(x6)

Drawer Back

39991167059790B

(x6)

Drawer Front

35259015071

(x6)

Drawer Bottom

39991341060810D

Back Panel

K23990000

This part is paperboard

construction. It is not

made from wood, but is

required for the

assembly of your unit.

(x12)

Drawer Side

39991167346200C

Partition

32399015030

ABC

DWR

SIDE

DWR

BACK

Kick

35259015060

ameriwoodhome.com

Board Identification

Not actual size

DWR

SIDE

DWR

BACK

This part is paperboard

construction. It is not made from

wood, but is required for the

assembly of your unit.

DWR

SIDE

ameriwoodhome.com

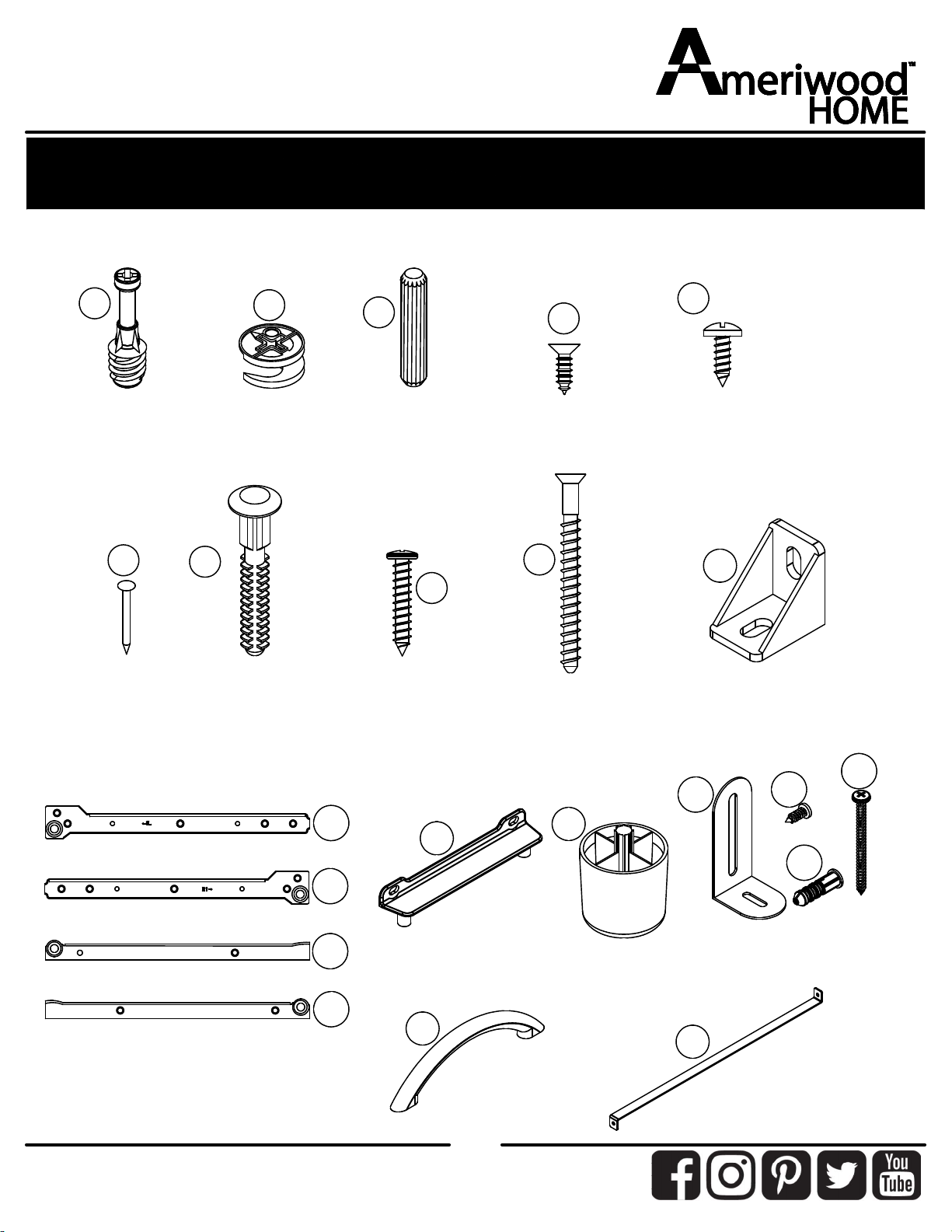

Part List

Actual Size

Not Actual Size

(x10)

#A22610

cam bolt

(x10)

#A22620

cam lock

(x5)

#A21660

wood dowel

(x60)

#A11080

7/16" flat screw

(x68)

#A12120

7/16" pan screw

(x34)

#A21110

nail

(x24)

#A21970

drive fastener

(x12)

#A12700

7/8" pan screw

left cabinet member

right cabinet member

left drawer member

right drawer member

(x6)

#A56740

drawer slide pkg.

(x12)

#A54520

drawer bracket

(x6)

#A50695

handle

(x1)

#A84050

safety bracket kit

(x6)

#A54900

drawer brace

(x2)

#A23030

confirmat screw

(x1)

#A43105

plastic foot

(x4)

#A53510

angle bracket

11a

11b

11c

11d

14a 14b 14c

14d

ameriwoodhome.com

STEP1

12b

12a

Do not fully tighten this screw.

finished edge

(x6)

#A22610 (x1)

#A84050

ameriwoodhome.com

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A21660

(x4)

#A22620

(x1)

#A43105

You may need to tap the plastic foot (13) lightly

with a hammer to fully seat onto bottom (E).

(x8)

#A12120

(x4)

#A53510

ameriwoodhome.com

STEP3

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22610

(x2)

#A22620

(x1)

#A21660

(x9)

#A11080

(x3)

#A56740

left cabinet member

mark with a "L"

finished edge

11a

ameriwoodhome.com

STEP4

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

#A22610

(x2)

#A22620

(x1)

#A21660

(x9)

#A11080

(x3)

#A56740

right cabinet member

mark with a "R"

finished edge

11b
