Ameriwood HOME 7997013COM Manuel utilisateur

7997013COM

End Table-White

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B347997013 COM00SF

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

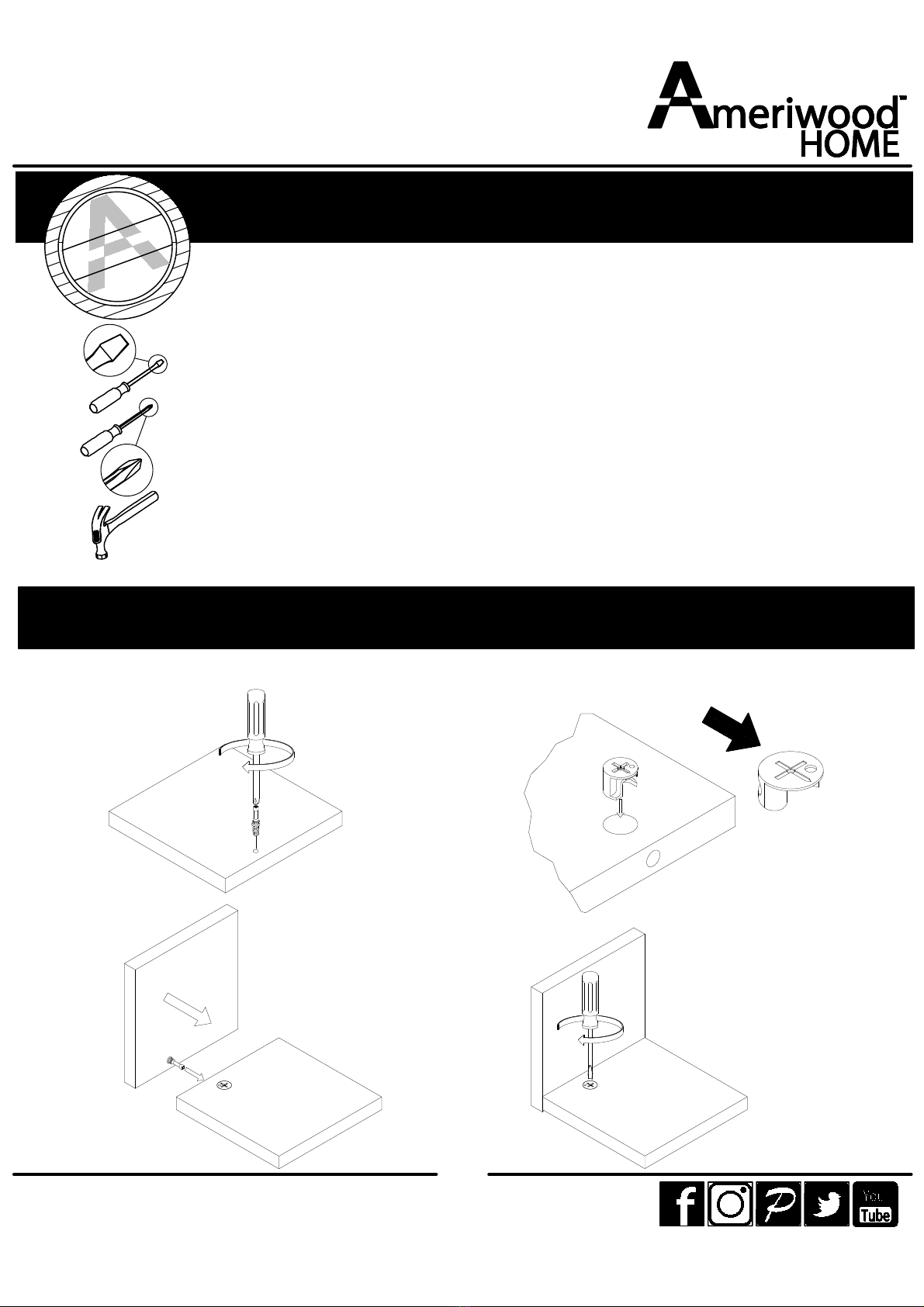

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

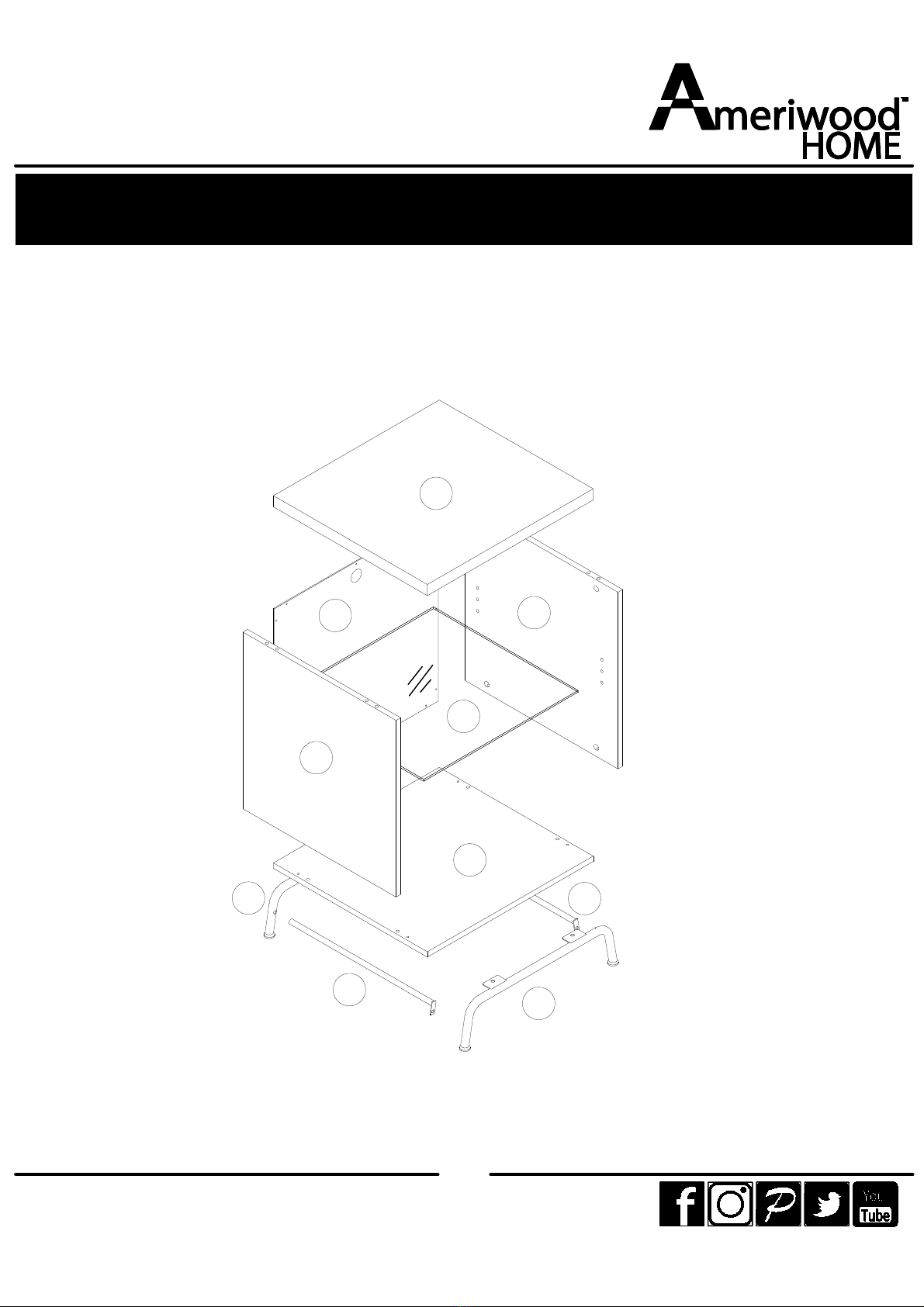

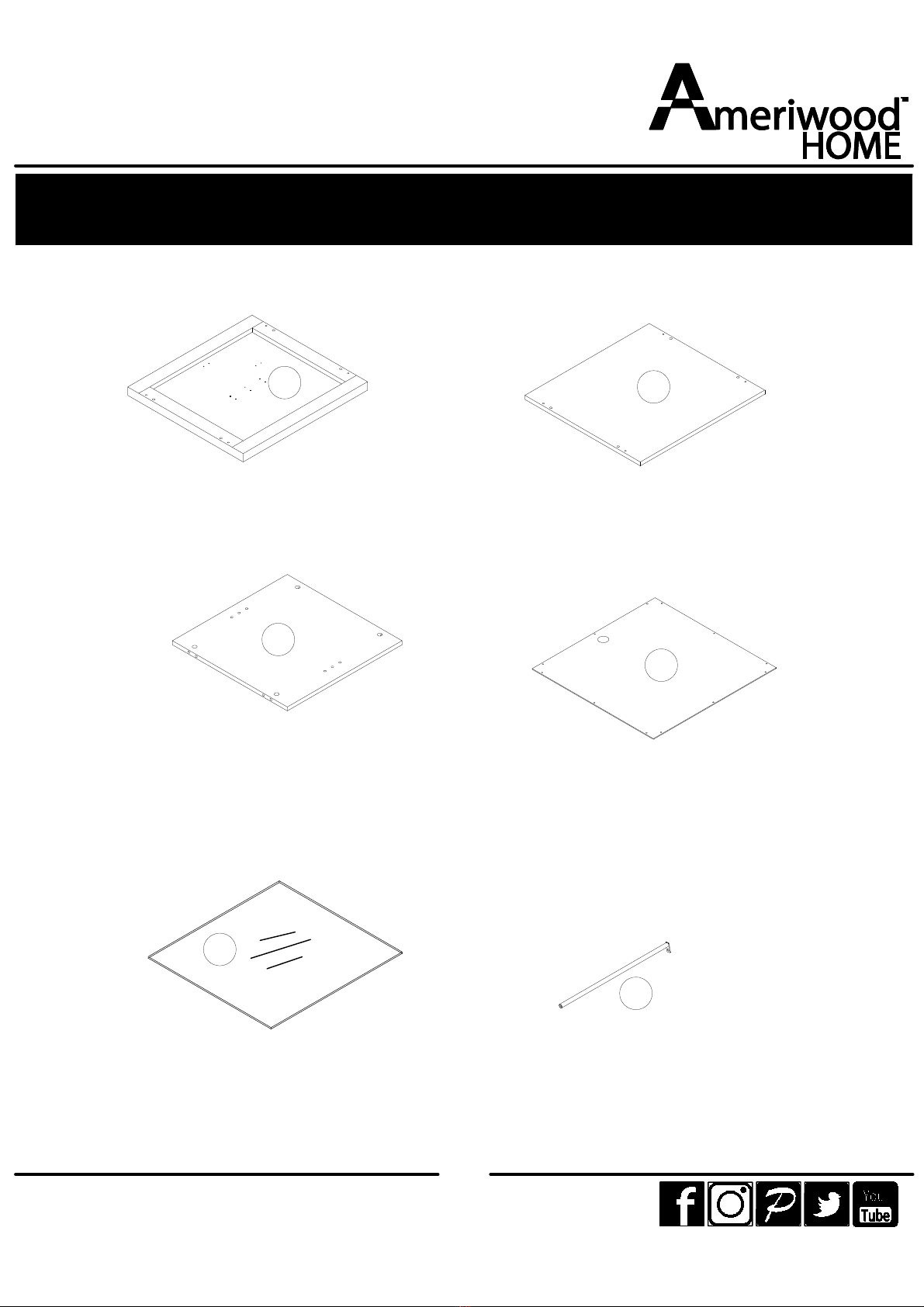

Board Identification

Not Actual Size

Top panel

T7997013010SF

Bottom panel

T7997013020SF

Side panel

T7997013030SF

QTY: 2 PCS

Back panel

T7997013040SF

Glass shelf

T7997013050SF

Support tube

T7997013060SF

QTY: 2 PCS

ameriwoodhome.com

Board Identification

Not Actual Size

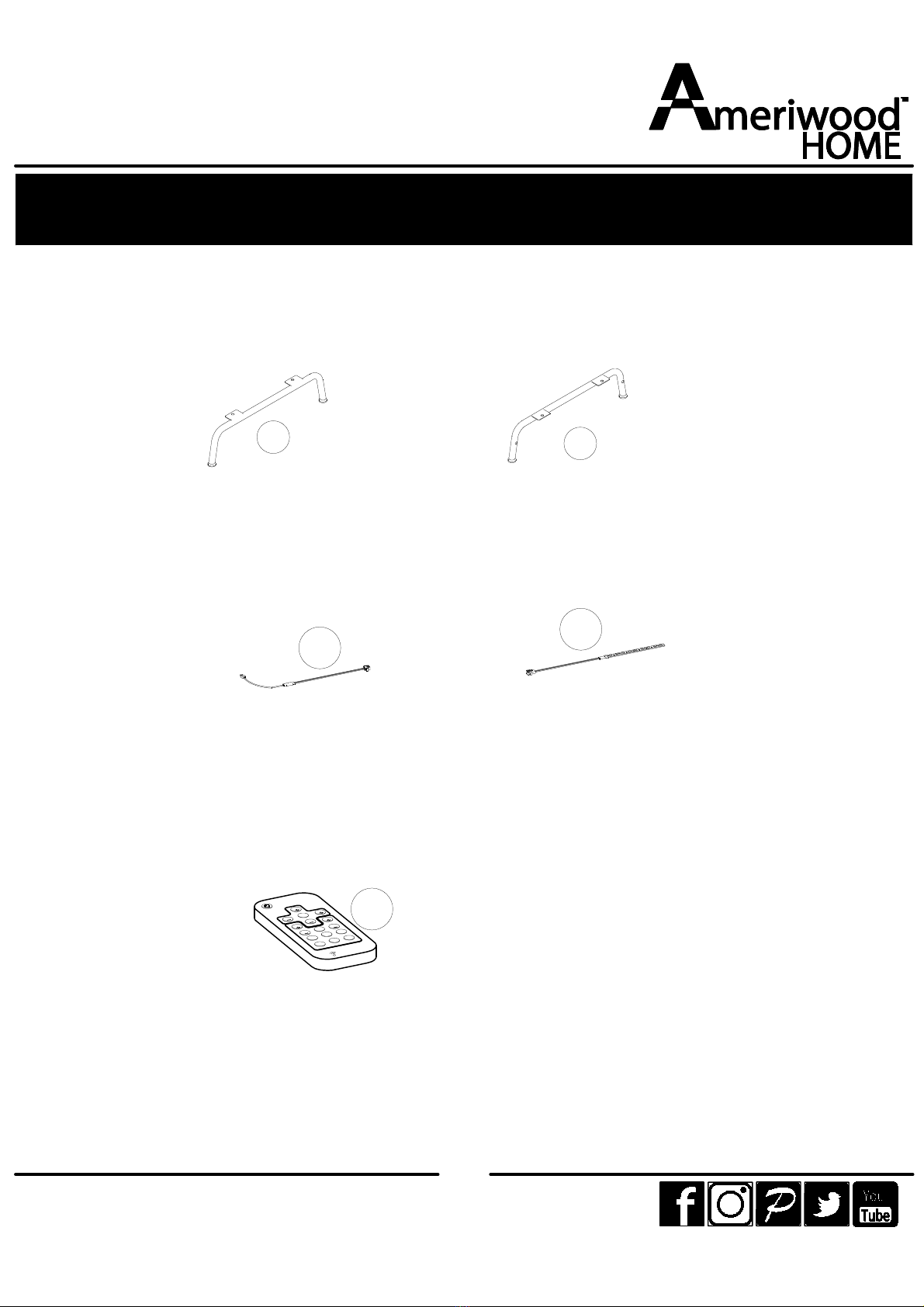

Rear leg

T7997013080SF

Front leg

T7997013070SF

Remote control

LERC002

LED light

LELED15004B

MODE

SPEED

DEMO

SPEED

MODE

COLOR

BRIGHT

COLOR

RF Wireless

Light extension

LEUSB002

ameriwoodhome.com

Board Identification

Not actual size

Actual Size

ameriwoodhome.com

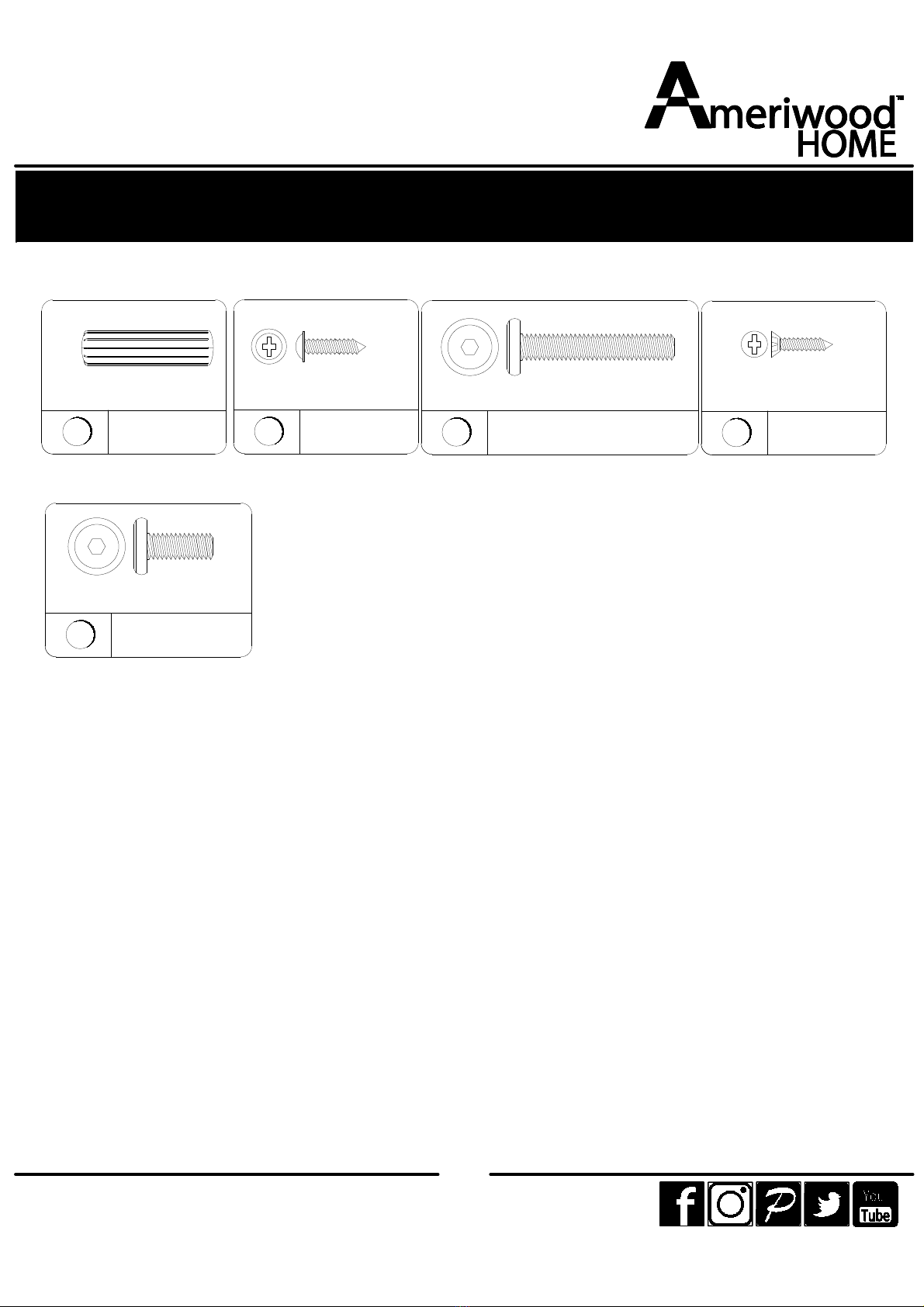

Part List

Hardware Bag Reference Number:

27997013COM0SF

x 8

Ø8X30mm

Wood dowel

TSF0501

Ø3.5X14mm

Screw

TSF1201

2x 12

Ø1/4X15mm

Bolt

TSF1404

5x 6

Bolt

TSF1402

Ø1/4X35mm

3x 2 x 10

Screw

TSF0804

Ø3X14mm

ameriwoodhome.com

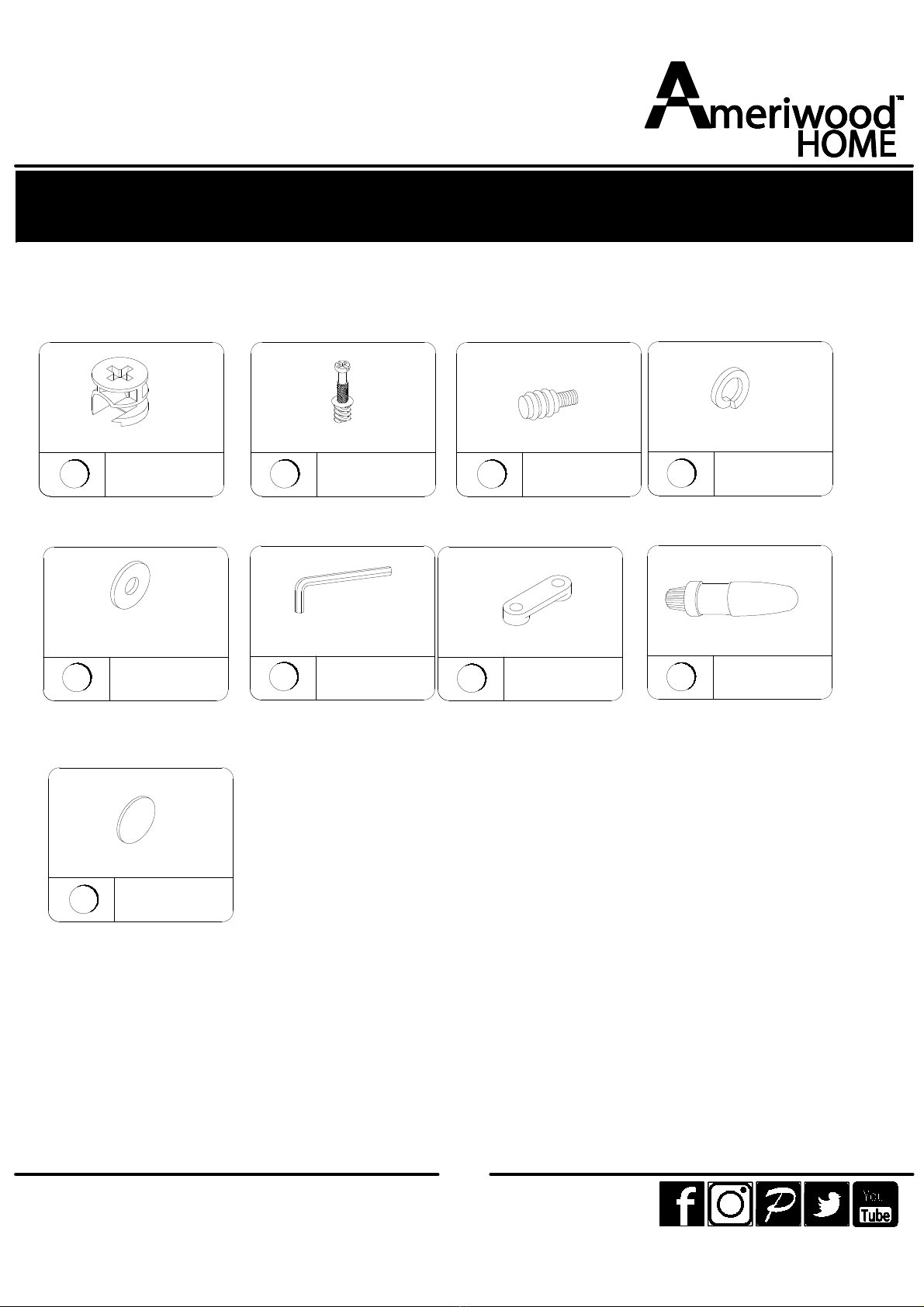

Part List

Not Actual Size

Hardware Bag Reference Number:

27997013COM0SF

Shelf support

TSF0552

8x 4

Cam bolt

TSF0355

7x 8

Cam lock

TSF0308

6x 8

x 1

Glue

TSF0015

x 8

Ø7X13XT1.5mm

Ø7 X10XT1.5mm

Spring washer

TSF2451

Washer

TSF2453

x 1

M4X54mm

Hex key

TSF2801

11 x 5

Wire clip

TSF2859

x 8

Cam cover

TSF3511

HD-02

ameriwoodhome.com

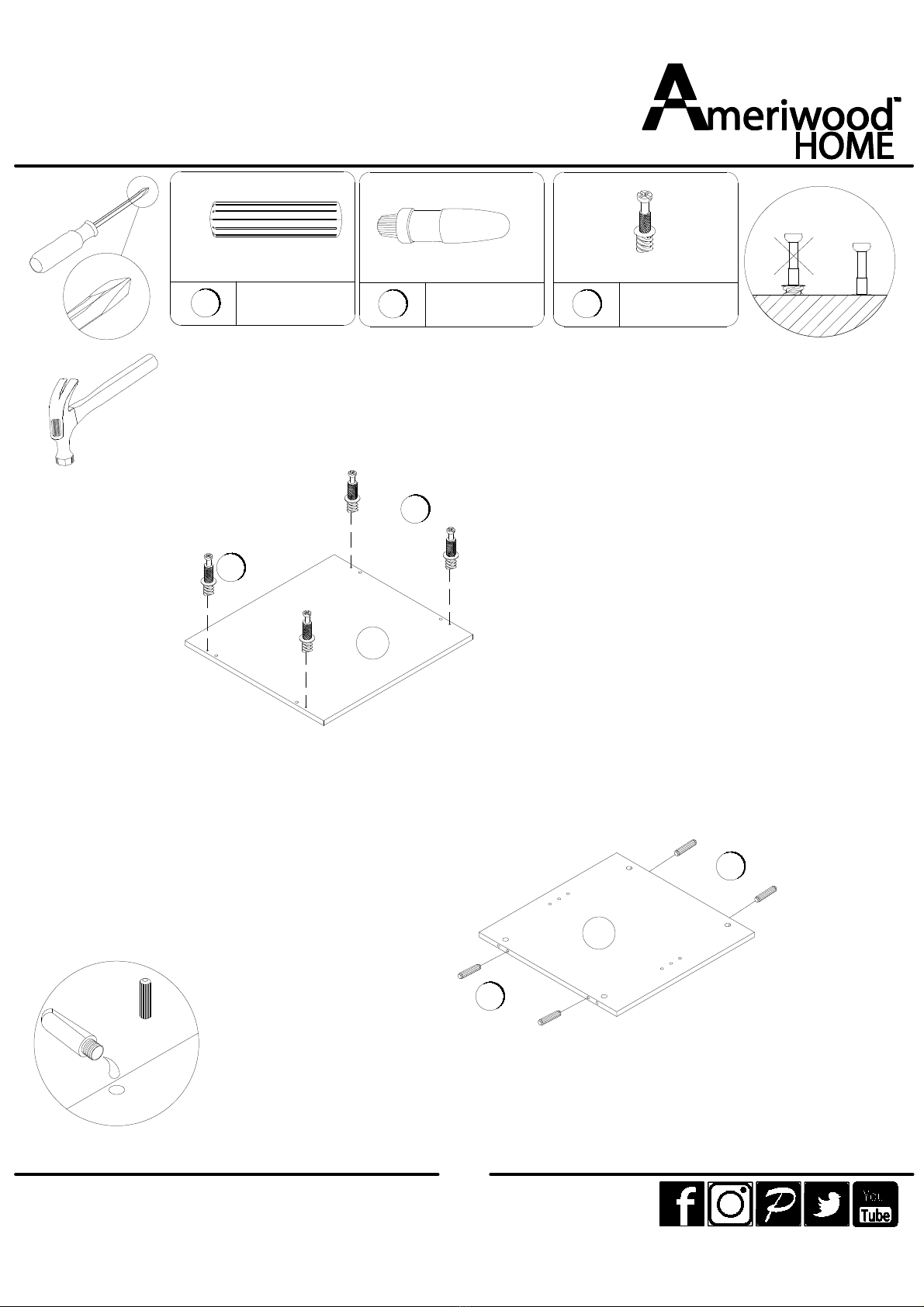

STEP

7x 4

x 10

4x 5

Ø3X14mm

Note: keep the wire clip away from light belt.

AA AB

ameriwoodhome.com

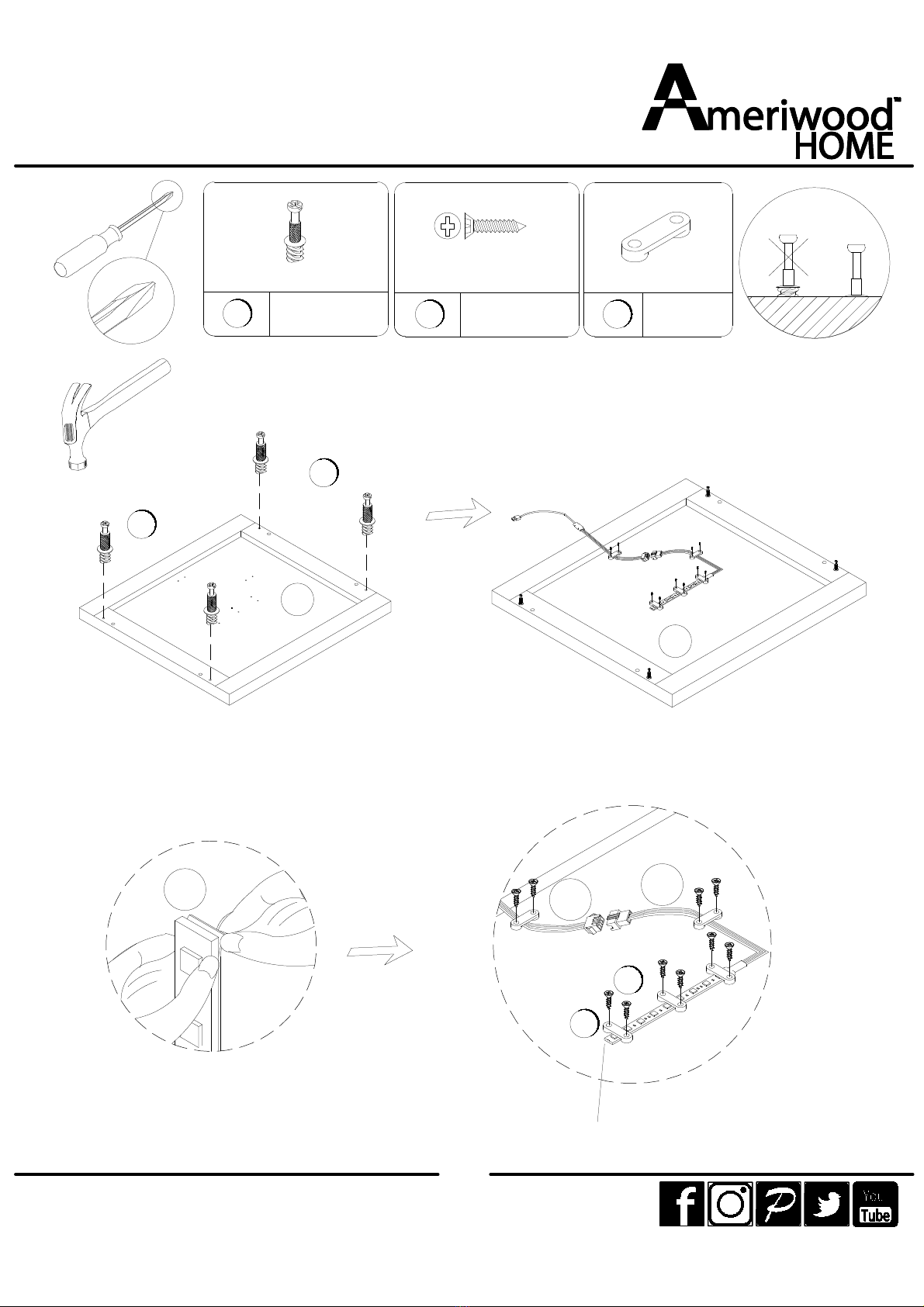

STEP

x 8

Ø8X30mm

7x 4

Cx 2

lue

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.
