Ameriwood HOME 4542348COM Manuel utilisateur

B344542348COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

4542348COM

5 DRAWER DRESSER

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

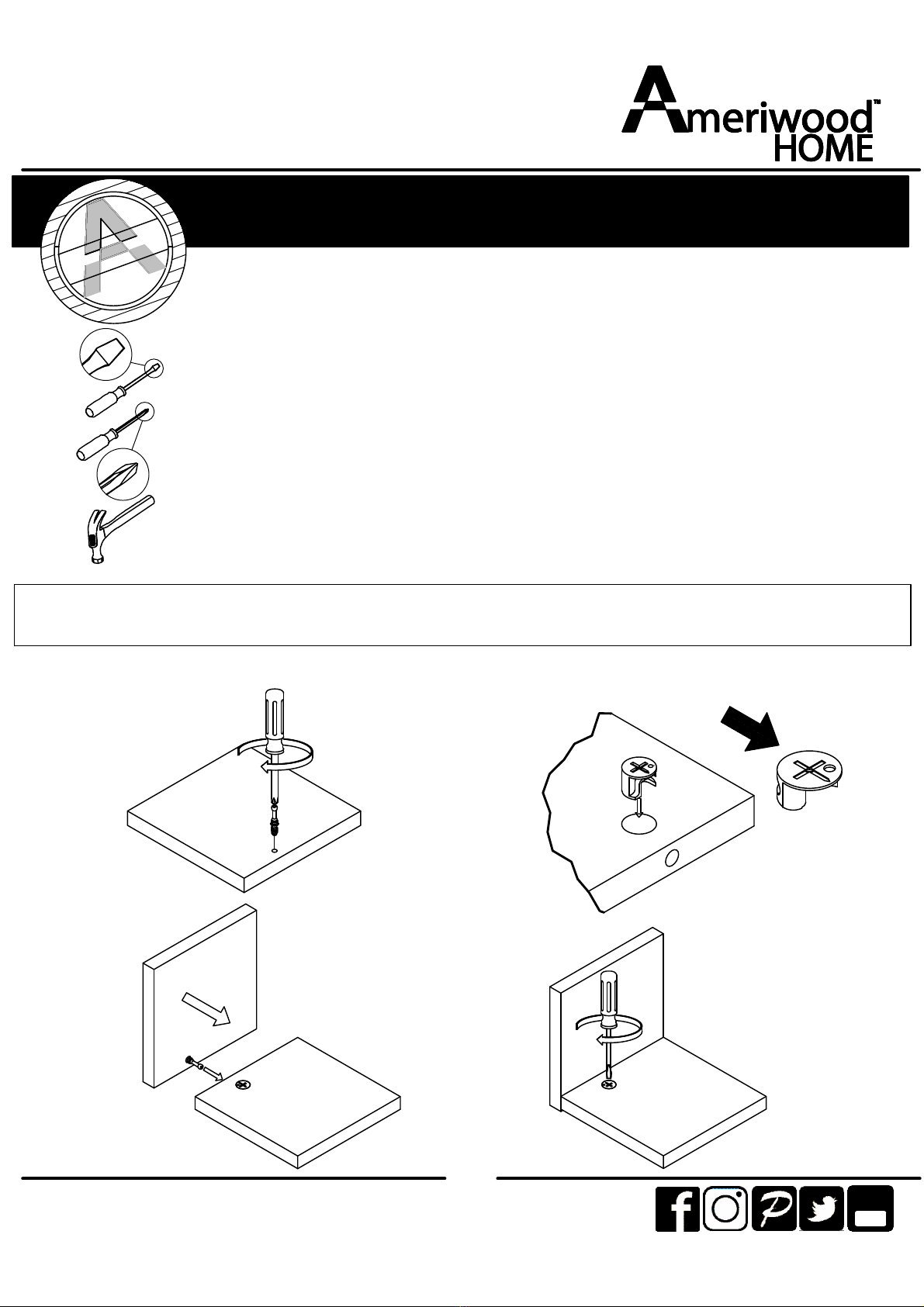

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

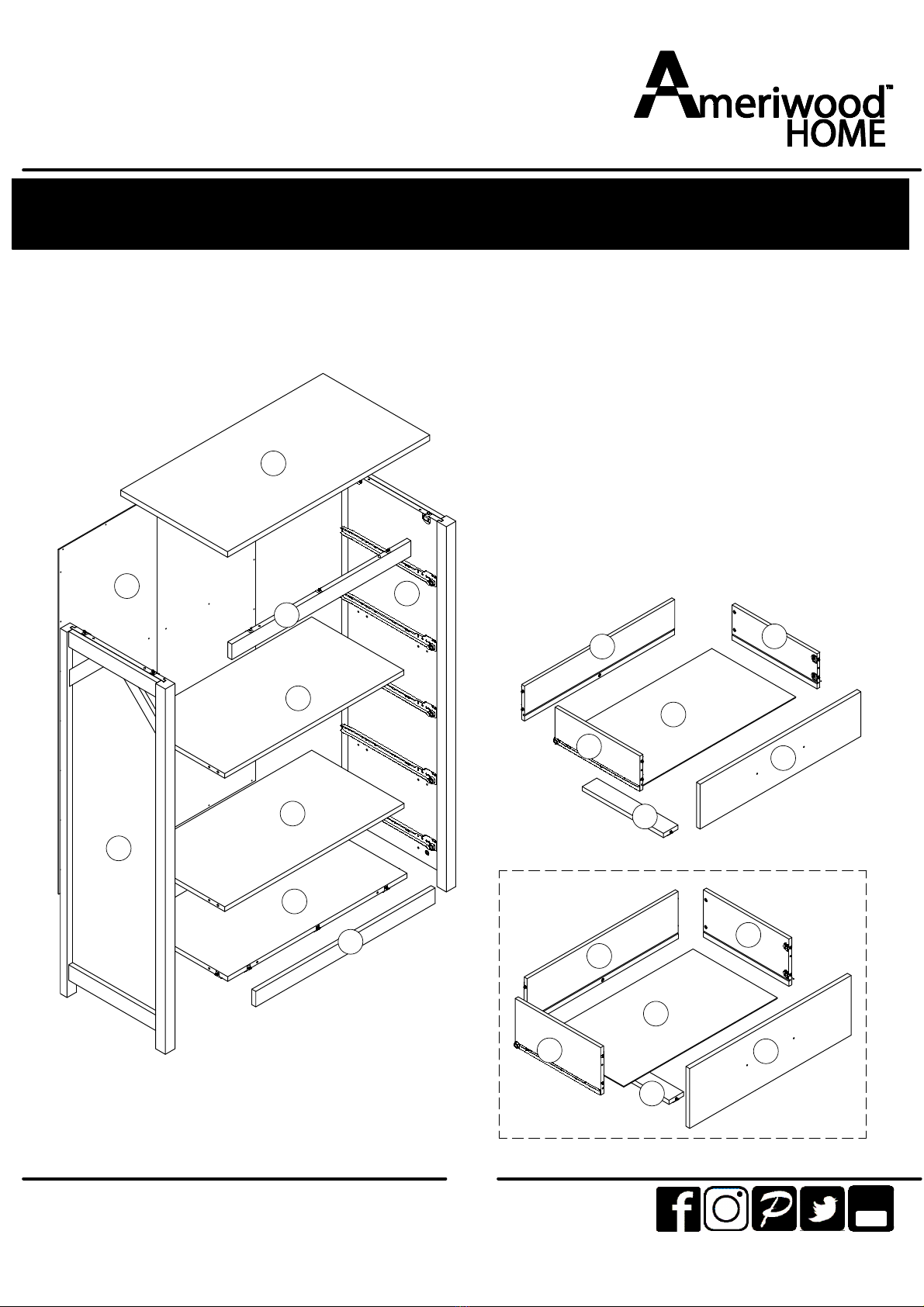

Board Identification

Not actual size

ameriwoodhome.com

TOP

T4542348010GO

QTY: 1 PC

Tube

You

LEFT SIDE

T4542348020GO

QTY: 1 PC

RIGHT SIDE

T4542348030GO

QTY: 1 PC

TOP RAIL

T4542348040GO

QTY: 1 PC

BOTTOM RAIL

T4542348050GO

QTY: 1 PC

BOTTOM

T4542348060GO

QTY: 1 PC

BACK PANEL

T4542348070GO

QTY: 1 PC

BRACE

T4542348080GO

QTY: 2 PCS

LARGE DRAWER LEFT SIDE

T4542348090GO

QTY: 4 PCS

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

LARGE DRAWER RIGHT SIDE

T4542348100GO

QTY: 4 PCS

LARGE DRAWER BACK

T4542348110GO

QTY: 4 PCS

DRAWER BOTTOM

T4542348120GO

QTY: 5 PCS

LARGE DRAWER FRONT

T4542348140GO

QTY: 4 PCS

SMALL DRAWER LEFT SIDE

T4542348150GO

QTY: 1 PC

DRAWER SUPPORT

T4542348130GO

QTY: 5 PCS

SMALL DRAWER BACK

T4542348170GO

QTY: 1 PC

SMALL DRAWER FRONT

T4542348180GO

QTY: 1 PC

SMALL DRAWER RIGHT SIDE

T4542348160GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

X 4

Part List

ameriwoodhome.com

Hardware Bag Reference number:

24542348COM0GO

Tube

You

Actual Size

×30

WOOD DOWEL

TGO2903

Ø6 x 30mm

×34

Ø3 x 12mm

SCREW

TGO1301

Not Actual Size

×10

M4 x 19mm

BOLT

TGO1608

×5

HANDLE

TGO5518

210*35*18 mm

×1

Ø4.2 x 13mm

SCREW

TGO1304

×1

Ø4.2 x 28mm

SCREW

TGO1314

×1

WALL ANCHOR

TGO6501

Ø6 x 30mm

×1

WALL BRACKET

TGO3502

30x50x20mm

×8

Ø6 x 25mm

CAM BOLT

TGO2002

×8

CAM LOCK

TGO2102

Ø15 x 12mm

1234

ameriwoodhome.com

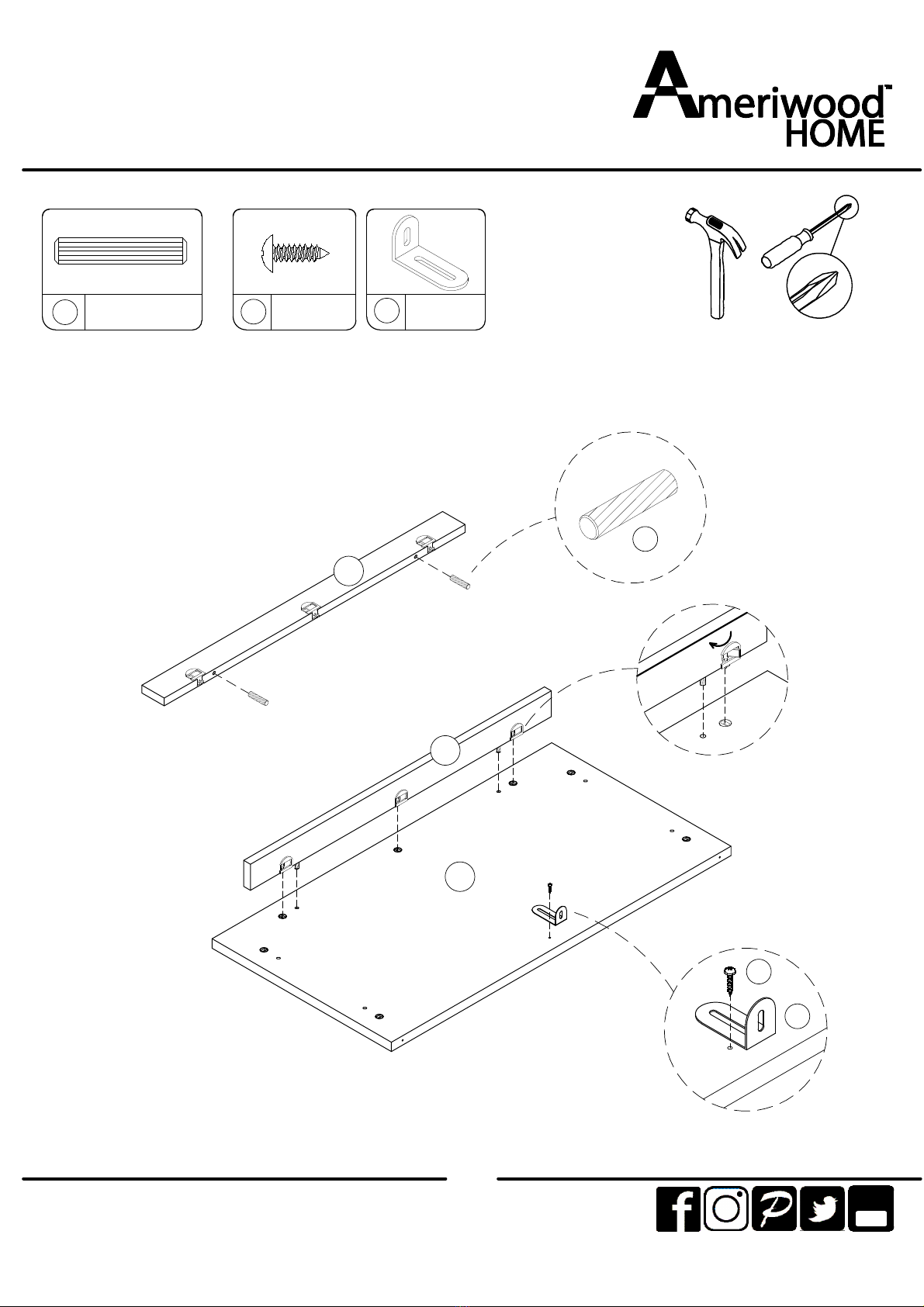

STEP

1.1 Insert (3) into (D) as illustrated.

1.2 Attach (9) into (A) with (6) as illustrated. Do not fully tighten

screw (6) at this step to success assembly at Step 11.

1.3 Attach (D) into (A) with dial button as illustrated.

Tube

You

×2 ×1 ×1

ameriwoodhome.com

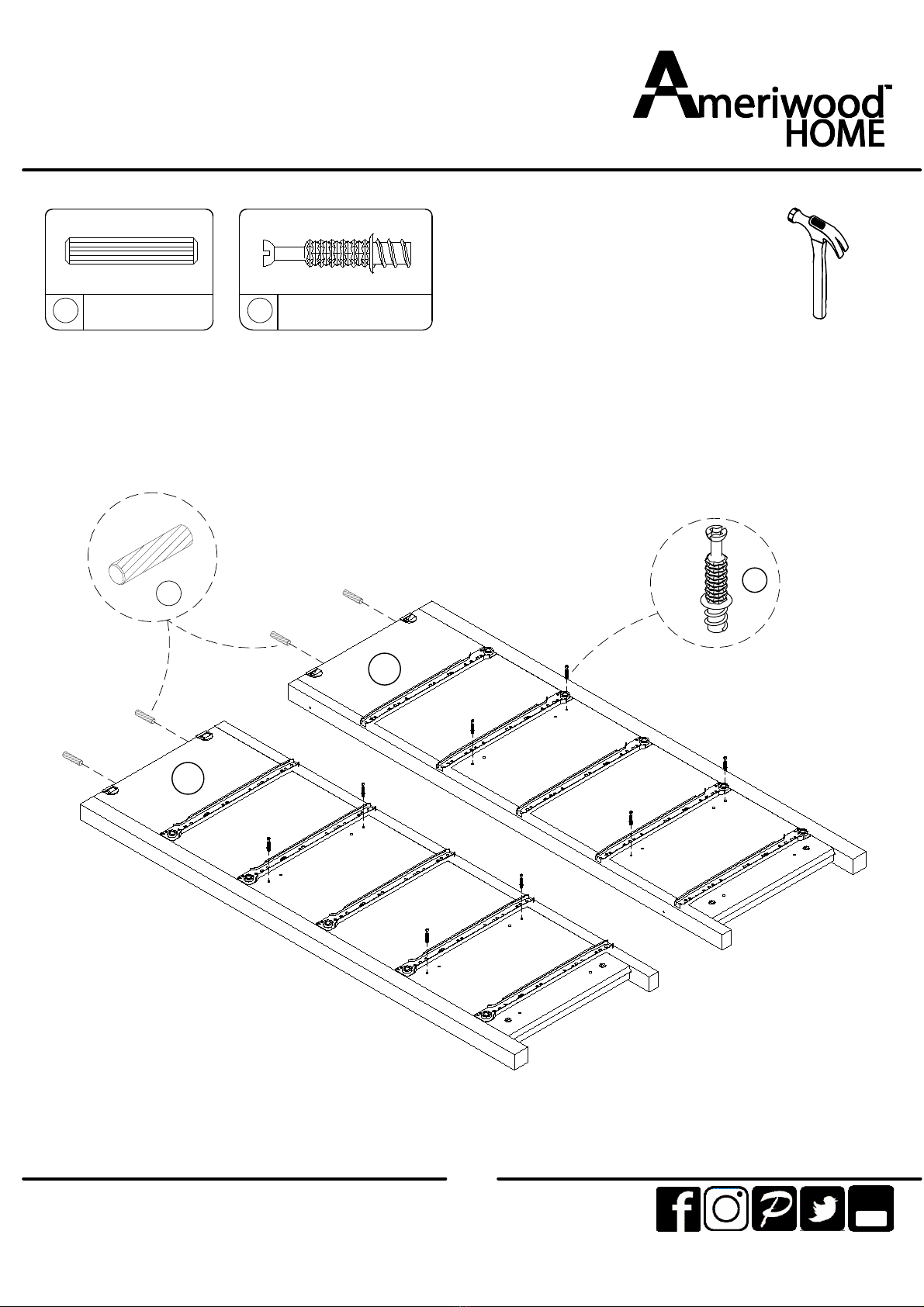

STEP

Tube

You

2.1 Insert (3) into (F), (H) x 2 as illustrated.

2.2 Attach (E) into (F) with dial button as illustrated.

×14

UNLOCK LOCK

H x 2

FINISHED EDGE

ameriwoodhome.com

STEP

Tube

You

3.1 Insert (3) into (B), (C) as illustrated.

3.2 Cam bolt (2) into (B), (C) as illustrated

×4

3 ×8
