Ameriwood HOME 5961330COM Manuel utilisateur

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Unit can p over causing severe injury or death.

Keep this Assembly Manual for future reference ameriwoodhome.com

WARNING

Follow Ameriwood Home

Tube

You

Queen Plaorm Bed

5961330COM

B345961330COM00

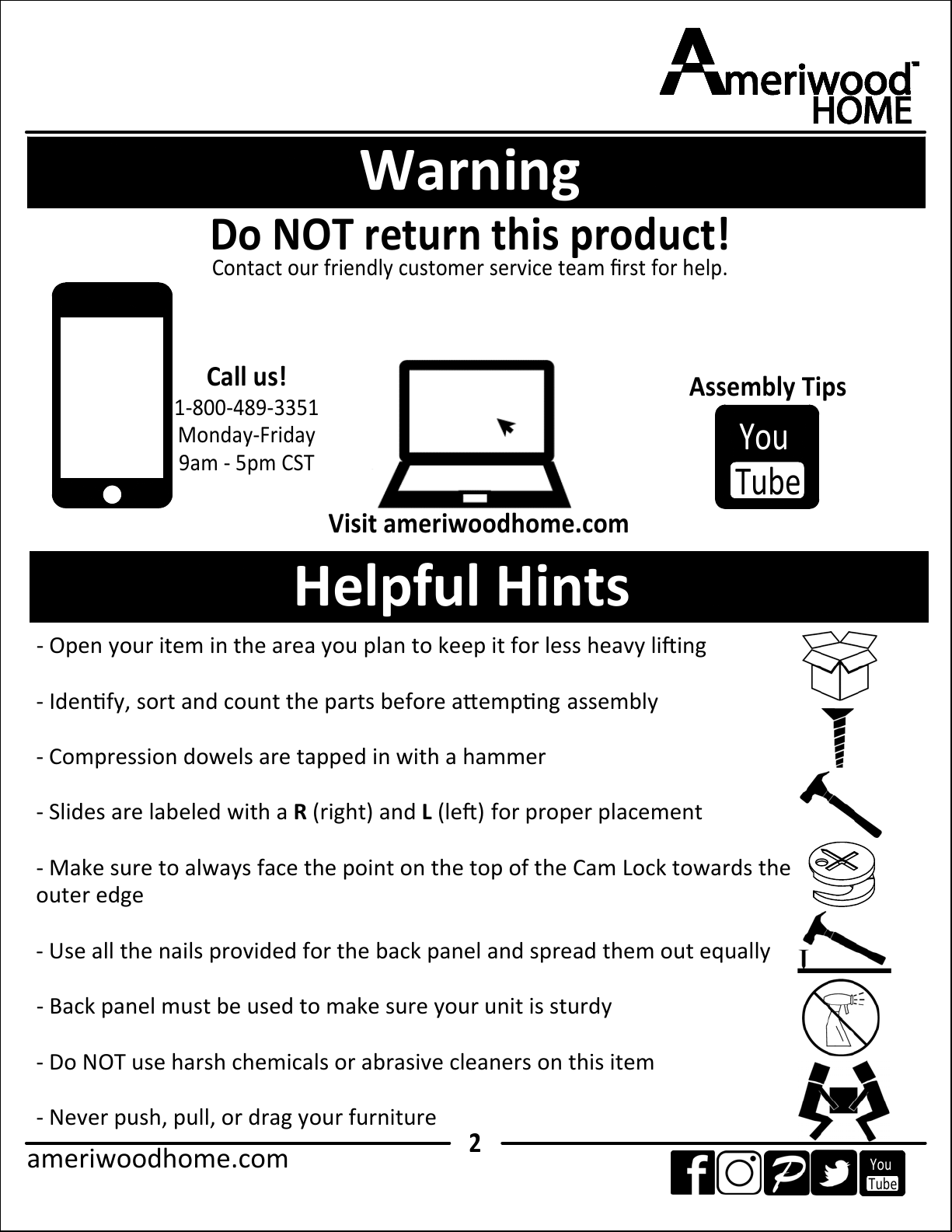

Warning

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help.

Call us!

1-800-489-3351

Monday-Friday

9am- 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R(right) andL (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Tube

You

Tube

You

ameriwoodhome.com

Board Idenﬁcaon

Not actual size

Tube

You

Le Side Rail L1

T5961330010

Right Side Rail R1

T5961330020

Le Side Rail L2

T5961330030

Right Side Rail R2

T5961330040

Headboard Footboard

Center Slat

Support(2)

T5961330050 T5961330060

Connecng Panel(2)

T5961330070

Side Rail Support Bar(4)

T5961330080

T5961330110

Center Slat(2)

T5961330090

Center Slat

Connector

T5961330100

Center Leg

Support

T5961330130

Leg Support(2)

T5961330120

Bed Slats

T5961330140

Queen Plaorm Bed

5961330COM

ameriwoodhome.com

Part List

Actual Size

Tube

You

Cam Bolt

TPB0001

Cam Lock (15/13)

TPB0002

1 x4 2 x4

Ø8x30mm

Wood Dowel

TPB0004

4x4

Csk Screw

TPB0009

9 x12

Ø4.7x38mm

Csk Screw

TPB0008

8 x40

Ø4x25mm

Csk Screw

TPB0028

28 x16

Ø4x30mm

Unitar Screw

TPB0018

18 x3

Ø6.3x40mm

Ø6x55mm

JCBC Screw

TPB0029

29 x4

Queen Plaorm Bed

5961330COM

Barrel Nut

TPB0030

30 x4

Ø6x13mm

ameriwoodhome.com

Part List

Tube

You

Allen Key

TPB0015

15 x1

Adjustable Leg

TPB0031

31 x3

Glue

TPB0016

16 x1

Queen Plaorm Bed

5961330COM

ameriwoodhome.com

Before You Start



Quick

Tip

Assembly



Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.



Queen Plaorm Bed

5961330COM

ameriwoodhome.com

* Raw edges are shaded

Tube

You

Step 1

Ø8x30

TPB0004

4 x4

Glue

Pegamento

Colle

Queen Plaorm Bed

5961330COM

ameriwoodhome.com

* Raw edges are shaded

Step 2

Tube

You

TPB0001

1 x4

Do not over ghten

No lo presione tanto

ne pas serrer excesslvement

Queen Plaorm Bed

5961330COM

ameriwoodhome.com

* Raw edges are shaded

Step 3

Tube

You

TPB0029

29 x4

Queen Plaorm Bed

5961330COM

TPB0030

30 x4

TPB0015

15 x1

ameriwoodhome.com

* Raw edges are shaded

Step 4

Tube

You

TPB0009

9 x6

TPB0028

28 x4

Queen Plaorm Bed

5961330COM

Face up

K28
