Ameriwood HOME 6425335COM Manuel utilisateur

TVStand

B346425000COM0

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

FollowAmeriwoodHome

Tube

You

DateofPurchase___/___/___

LotNumber:

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

AssemblyDifficultyMeter

Easy Tough

‐Anchorunittostudinwall

‐DoNotallowchildrentoclimbonunit

‐Putheavyitemsonlowershelvesordrawers

Unitcantipovercausingsevereinjuryordeath.

WARNING

6425335COM (Nightfall Oak)

6425356COM (Monterey Oak)

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.comtoviewthe

limitedwarrantyvalidintheU.S.andCanada.

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.



‐Identify,sortandcountthepartsbeforeattemptingassembly.



‐Compressiondowelsarelightlytappedinwithahammer.



‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.



‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.



‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.



‐Backpanelmustbeusedtomakesureyourunitissturdy.



‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.



‐Neverpush,pull,ordragyourfurniture.

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Readthrougheachstepcarefullyandfollowtheproperorder



Separateandcountallyourpartsandhardware

Partsarelabeledonthesurfaceoredgeofthepart



Giveyourselfenoughroomfortheassemblyprocess



Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



PresspartstogethersoCAMBOLTinserts

intoedgehole.

PressCAMBOLTintohole. PressCAMLOCKintohole.

Endhole

Usingascrewdriver,turntheCAMLOCKclockwiseto

locktheCAMLOCKandCAMBOLTintotheirholes

andfasteningpartstogether.

Arrowtopointtowardsend

holeinedgeofpart.

4

ameriwoodhome.com

BeforeYouStart

Quick

Assembly

Tip

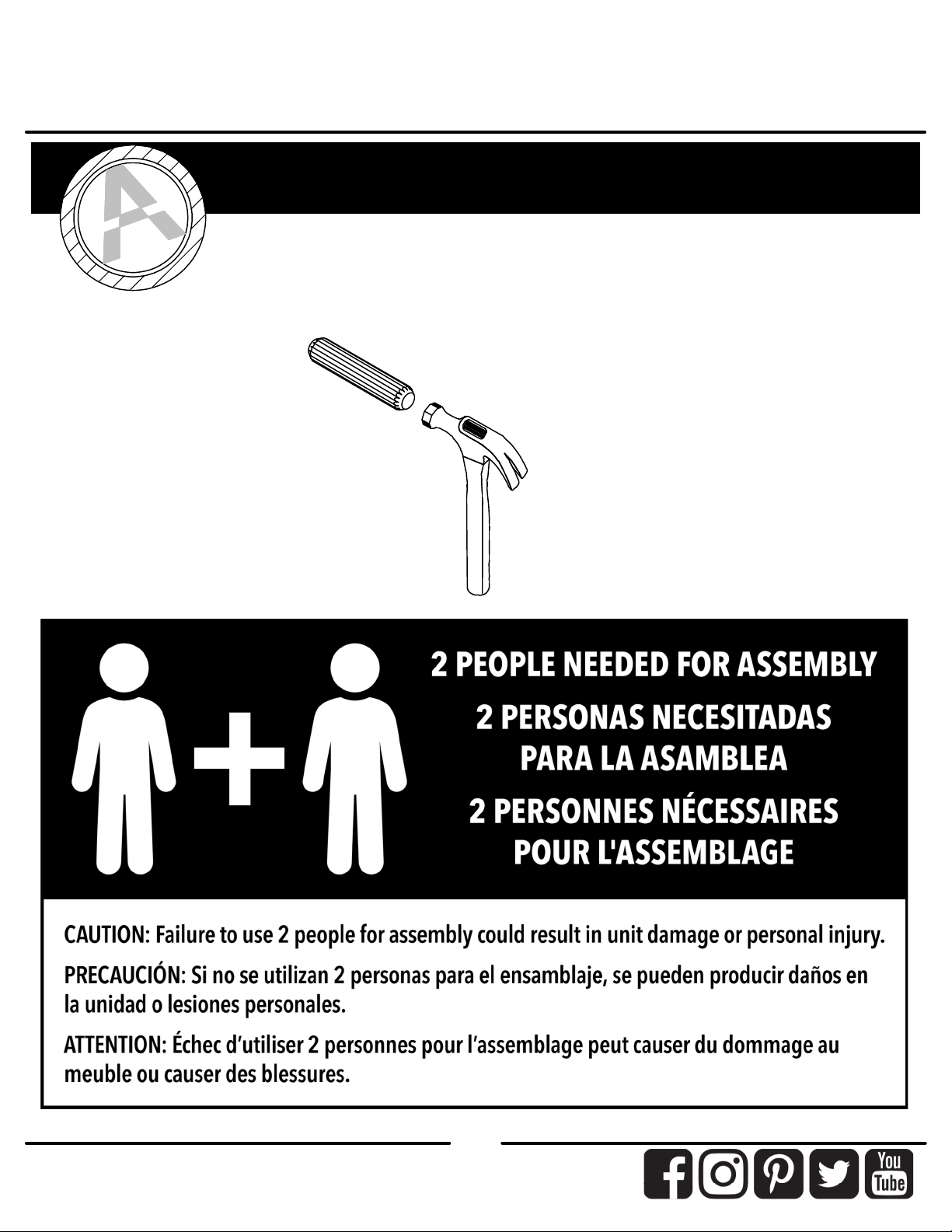

PleaseNote:

Youmayneedtolightlytapthewooddowelsintotheholesduring

yourassemblyprocess.

5

ameriwoodhome.com

BoardIdentification

Notactualsize

ACD

LeftPanel

36425335010

RightPanel

36425335020

RightPartition

36425335040

LeftPartition

36425335030

Top

36425335050

Bottom

36425335060

SideShelf(x2)

36425335070

CenterShelf

36425335080

FrontPanel(x2)

36425335090

Kick

36425335100

LeftKick

36425335110 RightKick

36425335120

RearSupport

36425000130

JKL

Parts for 6425335COM (Nightfall Oak)

6

ameriwoodhome.com

BoardIdentification

Notactualsize

Door(x2)

36425335140

DoorRail(x2)

36425335150

BACK

PNL

BACK

PNL

Thispieceispaperboardconstruction.

Itisnotmadefromwood,butis

requiredfortheassemblyofyourunit.

BackPanel

K3642533500

Parts for 6425335COM (Nightfall Oak)

7

ameriwoodhome.com

BoardIdentification

Notactualsize

ACD

LeftPanel

36425356010

RightPanel

36425356020

RightPartition

36425356040

LeftPartition

36425356030

Top

36425356050

Bottom

36425356060

SideShelf(x2)

36425356070

CenterShelf

36425356080

FrontPanel(x2)

36425356090

Kick

36425356100

LeftKick

36425356110 RightKick

36425356120

RearSupport

36425000130

JKL

Parts for 6425356COM (Monterey Oak)

8

ameriwoodhome.com

BoardIdentification

Notactualsize

Door(x2)

36425356140

DoorRail(x2)

36425356150

BACK

PNL

BACK

PNL

Thispieceispaperboardconstruction.

Itisnotmadefromwood,butis

requiredfortheassemblyofyourunit.

BackPanel

K3642535600

Parts for 6425356COM (Monterey Oak)

9

ameriwoodhome.com

PartList

ActualSize

NotActualSize

(x8)

#A22700

cam lock

(x8)

#A22710

cambolt

(x8)

#A21670

wood dowel

(x18)

#A22760

quicklock

(x12)

#A80250

shelfsupport

(x30)

#A21110

nail

(x8)

#A23030

confirmat

(x20)

#A11080

7/16"screw

(x4)

#A12940

1‐1/8"screw

(x4)

#A71870

lowerroller

(x4)

#A71880

upperguide

(x2)

#A82780

slidingdoortrack

Your unit may contain extra hardware

10

ameriwoodhome.com

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

134

(x2)
