Ameriwood HOME 5046096COM Manuel utilisateur

B345046096COM01

Do Not Return This Product!

Contact our customer service team for help ﬁrst

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

–Unit can !p over causing severe injury or death.

–Anchor unit to stud in wall (if instructed to)

–Do not allow children climb on unit

–Put heavy items on lower shelves or drawers

Carver End Table

5046096COM

Date of Purchase: ____/____/_____

Lot Number:

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Easy Tough

Assembly Diﬃculty Meter

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Visit ameriwoodhome.com

Assembly Tips

ameriwoodhome.com

- Open your item in the area you plan to keep it for less heavy li!ing

- Iden"fy, sort and count the parts before a#emp"ng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R (right) and L (le!) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back Panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Before You Start

Cam Lock Fastening System

ameriwoodhome.com

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Cau!on: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is !ght.

Failure to do so may result in stripping the screw.

Quick

Tip

Assembly

Board Iden•ﬁca•on

Not actual size

ameriwoodhome.com

T5046096010UD

TOP PANEL

T5046096020UD

BOTTOM PANEL

T5046096030UD

LEG

T5046096040UD

UPPER SUPPORT PANEL

T5046096050UD

LOWER SUPPORT PANEL

2 3

T5046096060UD

FOOT

Part List

Actual Size

ameriwoodhome.com

TUD0029

BOLT M6 X 70

x32

TUD0001

Cam Bolt

x32

TUD0002

Cam Lock

15-12

TUD0030

DOWEL 6 X 30

Hardware Bag Reference Number:

25046096COM0

ameriwoodhome.com

* raw edges are shaded

Step 1

x32

TUD0001

TUD0030

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

Step 2

x24

TUD0002

ameriwoodhome.com

Proper orientation of CAM LOCK

Tip

Assembly

Quick

* raw edges are shaded

TUD0002

TUD0029

Step 3

ameriwoodhome.com

Maximum Loads

This unit has been designed to support the maximum loads shown. Exceeding these load limits

could cause sagging, instability, product collapse, and/or serious injury.

1. This cer!ﬁcate applies to Dorel Home Furnishings, Inc. product iden!ﬁed by this instruc!on manual.

2. This cer!ﬁcate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint ( 16 CFR 1303).

3. This product is distributed by:

4. Site of Manufacturer: Muar, Malaysia.

5. See front page of instruc!on manual for date of manufacturer.

Dorel Home Furnishings, Inc.

410 East First Street South,

Wright City, MO 63390

636-745-3351

Cer!ﬁcate of Conﬁrmity

Warning: Risk of serious injury to person - do not place a television on this furniture. This furniture

is not approved for use with a television.

ameriwoodhome.com

* New trend details -sneak peek on what's new

* Surveys -have a voice within our community

* Exclusive deals and discount codes

* Quick and easy replacement part service

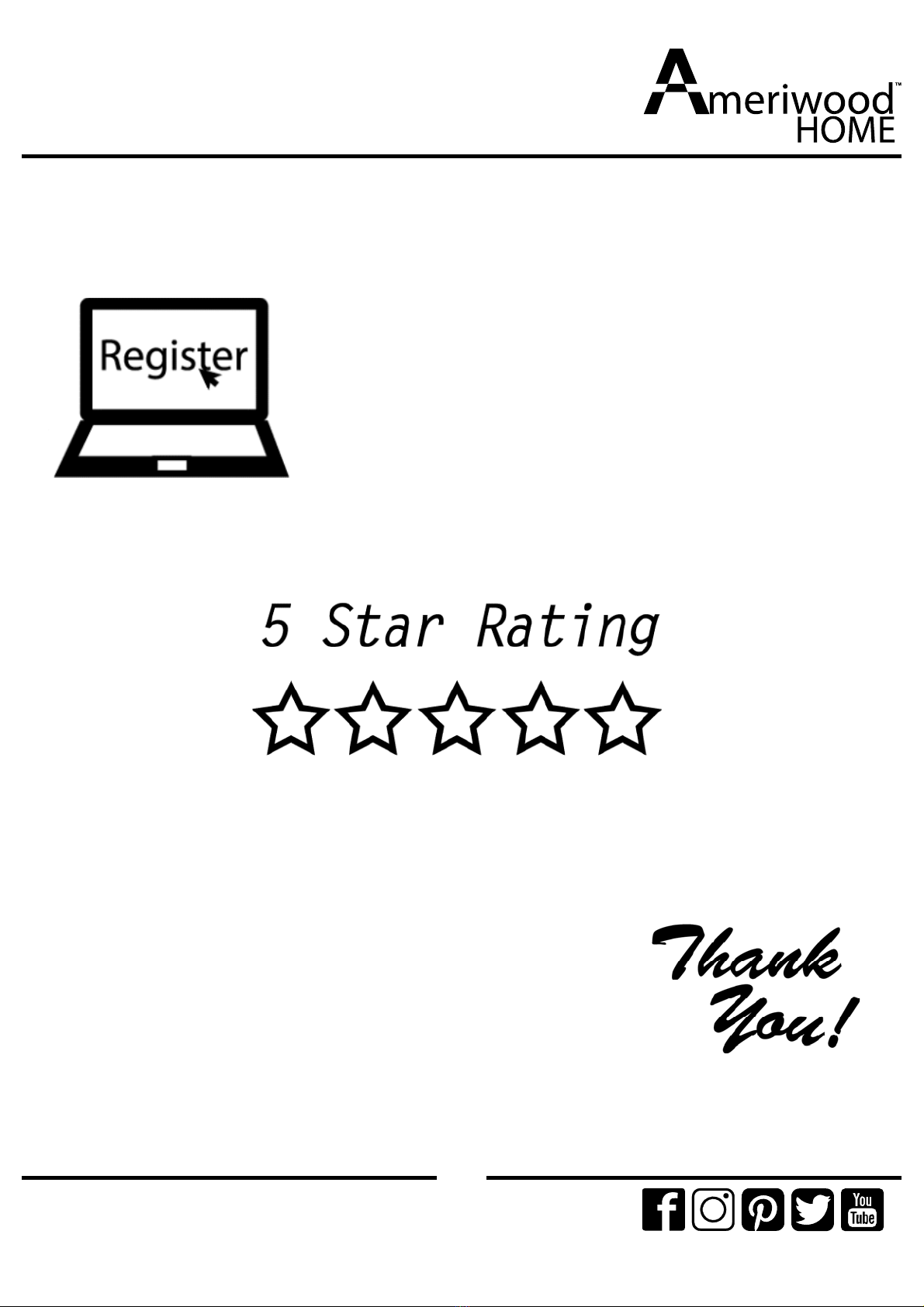

To register your product, visit

Visit your local retailer's website, rate your purchased

product and leave us some feedback!

We would like to extend a big "Thank You" to all of

our customers for taking the to assemble this

Seeds product, and to give us your valuable

feedback.

To register your product, visit Ameriwoodhome.com

We would like to extend a big “Thank You” to all

of our customers for taking the time to assemble

this Ameriwood Home product, and to give us your

valuable feedback
