Ameriwood HOME 3499850COM Manuel utilisateur

3499850COM

Dresser / Desk Combo

B343499850COM00MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help rst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Di culty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from g furniture.

WARNING: Manufacturer assumes no liability

for improper on or excessive loads

placed on screws or bracket. This wall anchor

is not a subs tute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team t for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOURS

- Compression dowels are lightly tapped in with a hammer.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

ameriwoodhome.com

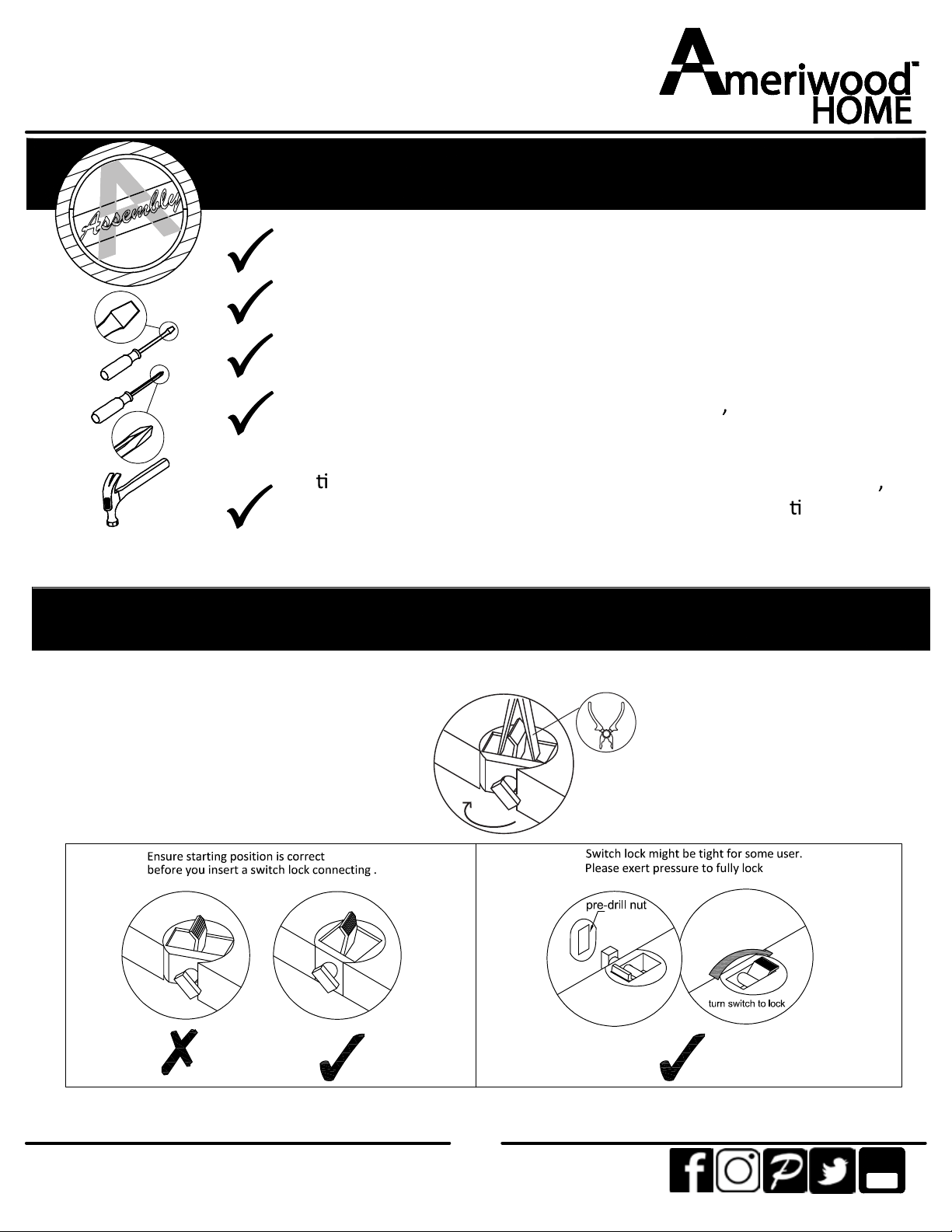

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver #2 Phillips Head

Screwdriver, Plier and Hammer.

Cau on: If using a power drill or power screwdriver for screwing

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

** If the pin position is oset, use pliers

to hold the ip switch in the upright

position and carefully turn the switchlock

to the center of the opening.

fit to 90°

adjust to

center

ameriwoodhome.com

Not actual size

UPPER DRAWER TOP

T3499850010MP

DRAWER TOP

T3499850020MP

BOTTOM PANEL

T3499850030MP

LEFT SIDE PANEL

T3499850050MP

CENTER PANEL

T3499850060MP RIGHT SIDE PANEL

T3499850070MP

BRACE PANEL

T3499850080MP

(2x)

DESK TOP PANEL

T3499850090MP

DRAWER SUPPORT

T3499850150MP

(3x)

UPPER LEFT/ RIGHT PANEL

T3499850040MP

(2x)

APRON PANEL

T3499850100MP

MODESTY PANEL

T3499850110MP

DRAWER FRONT

T3499850120MP

(x3)

DRAWER BACK

T3499850160MP

(3x)

UPPER BACK PANEL

T3499850180MP

BOTTOM BACK PANEL

T3499850190MP

DRAWER LEFT SIDE

T3499850130MP

(3x)

DRAWER RIGHT SIDE

T3499850140MP

(3x)

DRAWER BOTTOM

T3499850170MP

(3x)

This part is paperboard construction.

It is not made from wood, but is

required for the assembly of unit

ameriwoodhome.com

Not actual size

AKE

DRAWER FRONT

FRONT VIEW

BACK VIEW

DRAWER BACK

This part is paperboard construction.

It is not made from wood, but is

required for the assembly of unit

Not actual size

ameriwoodhome.com

Part List

Hardware Bag Reference number :

23499850

COM0MP

(x8)

TMP2531

Cam Lock Cover

(x17)

TMP5101



(x17)

TMP22620



(x20)

TMP8002

Wood Dowel

(x6)

TMP54520

Drawer Bracket

(x28)

TMP12120

PWA Screw

(x12)

TMP21970

Drive Fastener

(x4)

TMP21201

Metal Leg

(x12)

TMP22108

Leg Screw

(x39)

TMP4703

Nail

(x2)

TMP53600

L - Bracket

1413

(x1)

TMP26709

Wireless Charger

(x6)

TMP4201

Screw

12b

12c 12d

12a

(x1set)

TMP84050

Safety Bracket Kit

10a 10b

(x6sets)

TMP40950

T Knob Handle Set

Ø4 x 11mmØ15 x 10mm 6 x 30mm7 x 34mm

Ø4 x 16mm 1.6 x 20mm

Ø4 x 32mm

ameriwoodhome.com

STEP1





(x7)

TMP5101



(x4)

TMP8002

Wood Dowel

Step 1.1 Step 1.2

TURN 180°

ameriwoodhome.com

STEP2



(x2)

TMP5101



(x4)

TMP8002

Wood Dowel

ameriwoodhome.com

STEP3



shown below.

- Repeat this step for other Brace.

(x2)

(x4)

TMP22620



(x4)

TMP8002

Wood Dowel

Arrow facing outward

ameriwoodhome.com

STEP4

- Assemble Center Panel (F) and Brace Panel (H) as shown below.

Proper Oriental of CAM LOCK

Tip

Assembly

Quick
