4 Drawer Dresser

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345323321COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 2 HOURS

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not

made from wood, but is

required for the

assembly of your unit.

Left Panel

35323321010

Right Panel

35323321020

Top

35323321030

Bottom

35323321040

Support

35323321050

Drawer Front

35323321060

Drawer Bottom

39991340071310D

Drawer Brace

35538000121

Drawer Side

39991167346200C

Drawer Back

39991167070350B

Back Panel

K532300000

A B

DWR

SIDE

DWR

BACK

ameriwoodhome.com

Board Identification

Not actual size

This piece is paperboard

construction. It is not

made from wood, but is

required for the

assembly of your unit.

DWR

SIDE

DWR

BACK

DWR

SIDE

ameriwoodhome.com

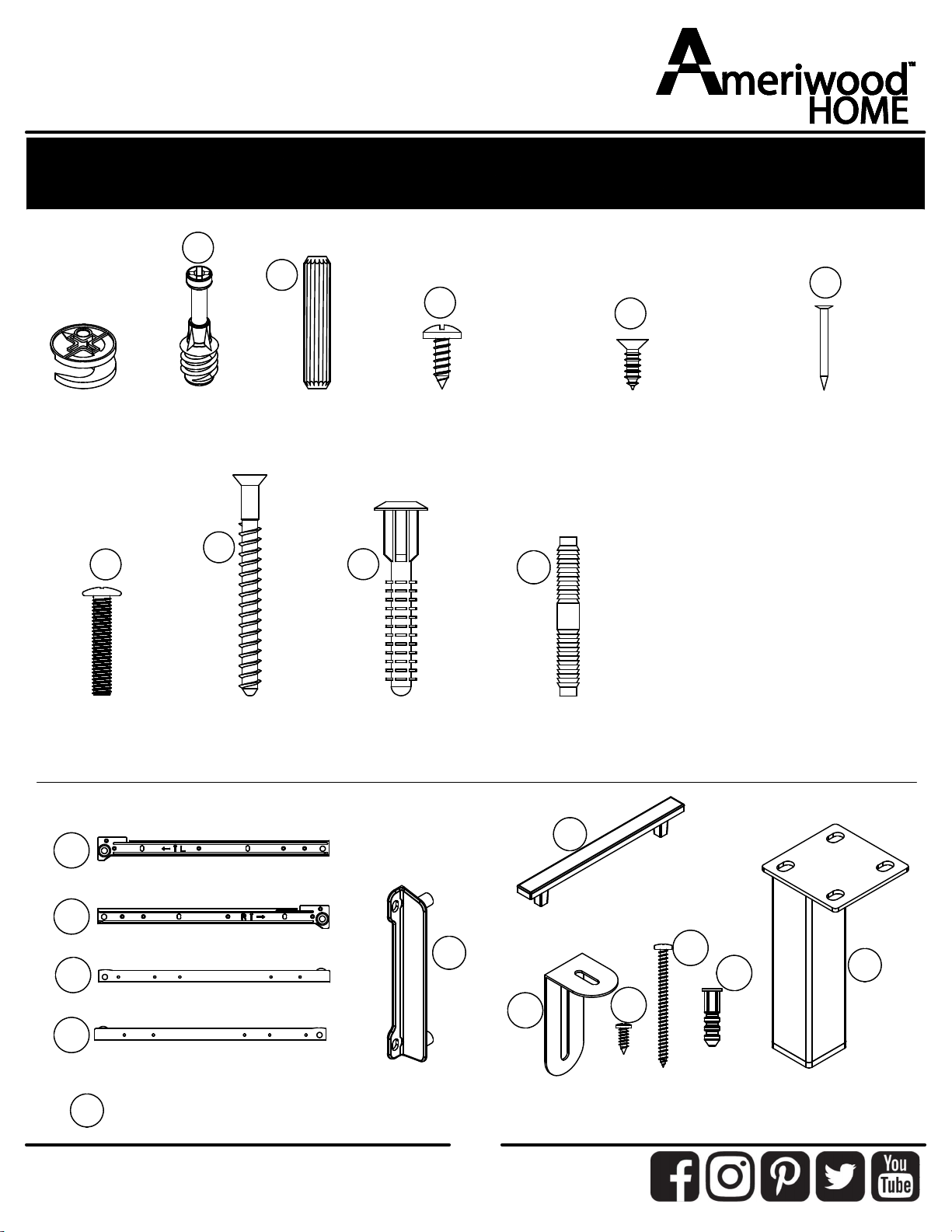

Part List

Actual Size

Not Actual Size

11a

11b

11c

11d

(x14)

#A22620

cam lock

(x14)

#A22610

cam bolt

(x10)

#A21660

wood dowel

(x44)

#A12120

#8 x 7/16" pan head

(x40)

#A11080

#6 x 7/16" flat head

(x34)

#A21110

nail

(x24)

#A21970

drive fastener

(x4)

#A23030

confirmat

(x8)

#A17400

7/8" pan head

Left Cabinet Member

Right Cabinet Member

Left Drawer Member

Right Drawer Member

(x4)

#A56770

Drawer Slide Kit

(x8)

#A54520

drawer bracket

(x4)

#A52697

handle

(x4)

#A44515

foot

(x1)

#A84050

safety bracket kit

14a 14b

14c

14d

(x3)

#A21520

compression dowel

ameriwoodhome.com

STEP1

(x2)

#A22620

(x3)

#A22610

(x2)

#A21660

finished edge

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP2

11a

(x12)

#A11080

(x4)

#A56770

Left Cabinet Member

Marked with a "L"

finished edge

11a

ameriwoodhome.com

STEP3

(x2)

#A22620

(x3)

#A22610

(x2)

#A21660

finished edge

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP4

(x12)

#A11080

(x4)

#A56770

Right Cabinet Member

Marked with a "R"

finished edge

11b
