Ameriwood HOME 7027013COM Manuel utilisateur

B347027013COM00GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

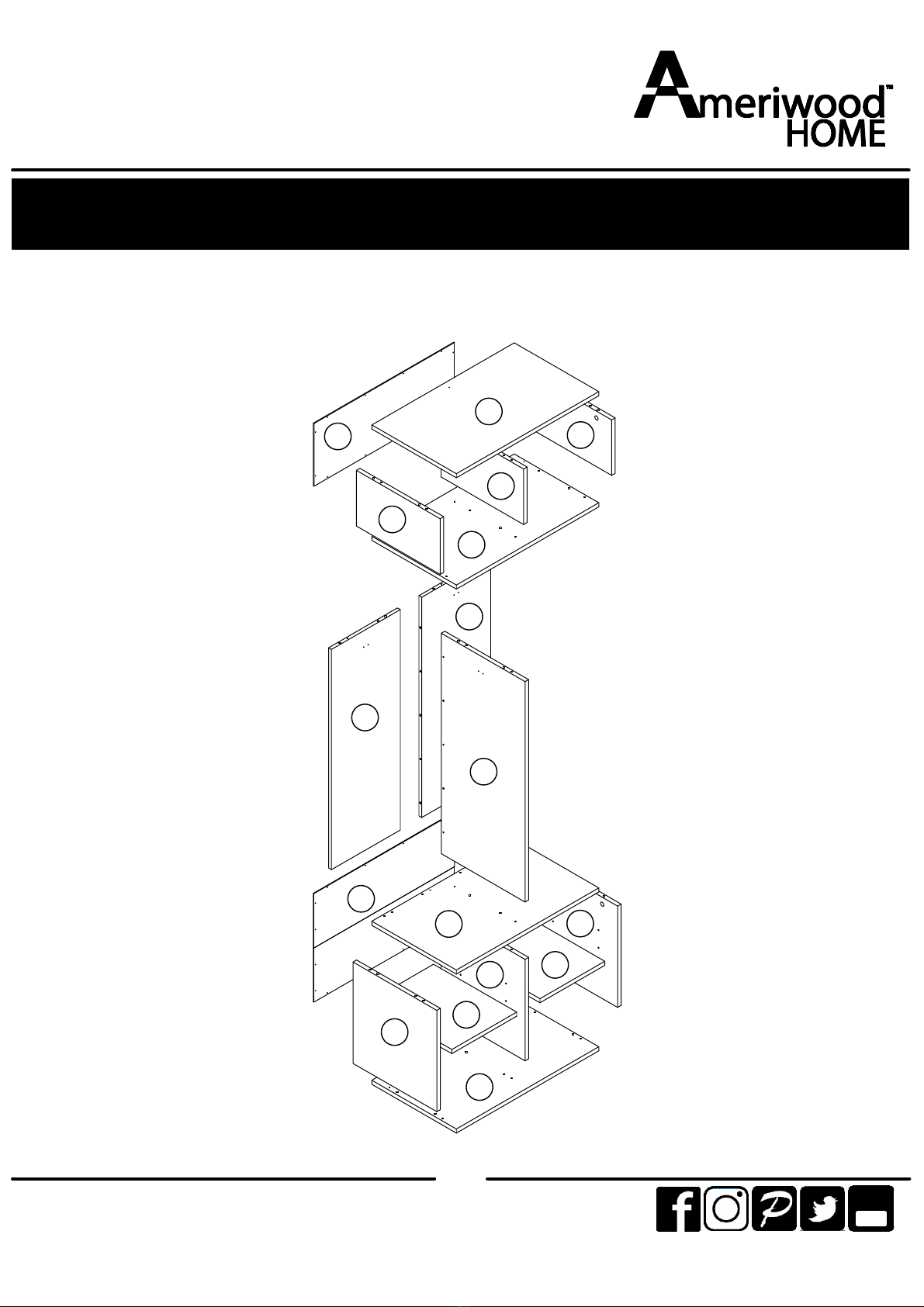

7027013COM

6 CUBE TALL ENTRY STORAGE

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

ameriwoodhome.com

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 0.5-1 HOUR

Helpful Hints

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Tube

You

Tube

You

Quick

Tip

Assembly

ameriwoodhome.com

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

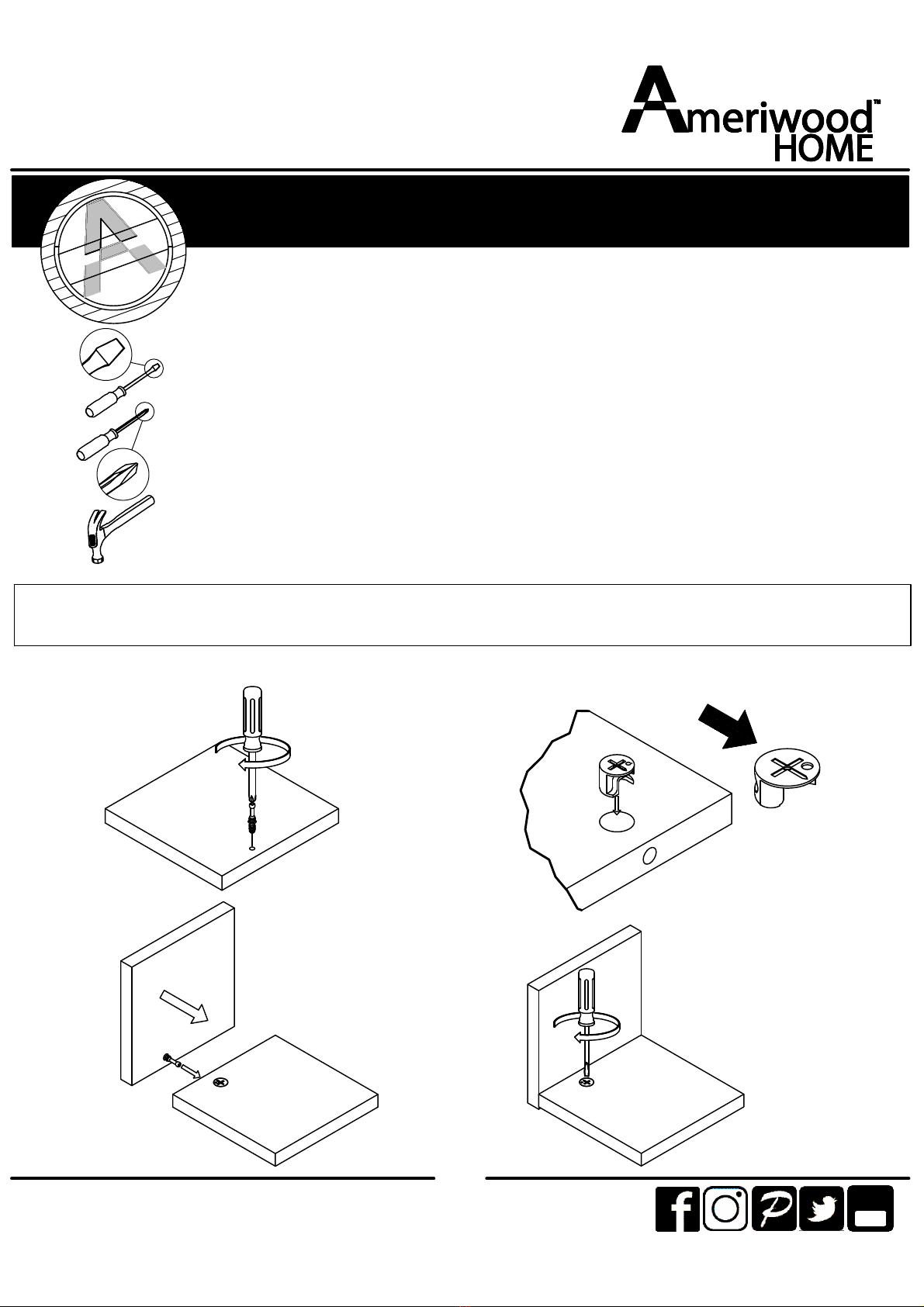

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

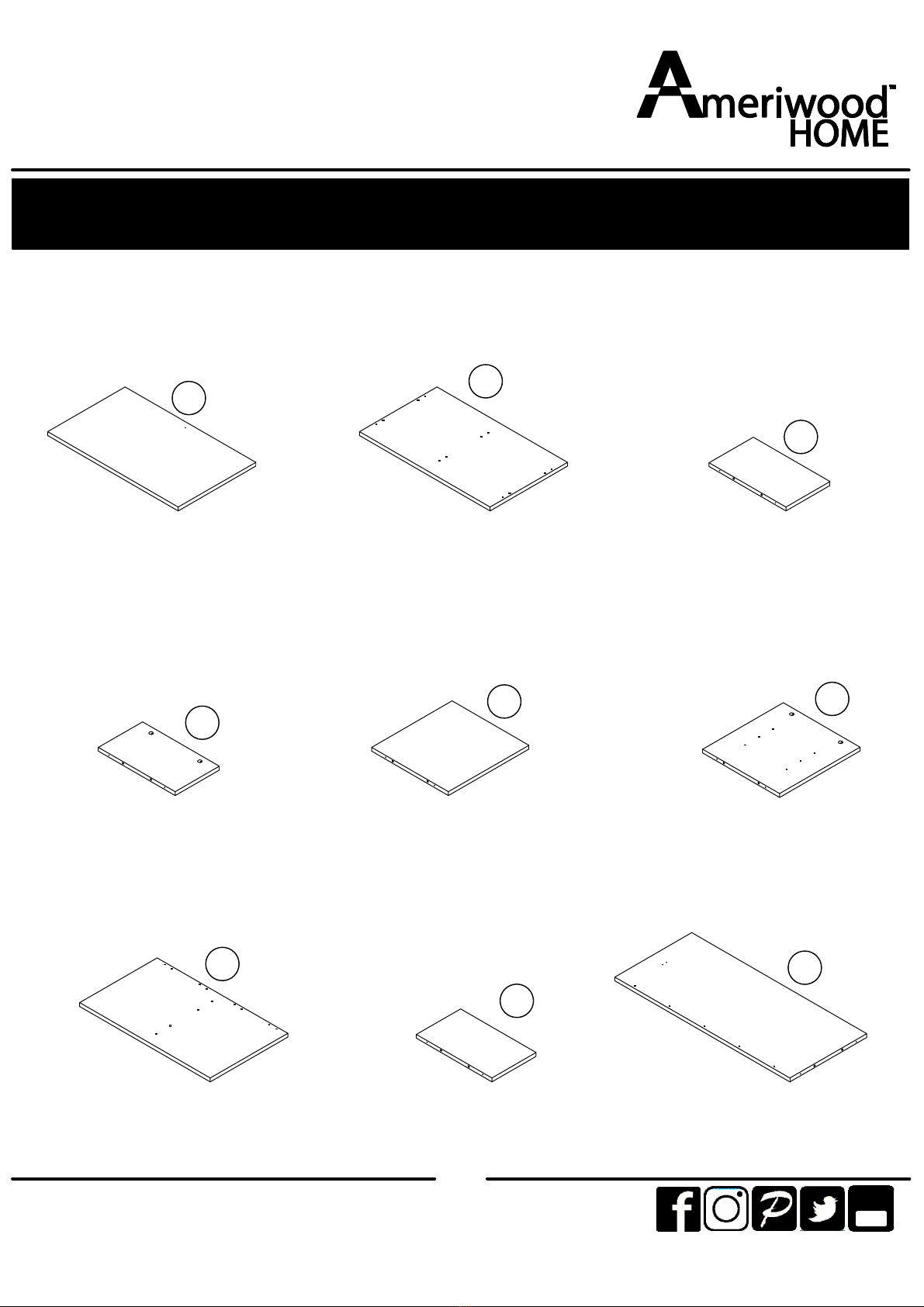

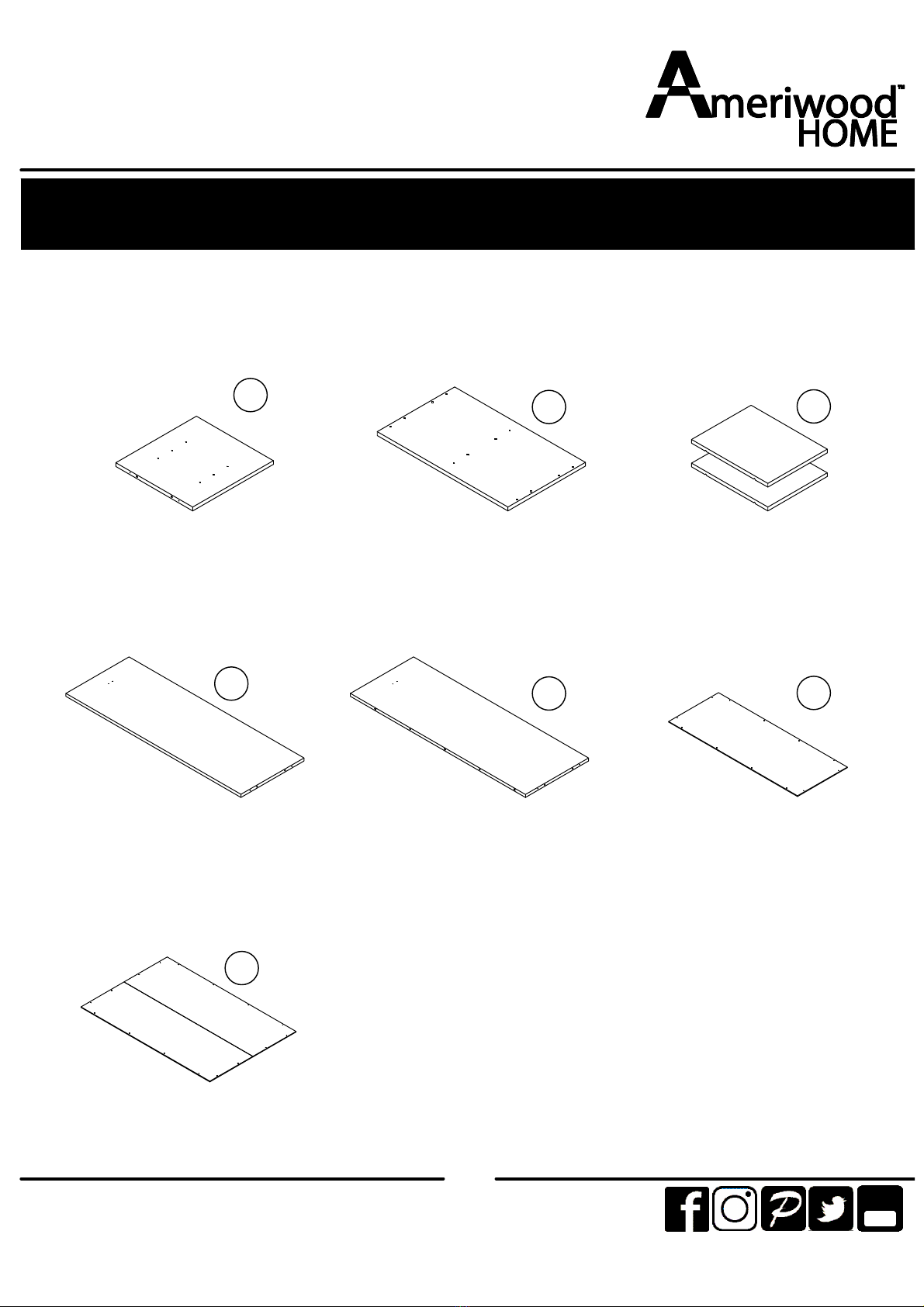

Board Identification

Not actual size

ameriwoodhome.com

TOP

T7027013010GO

QTY: 1 PC

Tube

You

BOTTOM

T7027013020GO

QTY: 1 PC

LEFT PANEL-UPPER

T7027013030GO

QTY: 1 PC

RIGHT PANEL-UPPER

T7027013040GO

QTY: 1 PC

LEFT PANEL-LOWER

T7027013050GO

QTY: 1 PC

RIGHT PANEL-LOWER

T7027013060GO

QTY: 1 PC

SHELF-MID

T7027013070GO

QTY: 1 PC

PARTITION UPPER

T7027013080GO

QTY: 1 PC

PARTITION MID

T7027013090GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

PARTITION LOWER

T7027013100GO

QTY: 1 PC

Tube

You

SHELF

T7027013110GO

QTY: 1 PC

SHELF

T7027013120GO

QTY: 2 PCS

BACK PANEL LEFT

T7027013130GO

QTY: 1 PC

BACK PANEL RIGHT

T7027013140GO

QTY: 1 PC

BACK PANEL UPPER

T7027013150GO

QTY: 1 PC

BACK PANEL LOWER

T7027013160GO

QTY: 1 PC

Board Identification

Not actual size

ameriwoodhome.com

Tube

You

Part List

ameriwoodhome.com

Hardware Bag Reference number:

27027013COM0GO

Actual Size

×24 ×24 ×12

CAM LOCK

TGO2100

WOOD DOWEL

TGO2903

Ø6 x 30mm

Ø15 x 10mm

1 2 3

Ø6 x 25mm

CAM BOLT

TGO2001

×18

Tube

You

Ø4.2 x 45mm

SCREW

TGO1008W

×8

Ø3.5 x 14mm

SCREW

TGO1005

SCREW

TGO1304

×1

SCREW

TGO1314

Not Actual Size

×1

WALL ANCHOR

TGO6501

Ø6 x 30mm

×1

WALL BRACKET

TGO3502

30x50x20mm

×4

HOOK

TGO3540

Ø4.2 x 13mm Ø4.2 x 28mm

×28

Ø3 x 12mm

SCREW

TGO1301

×8

SHELF SUPPORT

TGO2810

×28

WOOD DOWEL

TGO2900

Ø8 x 30mm

ameriwoodhome.com

STEP

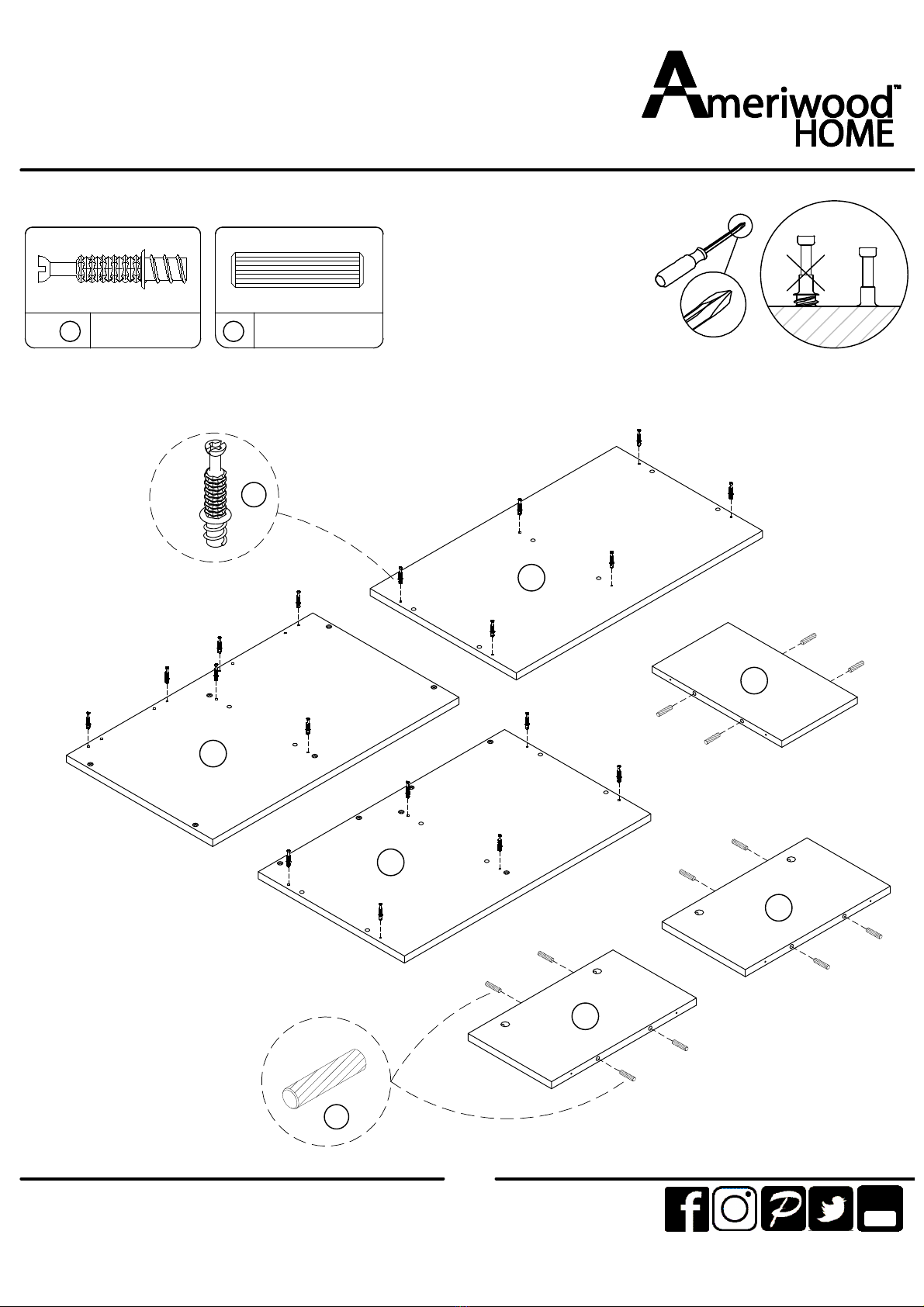

1.1 Cam bolt (2) into (A), (G), (K) as illustrated.

1.2 Insert (4) into (C), (D), (H) as illustrated.

×18

24 ×12

Tube

You

ameriwoodhome.com

STEP

Tube

You

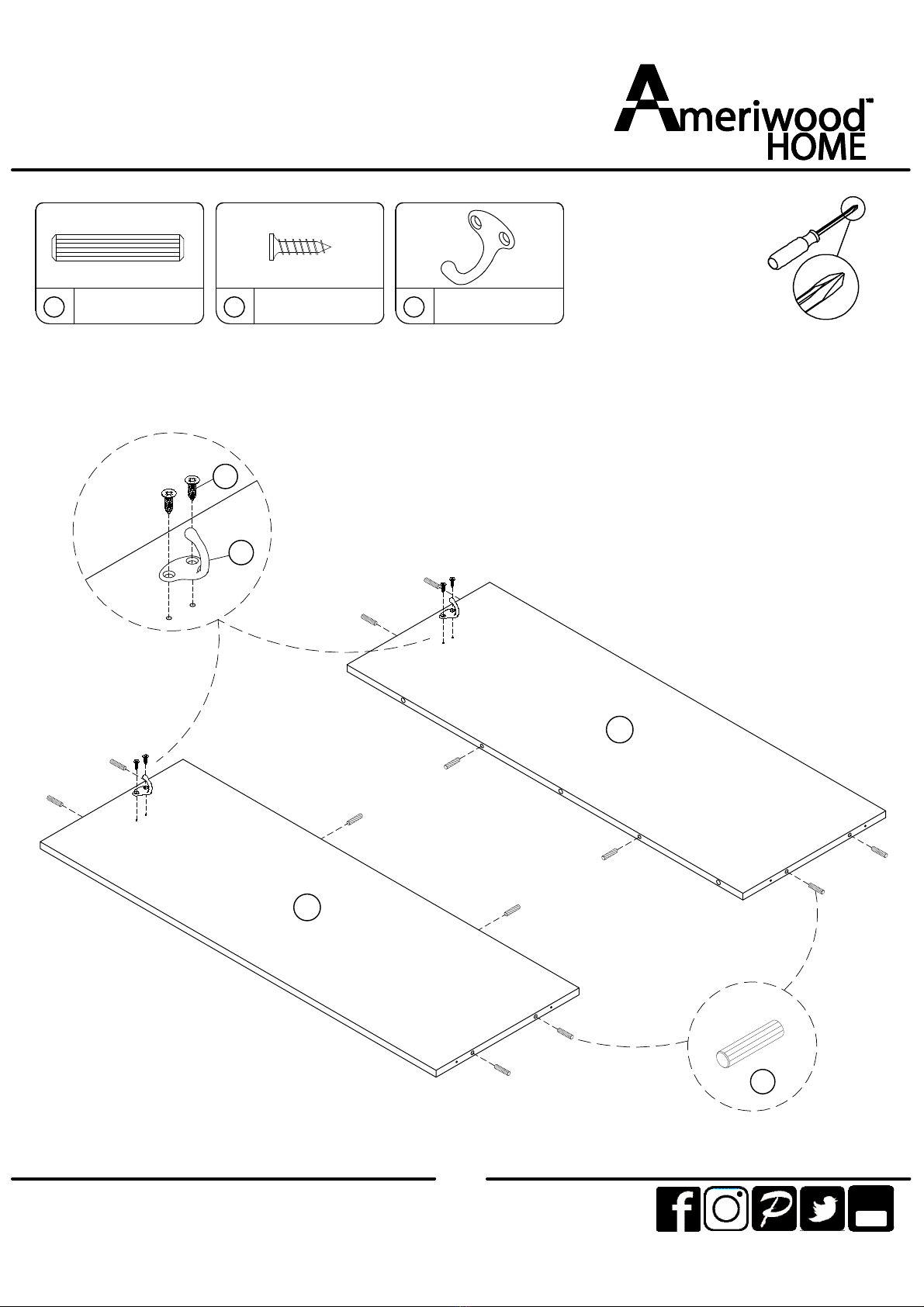

2.1 Attach (13) into (I) with (6) as illustrated.

2.2 Cam bolt (2) into (I) as illustrated

2.3 Insert (4) into (E), (F), (I), (J) as illustrated.

4 ×16 6 ×4 13 ×2

Left sunface

Right sunface

×6

ameriwoodhome.com

STEP

Tube

You

3.1 Attach (13) into (M), (N) with (6) as illustrated.

3.2 Insert (3) into (M), (N) as illustrated.

3 ×12 6 ×4 13 ×2
