Ameriwood HOME Franklin 5062319COM Manuel utilisateur

5062319COM

Franklin Accent Table

B345062319COM00NN

DateofPurchase___/___/___

LotNumber:

‐Unitcantipovercausingsevereinjuryordeath.

‐Anchorunittostudinwall(ifinstructedto).

‐DoNotallowchildrentoclimbonunit.

‐Putheavyitemsonlowershelvesordrawers.

WARNING

FollowAmeriwoodHome

Tube

You

AssemblyDifficultyMeter

Easy Tough

THISINSTRUCTIONBOOKLETCONTAINS

IMPORTANT

SAFETYINFORMATION.PLEASEREADANDKEEPFORFUTUREREFERENCE.

DoNotReturnThisProduct!

Contactourcustomerserviceteamforhelpfirst.

Call:1‐800‐489‐3351(tollfree)

Monday‐Friday9am‐5pmCST

Visit:www.ameriwoodhome.com

ContactUs!

HelpfulHints

2

ameriwoodhome.com

DoNOTreturnthisproduct!

Contactourfriendlycustomerserviceteamfirstforhelp.

Callus!

1‐800‐489‐3351

Monday‐Friday

9am‐5pmCST

Visitameriwoodhome.com

AssemblyTips

‐Openyouritemintheareayouplantokeepittoavoidexcessiveheavylifting.

‐Identify,sortandcountthepartsbeforeattemptingassembly.

‐Compressiondowelsarelightlytappedinwithahammer.

‐Slidesarelabeledwitha

(right)and

L

(left)forproperplacement.

‐MakesuretoalwaysfacethepointonthetopoftheCamLocktowardsthe

outeredge.

‐Useallthenailsprovidedforthebackpanelandspreadthemoutequally.

‐Backpanelmustbeusedtomakesureyourunitissturdy.

‐DoNOTuseharshchemicalsorabrasivecleanersonthisitem.

‐Neverpush,pull,ordragyourfurniture.

Tube

You

Tube

You

PEOPLENEEDEDFORASSEMBLY:1‐2

ESTIMATEDASSEMBLYTIME:1HOUR

3

ameriwoodhome.com

BeforeYouStart



Quick

Tip

Assembly



CamLockFasteningSystem

ThisCamLockFasteningSystemwillbeusedthroughouttheassemblyprocess.

Tube

You

Readthrougheachstepcarefullyandfollowtheproperorder

Separateandcountallyourpartsandhardware

Giveyourselfenoughroomfortheassemblyprocess

Havethefollowingtools:FlatHeadScrewdriver,#2PhillipsHead

ScrewdriverandHammer

Caution:Ifusingapowerdrillorpowerscrewdriverforscrewing,

pleasebeawaretoslowdownandstopwhenscrewistight.

Failuretodosomayresultinstrippingthescrew.



4

ameriwoodhome.com

BoardIdentification

Notactualsize

Tube

You

A B D

Top Panel

T5062319010NN Left SidePanel

T5062319020NN Shelf

T5062319040NN

Right SidePanel

T5062319030NN

E F H

BackFrame

T5062319050NN Front Frame

T5062319060NN DrawerLeft SidePanel

T5062319080NN

DrawerFacePanel

T5062319070NN

IJK

DrawerRight SidePanel

T5062319090NN DrawerBottomPanel

T5062319100NN DrawerBackPanel

T5062319110NN

X 1 X 1 X 1 X 1

X 1 X 1 X 2 X 2

X 2

5

ameriwoodhome.com

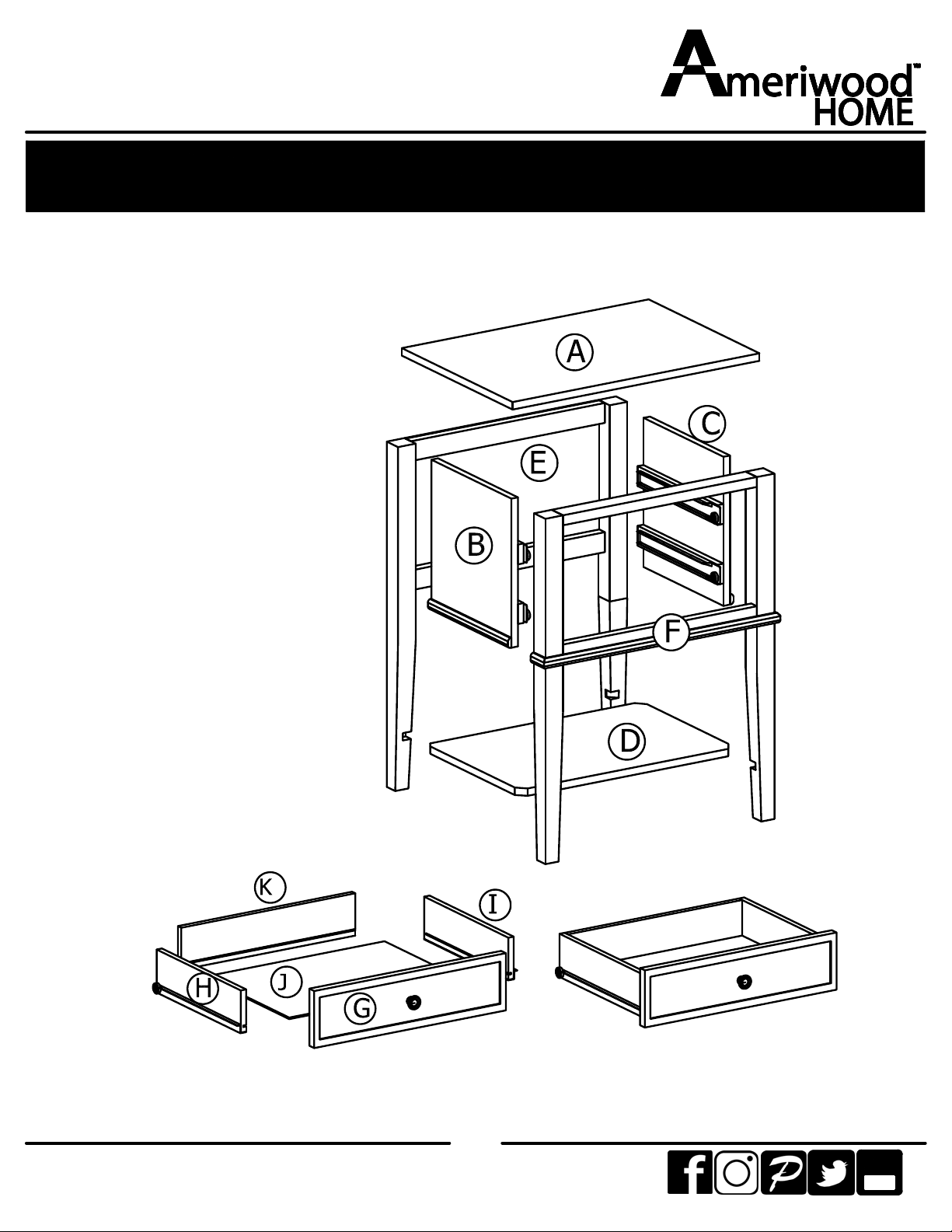

BoardIdentification

Notactualsize

Tube

You

6

ameriwoodhome.com

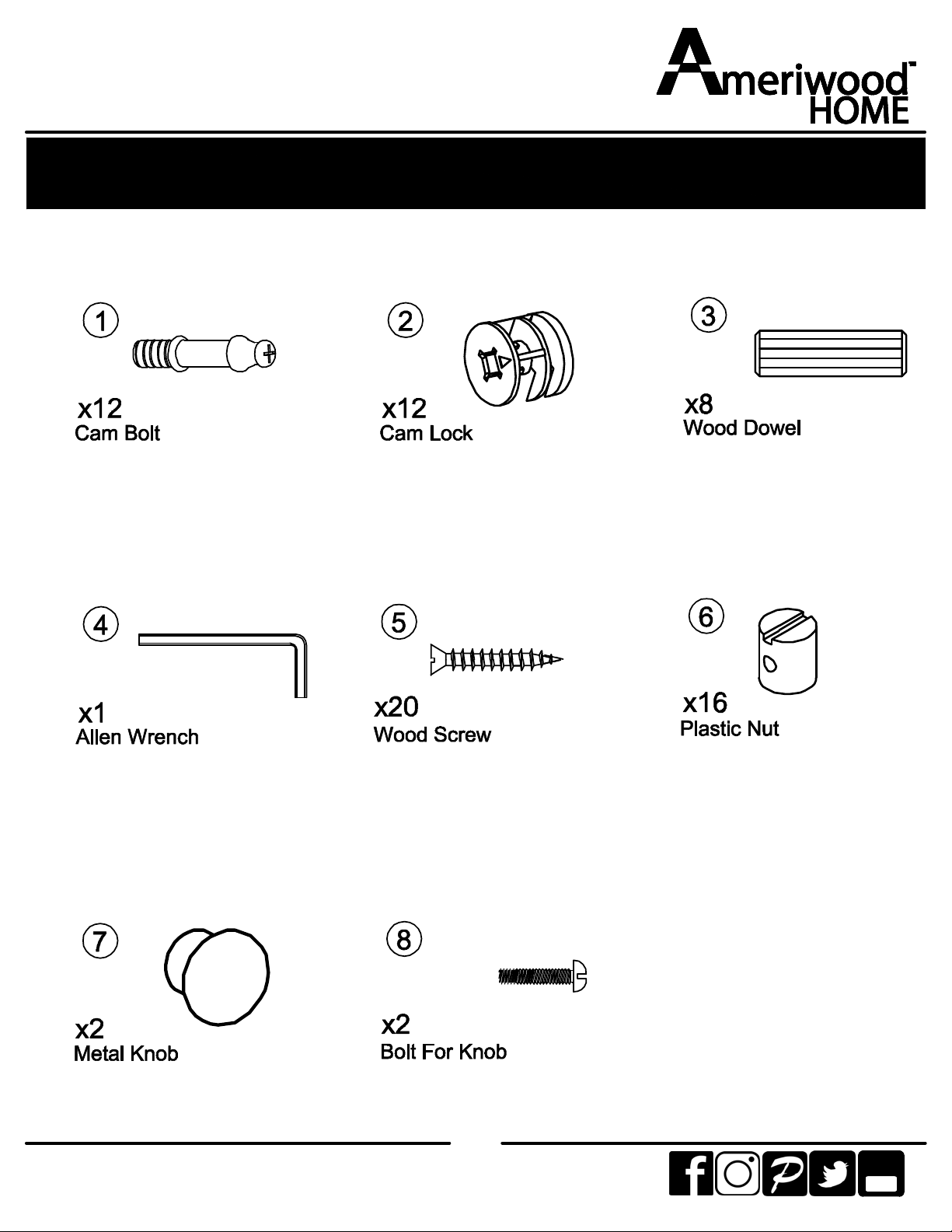

PartList

ActualSize

Tube

You

TNN0001 TNN0002 TNN0003

TNN0004 TNN0006

TNN0007 TNN0008

TNN0005

6 X 35 mm

15 X 11 mm 8 X 30 mm

4 X 57 mm 4 X 30 mm 8 X 8 mm

4 X 20 mm.

Dia 24 X 24 mm

Bag Reference Number:

Hardware

250623190NN

7

ameriwoodhome.com

STEP1

Tube

You

*rawedgesareshaded

Insertfourcamlocksintoeachshelfasshown.

2x8

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TNN0001 TNN0003

TNN0002

8

ameriwoodhome.com

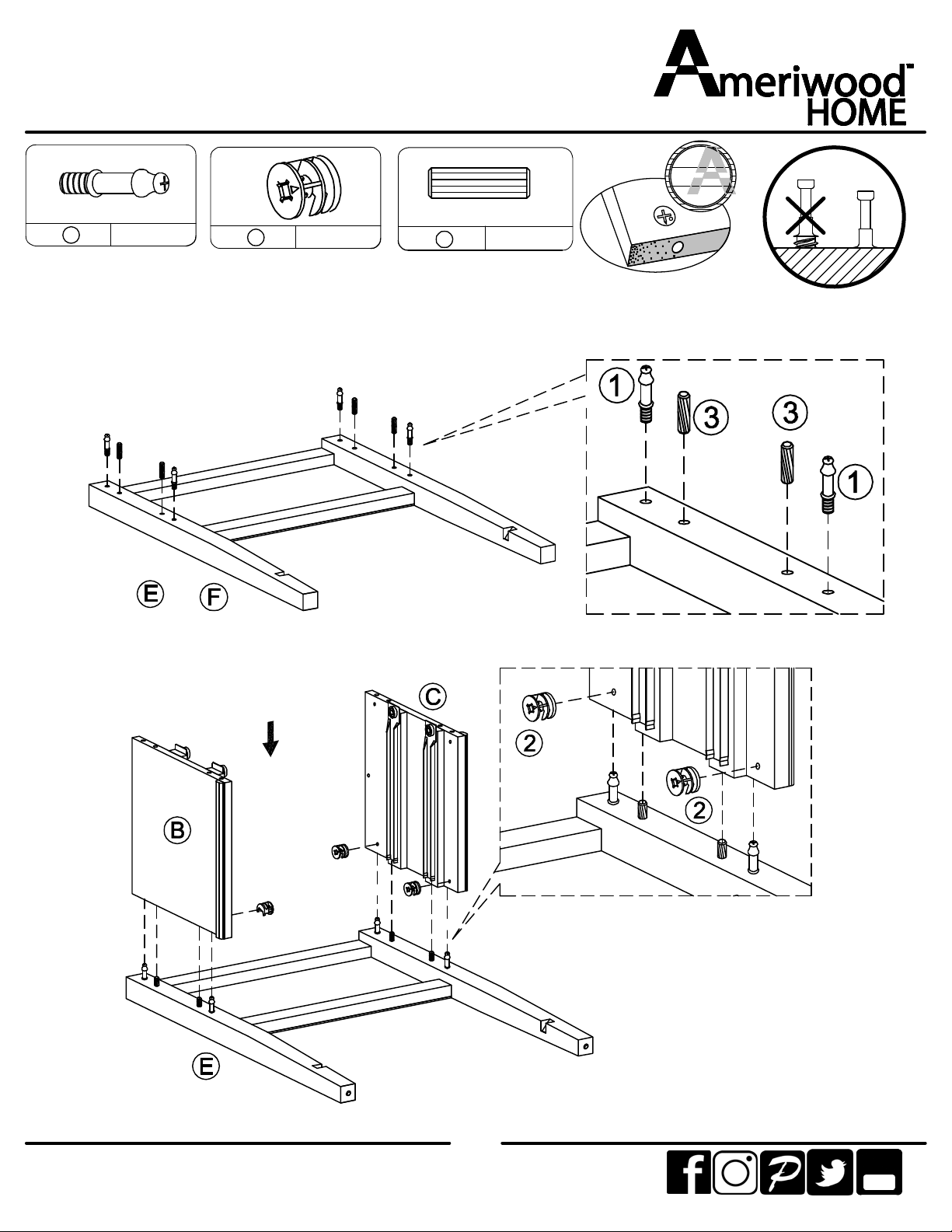

STEP2

Tube

You

*rawedgesareshaded

9

ameriwoodhome.com

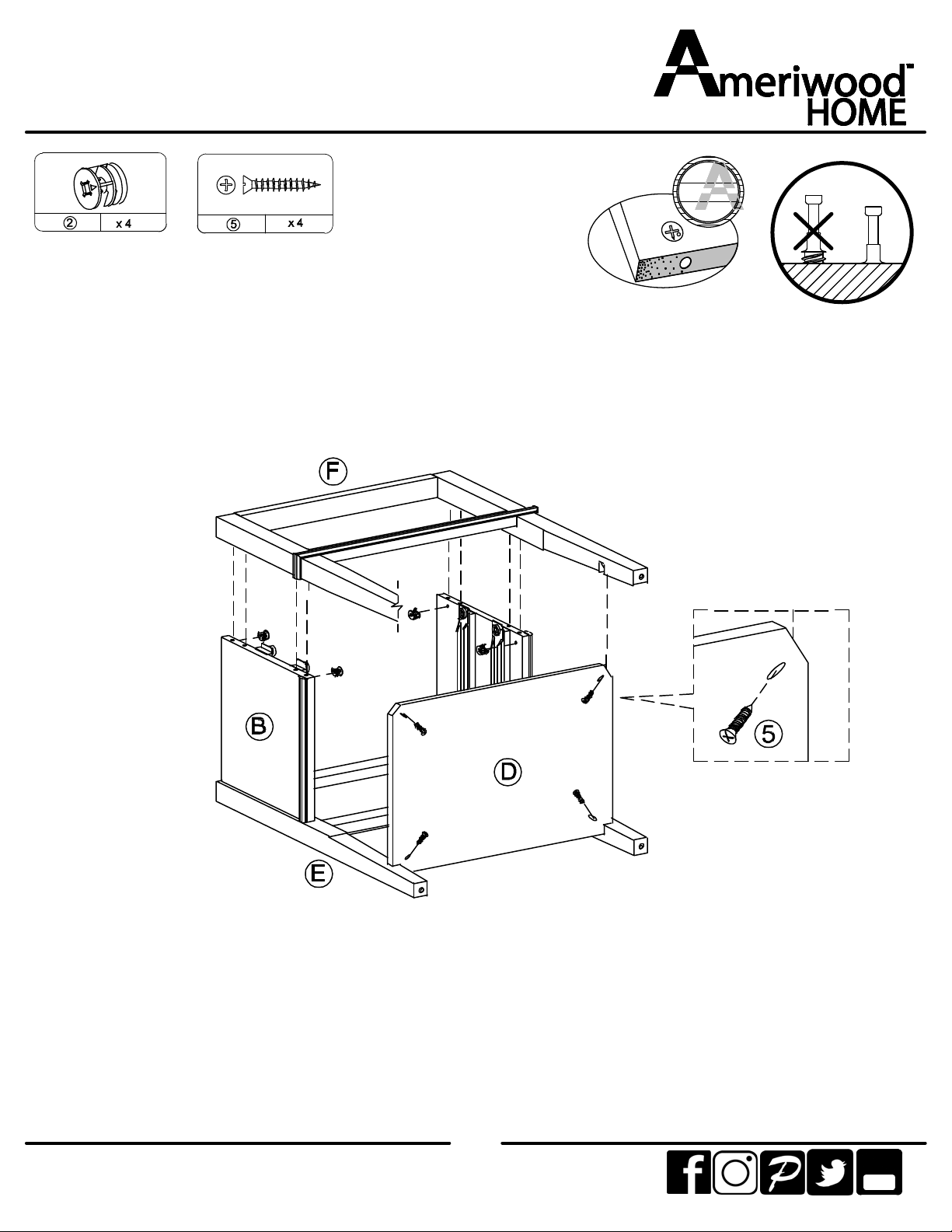

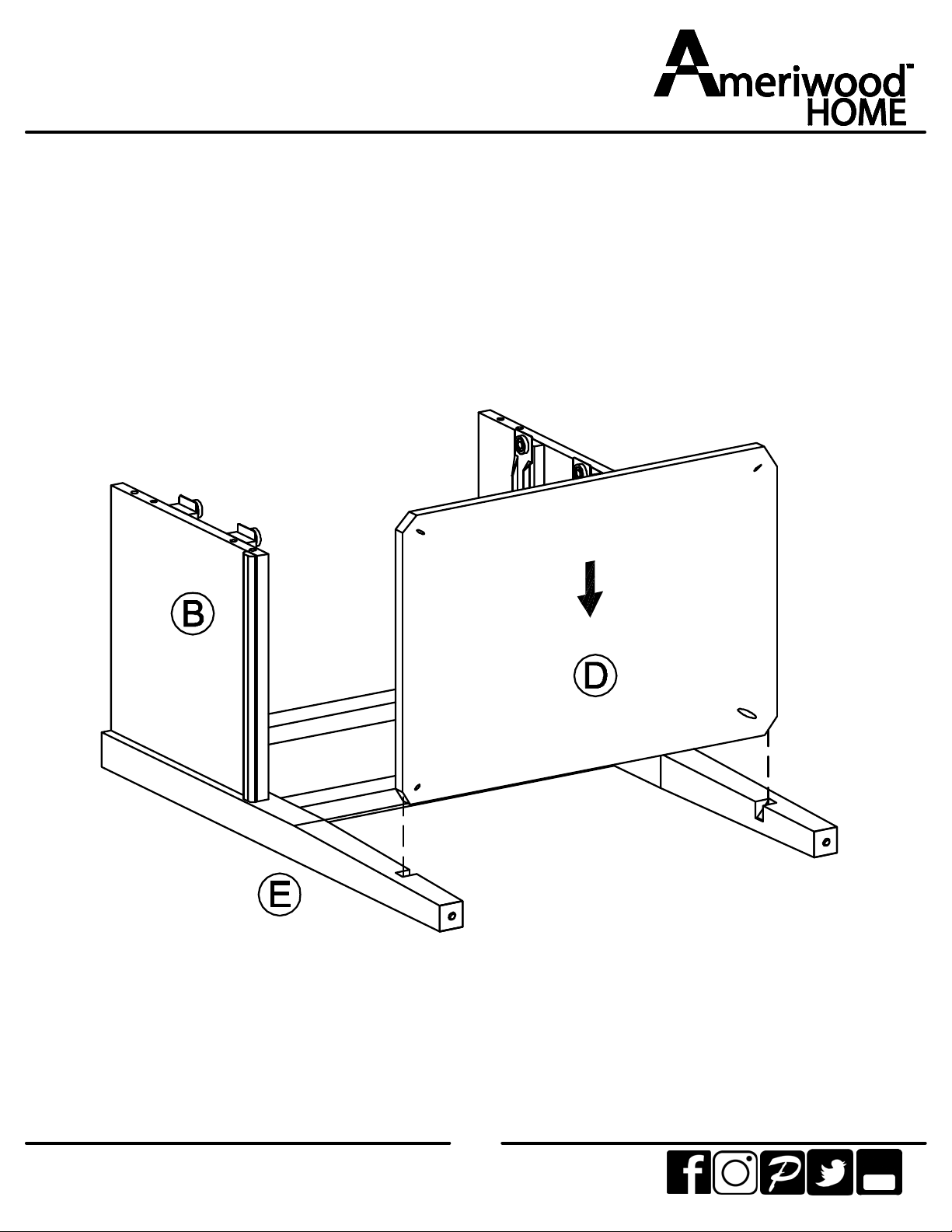

STEP3

Tube

You

*rawedgesareshaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TNN0002 TNN0005

10

ameriwoodhome.com

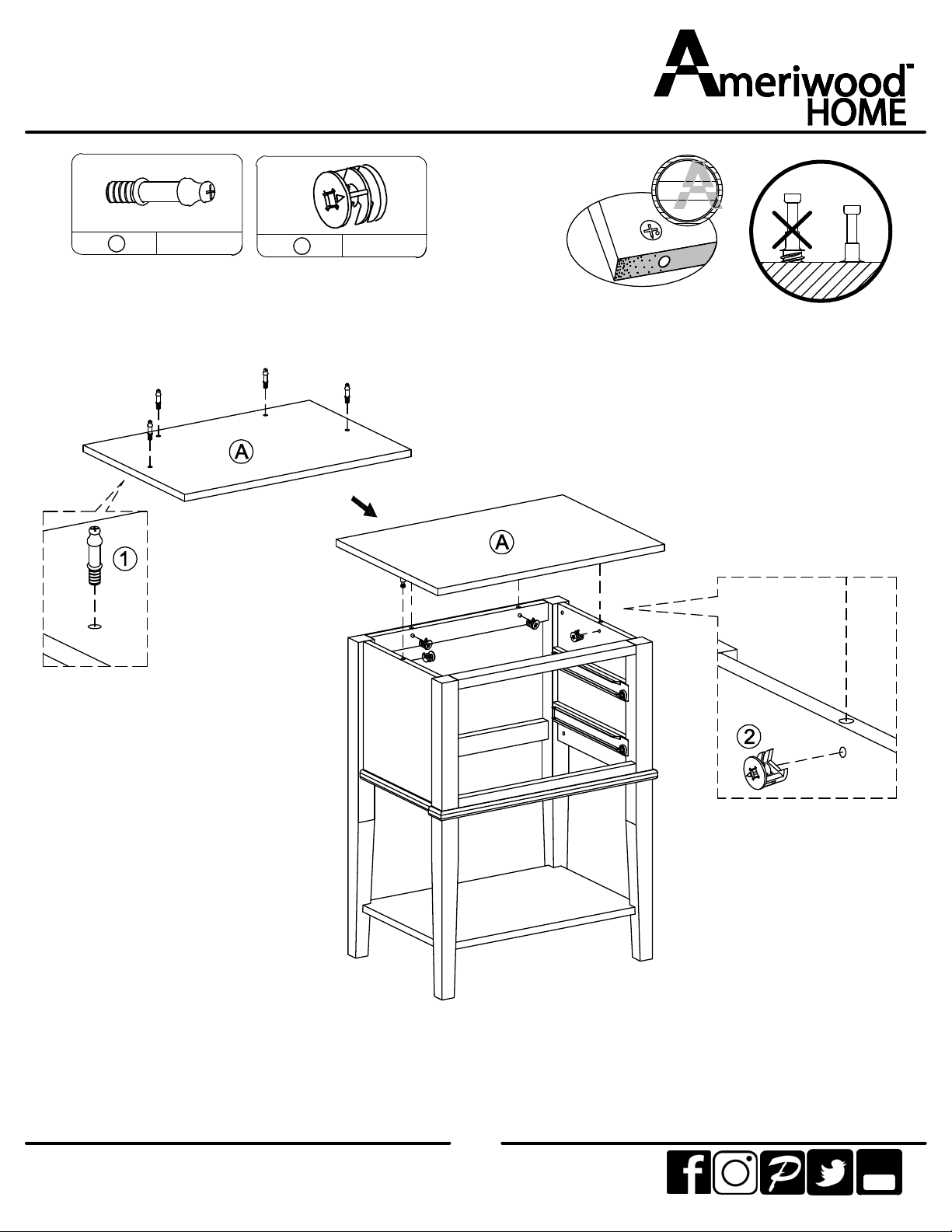

STEP4

Tube

You

*rawedgesareshaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

TNN0001 TNN0002
