Ameriwood HOME 3389855COM Manuel utilisateur

3389855COM

Beverage Cabinet

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B343389855COM00SF

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Follow Ameriwood Home

Helpful Hints

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

Board Identification

Not Actual Size

Top panel

T3389855010SF

Bottom frame

T3389855020SF

Left side panel

T3389855030SF

Right side panel

T3389855040SF

Partition

T3389855050SF

Back panel

T3389855060SF

QTY: 2 PCS

Board Identification

Not Actual Size

Left side panel rail

T3389855070SF

Right side panel rail

T3389855080SF

Door track

T3389855090SF

Right adjustable shelf

T3389855110SF

QTY: 2 PCS

Adjustable shelf rail

T3389855120SF

QTY: 4 PCS

Shelf

T3389855130SF

QTY: 2 PCS

Divider

T3389855140SF

QTY: 4 PCS

GHI

JKL

Sliding door

T3389855150SF

QTY: 1 PC

Left adjustable shelf

T3389855100SF

QTY: 2 PCS

ameriwoodhome.com

Board Identification

Not Actual Size

ameriwoodhome.com

Actual Size

Part List

Not Actual Size

Hardware Bag Reference Number:

23389855COM0SF

x 1

x 26

Ø8X30mm

Glue

TSF0015

Wood dowel

TSF0501

x 16

Shelf support

TSF0008

Ø7X15mm(Nickel color)

Ø3.5X14mm

Screw

TSF1201

3x 16

x 2

Ø3.5X12mm

Screw

TSF0601

Cam bolt

TSF0355

6x 28

Cam lock

TSF0308

7x 28 8x 1

Angle bracket

TSF2631

4x 4

Ø4X20mm

Screw

TSF0812

ameriwoodhome.com

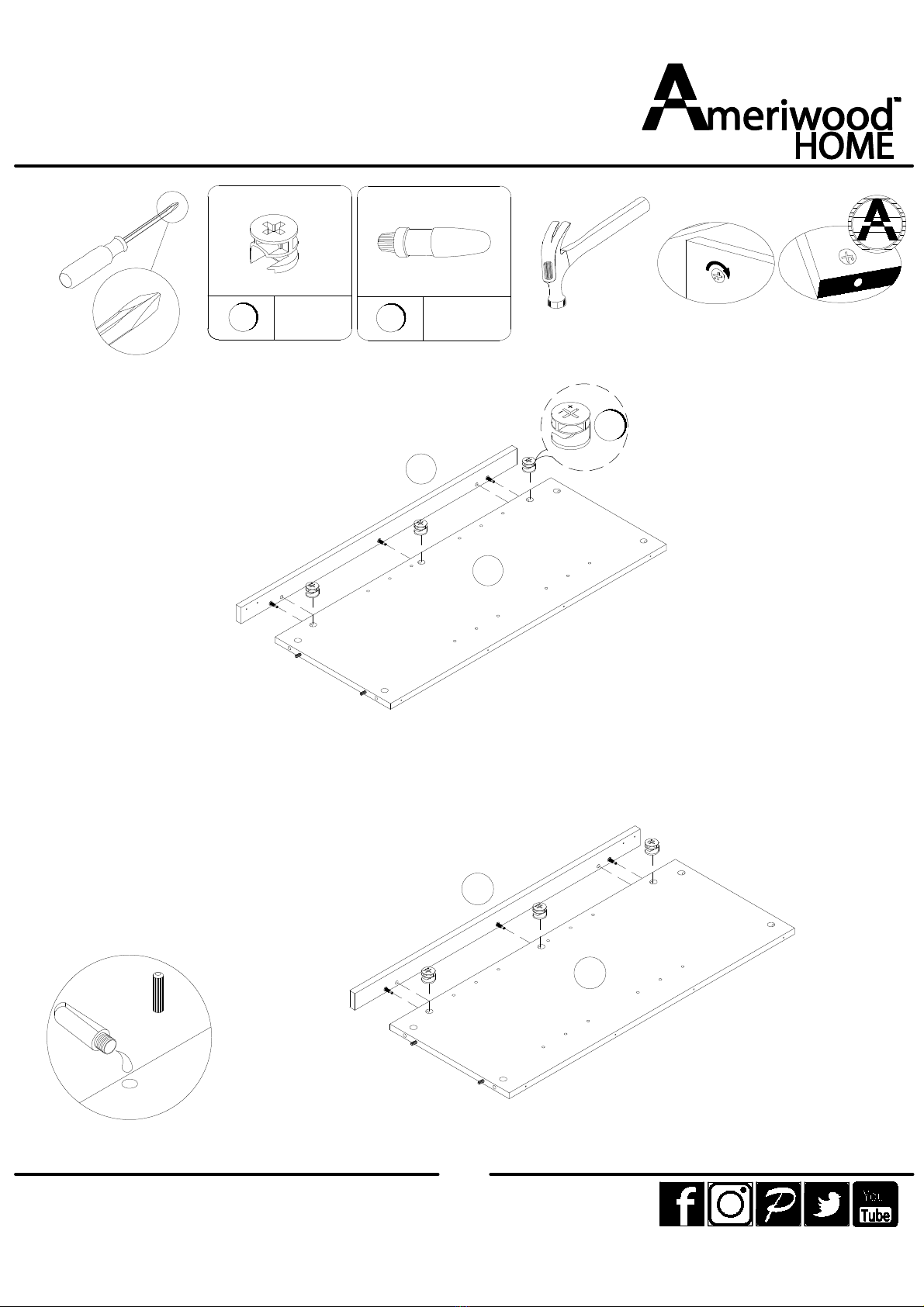

STEP

x 28

6x 2

Ø3.5X12mm

8x 1

x 4

ameriwoodhome.com

STEP

x 26

Ø8X30mm

lue

Pegamento

Colle

Wooden Dowel

Clavija de Madera

Goujon en bois

Hole for wooden dowel

Agujero para clavija de madera

Trou pour cheville en bois

Use one drop of glue in dowel hole.

Use una gota de pegamento en el agujero de clavija.

Utilisez une goutte de colle dans le trou de la cheville

x 2

lue

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.

ameriwoodhome.com

STEP

7x 6 Proper orientation of CAM LOCK

Tip

Quick

Assembly

UNLOCK

LOCK

lue

Wooden Dowel

Hole for wooden dowel

Use one drop of glue in dowel hole.
