Ameriwood HOME Systembuild Evolution 7546886COM Manuel utilisateur

B347546886COM03GO

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Follow Ameriwood Home

Date of Purchase ___ / ___ / ___

Lot Number:

7546886COM

Entryway Storage

Tube

You

Assembly Difficulty Meter

Easy Tough

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a R (right) and L (left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 2

ESTIMATED ASSEMBLY TIME: 1 HOUR

Helpful Hints

Tube

You

systembuild.com

Quick

Tip

Assembly

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Before You Start

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

systembuild.com

Board Identification

Not actual size

TOP

T7546886010GO

QTY: 1 PC

Tube

You

systembuild.com

FIXED SHELF

T7546886020GO

QTY: 1 PC

SEAT PANEL

T7546886030GO

QTY: 1 PC

BOTTOM

T7546886040GO

QTY: 1 PC

UPPER LEFT SIDE PANEL

T7546886050GO

QTY: 1 PC

UPPER RIGHT SIDE PANEL

T7546886060GO

QTY: 1 PC

LOWER LEFT SIDE PANEL

T7546886071GO

QTY: 1 PC

LOWER RIGHT SIDE PANEL

T7546886081GO

QTY: 1 PC

DOOR

T7546886090GO

QTY: 1 PC

BACK RAIL

T7546886100GO

QTY: 1 PC

FRONT APRON

T7546886110GO

QTY: 1 PC

UPPER BACK PANEL

T7546886120GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

MIDDLE BACK PANEL

T7546886130GO

QTY: 1 PC

LOWER BACK PANEL

T7546886140GO

QTY: 1 PC

DRAWER FRONT

T7546886151GO

QTY: 1 PC

LEFT DRAWER SIDE

T7546886161GO

QTY: 1 PC

RIGHT DRAWER SIDE

T7546886171GO

QTY: 1 PC

DRAWER BACK

T7546886180GO

QTY: 1 PC

DRAWER BOTTOM

T7546886190GO

QTY: 1 PC

Board Identification

Not actual size

Tube

You

systembuild.com

Part List

Hardware Bag Reference number:

27546886COM2GO

Actual Size

×30

Ø15 x 10mm

CAM LOCK

TGO2100

×30

CAM BOLT

TGO2000

Ø8 x 20mm

Tube

You

systembuild.com

×16

SCREW

TGO1301

Ø3 x 12mm

×4

M4 x 12mm

×6

Ø4.2 x 45mm

SCREW

TGO1008

BOLT

TGO1620

12 ×1

45 x 12 x 1mm

STRIKE PLATE

TGO3525

x12

Ø4.2 x 13mm

SCREW

TGO1304

×8

COVER

TGO2232

Ø20mm

×8

WOOD DOWEL

TGO2903

Ø6 x 30mm

3 ×27

WOOD DOWEL

TGO2900

Ø8 x 30mm

×10

SCREW

TGO1012

Ø3 x 12mm

5 ×1

SCREW

TGO1300

Ø4.2 x 40mm

×18

SCREW

TGO1007

Ø3.5 x 12mm

10 ×2

Ø3 x 15mm

SCREW

TGO1315

×4

Ø4.2 x 32mm

SCREW

TGO1022

Part List

Hardware Bag Reference number:

27546886COM2GO

No Actual Size

Tube

You

systembuild.com

×1 set

12"

left cabinet

member

left drawer

member

×1 set

right cabinet

member

right drawer

member

METAL SLIDE

TGO4512

22-1 22-2 23-1 23-2 12"

×2

DRAWER BRACKET

TGO6513

×4

METAL HOOK

TGO3537

16 x1

Ø6 x 30mm

WALL ANCHOR

TGO6501

17 x1

MAGNETIC CATCH

TGO6512

18 x2

HINGE

TGO4310

×2

HANDLE

TGO5513

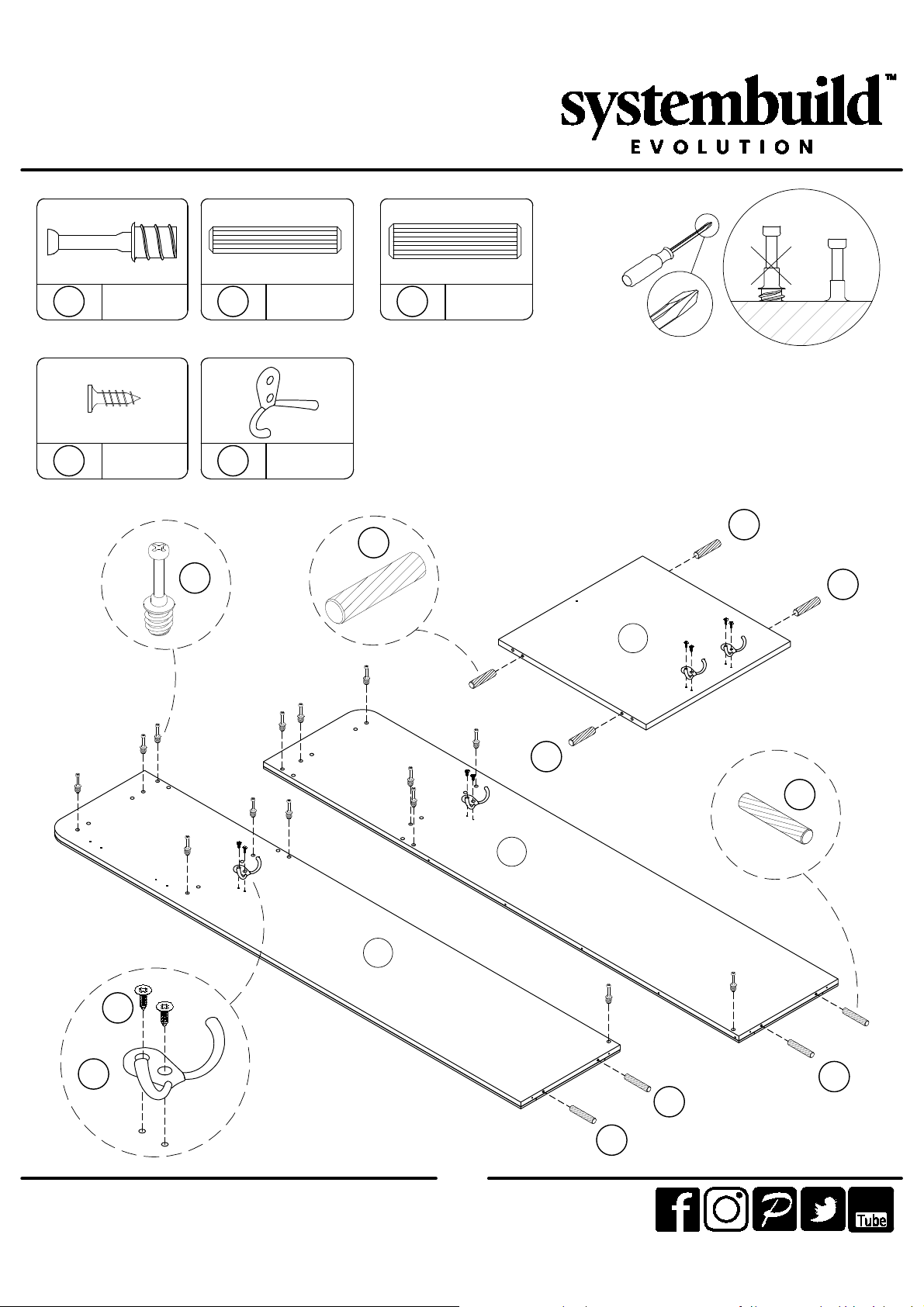

STEP 1

1.1 Screw (1) into (E) & (F) as illustrated.

1.2 Insert (3) into (E) & (F) as illustrated.

1.3 Insert (4) into (L) as illustrated.

1.4 Attach (16) to (E), (F) & (L) with (5) as illustrated.

×14

Tube

You

systembuild.com

×4

3 ×4

×8

5 ×4

STEP 2

Tube

You

×16

2.1 Screw (1) into (C), (G) & (H) as illustrated.

2.2 Insert (3) into (G) & (H) as illustrated.

2.3 Attach (22-2) to (G) with (10) as illustrated.

2.3 Attach (23-2) to (H) with (10) as illustrated.

systembuild.com

×4 10 ×8

×1

22-2 ×1

23-2

22-2

23-2

101010

10 10 10

22-2

23-2
