Installation Guide

SPEEDDOME ULTRA DRONE II FIXED CAMERA 8000-2682-01, REV D

INSTALLATION GUIDE 1 of 2

SpeedDome®Ultra

Drone™ II Fixed Camera

RAS614 Series

The SpeedDome Ultra Drone II fixed camera is

housed inside a SpeedDome Ultra dome. Two

camera types are available: NTSC (60Hz color) and

PAL (50Hz color). Each camera has manually

positioned pan and tilt (the pan has 370° of travel)

and manually set zoom, focus, and iris. The drone

comes fully assembled and is simple to install.

IMPORTANT! Anytime you are using a VM96 video

controller, and the SpeedDome Ultra Drone II

camera dome is:

•New: Reset the VM96 to update the

configuration form to a fixed camera.

•A replacement for the SpeedDome Ultra

camera dome: Delete the SpeedDome Ultra

configuration form as explained in the VM96

Administrator’s Manual 8000-0756-05. Then

reset the VM96 to update the configuration

form to a fixed camera.

Procedure

The following steps refer to figures opposite:

1. Attach the camera dome to the base containing

a pigtail connector or an I/O board.

a. Connect the housing and eyeball assembly

to the base by aligning the Cap and Base

tabs.

b. Turn the eyeball assembly clockwise until

you hear a click.

Notes:

This is a fixed camera, no data lines are

required.

If connecting to a pigtail base, an LED at top

of dome housing indicates 12V power. This

LED cannot be seen after connection to the

I/O board.

2. As shown on page 2, turn eyeball if necessary

to access slot cover containing lens. Unsnap

this cover by gently tugging it away from the

eyeball.

3. You now have access to the camera set screw.

To access lens adjustments, loosen set screw

and gently pull camera out until screw reaches

front end of slot. Retighten set screw.

Pigtail Connections (9-pin connector)

Pin Color Designation

1–2 N/A Not used.

3Black 24Vac

4Red Ground

5White 24vac

6–9 N/A Not used.

I/O Board Connections (connector P7)

Pin Color Designation

1Black 24Vac

2Red Ground

3White 24vac

Powe

LED

Align tabs on

Cap and Base.

Turn clockwise

to latch

SPEEDDOME ULTRA DRONE II FIXED CAMERA 8000-2682-01, REV D

INSTALLATION GUIDE 2 of 2

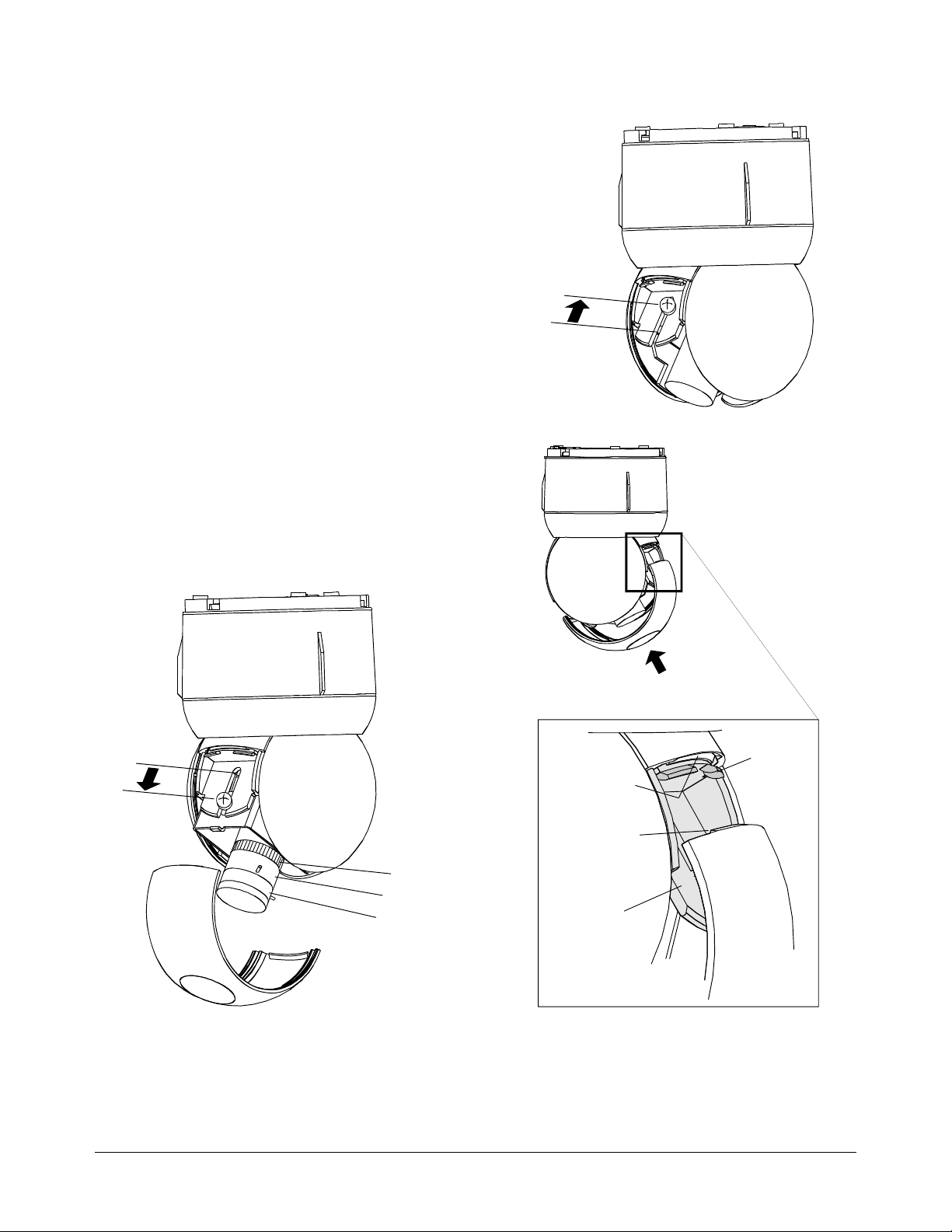

4. Adjust camera as follows:

a. Attach a hand-held camera monitor to video

cable entering mounting base, or have a

second person view the remote monitor

while you adjust the camera.

b. Adjust pan and tilt to point camera at target,

then adjust zoom, focus, and iris as desired.

c. Do not adjust the back focus ring on lens.

d. Combine zoom and focus ring adjustments

to achieve the desired view.

5. Loosen set screw and push camera in until

screw contacts rear end of slot. Retighten set

screw.

6. Ensuring that tongue and grooves of slot cover

already attached to dome are centered over

tabs of the yoke, reattach lens slot cover by

mating tongue and grooves together and gently

pressing until you feel a snap.

CAUTION: The tongue and grooves must be

centered over tabs of yoke. Failure to properly

insert cover could result in it falling off during

operation. Tug on cover to ensure it is secure.

Focus

Zoom

Iris

Tongue

Groove

Tabs

Yoke
