DATA SHEET

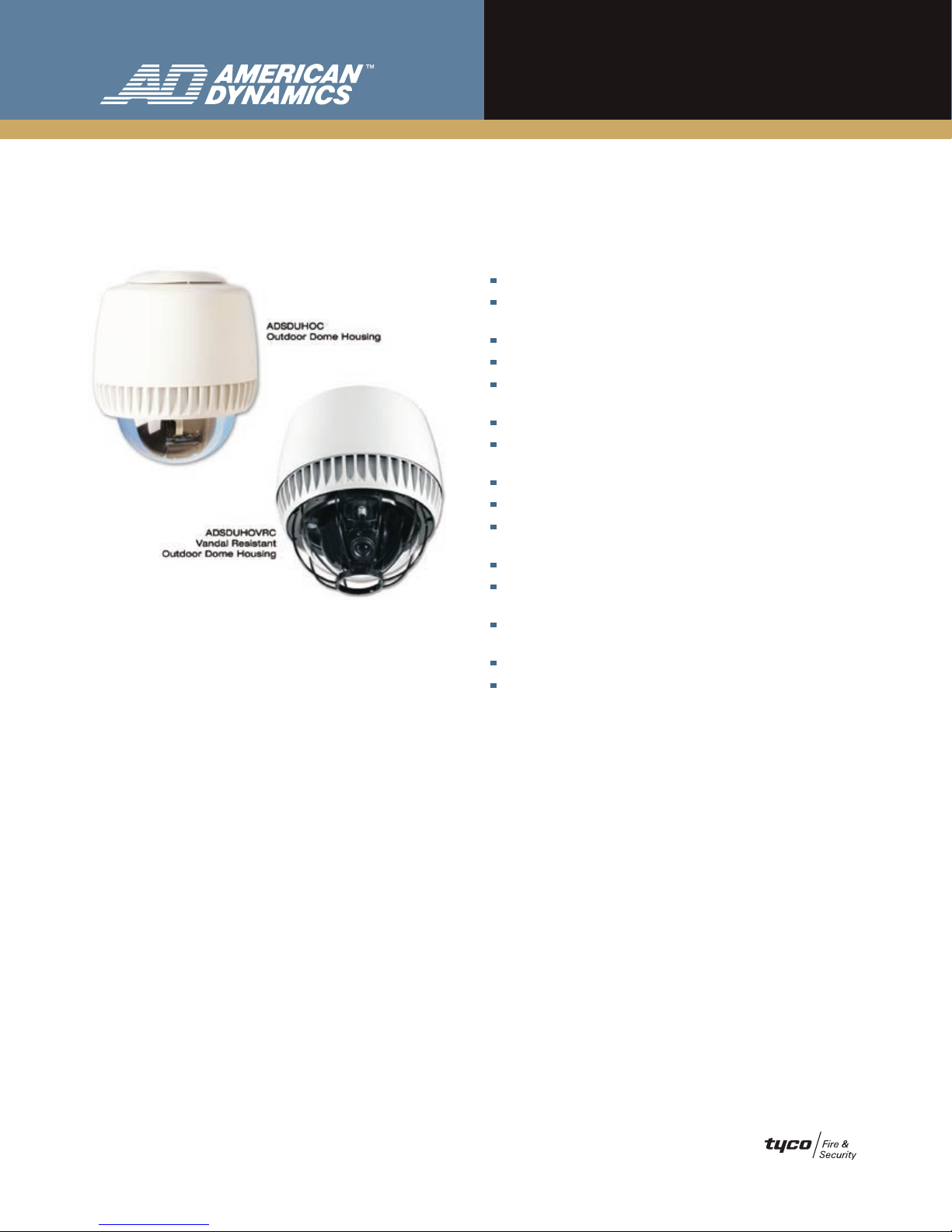

SpeedDome®Ultra

Outdoor Dome Housing

Features That Make a Difference:

Reinforced high impact design with vandal resistant option

Stores presets and patterns within the base to eliminate

reprogramming

Four alarm inputs, one output

Temperature-controlled interior environment

Automatic defog and defrost heater cycle modes with manual

heater on/off control

On-demand menu displays housing temperature and humidity

Thermostatically controlled heater and blower prevent excessive

buildup of ice and removes any that does accumulate in one hour

Meets IP66/NEMA 4 specifications

Includes four tamper-proof screws and driver bit

Surge and lightning protection of video, communications, alarm

input and output, and power

Plug and play connectors enable easy servicing of I/O board

Internal LEDs and switches verify proper power and communication

status

Integrated Unshielded Twisted Pair (UTP) simplifies wiring

and installation

J-Boxes available to facilitate wiring of housing and dome

Ceiling, pole, roof, wall and corner mounts available

The SpeedDome®Ultra outdoor housing allows SpeedDome

Ultra programmable dome cameras to be installed in

virtually any environment. The housing has been designed

to provide maximum protection to the internal camera in

various weather conditions. In extreme temperatures, the

housing’s built-in thermostatically controlled heater and blower

prevent excessive ice from forming on the outside bubble. In

addition, you can manually activate a defog and defrost mode

and even view the housing temperature and humidity. The

housing is constructed with a reinforced fiberglass high impact

polycarbonate material along with a UV stabilized sun shade,

trim ring and top cover. The bubble assembly is affixed to the

top via tamper-proof screws.

For applications where vandalism is a concern, a vandal

resistant model is available which includes an aluminum

sunshield cover and a high impact bubble which meets

ANSI-87.1 impact safety standards. For additional protection

a stainless steel bubble cage is also provided.

SpeedDome Ultra programmable dome cameras are easy to

install. Simply plug in the video cable, connect power and data,

and the installation is complete. Power and communications

LEDs provide diagnostics, confirm proper connections and aid

in troubleshooting.

Presets, patterns and other parameters are stored in the

housing’s I/O board so if a dome has to be replaced the

programming is automatically downloaded to the new dome.

The housing is equipped with four alarm inputs and one alarm

output and surge protection is provided to all video and external

lines. The housing is available with your choice of a clear or

smoked bubble and a variety of mounts make it easy for you to

install it in nearly any application.

An optional end cap assembly is ideal for cable interconnection

and with the use of third party fiber optic interfaces.

features

(1) Supports up to 2 housings/domes.

(2) Supports up to 5 housings/domes.

ADSPOT Features & Specifications

• Single Position Outdoor Power

Supply

• Supports both 120 VAC and 230 VAC

• Small, compact design

• Weatherproof design: NEMA 4 and

IP66 rated

• Euro-style terminal blocks for quick

and simple installation

Mechanical

Dimensions (H x W x D) . . 75 x 125 x 75 mm

(6.9 x 4.9 x 3.0 in)

Weight. . . . . . . . . . . . . . . . 3.7 kg (8.2 lbs)

Enclosure Material . . . . . . Impact-resistant polycarbonate

Color. . . . . . . . . . . . . . . . . Light gray

Wall Mounting Options . . . Concrete, wood or sheet rock

Mounting Area (H x W) . . . 281 x 200 mm (11.1 x 7.9 in)

Cover Fasteners . . . . . . . . Four captive screws

Cable Access Knockouts . Eight 21 mm or 15.5 mm (0.83 in or 0.61 in)

Four 29 mm or 23 mm (1.14 in or 0.91 in)

Electrical

Power Source . . . . . . . . . . 100-120 VAC or 200-240 VAC @ 50/60 Hz

Operational Limits. . . . . . . 90-135 VAC or 180-265 VAC @ 50/60 Hz

Input Current . . . . . . . . . . 1.0 A/0.5 A

Output. . . . . . . . . . . . . . . . 24 VAC, 2.5 A max.

UL Listed Class 2

Certified Limited Power Source

Environmental

Weatherproof Standard . . NEMA 4, IP66

Operating Temperature. . . -40° to 50°C (-40° to 122°F)

Storage Temperature . . . . -40° to 50°C (-40° to 122°F)

Humidity . . . . . . . . . . . . . . 0% to 95% RH (non condensing)

Regulatory

Safety . . . . . . . . . . . . . . . . UL 60950

CSA C22.2 No. 60950

EN60950

IEC 60950

Additional Accessories

Code/J-Box Options

AD1691. . . . . . . . . . . . . . . Code Distributor, AD Manchester, 120 V

AD1691F-1 . . . . . . . . . . . . Code Distributor, AD Manchester, 230 V

AD2091. . . . . . . . . . . . . . . Code Generator/Distributor,

AD Manchester, 120 V

AD2091-1 . . . . . . . . . . . . . Code Generator/Distributor,

AD Manchester, 230 V

AD2083-02C. . . . . . . . . . . Code Distributor, SEC RS-422, 120 V

AD2083-02C-1 . . . . . . . . . Code Distributor, SEC RS-422, 230 V

RJ1SNUD . . . . . . . . . . . . . J-Box, Indoor/Outdoor, 1-Position,

SensorNet, 120 VAC

RJ1SNUD-1. . . . . . . . . . . . J-Box, Indoor/Outdoor, 1-Position,

SensorNet, 230 VAC

RJ856UD . . . . . . . . . . . . . J-Box, Indoor/Outdoor, 1-Position,

RS-422, 120 VAC

RJ856UD-1 . . . . . . . . . . . . J-Box, Indoor/Outdoor, 1-Position,

RS-422, 230 VAC

RJ6SN1. . . . . . . . . . . . . . . J-Box, Indoor 6-Position SensorNet 485,

120/230 VAC

RJ860AP2. . . . . . . . . . . . . J-Box, Indoor 10-Position RS-422, 120 V

RJ860AP-12. . . . . . . . . . . J-Box, Indoor 10-Position RS-422, 230 V

Model Numbers

ADSDUHOC . . . . . . . . . . . Housing with Integrated I/O Board and Clear

Bubble (ƒ0)

ADSDUHOVRC. . . . . . . . . Vandal Resistant Housing with Integrated

I/O Board and High Impact Clear

Bubble (ƒ0)

ADSDUHOS . . . . . . . . . . . Housing with Integrated I/O Board and

Smoked Bubble (ƒ1.0)

ADSDUHOVRS . . . . . . . . . Vandal Resistant Housing with Integrated

I/O Board and High Impact Smoked Bubble

(ƒ1.0)

Maximum Distances from Power Source

Dome and housing to be connected to a Class 2 LPS, 24 VAC, 80 VA

power source (do not exceed maximum outdoor Class 2 ratings of 30

VAC, 100 VA).

18 AWG 16 AWG 14 AWG

Low Line Voltage 102/204 VAC 60 m (200 ft) 100 m (320 ft) 160 m (520 ft)

Low Line Voltage 90/180 VAC 30 m (100 ft) 50 m (160 ft) 80 m (260 ft)

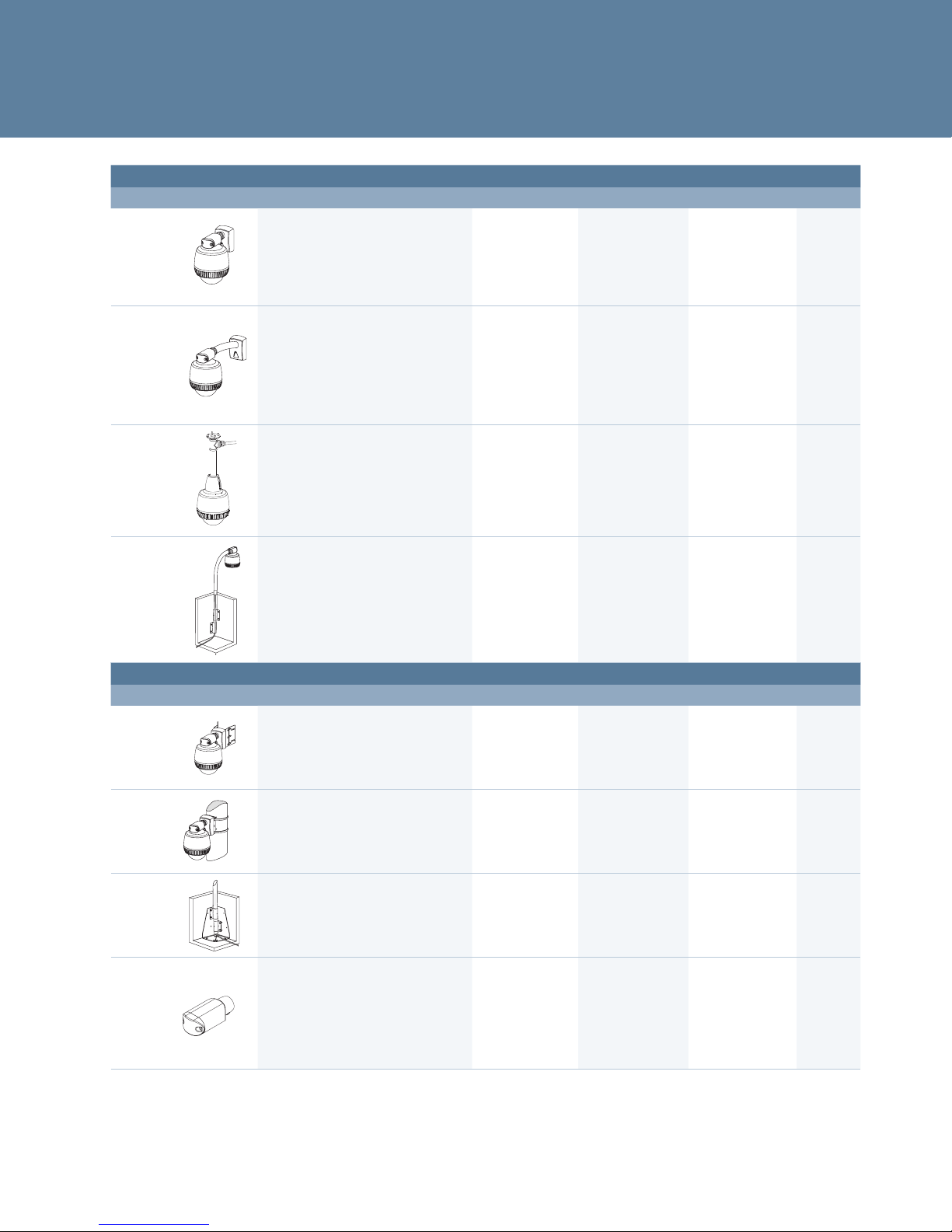

Compatible Housing/Eyeball Assemblies

SpeedDome Ultra Series

Outdoor Mounting Options

Mount Description Compatibility Construction Dimensions Weight

RHOSW:

Short Wall

Mount with

End Cap

Assembly

This mounting structure attaches directly to

a flat wall. When used with the RHOWCA

corner bracket adapter or RHOWPA pole

strap adapter it can be affixed to corners as

well as poles. A mounting cover conceals

the mounting plate for a more attractive

appearance.

SpeedDome

Ultra Series

Powder-coated

aluminum, ABS

plastic and

fiber-filled PVC

With dome installed

366 x 218 x 282 mm

(14 x 9 x 11 in)

1.3 kg

(3 lbs)

RHOLW:

Long Wall

Mount

with End Cap

Assembly

This mount attaches directly to a flat wall,

positioning the dome away from the wall, so

that it can see over furniture, shelving and

displays. When used with the RHOWCA

corner bracket adapter or RHOWPA pole

strap adapter it can be affixed to corners as

well as poles. A mounting cover conceals

the mounting plate for a more attractive

appearance.

SpeedDome

Ultra Series

Powder-coated

aluminum, ABS

plastic and

fiber-filled PVC

With dome installed

366 x 218 x 587 mm

(14 x 9 x 23 in )

1.7 kg

(3.9 lbs)

RHOPN:

Outdoor

Pendant

Mount

This mount suspends an outdoor dome

housing from an outdoor ceiling or

horizontal surface. It can be installed using

either new or existing 1.25’’ NPT threaded

pipe or rigid conduit up to 10 feet (3 meters)

in length.

SpeedDome

Ultra Series

Powder-coated

aluminum, ABS

plastic

115 x 120 x 120 mm

(4.5 x 5 x 5 in)

1.8 kg

(4 lbs)

RHOTR:

Over-the-Roof

Mount with

End Cap

Assembly

This mount affixes directly to any wall,

rooftop wall or parapet, positioning the

dome away from the wall, so that it can

see over awnings, soffits and landscaping.

Opposing wing brackets secure installation

to the roof surface, while allowing the pole to

be repositioned for easy service access.

SpeedDome

Ultra Series

Powder-coated

aluminum, ABS

plastic and

fiber-filled PVC

1098 x 243 x 473 mm

(43 x 10 x 19 in)

5.7 kg

(12.7 lbs)

Outdoor Adapter Options

Adapter Description Compatibility Construction Dimensions Weight

RHOWCA:

Corner

Bracket

Adapter

This adapter attaches the long and short

wall mounts (RHOSW & RHOLW) to affix to

outside corners. Powder-coated

aluminum construction ensures an extremely

sturdy installation.

SpeedDome

Ultra Series

Powder-coated

aluminum

185 x 210 x 125 mm

(7 x 8 x 5 in)

.79 kg

(1.75 lbs)

RHOWPA:

Pole Strap

Adapter

This adapter attaches the long and short

wall mounts (RHOSW & RHOLW) to

outside corners. This kit contains stainless

steel straps that can be daisy-chained to

accommodate any size pole and all the

necessary mounting hardware.

SpeedDome

Ultra Series

Powder-coated

aluminum and

stainless steel

138 x 79 x 27 mm

(5 x 3 x 1 in)

Straps support

53 to 951 mm

(2 to 30 in)

pole diameter

.5 kg

(1.1 lbs)

ROTRF:

Floor Adapter

for RHOTR

This adapter installs the RHOTR

over-the-roof mount on horizontal and

vertical roof/parapet surfaces. Multiple

fastening positions provide versatility for

mounting on any combination of surfaces

and angles.

SpeedDome

Ultra Series

Powder-coated

aluminum

369 x 240 x 240 mm

(15 x 10 x 10 in)

2.59 kg

(5.75 lbs)

ROENDC:

End

Cap

Assembly

This mounting assembly retrofits any

existing outdoor SpeedDome wall, pole,

corner, or over-the-roof mount to

accommodate newer outdoor housings.

A modular design lets you mount the

housing to the end cap on the ground,

before installing it on the mounting pole,

making the process safe and easy.

SpeedDome

Ultra Series

Fiber-filled PVC 64 x 103 x 194 mm

(3 x 4 x 8 in)

.32 kg

(.7 lbs)

mounts and accessories

Product offerings and specifications are subject to change without notice. Actual products may vary from photos.

Not all products include all features. Availability varies by region; contact your sales representative.

Certain product names mentioned herein may be trade names and/or registered trademarks of other companies.

www.americandynamics.net

ADSDUHOC, ADSDUHOS ADSDUHOVRC, ADSDUHOVRS

(Vandal Resistant)

Mechanical

Sun Shade & Trim Ring Aluminum UV stabilized, polycarbonate

Bubble Acrylic High impact acrylic

Bubble Cage N/A Stainless steel, painted flat black

Weight

Without Dome 2.06 kg (4.54 lbs) 2.8 kg (6.17 lbs)

With Dome 3.15 kg (6.95 lbs) 3.86 kg (6.07 lbs)

Shipping Weight of Housing 3.45 kg (7.61 lbs) 4.16 kg (9.17 lbs)

Common Specifications for SpeedDome Ultra Outdoor Dome Housings

Electrical (Combined Dome and Housing) Connectors (on Integrated I/O Board)

Voltage 20 to 36 VAC, 50/60 Hz Video Output Female BNC video cable

Power 80 W maximum Manchester/SensorNet/

RS-422 Plug in dual row header with ejector

Power-on In-rush Current 3 A Alarm Inputs/Auxiliary Output Plug in dual row header with ejector

Video Surge Protection

Series Resistor of 3.9 ohms; Low Capacitance TVS with Peak

Power Rating of 300 W at 8/20 µs; 5 kA (8/20 µs impulse

discharge) Gas Discharge tube

Unshielded Twisted

Pair Video Plug in dual row header with ejector

Manchester/SensorNet

Isolation transformer 2000 Vrms; PTC resettable fuse; Low

Capacitance TVS rated at 5.6 VDC, 40 A, 0.1 J, (8/20 µs

impulse discharge current); Gas Discharge tube rated at

5 kA (8/20 µs impulse discharge current)

Power Plug in 3.5mm vertical header

RS-422

Series resistors of 3.9 ohms; Low Capacitance TVS rated at 5.6

VDC, 40 A, 0.1 J, 8/20 µs impulse discharge current); Gas

discharge tube impulse rated at 5 kA (8/20 µs impulse

discharge current)

Normally Closed (NC) - pin 1

Common (C) - pin 2

Alarm Input Surge Protection

Low Capacitance TVS with Peak Pulse Current of 17 A max

and Peak Pulse Power of 300 W (8/20 µs impulse discharge

current)

Normally Open (NO) - pin 3

I/O Connector

Spring contact gold fingers for mate

with SpeedDome Ultra housing/eyeball

assemblies

Power Line Gas discharge tube impulse rated at 5 kA (8/20 µs impulse

discharge current); TVS rated at 60 VDC, 250 A, 1.5 J Environmental

Auxiliary Output

One Relay 2FC Contact Arrangement with initial isolation

resistance of 1,000 Mohms @ 500 VDC. The relay contact

ration is 30 VDC, 1 A, or 125 VAC , 0.3 A

Weatherproof Standard NEMA 4/IP66

Mechanical Operating Temperature -40° to 50°C (-40° to 122°F)

Construction Enclosure Aluminum Humidity 0 to 95% RH (non-condensing)

Top Cover UV stabilized, polycarbonate Storage Temperature -10° to 50°C (14° to 122°F)

Color Light gray Wind Loading

Sustained winds of 240 km/hour (150

miles/hour) when properly installed and

mounted (wall, pole, ceiling, and over-

the-roof mount with proper support)

Height 321 mm (12.64 in) Regulatory

Diameter 244 mm (9.61 in) Emissions

FCC: 47 CFR Part 15, Subpart B

Class A

CE: EN5502 Class B

CE: EN6100-3-2

AS/NZS 3548, Class A

CISPR22

ICES-003

Bubble Diameter 75.3 mm (6.93 in) Immunity CE: EN50130-4

Mechanical Connection 1.5 in NPT Safety

CSA 22.2 No. 950

EN 60950-1

IEC 60950-1

SPECIFICATIONS

Autres manuels pour ADSDUHOC

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American Dynamics Caméra de sécurité

American Dynamics

American Dynamics Illustra 1MP Manuel utilisateur

American Dynamics

American Dynamics ADCA Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VIIE Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra Manuel

American Dynamics

American Dynamics Tyco Discover Series Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series Manuel utilisateur

American Dynamics

American Dynamics ADC860 Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuel utilisateur

American Dynamics

American Dynamics Tyco ADC520 Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome RHODULP-01 Instructions d'installation et d'entretien

American Dynamics

American Dynamics Illustra Flex Series Manuel utilisateur

American Dynamics

American Dynamics SensorRail IIIe ADRL3TRK Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra Drone III Manuel utilisateur

American Dynamics

American Dynamics RASIPPS-1 Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series ADCi600F-W012** Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra Drone II Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VII EIS Instructions d'installation et d'entretien

American Dynamics

American Dynamics ADCDW Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VI Instructions d'installation et d'entretien

American Dynamics

American Dynamics SensorRail AD2079 Manuel utilisateur

American Dynamics

American Dynamics ADODHCL Instructions d'installation et d'entretien

American Dynamics

American Dynamics ADC500 Manuel utilisateur

American Dynamics

American Dynamics AD615 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
