American Dynamics SpeedDome Ultra 8 35x Manuel utilisateur

PTZ Dome Cameras

Over 175 SpeedDome

programmable dome cameras

keep tabs on major trafﬁc

arteries throughout central

Florida. From Orlando to

Tampa and out to Cape

Canaveral, American

Dynamics domes put state

transportation ofﬁcials front

and center at the scene of

an accident or suspicious

activity. Video feeds supply

key information to law

enforcement and news media

during emergency situations

and daily commutes.

PTZ Dome Cameras

TZ, programmable dome cameras give you a comprehensive view that you simply cannot

get from a fixed camera. Our technology delivers the details of your target, zooming in or

out in less than a second to capture the image you need the instant an alarm goes off. Our innovative

Zoom-Adjusted Programming (ZAP) lets you pan, tilt, and zoom in every direction, automatically

adjusting the pan and tilt speed in proportion to the zoom. Additional features enable you to conduct a

virtual patrol of your facility whether or not someone is manning the controls. Auto-focus with manual

override renders a clear picture every time. From the most distant corner of a parking garage to the

maze of hallways throughout a building, SpeedDome programmable dome cameras take you

everywhere you need to see.

IP Dome Cameras

IP SpeedDomes leverage the best of the analog SpeedDome

and add the power of IP. Extensive zooming capabilities (up to

420x total zoom 35x optical), superior images (540 TVL,

Electronic Image Stabilization, True Day/Night, and Wide

Dynamic Range), provide a superior camera solution that

leverages your existing infrastructure for a low total cost of

ownership. Unlike many other IP PTZ domes in the industry, IP

SpeedDome supports PoE technology which allows you to use

standard category 5 cable in a typical network environment.

Other domes either require you to run power cables to the

dome or use PoE+, which is a drain on power and money. With

PoE, a camera can still operate in the event of a power failure if

the network is connected to a centralized power backup.

IP SpeedDomes offer full 360° PTZ capabilities, as opposed to

most domes in the industry that pan, tilt, and zoom “almost” all

the way around (355°), but leave just enough unmonitored area

(5° worth) to cause a lot of problems

IP SpeedDomes support H.264, MJPEG, MPEG-4, and Active

Content Compression (ACC) technology and are compatible

with VideoEdge Network Video Management Systems v3.0 and

higher, as well as Intellex IP.

Dome Cameras

SpeedDome Ultra 8 Programmable Dome Cameras

are equipped with Wide Dynamic Range, True Day/Night, and

Electronic Image Stabilization (EIS). With 35x and 540 TVL

allows users to see farther and clearer than ever before. A 12x

digital magnifier with 35x optical zoom yields a total zoom of

420x. This series also features privacy zones, on-screen

programming, alarm inputs, and DirectSet for fast access to the

most frequently used functions. A choice of black or white

camera assemblies is available.

SpeedDome Ultra 8 with 22x delivers excellent color images in

scenes as dim as .02 lux. This series combines 22x optical

zoom and 11x digital zoom for 242x total zoom and has low-light

capability of .004 lux. Like the SpeedDome Ultra 8 with 35x, this

series also includes DirectSet, privacy zones, on-screen

programming, and alarm inputs.

SpeedDome Optima is powered with 22x optical zoom and

11x digital zoom for a total of 242x zoom, producing high quality

color images. The series includes an alarm input, 96 user-

programmable presets three patterns, and a pre-wired harness

for easy installation and servicing. Compatible with any American

Dynamics controller system, Optima is available in outdoor

models only.

Optima LT includes many of the same features as the

standard Optima dome — all for an impressively low price.

IP SPEEDDOME COMPARISON TABLE

IP SpeedDome 22x IP SpeedDome 35x

Total zoom 242X 420X

Optical zoom 22X 35X

Digital zoom 11X 12 X

Day/Night No Yes

Wide Dynamic Range No Yes

Electronic Image Stabilization No Yes

Programmable presets (controller dependent) Up to 96 Up to 96

Programmable patterns 16 16

Programmable sequences 16 16

Preset, area, pattern naming Up to 19 characters (user-deﬁned) Up to 19 characters (user-deﬁned)

IP Dome Cameras

IP SpeedDome:

PoE leverages existing network•

infrastructure

22x and 35x optical zoom•

Supports H.264, MJPEG, MPEG-4,•

and Active Content Compression (ACC)

technology

360° PTZ flexibility•

Built-in web server•

H.264, MJPEG, MPEG-4, and ACC•

compression technology

Alarm management via the network•

Bi-directional audio and synchronized•

video

Dynamic privacy zones•

Unique bandwidth throttling•

Compatible with VideoEdge NVR v3.0•

and Intellex IP

Most competitors’

domes will pan, tilt,

and zoom “almost” all

the way around (355°),

but leave just enough

unmonitored area

(5° worth) to cause

a lot of problems. IP

SpeedDome offers full

360° PTZ capabilities,

letting you see more.

PoE

ADVEIPSD22N

ADVEIPSD22P

ADVEIPSD35N

ADVEIPSD35P

PTZ Dome Cameras

Power Over Ethernet

ower over Ethernet drives most cameras today, with the exception of high-powered PTZ

speed domes. Without PoE, installers need to spend extra time running power cables in

addition to the data cabling, adding more time and cost.

At American Dynamics we utilize this powerful technology on our 35x IP SpeedDome to deliver wide

dynamic range, true day/night and electronic image stabilization (EIS). Coupled with the fastest motor

controls in the industry, this camera stands alone in delivering high-powered features without having to

run additional power cables to the camera.

Lower power consumption, lower carbon footprint, and easier to install solutions result in a lower

total cost of ownership. American Dynamics works hard to craft the solutions that deliver on the

promise of IP.

DOME COMPARISON TABLE

SpeedDome Ultra 8 22x SpeedDome Ultra 8 35x SpeedDome Optima +

Optima LT

Total zoom 242x 420x 242x

Optical zoom 22x 35x 22x

Digital zoom 11x 12x 11x

Day/Night No Yes No

Wide Dynamic Range No Yes No

Electronic Image Stabilization No Yes No

Programmable presets

(controller dependent) Up to 96 Up to 96 Up to 96

Programmable patterns 16 16 3

Programmable sequences 16 16 No

Preset, area, pattern naming Up to 19 characters (user-deﬁned) Up to 19 characters (user-deﬁned) No

Motion detection No Yes No

Privacy zones Up to 8 Up to 8 No

Alarm inputs & output Up to 4 inputs & outputs, base

dependent Up to 4 inputs & outputs, base

dependent One for Optima & N/A for Optima LT

Auto focus/iris Yes Yes Yes

Password protection Yes Yes No

CCD imager (CCD center) 1/4 in, 470 TVL 1/4 in, 540 TVL 1/4 in, 470 TVL

Minimum illumination 0.3 lux (AGC on) / 0.02 lux with 1/4 sec.

open shutter

Day Mode - 0.24 lux (AGC on) / 0.028

lux with 1/4 sec. open shutter B/W IR

mode – 0.021 lux (AGC on) / 0.00041

lux with 1/2 sec. open shutter

1.5 Lux (AGC on)

Lens focal length 4 to 88 mm 3.4 to 119 mm 4 to 88 mm

Lens maximum aperture f1.6 f1.4 f1.6

Communication Protocols* RS-422/RS-485, Manchester,

SensorNet, & AD-UTC RS-422/RS-485, Manchester,

SensorNet, & AD-UTC RS-422/RS-485 (2-Wire: for Optima LT

only), Manchester & SensorNet

Dome Cameras

* Refer to chart on p.30.

PTZ Dome Cameras

NUMBER OF PRESETS PER DOME

SpeedDome Ultra 8 22x + 35x SpeedDome Optima + Optima LT

Controller, DVR or

Matrix Switcher Protocol Number of Presets

ADTT16E

SensorNet 96 96

RS-422* 94 96

MegaPower LT

AD-UTC 96 96

SensorNet 96 96

MegaPower 48 Plus

SensorNet 96 96

Manchester 64 64

RS-422 96 96

MegaPower 3200

Manchester** 64 64

RS-422†60 60

Intellex

SensorNet‡96 96

RS-422§96 96

TVR RS-422 96 96

Third party interfaces

RS-485 96 N/A

RS-422 96 N/A

SUPPORTED PROTOCOLS

RS-485/RS-422 Yes SpeedDome Optima: Yes

SpeedDome Optima LT: Yes, Simplex only

NTCIP Yes No

SensorNet Yes Yes

Manchester Yes Yes

AD-UTC Yes No

Pelco Coaxitron Yes No

Pelco “P” Yes No

Panasonic UTC Yes No

Vicon RS-422 Yes No

Dome Cameras

* Using SensorNet-to-RS-422 converter (model number RCSN422).

** Using Manchester code distributor (model number AD2091).

† Using RS-422 code distributor (model number AD2083-02C).

‡ Using USB CCTV Control Module (Model number ADACSNET).

§ Requires USB to RS-422 adaptor.

Dome Cameras

SpeedDome Ultra 8 Dome Cameras:

22x series:

22x optical zoom with 11x digital magnifier•

(242x total zoom)

Advanced digital signal processing (DSP)•

CCD camera

Freeze frame on presets (user-selectable•

on/off)

Open shutter to capture images in very•

low directional light

Select from two housing/eyeball assembly•

colors: black or white

Continuous auto focus•

Zoom adjusted programming•

Dome usage statistics•

Password protection•

Integrated Unshielded Twisted Pair (UTP)•

simplifies wiring and installation

Store presets and patterns with I/O base•

memory

Supports SensorNet, RS-422,•

Manchester, AD UTC, NTCIP, and other

protocols*

Dome-generated on-screen text including•

direction indicators

Up to eight privacy zones•

Programmable presets, patterns, and area•

names

DirectSet feature provides fast access to•

the most frequently used dome features

Up to 96 presets (controller dependent)•

Alarm inputs and outputs•

Automatic home position•

Automatic proportional flip and automatic•

gain control, line-lock and white balance

(user-selectable on/off)

35x series; includes ALL the features

(listed left) PLUS the following:

35x optical zoom with 12x digital magnifier•

(420x total zoom)

Wide dynamic range•

Day/night color-to-monochrome mode•

Electronic Image Stabilization (EIS)•

Dimensions:•

Height: 205 mm (8 in)

Diameter: 120 mm (4.7 in)

W e i g h t :•

Housing and Eyeball: 1.18 kg (2.6 lbs)

Base (with I/O board): .16 kg (.35 lbs)

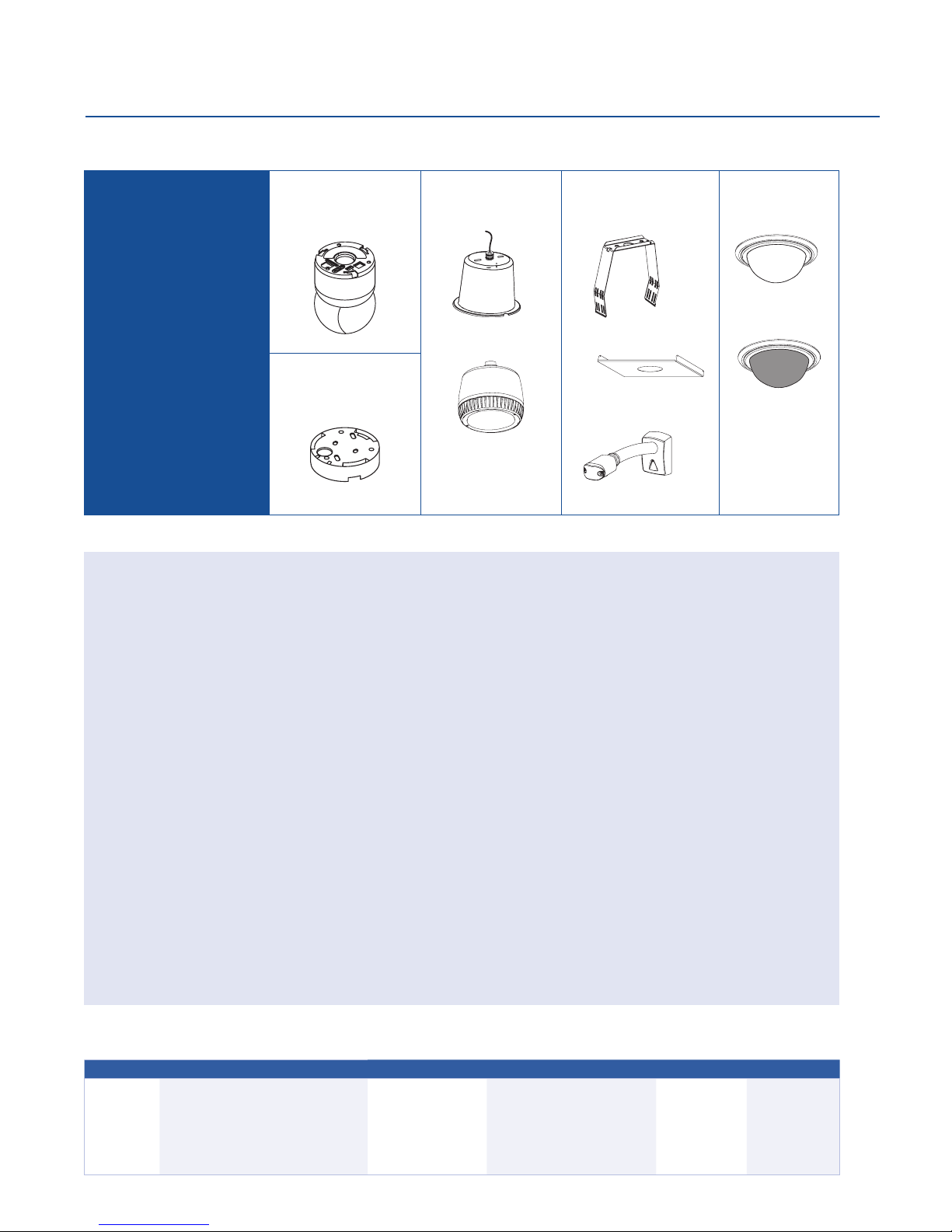

Two Ordering Options

Available:

1. Order each component

individually (see page 32).

2. Order a pre-configured

dome kit (see page 33) which

includes: Camera Module,

Mounting Base, Mount, and

Indoor or Outdoor Housing,

plus Bubble.

* Compatibility with other manufacturers is based upon known current protocols and controllers at time of test. However, compatibility may be affected if other manufacturers make changes to

their products.

PTZ Dome Cameras

Model Number Guide

BRAND CAMERA CAMERA BODY COLOR MOUNTING BASE FORMAT

ADSDU8 =

American Dynamics

SpeedDome Ultra 8

22 = 22x Zoom

35 = 35x Zoom, Wide Dynamic Range,

True Day/Night, Electronic Image

Stabilization (EIS)

{blank} = Black

W = White

{blank} = None, Order

Separately

IO = I/O Mounting

Base Included

N = NTSC

P = PAL

With the SpeedDome Ultra 8, the True Day/Night

feature provides enhanced infrared capability for

night time viewing. Excellent color video is seen by

day, then automatically switches to monochrome

in the dark. This powerful feature enables you to

capture scenes in extreme darkness, undetectable to

the human eye.

Dome Cameras

22x Zoom, Housing /Eyeball Assembly without I/O

Mounting Base

ADSDU822N

ADSDU822WN

ADSDU822P

ADSDU822WP

22x Zoom, Housing/Eyeball Assembly with I/O

Mounting Base

ADSDU822ION

ADSDU822WION

ADSDU822IOP

ADSDU822WIOP

35x Zoom, Housing /Eyeball Assembly without I/O

Mounting Base

ADSDU835N

ADSDU835WN

ADSDU835P

ADSDU835WP

35x Zoom, Housing/Eyeball Assembly with I/O

Mounting Base

ADSDU835ION

ADSDU835WION

ADSDU835IOP

ADSDU835WIOP

I/O Mounting Base without Housing /Eyeball

Assembly

ADSDUIOB

ADSDUIOBW

Accessories

> Housings: pp. 37-38

> Bubbles: pp. 48

> Mounts: pp. 39-42

> Controllers: p. 45

> J-Boxes: p. 46

> Installation/Removal tool: p. 48

> Power supplies: p. 110

SpeedDome Ultra 8 (order each component):

Model Number Guide

BRAND CAMERA ENVIRONMENT MOUNT BUBBLE FORMAT

ADSDU8 =

American

Dynamics

SpeedDome

Ultra 8

22 = 22x Zoom

35 = 35x Zoom, Wide dynamic range,

True Day/Night, Electronic Image

Stabilization (EIS)

I = Indoor

OPC = Outdoor

H = Hard Ceiling

W = Long Wall

2x2 = 2 x 2 ft, Drop Ceiling

{blank} = None, Order

Separately

{blank} = Clear

S = Smoked

N = NTSC

P = PAL

Dome Cameras

SPEEDDOME ULTRA 8 PRECONFIGURED KITS

22x Zoom, Indoor Dome Kits

ADSDU822IHN

ADSDU822IHP

ADSDU822IHSN

ADSDU822IHSP

ADSDU822I2X2N

ADSDU822I2X2P

ADSDU822I2X2SN

ADSDU822I2X2SP

22x Zoom, Outdoor Dome Kits

ADSDU822OPCN

ADSDU822OPCP

ADSDU822OPCWN

ADSDU822OPCWP

32x Zoom, Indoor Dome Kits, (with 540 TVL WDR,

Day/Night + EIS)

ADSDU835IHN

ADSDU835IHP

ADSDU835IHSN

ADSDU835IHSP

ADSDU835I2X2N

ADSDU835I2X2P

ADSDU835I2X2SN

ADSDU835I2X2SP

32x Zoom, Outdoor Dome Kits, (with 540 TVL WDR,

Day/Night + EIS)

ADSDU835OPCN

ADSDU835OPCP

ADSDU835OPCWN

ADSDU835OPCWP

Accessories

> Controllers: p. 45

> J-Boxes: p. 46

> Installation/Removal tool: p. 48

> Power supplies: p. 110

Pre-Configured SpeedDome Ultra 8 Kits:

A PRE-CONFIGURED

SPEEDDOME ULTRA

8 KIT INCLUDES:

Camera Module

I/O Board Mounting Base

Housing (Environment)

Mount

Bubble

ACamera Module -

22x or 35x (Color with

Day/Night mode)

CHousing (Environment) DMount EBubble

2) Environmental

(Indoor & Outdoor)

1) Top Hat (Indoor)

3) Long Wall (Outdoor)

2) 2' x 2' Drop Ceiling

(Indoor)

1) Hard Ceiling (Indoor)

Clear

Smoked

BI/O Board Mounting

Base (if applicable)

We offer an I/O Board Mounting Base

which makes installation as easy as screwing

in a light bulb in just three simple steps:

Connect the composite1.

cables for power,

communication, and

video to the I/O PC

board in the mounting

base.

Secure the mounting2.

base to the ceiling or

desired location.

Connect the housing3.

and eyeball assembly

to the base by aligning

the cap and base

tabs, then turn, push,

and click the housing

clockwise.

Dome is mounted and4.

ready-to-go. Wait a

few seconds for dome

to begin its homing

routine.

DOME ASSEMBLY:

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels American Dynamics Caméra de sécurité

American Dynamics

American Dynamics ADCI625-P221 Manuel utilisateur

American Dynamics

American Dynamics AD715LS Series Instructions d'installation et d'entretien

American Dynamics

American Dynamics ADCTDN0230P Manuel utilisateur

American Dynamics

American Dynamics ADC660 Manuel utilisateur

American Dynamics

American Dynamics Discover Indoor Manuel utilisateur

American Dynamics

American Dynamics illustra 600 Manuel utilisateur

American Dynamics

American Dynamics ADC732 Manuel utilisateur

American Dynamics

American Dynamics ADSDUHOC Manuel utilisateur

American Dynamics

American Dynamics ADCA330 Manuel utilisateur

American Dynamics

American Dynamics ADC 660N Manuel utilisateur

American Dynamics

American Dynamics IP speedDome Ultra 8 Manuel utilisateur

American Dynamics

American Dynamics Tyco ADC770 Manuel utilisateur

American Dynamics

American Dynamics ADCA7BWO7RP Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VIIE Instructions d'installation et d'entretien

American Dynamics

American Dynamics illustra 600 Manuel utilisateur

American Dynamics

American Dynamics ADCDW Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Optima LT Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Optima LT Manuel utilisateur

American Dynamics

American Dynamics ADC720D Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Optima LT Manuel utilisateur

American Dynamics

American Dynamics Illustra Flex Series Manuel utilisateur

American Dynamics

American Dynamics SpeedDome Ultra VII EIS Instructions d'installation et d'entretien

American Dynamics

American Dynamics VideoEdge IP Indoor Mini-dome 8200-2646-02... Instructions d'utilisation d'origine

American Dynamics

American Dynamics Tyco ADC770 Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
