Aidapt VP174RS Manuel

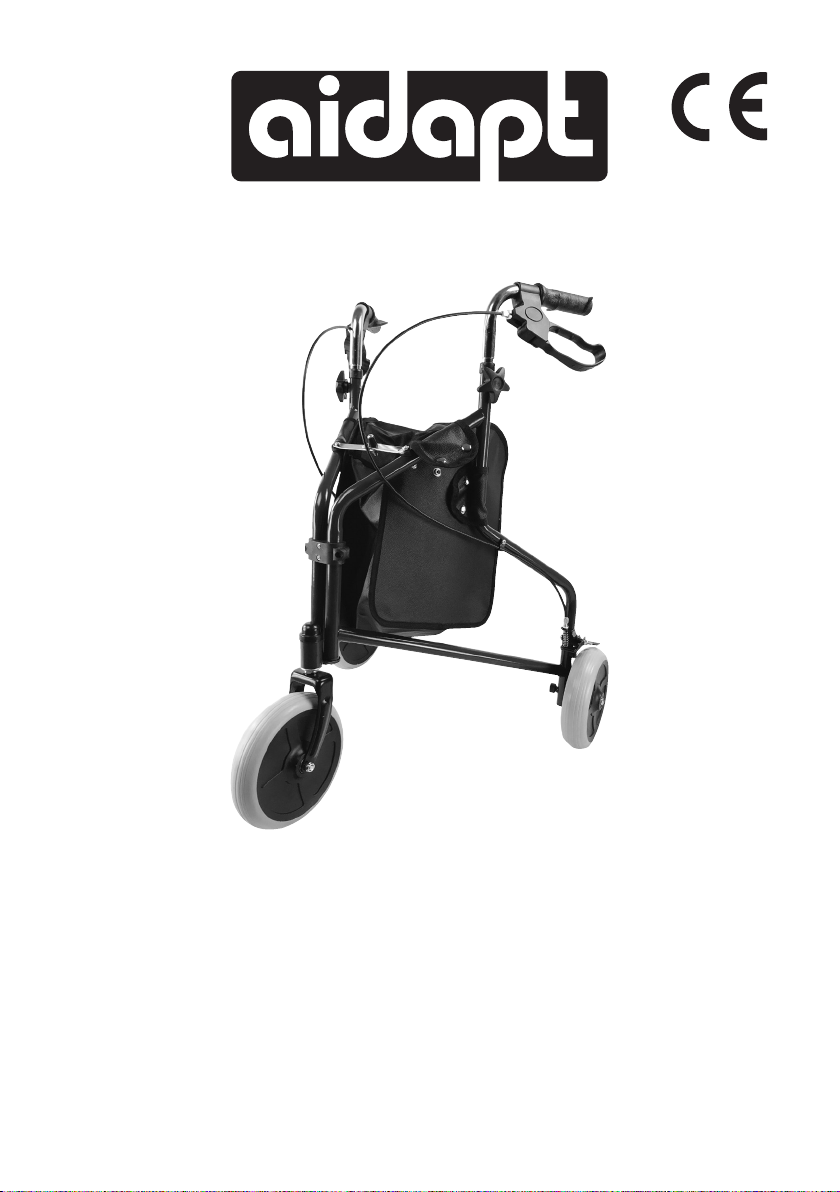

VP174RS

Three Wheeled Steel Walker

Fixing and Maintenance Instructions

This le is available to view and download as a PDF at

www.aidapt.co.uk. Sight impaired customers can use a

free PDF Reader (such as adobe.com/reader) to zoom in

and increase the text size for improved readability.

ASSEMBLY INSTRUCTIONS

INTENDED USE

FEATURES

1. Carefully insert the brake assembly (g. 1, g. 1(a)) within the frame. Ensure that head of the screw

ts into the hexagonal hole on the inside of the tri-walker (see g. 1(b))

2. Ensure when brake assembly is inserted that both brakes are even in height and the Tri-Walker is

sitting evenly on the ground.

3. Insert locking hand wheel into the desired height adjustment hole. Turn clockwise to tighten

(g. 1 (c).

The steel Tri-Walker from Aidapt is a sturdy yet easy to manoeuvre design ideal for those who require

extra support when walking. The Tri-Walker features a special bag designed specically to t your Tri-

Walker. Only use bags supplied and designed this Tri-Walker.

Do not use or combine bags or baskets from other manufacturers.

In normal use, i.e. when both hands are placed on the handles of the Tri-Walker, please ensure it is fully

opened and locked into position. Always keep both hands on the Tri-Walker, do not put full pressure on

one side as this may cause tipping. When not in use, you can easily fold the Tri-Walker and store away

until required. The Tri-Walker is designed for use inside and outside the home. Please ensure ngers are

clear of the locking mechanism to reduce the risk of entrapment when closing the Tri-Walker.

• User friendly loop brakes lever with lock

• Soft plastic solid wheels

• Swivelling front wheel

Fixing and Maintenance Instructions

g. 1(a) g. 1(b) g. 1(c)g. 1

INTRODUCTION

Thank you for purchasing the Tri-Walker from Aidapt.

Please examine your product for any visible damage before using/installing. If you see any damage or

suspect a fault, please do not use, but contact your supplier.

These instructions should be read carefully and left with the user of the product for future

reference.

Please ensure this equipment is Assembled by a competent person.

VP174RS- Steel Three Wheeled Walker 1115kg (18st) Max. Load

Do not exceed the weight limit stated - doing so could put you at risk

• Height adjustment

• Ergonomic handgrips to reduce pressure

• Includes a bag

OPERATING THE BRAKES

FITTING THE CARRY BAG SHOULD COME FITTED

ADJUSTMENT TO BRAKES

g. 2 g. 3

g. 5

g. 6

g. 4

1. To stop, gently apply a gripping pressure to both brakes simultaneously (g. 2), this will slow down

and stop your Tri-Walker.

2. The brakes on your Tri-Walker have a park option (g. 3). To operate the park option, push

downwards on both brakes simultaneously. You will feel the brake make a very slight click. Your

brakes are now in the‘lock’ position.

3. To unlock, simply pull up the brake again, you will hear a slight click as the ‘park’ disengages (g. 4).

1. The Tri-Walker bag should

be tted when the walker

is set in the open position.

2. Take the strap situated

upon the upper side of

the Tri-Walker bag, and

wrap this around the

diagonal bar of the frame

(g. 5) and push the stud

fasteners together. Repeat

on the opposite side.

3. Take the strap on the

side of the Tri-Walker bag

and wrap this around the

vertical bar of the frame

(g. 6) and again push the

stud fasteners together.

1. Your brake system will require periodic adjustment. The brake adjustment is similar to bicycle

brakes.

2. (g. 7) shows the brake handle in its default delivered position. Should the brakes need adjusting

they can be tightened by unlocking Nut A and then unscrewing (anti-clockwise) Nut B. When the

brake arm (see g. 9) has a 3mm clearance then Nut A should be retightened. An example of a user

adjusted brake handle is shown in (g. 8).

3. When adjusted the brakes should work in both normal braking and in parking mode. If needed

then Nut B in (g. 7 & g. 8) can be turned a further anti-clockwise, which will tighten the brake

cable more.

Fixing and Maintenance Instructions

CARE AND MAINTENANCE & YOUR OBLIGATION

1. Only use your Tri-Walker for the purpose for which it is intended, which is an aid to walking. It is

intended that your Tri-Walker is only used on standard pavements, or at home and should not

be used on rough terrain or pot holed surfaces. The use of your Tri-Walker on these surfaces can

seriously compromise your safety.

2. Check that all wheels and the folding mechanism function correctly and that all wheels move

freely. Pay particular attention to the front wheel, ensuring that it rotates freely and without

obstruction.

3. Check the central locking bracket (see g. 10), always ensure that this is securely in place before

using.

Withdraw your Tri-Walker immediately if the central locking bracket will not locate or if any of

the wheels become dicult to turn or wobble or if you suspect damage or any other fault.

4. Monthly checks – check that the side locking levels are properly secure (g. 1(b))

a) Check that no components are loose.

b) Check the brakes; ensure that the brakes are correctly

adjusted.

Do not t any parts or accessories to your Tri-Walker

manufactured by any other company. To do so will annul your

warranty and, may seriously compromise your safety.

5. We suggest that you check your Tri-Walker visually every day.

However, we recommend that you should have your Tri-Walker

serviced every three months or less if used or issued to various

users. Servicing should be carried out at an approved service

station or directly by Aidapt.

4. If the brake handles are fully adjusted and more tightening is required refer to (g. 9) where further

adjustment can be made.

5. After adjustment, check the park brakes by pushing down on the brake handles, ensuring that both

brakes lock in the park position.

6. With the brakes o, lift the two‘braked’ wheels o the ground and spin to ensure they turn freely. If

either of the braked wheels rubs onto the brake arm, please check for obstructions and repeat the

brake adjustment procedure above.

7. It is important that you check brake adjustments on a regular basis to take into account wear and

tear. However, brake adjustment must be checked at least once a month and denitely prior to a

change of user.

g. 7 g. 8

g. 10

g. 9

Default Position User Adjusted Position

Nut A

Nut B

3mm

Fixing and Maintenance Instructions

CLEANING

All of the product components are manufactured from quality materials. However, it is very important

that you only clean your Tri-Walker using a non-abrasive cleaner or mild detergent with a soft cloth

avoid using lime scale remover. Abrasive cleaners or abrasive cleaning pads will seriously damage your

product beyond repair.

If to be disinfected by heat, one of the following three temperatures and duration of exposition can be

used:

a) a temperature of 90°C for 1 minute

b) a temperature of 85°C for 3 minutes

c) a temperature of 80°C for 10 minutes

MAINTENANCE

TECHNICAL INFORMATION

Please check the Tri-Walker periodically for any signs of damage and if in doubt contact your supplier.

Width: 590mm

Depth: 630mm

Height: 820-950mm

Net Weight: 3.5kgs

SERVICE WARRANTY

Aidapt Bathrooms Ltd guarantees the product free from defects in material and workmanship for a

period of one year.

Should this product be operated under conditions other than those recommended, or any attempts

made to service or modify the product, then the warranty is rendered void.

The product you buy may dier slightly from illustrations. This warranty is in addition to, and does not

aect your statutory rights.

Our guarantee is administered by our retailers.

If your product arrives damaged, you must contact the retailer from whom you bought it. The retailers

contact details will be on the invoice that arrived with the product, or on the email you received when

you placed the order. Do not contact Aidapt Bathrooms Ltd, only your retailer can arrange a replacement

or refund.

If your product fails within the guarantee period, please contact the retailer from whom you bought it.

If you have received your product and require technical help, please call our help desk on 01744 745 000.

A copy of the instructions leaet can be downloaded from our website.

IMPORTANT INFORMATION

The information given in this instruction booklet must not be taken as forming part of or establishing

any contractual or other commitment by Aidapt Bathrooms Limited or its agents or its subsidiaries and

no warranty or representation concerning the information is given.

Please exercise common sense and do not take any unnecessary risks when using this product; as the

user you must accept liability for safety when using the product.

Fixing and Maintenance Instructions

Aidapt Bathrooms Ltd, Lancots Lane, Sutton Oak, St Helens, WA9 3EX

Telephone: +44 (0) 1744 745 020 Fax: +44 (0) 1744 745 001

Web: www.aidapt.com

Email: [email protected]
