Agilent Technologies U1731B Manuel utilisateur

Agilent Technologies

Agilent U1731B/U1732B

Dual Display Handheld LCR

Meter

Quick Start Guide

The following items are included with your LCR meter:

✔Alligator clip leads

✔Printed Quick Start Guide

✔9 V Alkaline battery

✔Certificate of Calibration

If anything is missing or damaged, please contact the nearest Agilent Sales

Office.

For more detailed information, please refer to the Agilent U1731B/U1732B

Dual Display Handheld LCR Meter User’s and Service Guide on Agilent

Web site (www.agilent.com/find/handheld-tools).

WARNING

To avoid damage to the device, do not exceed the input

limit. Do not apply voltage to input terminals. Discharge

the capacitor before testing.

U1731B/U1732B Quick Start Guide

Inductance/Capacitance/Resistance

Measurement

Procedure:

1Press the L/C/R key to select inductance (L), capacitance (C), or

resistance (R) measurement.

2Connect the red test clip or SMD tweezers to the +terminal and the

black test clip to the – terminal.

3Connect both the test clips to the component leads as required or use

the SMD tweezers to measure SMD components.

4Press the FREQ key to select the testing frequency.

5Press the D/Q/

key to select Q or D factor for secondary display as

required.

6Ensure that your hands are not touching the clips before taking the

readings on the display.

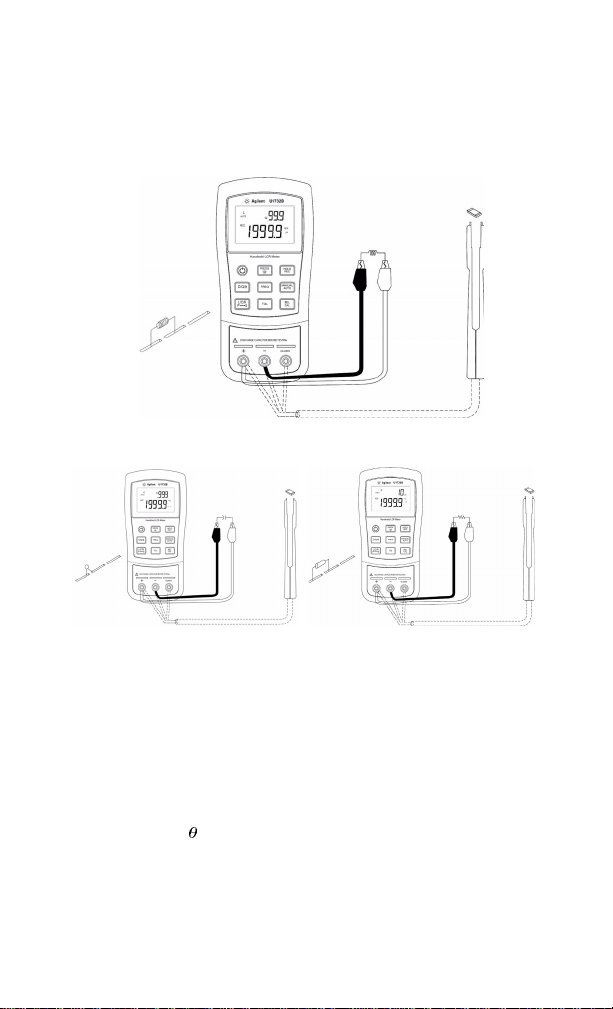

7The LCR measurements setup are shown as above.

Inductance measurement

Capacitance measurement Resistance measurement

U1731B/U1732B Quick Start Guide

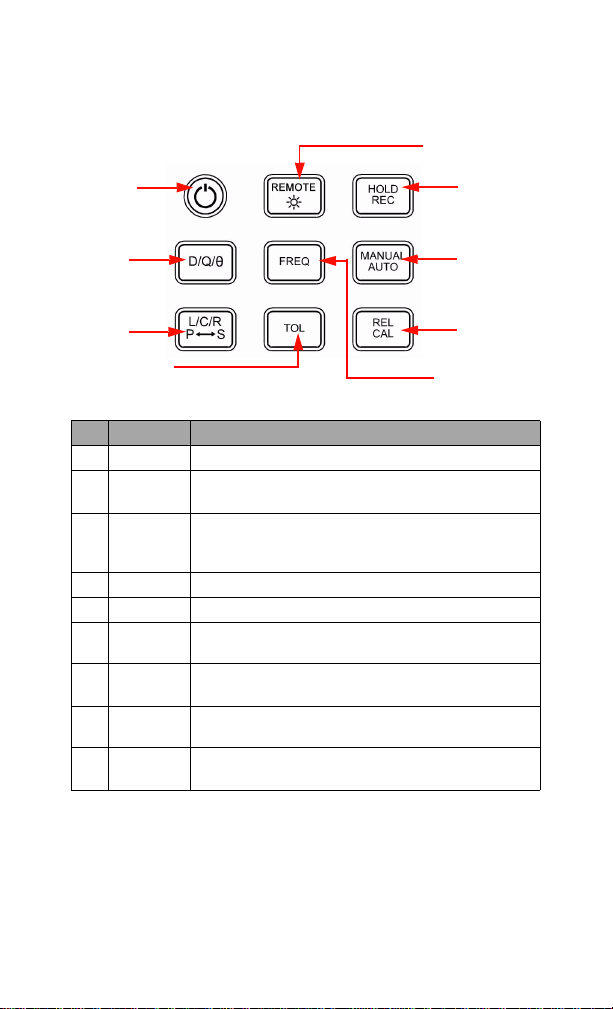

Keypad Operations

No. Keys Functions

1 Power To turn ON/OFF the instrument

2D/Q/θTo select dissipation factor, quality factor, and phase

angle display (only applicable for U1732B)

3L/C/R

P↔S

To select inductance, capacitance, and resistance

measurement

To toggle parallel and series mode

4TOL Tolerancemode

5 FREQ To select test frequency

6REL

CAL

Relative mode

Calibration mode

7Manual

AUTO

Manual range

Auto range

8HOLD

REC

Data hold

Static recording mode

9 REMOTE To toggle ON/OFF the remote function

Backlight display (only applicable for U1732B)

First Edition, December 1, 2009

Agilent Technologies

CAUTIONCAUTION

Degradation of some product specifications can occur in the

presence of ambient electromagnetic (EM) fields and noise

that affects the product’s power line or I/O cables. The

product self-recovers and operates to all specifications

when:

• the source of the ambient EM field and noise is removed,

• the product is protected from the ambient EM field, or

• the product cabling is shielded from the ambient EM noise.

Safety Notices Safety Information

The Agilent U1731B and U1732B are

safety-certified in compliance with the

following safety and EMC requirements:

• IEC 61010-1:2001/EN 61010-1:2001 (2nd

Edition)

• CISPR 11:2003+A1:2004

• IEC 61000-4-2:1995+A1:1998 +A2:2000

• IEC 61000-4-3:2006

• IEC 61000-4-4:2004

• IEC 61000-4-5:2005

• IEC 61000-4-6:2003+A1:2004+A2:2006

• IEC 61000-4-11:2004

• Canada: ICES/NMB-001:2004

• Australia/New Zealand: AS/NZS

CISPR11:2004

Safety Symbols

CAUTIONCAUTION

A CAUTION notice denotes

a hazard. It calls attention

to an operating procedure,

practice, or the like that, if

not correctly performed or

adhered to, could result in

damage to the product or

loss of important data. Do

not proceed beyond a CAU-

TION notice until the indi-

cated conditions are fully

understood and met.

WARNING

A WARNING notice

denotes a hazard. It calls

attention to an operating

procedure, practice, or the

like that, if not correctly

performed or adhered to,

could result in personal

injury or death. Do not pro-

ceed beyond a WARNING

notice until the indicated

conditions are fully under-

stood and met.

Earth (ground) terminal

Equipment protected

throughout by double insula-

tion or reinforced insulation

Caution, risk of electric

shock

Caution, risk of danger (refer

to the instrument manual for

specific Warning or Caution

information)

For further safety information details, refer to the

Agilent U1731B/U1732B Dual Display LCR Meter User’s and Service Guide.

Printed in Malaysia

U1731-90051
