Installation Note

Configurable Test Set Upgrade Kit

To Add Option 014

Upgrade Kit Order Numbers: E8363BU-014, E8363CU-014,

E8364BU-014, and E8364CU-014

For E8364B/C PNA Series Microwave Network Analyzers

2Installation Note E8364-90019

WARRANTY STATEMENT

THE MATERIAL CONTAINED IN THIS DOCUMENT IS PROVIDED “AS IS,” AND IS SUBJECT TO

BEING CHANGED, WITHOUT NOTICE, IN FUTURE EDITIONS. FURTHER, TO THE MAXIMUM

EXTENT PERMITTED BY APPLICABLE LAW, AGILENT DISCLAIMS ALL WARRANTIES,

EITHER EXPRESS OR IMPLIED WITH REGARD TO THIS MANUAL AND ANY INFORMATION

CONTAINED HEREIN, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF

MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. AGILENT SHALL NOT BE

LIABLE FOR ERRORS OR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES IN

CONNECTION WITH THE FURNISHING, USE, OR PERFORMANCE OF THIS DOCUMENT OR

ANY INFORMATION CONTAINED HEREIN. SHOULD AGILENT AND THE USER HAVE A

SEPARATE WRITTEN AGREEMENT WITH WARRANTY TERMS COVERING THE MATERIAL IN

THIS DOCUMENT THAT CONFLICT WITH THESE TERMS, THE WARRANTY TERMS IN THE

SEPARATE AGREEMENT WILL CONTROL.

DFARS/Restricted Rights Notice

If software is for use in the performance of a U.S. Government prime contract or subcontract,

Software is delivered and licensed as “Commercial computer software” as defined in DFAR

252.227-7014 (June 1995), or as a “commercial item” as defined in FAR 2.101(a) or as

“Restricted computer software” as defined in FAR 52.227-19 (June 1987) or any equivalent

agency regulation or contract clause. Use, duplication or disclosure of Software is subject to

Agilent Technologies’ standard commercial license terms, and non-DOD Departments and

Agencies of the U.S. Government will receive no greater than Restricted Rights as defined in

FAR 52.227-19(c)(1-2) (June 1987). U.S. Government users will receive no greater than

Limited Rights as defined in FAR 52.227-14 (June 1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any technical data.

Safety Notes

The following safety notes are used throughout this document. Familiarize yourself with each

of these notes and its meaning before performing any of the procedures in this document.

WARNING Warning denotes a hazard. It calls attention to a procedure which,

if not correctly performed or adhered to, could result in injury or

loss of life. Do not proceed beyond a warning note until the

indicated conditions are fully understood and met.

CAUTION Caution denotes a hazard. It calls attention to a procedure that, if not

correctly performed or adhered to, could result in damage to or destruction

of the instrument. Do not proceed beyond a caution sign until the indicated

conditions are fully understood and met.

Installation Note E8364-90019 3

Contacting Agilent

Assistance with test and measurements needs and information on finding a local Agilent

office are available on the Web at:

www.agilent.com/find/assist

If you do not have access to the Internet, please contact your Agilent field engineer.

NOTE In any correspondence or telephone conversation, refer to the Agilent product by

its model number and full serial number. With this information, the Agilent

representative can determine whether your product is still within its warranty

period.

About Installing the Upgrade Kit

IMPORTANT Option 014 can only be installed on analyzers with the option

combinations listed below as “Products affected”. If your analyzer does not

have the proper options (as listed below), it will be necessary to install

those options BEFORE installing this option (Option 014).

Products affected. . . . . . . . . . . . . . . . . . . . . . . . . . E8363B/C and E8364B/C; without Option

UNL or 016

E8363B/C and E8364B/C; Option UNL

E8363B/C and E8364B/C; Options UNL

and 016

Installation to be performed by . . . . . . . . . . . . . . Agilent service center or personnel

qualified by Agilent

Estimated installation time . . . . . . . . . . . . . . . . . 2.0 hours

Estimated adjustment time . . . . . . . . . . . . . . . . . 0.5 hours

Estimated full instrument calibration time . . . . 4.5 hours

4Installation Note E8364-90019

Description of Option 014

An Option 014 analyzer can be configured to measure high-power devices and devices that

require high dynamic range.

For a high-power measurement, external amplifiers and high power attenuators or isolators

can be added to complete the test setup. In this configuration, test-port output-power up to

1 Watt (+30 dBm) can be applied to the device under test (DUT). Additionally, there is an

external reference input that allows the external amplifier’s frequency response and drift to

be ratioed out.

For high dynamic range measurements, front panel jumpers are configured to reverse the

signal path through one of the couplers. This allows for a 15 dB improvement in transmitted

signal sensitivity in one direction only. These jumpers can also be configured on both ports,

allowing the user to perform high dynamic range measurements in both the forward and

reverse directions.

Installation Note E8364-90019 5

Items Included in the Upgrade Kit

Check the contents of your kit against this list. If any item is missing or damaged, contact

Agilent Technologies. Refer to “Contacting Agilent” on page 3.

Table 1 Contents of Option 014 Upgrade Kit (E8364-60103)

Ref

Desig. Description Qty Part Number

These parts are for ALL analyzers

Installation note (this document) 1 E8364-90019

ROHS addendum 1 9320-6722

Cable clamp 2 1400-1439

W60 Front-panel jumper 6 E8364-20059

W65 RF cable, channel R1 detector to REFERENCE 1 SOURCE OUT 1 E8364-20047

W66 RF cable, channel R2 detector to REFERENCE 2 SOURCE OUT 1 E8364-20048

W67 RF cable, A25 test port 1 coupler to PORT 1 CPLR ARM 1 E8364-20043

W68 RF cable, A26 test port 2 coupler to PORT 2 CPLR ARM 1 E8364-20044

These parts are for analyzers WITHOUT Option UNL OR Option 016

Lower front panel overlay (Option 014) 1 E8364-80003

W61 RF cable, A22 switch splitter to PORT 1 SOURCE OUT 1 E8364-20081

W62 RF cable, A22 switch splitter to PORT 2 SOURCE OUT 1 E8364-20082

W63 RF cable, PORT 1 CPLR THRU to A25 test port 1 coupler 1 E8364-20073

W64 RF cable, PORT 2 CPLR THRU to A26 test port 2 coupler 1 E8364-20074

W69 RF cable, PORT 1 RCVR A IN to A27 channel A mixer 1 E8364-20045

W70 RF cable, REFERENCE 1 RCVR R1 IN to A28 channel R1 mixer 1 E8364-20075

W71 RF cable, REFERENCE 2 RCVR R2 IN to A29 channel R2 mixer 1 E8364-20076

W72 RF cable, PORT 2 RCVR B IN to A30 channel B mixer 1 E8364-20046

These parts are for analyzers WITH Option UNL but WITHOUT Option 016

Lower front panel overlay (Option UNL/014) 1 E8364-80011

W69 RF cable, PORT 1 RCVR A IN to A27 channel A mixer 1 E8364-20045

W70 RF cable, REFERENCE 1 RCVR R1 IN to A28 channel R1 mixer 1 E8364-20176

W71 RF cable, REFERENCE 2 RCVR R2 IN to A29 channel R2 mixer 1 E8364-20177

W72 RF cable, PORT 2 RCVR B IN to A30 channel B mixer 1 E8364-20046

W81 RF cable, A36 step attenuator to PORT 1 SOURCE OUT 1 E8364-20053

W82 RF cable, A37 step attenuator to PORT 2 SOURCE OUT 1 E8364-20054

W83 RF cable, PORT 1 CPLR THRU to A38 bias tee 1 E8364-20039

W84 RF cable, PORT 2 CPLR THRU to A39 bias tee 1 E8364-20040

6Installation Note E8364-90019

These parts are for analyzers WITH Option UNL AND Option 016

Lower front panel overlay (Option UNL/014/016) 1 E8364-80024

W49 PORT 1 RCVR A IN to A43 channel A step attenuator 1E8364-20129

W50 PORT 2 RCVR B IN to A44 channel B step attenuator 1E8364-20130

W70 REFERENCE 1 RCVR R1 IN to A28 channel R1 mixer 1E8364-20151

W71 REFERENCE 2 RCVR R2 IN to A29 channel R2 mixer 1E8364-20126

W81 A36 step attenuator to PORT 1 SOURCE OUT 1E8364-20053

W82 A37 step attenuator to PORT 2 SOURCE OUT 1E8364-20054

W83 PORT 1 CPLR THRU to A38 bias tee 1E8364-20039

W84 PORT 2 CPLR THRU to A39 bias tee 1E8364-20040

Table 1 Contents of Option 014 Upgrade Kit (E8364-60103)

Ref

Desig. Description Qty Part Number

Installation Note E8364-90019 7

Installation Procedure for the Upgrade Kit

The network analyzer must be in proper working condition prior to installing this option. Any

necessary repairs must be made before proceeding with this installation.

WARNING This installation requires the removal of the analyzer’s protective outer

covers. The analyzer must be powered down and disconnected from the

mains supply before performing this procedure.

Electrostatic Discharge Protection

Protection against electrostatic discharge (ESD) is essential while removing or connecting

cables or assemblies within the network analyzer.

Static electricity can build up on your body and can easily damage sensitive internal circuit

elements when discharged. Static discharges too small to be felt can cause permanent

damage. To prevent damage to the instrument:

•always wear a grounded wrist strap having a 1 MΩresistor in series with it when handling

components and assemblies.

•always use a grounded, conductive table mat while working on the instrument.

•always wear a heel strap when working in an area with a conductive floor. If you are

uncertain about the conductivity of your floor, wear a heel strap.

•always ground yourself before you clean, inspect, or make a connection to a static-sensitive

device or test port. You can, for example, grasp the grounded outer shell of the test port or

cable connector briefly.

Figure 1 shows a typical ESD protection setup using a grounded mat and wrist strap. Refer to

“Tools and Equipment Required for the Installation” on page 8 for part numbers.

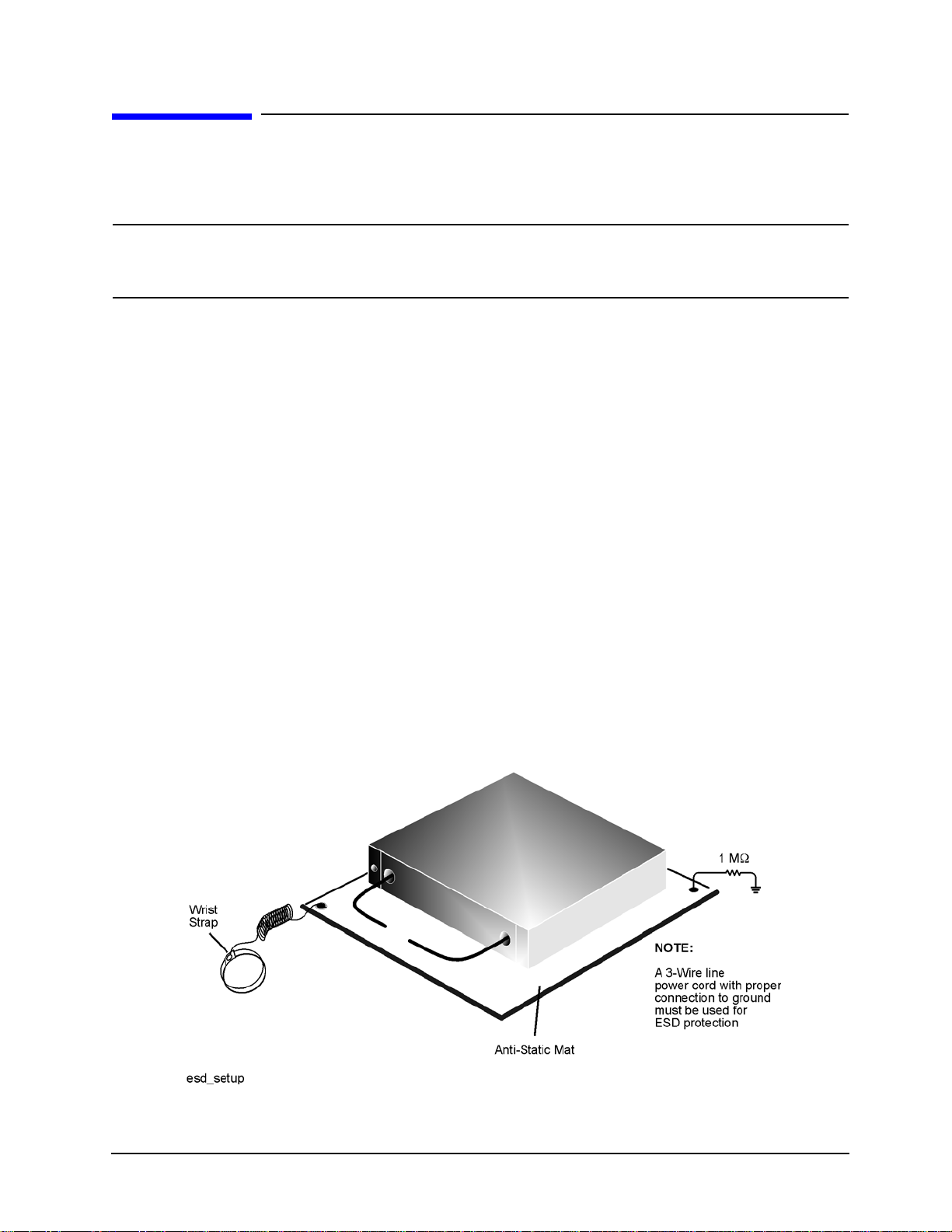

Figure 1 ESD Protection Setup

8Installation Note E8364-90019

Overview of the Installation Procedure

Step 1. Remove the Outer Cover.

Step 2. Remove the Front Panel Assembly.

Step 3. Raise the Receiver Deck.

Step 4. Remove the Existing Cables.

Step 5. Install the Option 014 Cables.

Step 6. Lower and Fasten the Receiver Deck.

Step 7. Replace the Lower Front Panel Overlay.

Step 8. Reinstall the Front Panel Assembly and Install Front Panel Jumpers.

Step 9. Reinstall the Outer Cover.

Step 10. Enable Option 014.

Step 11. Perform Post-Upgrade Adjustments and Calibration.

Tools and Equipment Required for the Installation

CAUTION Use a 5/16-inch torque wrench set to 10 in-lbs on all cable connections except the

front-panel adapters to which the front-panel jumpers attach. Use a 5/16-inch

torque wrench set to 21 in-lbs for these connections.

Equipment Required for Post-Upgrade Adjustments

Description Qty Part Number

T-10 TORX driver (set to 9 in-lbs) 1 N/A

T-20 TORX driver (set to 21 in-lbs) 1 N/A

5/16-inch torque wrench (set to 10 in-lbs) 1 N/A

5/16-inch torque wrench (set to 21 in-lbs) 1 N/A

ESD grounding wrist strap 1 9300-1367

5-ft grounding cord for wrist strap 1 9300-0980

2 x 4 ft conductive table mat and 15-ft grounding wire 1 9300-0797

ESD heel strap (for use with conductive floors) 1 9300-1308

Equipment Type Model or

Part Number

Alternate Model or

Part Number

Power meter E4418B/E4419B E4418A/E4419A

Power sensor, 2.4 mm 8487A None

Adapter, 2.4 mm (f) to 2.4 mm (f) 11900B 85056-60007

RF cable, 2.4 mm (f) to 2.4 mm (f) 85133C 85133E

Installation Note E8364-90019 9

Step 1. Remove the Outer Cover

CAUTION This procedure is best performed with the analyzer resting on its front handles

in the vertical position. Do not place the analyzer on its front panel without the

handles. This will damage the front panel assemblies.

Refer to Figure 2 for this procedure.

1. Disconnect the power cord (if it has not already been disconnected).

2. With a T-20 TORX driver, remove the strap handles (item {) by loosening the screws

(item |) on both ends until the handle is free of the analyzer.

3. With a T-20 TORX driver, remove the four rear panel feet (item }) by removing the center

screws (item ~).

4. Slide the four bottom feet (item ) off the cover.

5. Slide the cover off of the frame.

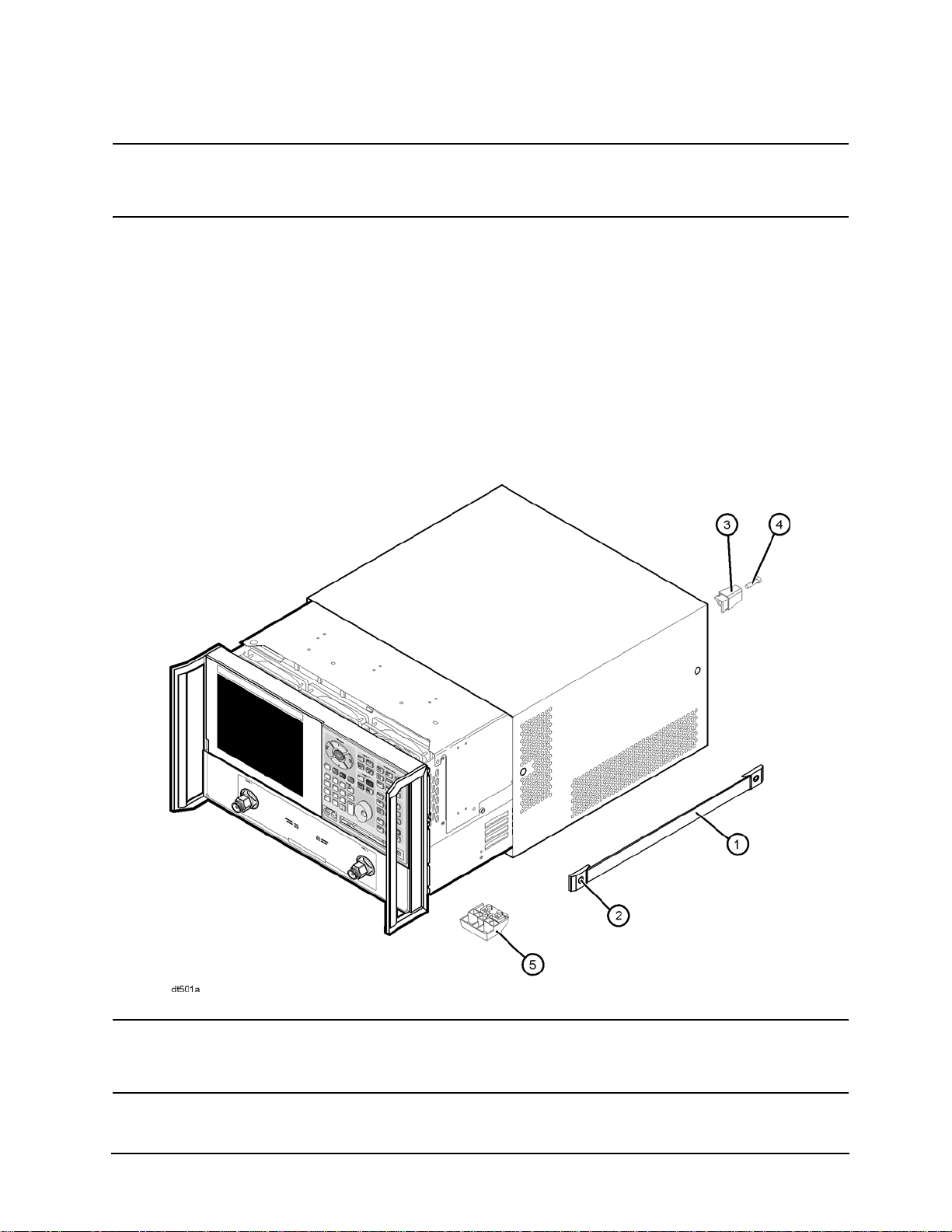

Figure 2 Outer Cover Removal

NOTE The figure above shows the E8363/4B front panel and floppy disk drive.

The E8363/4C front panel has a slightly different appearance and does not

include a floppy disk drive.

10 Installation Note E8364-90019

Step 2. Remove the Front Panel Assembly

Refer to Figure 3 for this procedure.

1. With a T-10 TORX driver, remove the eight screws (item {) from the sides of the frame.

CAUTION Before removing the front panel from the analyzer, lift and support the front of

the analyzer chassis.

2. Slide the front panel over the test port connectors.

3. Disconnect the front panel interface ribbon cable (item |). The front panel is now free

from the analyzer.

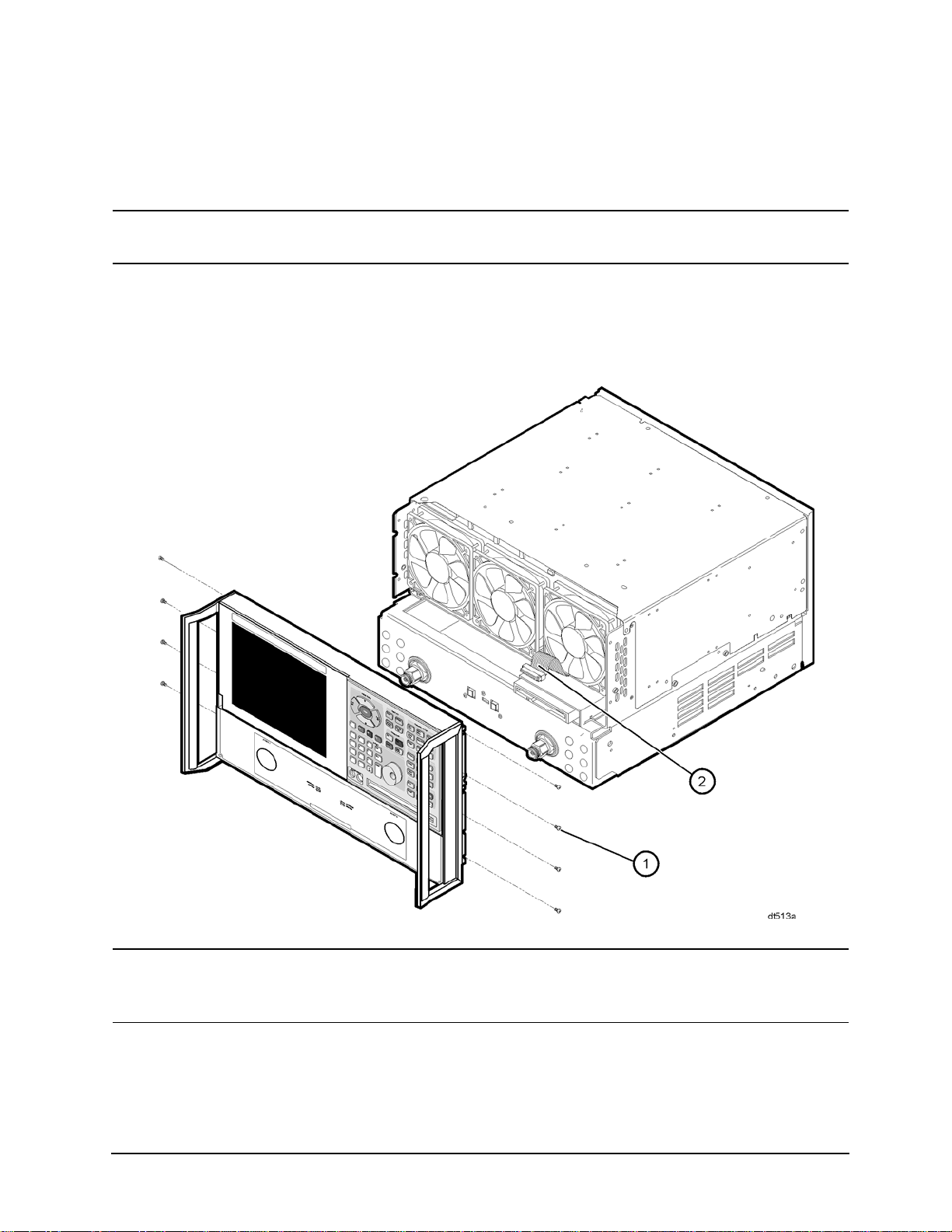

Figure 3 Front Panel Assembly Removal

NOTE The figure above shows the E8363/4B front panel and floppy disk drive.

The E8363/4C front panel has a slightly different appearance and does not

include a floppy disk drive.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Agilent Technologies Instrument de mesure

Agilent Technologies

Agilent Technologies E4419B Manuel utilisateur

Agilent Technologies

Agilent Technologies 8752C Manuel utilisateur

Agilent Technologies

Agilent Technologies J2126A Manuel utilisateur

Agilent Technologies

Agilent Technologies PSA Series Manuel d'installation et d'exploitation

Agilent Technologies

Agilent Technologies ENA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies ESA-E Series Manuel

Agilent Technologies

Agilent Technologies Agilent 4396B Manuel utilisateur

Agilent Technologies

Agilent Technologies U4154A Manuel utilisateur

Agilent Technologies

Agilent Technologies Agilent 4396B Manuel utilisateur

Agilent Technologies

Agilent Technologies PSA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 86082A Manuel utilisateur

Agilent Technologies

Agilent Technologies ADM2000 Manuel utilisateur

Agilent Technologies

Agilent Technologies 4338B Manuel utilisateur

Agilent Technologies

Agilent Technologies 86142B Manuel utilisateur

Agilent Technologies

Agilent Technologies U1271A Manuel utilisateur

Agilent Technologies

Agilent Technologies E8362A PNA Series Guide de démarrage rapide

Agilent Technologies

Agilent Technologies X Series Manuel utilisateur

Agilent Technologies

Agilent Technologies 4294A Manuel utilisateur

Agilent Technologies

Agilent Technologies E5071C ENA Series Manuel utilisateur

Agilent Technologies

Agilent Technologies N9320A Manuel utilisateur

Agilent Technologies

Agilent Technologies ESA-E E4402B Manuel utilisateur

Agilent Technologies

Agilent Technologies Agilent 86120B Manuel utilisateur

Agilent Technologies

Agilent Technologies 2100 Bioanalyzer System Mode d'emploi

Agilent Technologies

Agilent Technologies PSA Series Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
