AEG Electrolux B41015-5 Manuel utilisateur

B41015-5

User manual Built-In Electric Oven

Contents2

Contents

Operating Instructions 3

Safety instructions 3

Description of the Appliance 4

General Overview 4

Control Panel 5

Oven Features 5

Oven accessories 6

Before Using for the first time 7

Setting and changing the time 7

Initial Cleaning 7

Using the Oven 8

Switching the Oven On and Off 8

Oven Functions 9

Inserting the Combination Shelf, Baking Tray

and Roasting Pan 9

Non-stick accessories 10

Inserting/Removing the Fat Filter 11

Clock Functions 11

Uses, Tables and Tips 16

Baking 16

Roasting 22

Grill sizes 24

Defrosting 25

Drying 25

Making preserves 26

Cleaning and Care 27

Outside of the appliance 27

Oven interior 27

Accessories 27

Fat Filter 27

Non-stick accessories 28

Shelf Support Rails 28

Oven lighting 29

Oven Ceiling 29

Oven door 30

Oven door glass 32

What to do if … 35

Disposal 36

Service 37

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this instruc-

tion manual carefully. It will enable you to navigate all processes perfectly and most ef-

ficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe

place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user manual:

Important information concerning your personal safety and information on how to

avoid damaging the appliance.

3General information and tips

2Environmental information

3Operating Instructions

Operating Instructions

1Safety instructions

Electrical safety

•This appliance must be only connected by a registered electrician.

•In the event of a fault or damage to the appliance: Take the fuses out or switch off.

•Repairs to the appliance must only be carried out by qualified service engineers.

Considerable danger may result from improper repairs. If repairs become necessary,

please contact our Customer Services or your dealer.

Child Safety

•Never leave children unsupervised when the appliance is in use.

Safety whilst using

•People (including children) who, because of their physical, sensory or mental capabili-

ties or their inexperience or ignorance are not able to use the device safely, should not

use this device without supervision or instruction by a responsible person.

•This appliance is intended to be used for cooking, roasting and baking food in the

home.

•Take care when connecting electric appliances to sockets nearby. Do not allow con-

necting leads to come into contact with or to catch beneath the hot oven door.

•Warning: Risk of burns! The interior of the oven becomes hot during use.

•Using ingredients containing alcohol in the oven may create an alcohol-air mixture

that is easily ignited. In this case, open the door carefully. Do not have embers, sparks

or naked flames in the vicinity when opening the door.

3Information on acrylamides

According to the latest scientific knowledge, intensive browning of food, especially in

products containing starch, can constitute a health risk due to acrylamides. Therefore

we recommend cooking at the lowest possible temperatures and not browning foods

too much.

How to avoid damage to the appliance

•Do not line the oven with aluminium foil and do not place baking trays, pots, etc. on

the oven floor, as the heat that builds up will damage the oven enamel.

•Fruit juices dripping from the baking tray will leave stains, which you will not be able

to remove. For very moist cakes, use a deep tray.

•Do not put any strain on the oven door when open.

•Never pour water directly into the oven when it is hot. This could cause damage to or

discolouration of the enamel.

•Rough handling, especially around the edges of the front panel, can cause the glass to

break.

•Do not store any flammable materials inside the oven. These could ignite when the

oven is switched on.

Description of the Appliance4

•Do not store any moist foods inside the oven. This could damage the oven enamel.

•After switching off the cooling fan, do not keep uncovered dishes in the oven. Mois-

ture may condense in the oven interior or on the glass doors and may get into the

units.

3Note on enamel coating

Changes in the colour of the oven’s enamel coating as a result of use do not affect the

appliance’s suitability for normal and correct use. They therefore do not constitute a de-

fect in the sense of the warranty law.

Description of the Appliance

General Overview

Full glass door

Control panel

Door

handle

5Description of the Appliance

Control Panel

Oven Features

Oven Power Indicator Temperature Pilot Light

Time display

Clock function buttons

Temperature selector

Oven Functions

Top heat and heating elements

Oven lighting

Fat Filter

Fan heating element

Fan

Bottom Heat

Shelf positions

Oven shelf runners,

removable

Description of the Appliance6

Inside of door

On the inside of the oven door you will find the

numbers of the different oven shelves.

You will also find some brief information about

the oven's functions, recommended shelves and

temperatures for cooking the most popular

dishes.

Oven accessories

Oven shelf

For cookware, cake tins, roasts and grilled

foods.

Baking tray

For cakes and biscuits.

Non-stick baking tray

For cakes and biscuits.

Non-stick roasting tray

For baking and roasting or as a tray for collect-

ing fat.

7Before Using for the first time

Before Using for the first time

Setting and changing the time

3The oven only operates when the time has been set.

When the appliance has been connected to the

electrical supply or when there has been a pow-

er cut, the function indicator Time of day

flashes automatically.

1. To change a time that has already been set,

press the Selection button repeatedly until

the function indicator Time of day flashes.

2. Using the or button, set the current time.

After approx. 5 seconds, the flashing stops and

the clock displays the time set.

The appliance is now ready to use.

3The time can only be changed if no automatic

function (Duration or End ) has been set.

Initial Cleaning

Before using the oven for the first time you should clean it thoroughly.

1Caution: Do not use any caustic, abrasive cleaners! The surface could be damaged.

3To clean metal fronts use commercially available cleaning agents.

1. Turn the oven function switch to oven lighting .

Using the Oven8

2. Remove all accessories and the shelf support rails and wash them with warm water and

washing up liquid.

3. Then wash out the oven with warm water and washing-up liquid, and dry.

4. Wipe the front of the appliance with a damp cloth.

Using the Oven

3The oven is equipped with retractable buttons for “Oven functions” and “Temperature

selection”. To use, press the relevant button. The button then sticks out.

Switching the Oven On and Off

1. Turn the oven functions dial to the desired function.

2. Turn the temperature selector to the desired temperature.

The power indicator is lit as long as the oven is in operation.

The temperature pilot light is lit as long as the oven is heating up.

3. To turn the oven off, turn the oven functions dial and the temperature selector to the

Off position.

3Cooling fan

The fan switches on automatically in order to keep the appliance’s surfaces cool. When

the oven is switched off, the fan continues to run to cool the appliance down, then

switches itself off automatically.

Temperature Pilot Light

Oven Functions Temperature selector

Oven Power Indicator

9Using the Oven

Oven Functions

The oven has the following functions:

Inserting the Combination Shelf, Baking Tray and Roasting Pan

3Shelf runner safety and anti-tip device

As a shelf runner safety device, all insertable components have a small curved indenta-

tion at the bottom on the right and left-hand edge.

Always insert insertable components so that this indentation is at the back of the oven

interior. This indentation is also important for preventing the insertable components

from tipping.

Inserting the baking tray or roasting pan

Push the baking tray or roasting pan between

the guide bars of the selected oven level.

Oven function Application

Light Using this function you can light up the oven interior, e.g. for

cleaning.

True fan To bake on three oven levels maximum at the same time.

Decrease the oven temperatures 20-40 °C compared with Con-

ventional.

Fan baking For baking on one level dishes that require more intensive

browning and a crispy base.

Set the oven temperatures 20-40 °C lower than when using

Conventional.

Conventional For baking and roasting on one oven level.

Base heat For baking cakes with crispy or crusty bases.

Defrost For defrosting e. g. flans and gateaux, butter, bread, fruit or

other frozen foods.

Single grill For grilling flat food items placed in the middle of the grill and

for toasting.

Dual grill For grilling flat food items in large quantities and for toasting.

Rotitherm For roasting larger joints of meat or poultry on one level.

The function is also suitable for gratinating and browning

Using the Oven10

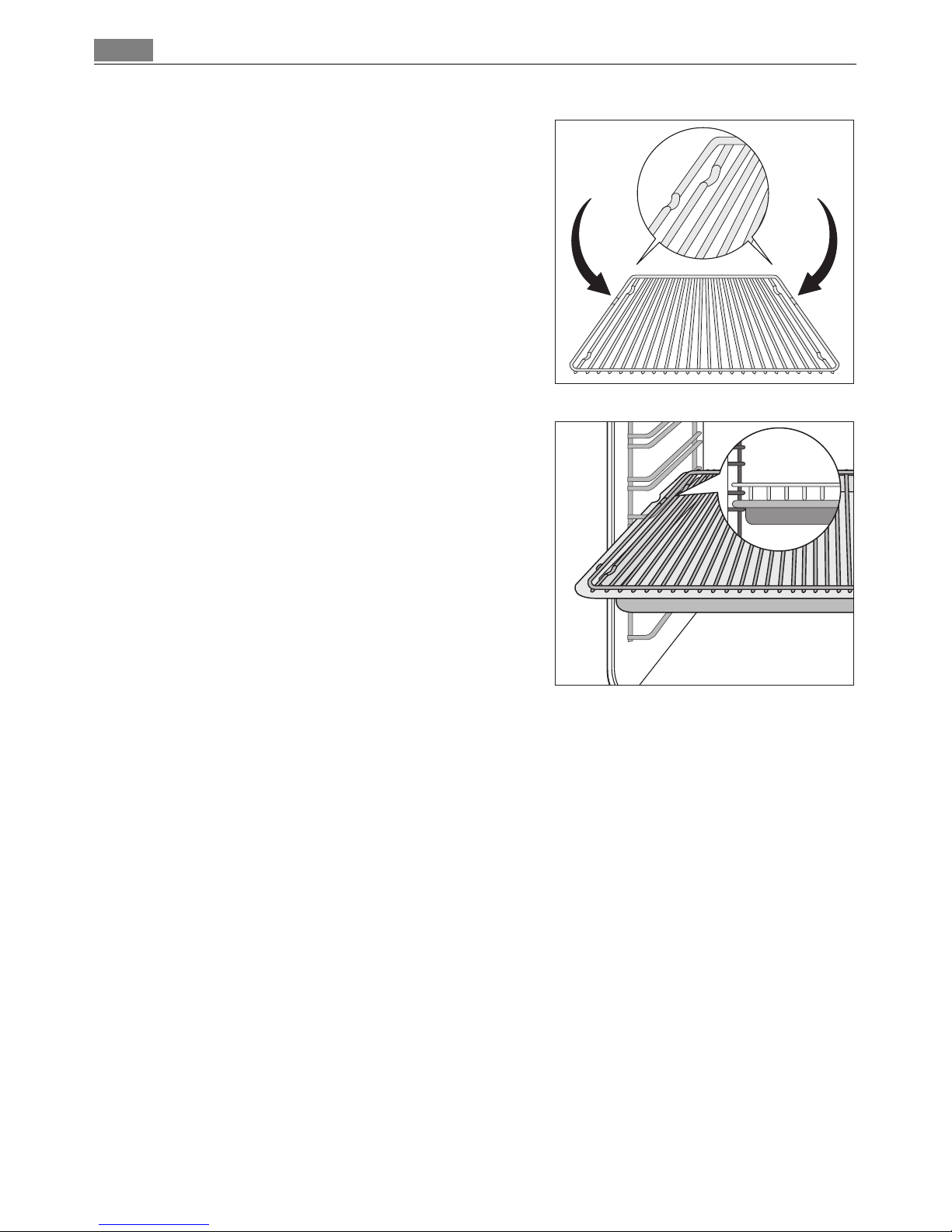

Inserting the oven shelf:

Insert the oven shelf so that the feet point

downwards.

Push the oven shelf between the guide bars of

the selected oven level.

3The high rim around the oven shelf is an addi-

tional device to prevent cookware from slip-

ping.

Inserting the oven shelf and roasting pan

together

Lay the oven shelf on the roasting pan.

Push the roasting pan between the guide bars

of the selected oven level.

Non-stick accessories

To ensure that this accessory remains stable and permanently easy to clean, you should

follow these instructions:

•Do not put accessories into the oven without any food.

•Do not place accessories on hot cooking surfaces, as the non-stick properties can be

damaged by overheating.

Table des matières

Autres manuels AEG Electrolux Four

AEG Electrolux

AEG Electrolux EOG 1710 Manuel utilisateur

AEG Electrolux

AEG Electrolux D1100-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE E4401-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE B3000-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux E9871-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE E4000-4-LG Manuel utilisateur

AEG Electrolux

AEG Electrolux E42042-6 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE E5731-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux B3781-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux E3191-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux PREFERENCE E31915-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE E3000-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux E30510-6 Manuel utilisateur

AEG Electrolux

AEG Electrolux MICROMAT KB9810E Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE B4301-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE D3100-5-M Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE B3741-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux E30502-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux E8931-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux E3191-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE D4101-5 Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE B1100-4 Manuel utilisateur

AEG Electrolux

AEG Electrolux KB9820E Manuel utilisateur

AEG Electrolux

AEG Electrolux COMPETENCE B3150-4 Manuel d'utilisation

Manuels Four populaires d'autres marques

Bosch

Bosch HVA531NS0 Manuel utilisateur

Electrolux

Electrolux EOF6P46X Manuel utilisateur

NEFF

NEFF B44S32 5GB Series Manuel utilisateur

Combi

Combi BLODGETT BC142GDS Manuel utilisateur

AEG

AEG COMPETENCE 311704300 Manuel utilisateur

Falcon

Falcon DOMINATOR PLUS G3106 Series Guide de l'utilisateur

Rational

Rational SCC WE 61G Manuel utilisateur

Smeg

Smeg DOSPA38X Manuel d'installation et d'exploitation

Electrolux

Electrolux air-o-convect 20 GN 2/1 Manuel utilisateur

Miele

Miele HR 1954-2 Manuel utilisateur

KHIND

KHIND OT50 Manuel utilisateur

Henny Penny

Henny Penny Smoker Box Manuel utilisateur

Lang

Lang ECOD-AP Manuel utilisateur

AEG

AEG BEK455310M Manuel utilisateur

Frigidaire

Frigidaire FNGE90JGR Manuel utilisateur

Hotpoint

Hotpoint FE9 S831 JSH IX Manuel utilisateur

GE Advantium SCB2000 Manuel utilisateur

AEG

AEG DE401301DM Manuel utilisateur
