Advantech ICR-3211 Mode d’emploi

Start Guide

ICR-3211, ICR-3231

ICR-3232, ICR-3241

Start Guide

Safety Instructions

Please take care to following instructions:

•Use the router in compliance with national and international law and in compliance with

any special or additional restrictions regulating use of the router in the various applica-

tions and environments.

•To avoid possible injury and/or damage to the device, observe the relevant provisions

and standards. Use only the original accessories as recommended. Unauthorized de-

vice or accessory modiﬁcation, or using accessories that have not been approved can

result in router damage and/or violation of the regulations.

•Unauthorized device or accessory modiﬁcation or using the accessories that have not

been approved can result in warranty termination.

•Do not open the router.

•Caution! The SIM card can be swallowed by small children.

•When connecting the device to a power supply do not exceed the deﬁned voltage.

•Do not expose the router to extreme ambient conditions. Protect the router against dust,

moisture, and high temperature.

•It is recommended that you do not use the router at petrol ﬁlling stations. We recommend

observing local restrictions concerning the use of radio-based devices while working with

explosive material for example, at petrol ﬁlling stations, or in chemical plants.

•While using the router close to personal medical devices, such as cardiac pacemakers

or hearing aids, proceed with heightened caution.

•Operating the router too close to TV sets, radio receivers, personal computers, or tele-

phones can cause interference.

•It is recommended that you create a copy or backup of the important settings stored in

the memory of the router.

QSG-0006-EN, December 10, 2018 1Released in the Czech Republic

Start Guide

Product Disposal Instructions

The WEEE (Waste Electrical and Electronic Equipment: 2012/19/EU) direc-

tive was introduced to ensure that electrical/electronic products are recycled us-

ing the best available recovery techniques in order to minimize impact on the en-

vironment. This product contains high quality materials and components which

can be recycled. At the end of it’s life this pro- duct MUST NOT be mixed with

other commercial waste for disposal. The device contains the battery. Remove

the battery from the device before disposal. The battery in the device needs to be disposed

apart accordingly. Check the terms and conditions of your supplier for disposal information.

Open Source Software License

The software in this device uses various pieces of open source software governed by

following licenses:

•GPL versions 2 and 3

•LGPL version 2

•BSD-style licences

•MIT-style licences

The list of components together with complete license texts can be found on the device

itself. See Licenses link at the bottom of the router’s main Web page (General Status) or point

your browser to this address (replace the DEVICE_IP string with real router’s IP address):

https://DEVICE_IP/licenses.cgi

This is a written offer valid for 3 years since the device purchase offering any third party for

a charge no more than cost of physically performing source distribution, a complete machine-

readable copy of the corresponding source code on a ﬂash drive medium. If you are interested

in obtaining the source, please contact us at:

[email protected]

Modiﬁcations and debugging of LGPL-linked executables:

The manufacturer of the device hereby grants the right to use debugging techniques (e.g.

decompilation) and making customer modiﬁcations of any executable linked with a LGPL li-

brary for own purposes. Note these rights are limited to the customer’s own usage. No further

distribution of such modiﬁed executables and no transmission of the information obtained dur-

ing these actions may be done.

QSG-0006-EN, December 10, 2018 2Released in the Czech Republic

Start Guide

First Use

Before applying power to the router, connect the components that you required for your

applications. You cannot operate the router without connected antenna, inserted SIM card,

nor connected power supply. Cross-shaped screwdriver is necessary to insert a SIM card.

If you do not have connected main antenna during operation of the router, the router can

be damaged!

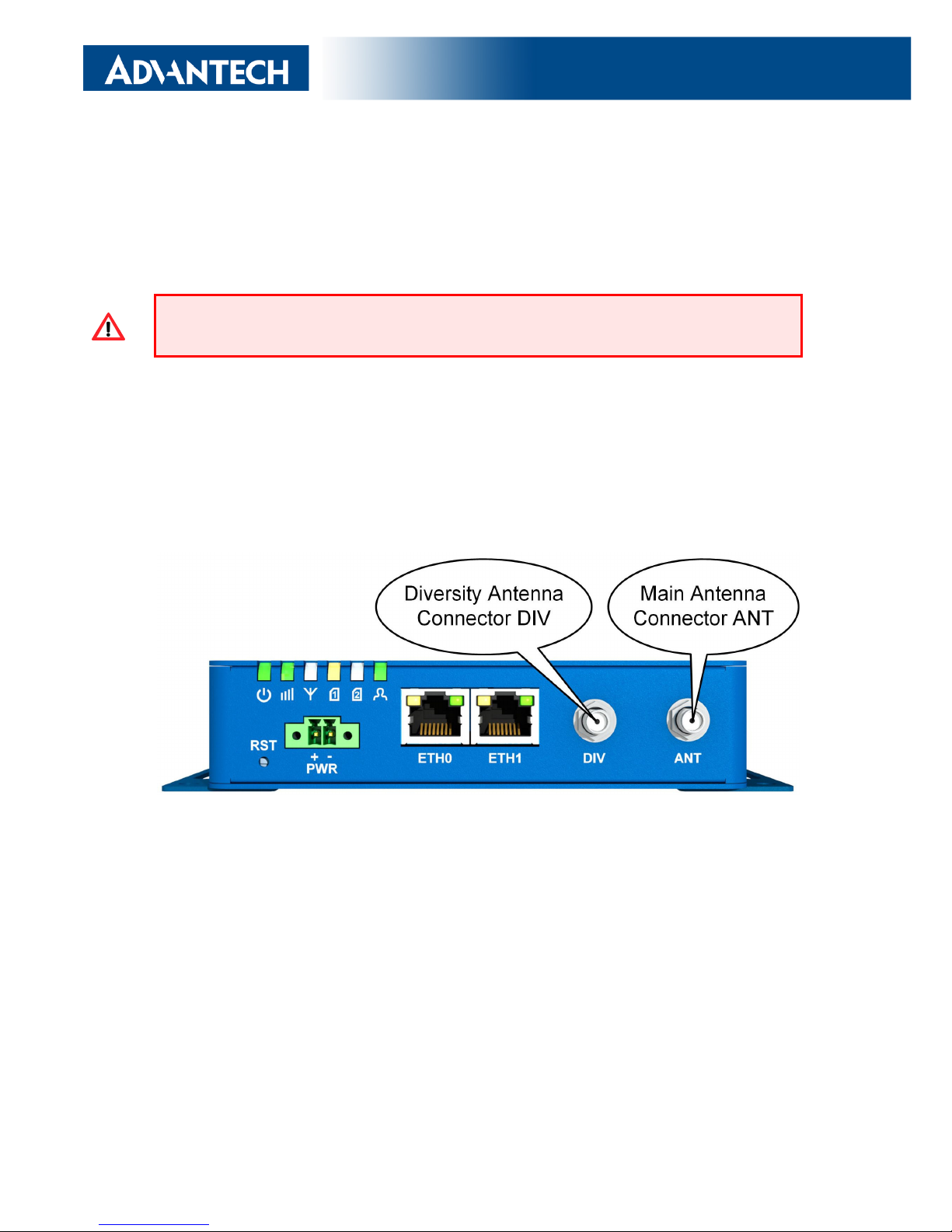

1. Antenna

Use a SMA connector to connect the antennas to the router. The main antenna is con-

nected to the router by screwing on the ANT connector (see Figure below). The second diver-

sity antenna can also be connected to the DIV connector to improve performance.

2. SIM Card

The SIM card readers, for 3 V and 1.8 V SIM cards, are located on the left side panel of the

router. If you intend to use this device to communicate over a cellular network, please place an

activated data-provisioned SIM card with an unblocked PIN into the SIM card reader. Unscrew

the SIM cards cover and push your SIM card into the SIM1 or SIM2 slot until it clicks in place.

QSG-0006-EN, December 10, 2018 3Released in the Czech Republic

Start Guide

Disconnect the router from power supply before handling of the SIM card!

3. Power

The router requires an external DC power supply. The DC voltage required is between

+9 to +36 V DC. The router has built-in protection against reverse polarity without signaling.

Connect the power supply cable to the PWR connector on the front panel of the router (see

Figure below).

QSG-0006-EN, December 10, 2018 4Released in the Czech Republic

Start Guide

4. Ethernet

An Ethernet cable may be connected to the ETH0 connector on the front panel of the router

(see Figure above). By default, the Ethernet port is conﬁgured as follows:

Connector Purpose Default Setting

ETH0 LAN port (default)

Connect your laptop or PC to this port to

get a local web-server for device conﬁgu-

ration and diagnostics.

DHCP Server

IP Address: 192.168.1.1

NetMask: 255.255.255.0

Conﬁguration

1. Conﬁguring the Device Using the Web Browser

You can access the router for status monitoring, conﬁguration, and administration after

entering the IP address of the router into a Web browser. The default IP address is 192.168.1.1

(netmask 255.255.255.0). Conﬁguration access is allowed for the user "root" with the initial

password "root". Attention, it is necessary to use HTTPS protocol for secure communication

over a network! For a detailed description and examples of the router conﬁgurations, see the

Conﬁguration Manual.

User Default Password

root root

After logging on to the device for the ﬁrst time, we strongly recommend to change

the default password due to security reasons.

2. Conﬁguration Settings via SmartWorx Hub

If your router has been pre-installed with the SmartWorx Hub client, you may conﬁgure it

from SmartWorx Hub. Navigate your browser to:

https://hub.bb-smartworx.com

If this is your ﬁrst time, please register with the site. If not, please login with your username

and password. Once logged in, further assistance can be found here:

https://hub.bb-smartworx.com/Login/Help?HelpFile=bbdms_help.pdf

QSG-0006-EN, December 10, 2018 5Released in the Czech Republic

Start Guide

3. Restoring and Backing up the Router Conﬁguration

After you reset the router, the current conﬁguration is overwritten by the default settings.

We recommend that you back up the router conﬁguration before resetting the device. Refer to

the Conﬁguration Manual for more information.

When the PWR LED starts blinking, it is possible to restore the default conﬁguration of the

router by pressing the Reset button on the panel continuously for more than 4 seconds. Use

a narrow screwdriver or any tool that ﬁts. After releasing the button, the default conﬁguration

is restored and then the router reboots (green PWR LED will be on).

Documentation

User’s Manual, Conﬁguration Manual and other manuals can be found and downloaded

on this web site: www.advantech-bb.cz/download

Hereby, Advantech B+B SmartWorx s.r.o. declares that the radio equipment type

ICR-3231 is in compliance with Directive 2014/53/EU.

The full text of the EU Declaration of Conformity is available at the following internet address:

www.advantech-bb.cz/eudoc

QSG-0006-EN, December 10, 2018 6Released in the Czech Republic
