AIMB-769 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

• AIMB-769 ATX IMB

• 1 AIMB-769 Startup Manual

• 1 Driver CD (user’s manual is included)

• 2 Serial ATA HDD data cables

• 1 Serial ATA HDD power cable

• 1 I/O port bracket

• 1 jumper package

• 1 warranty card

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF

ﬁle. Acrobat Reader can be downloaded at:

www.adobe.com/Products/acrobat/readstep2.

html (Acrobat is a trademark of Adobe)

Standard SBC Functions

• CPU: LGA775 Intel®Core™ 2 Quad/Core™ 2 Duo/Penti-

um®Dual Core/Celeron®

• BIOS: AMI 16 Mb SPI BIOS

• FSB: 800/1066/1333 MHz

• Chipset: G41 with ICH7

• System memory: Up to 4 GB with two 240-pin DIMM

sockets. Supports dual channel DDR3 800/1066 SDRAM.

Note: Due to the inherent limitations of PC architecture,

the system may not fully detect 4 GB RAM when

4 GB RAM is installed.

• SATA II Interface: Four on-board serial SATA II connec-

tors with a data transmission rate of up to 300 MB/s and

supporting Advanced Host Controller Interface (AHCI)

technology.

AIMB-769 Socket LGA775 Intel®Core™2 Quad ATX

with VGA, 2 COM, Single LAN

Startup Manual

• FDD interface: Supports one FDD

• Serial ports: Two RS-232 serial ports with DC power (+5

V or +12 V) support for industrial applications.

• Keyboard/mouse connector: Supports standard PS/2

keyboard and mouse.

• Watchdog timer: 255 level timer intervals.

• USB 2.0: Supports up to eight USB 2.0 ports.

VGA Interface

• Chipset: Chipset integrated VGA controller.

• Display Memory: Dynamically shared system memory

up to 352 MB.

• Resolution: Up to resolution 2048 x 1536 @ 75 Hz

refresh rate.

Ethernet interface

• Interface: 10/100/1000 Base-T

• Controller: LAN1: REALTEK RTL8111G-CG

Mechanical and Environmental

• Dimensions (L x W): 304.8 x 228.6 mm

• Power supply voltage: +3.3 V, +5 V, ±12 V, 5 VSB

• Power requirements: Maximum: +5 V at 1.76 A, +3.3 V

at 2.28 A, +12 V at 4.7 A, 5 VSB at 0.19 A, (Intel

Core

™

2 Quad Q9650 3.0 GHz, two 1GB DDR3 1066 MHz

SDRAM)

• Operating temperature: 0 ~ 60 °C (depending on CPU)

• Weight: 0.5 Kg (weight of board)

Jumpers and Connectors

The board has a number of jumpers that allow you to con-

ﬁgure your system to suit your application. The table below

lists the function of each of the jumpers and connectors.

Connector/Jumper list

Label Function

CMOS1 Clear CMOS

JWDT1

Watchdog Timer Output Option

FDD1 FDD connector

LAN1_USB34 LAN1 / USB port 3, 4

VGA1 VGA connector

COM12 Serial port: RS-232

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/intelligent-systems

For technical support and service, please visit our

support website at:

http://www.advantech.com/support

This manual is for the AIMB-769 series Rev. A2

Part No. 2006076911 2nd Edition

October 2014

Specications

2 AIMB-769 Startup Manual

CN32

CN33

COM1 DC Power Switch

COM2 DC Power Switch

KBMS1 PS/2 Keyboard and Mouse connector

KBMS2 External Keyboard and Mouse connec-

tor (6-pin)

JFP1 Power Switch / Reset connector

JFP2 External Speaker/HDD LED/SMbus

Connector

JFP3

Keyboard Lock and Power LED

Suspend: Fast ash (ATX/ AT)

System On: ON (ATX/ AT)

System Off: OFF (AT)

System Off: Slow ash (ATX)

JCASE1 Case Open

PSON1 AT(1-2) / ATX(2-3)

VOLT1 Voltage Monitoring for Alarm Board

CPUFAN1 CPU FAN connector (4-pin)

SYSFAN1 System FAN connector (3-pin)

SYS

FAN2

System FAN connector (3-pin)

AUDIO1

Audio connector

FPAUD1

HD Audio Front Panel Pin Header

USB12 USB port 1, 2

USB56 USB port 5, 6

USB78

USB port 7, 8

SATA1 Serial ATA1

SATA2 Serial ATA2

SATA3 Serial ATA3

SATA4 Serial ATA4

ATX12V1

ATX 12V Auxiliary power connector

(for CPU)

EATXPWR1

ATX 24 Pin Main power connector (for

System)

SPDIF_OUT SPDIF Audio out pin header

BIOS1 SPI BIOS

JOBS1 Close: Enable OBS Alarm

Open: Disable OBS Alarm

IR_CON Infrared connector

CMOS1: CMOS clear function

Pins

Result

1-2 Keep CMOS data*

2-3

Clear CMOS data

* Default

JWDT1: Watchdog timer output option

Closed Pins

Result

1-2 No Function

2-3 *System reset when it is triggered.

* Default

PSON1: ATX, AT mode selector

Closed Pins

Result

1-2 AT Mode

2-3 ATX Mode*

* Default

The CD disc contains programs that will lead you through

the installation of various device drivers needed to take full

advantage of your motherboard.

The computer is supplied with a battery-powered realtime

clock circuit. There is a danger of explosion if battery is

incorrectly replaced. Replace only with same or equivalent

type recommended by the manufacturer. Discard used bat-

teries according to manufacturer’s instructions.

This device complies with the requirements in Part 15 of

the FCC rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired

operation.

Jumpers and ConnectorsJumpers and Connectors

Software Installation

Declaration of Conformity

Keep CMOS data Clear CMOS data

1 2 3

NC 1-2 closed System Reset 2-3 closed

1 2 3 1 2 3

AT Mode 1-2 closed ATX Mode 2-3 closed

1 2 3

AIMB-769 Startup Manual 3

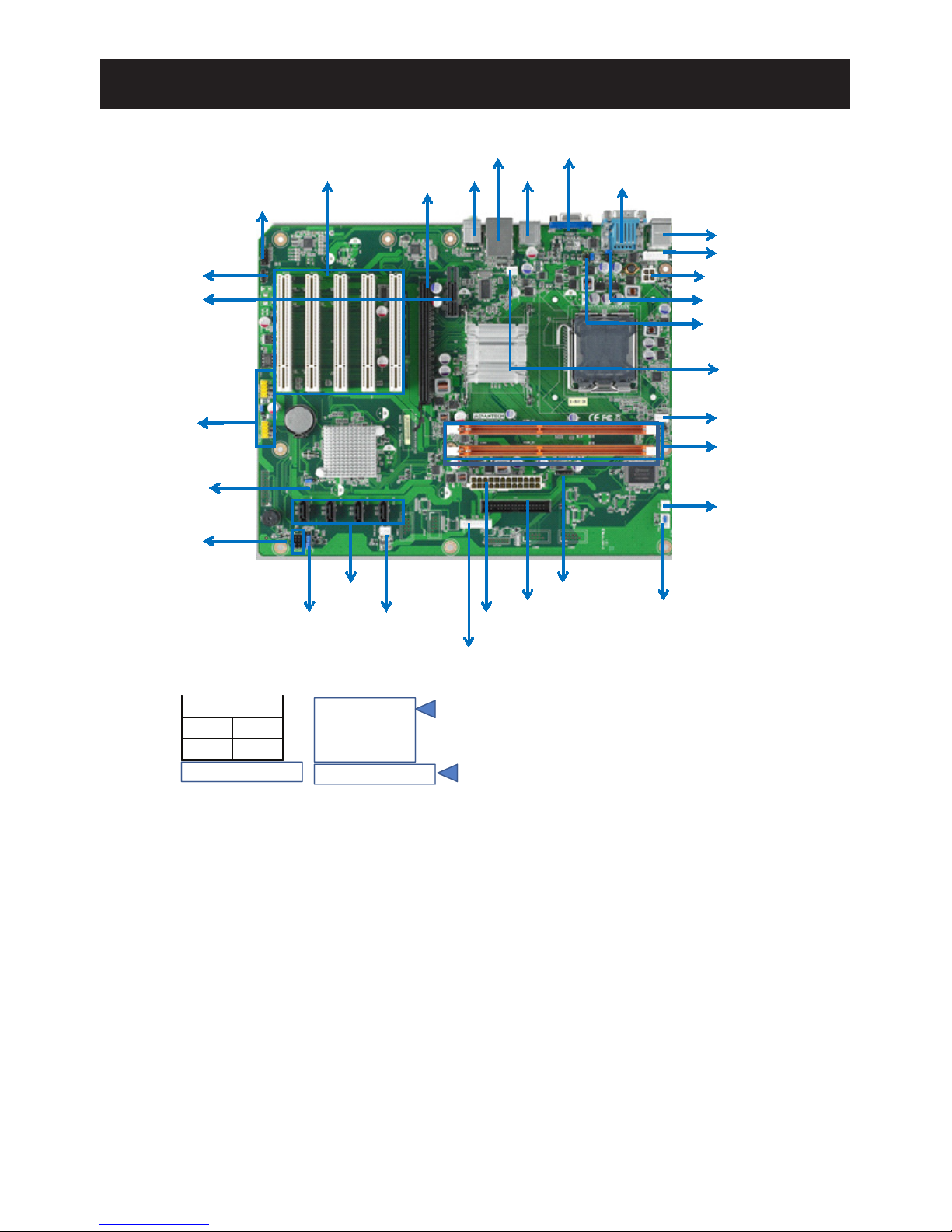

Figure 1: Board Layout - Jumper and Connector Locations

Jumper and Connector Locations

5 4 3 2 1

1 0 7 4 1

11 8 5 2

1 2 9 6 3

SPEAKER

SM_BUS HDDLED

RESET PWRSW

PWRLED & KEYLOCK

PCIe x1

PCI

PCIe x16

USB 5~8

SATA 1~4

JFP1~3

DIMM_A1

DIMM_B1

CPUFan1

ATX12V1

SYSFan 1

Floppy

JWDT1+JOBS1

AUDIO1 USB12

LAN1_USB34 VGA1

COM12

KBMS1

KBMS2

JCASE1

PSON1

IR_CON

EATXPWR1

V OLT 1

SPDIF_OUT

FPAUD1

SYSFan2

CMOS1

CN 32

CN 33
