PCA-6742 Startup Manual 1

Before you begin installing your system, please make sure

that the following materials have been shipped:

• 1 PCA-6742 Series Half-size CPU Card

• 1 keyboard / PS2 mouse cable p/n:1700060202

• 1 COM2 + parallel port cable p/n:1701260305

•

1 USB cable with 4 ports (2.0 mm pitch)

p/n:1700008887

• 1 Jumper pack p/n:9689000002

• 1 Warranty Certicate

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note 1: For detailed contents of the PCA-6742 Series,

please refer to the enclosed CD-ROM or disk (in

PDF format).

Standard SBC Functions

• CPU: Advantech EVA-X4300 up to 300MHz

PCA-6742 EVA-X4300 Half-Size CPU Card

Startup Manual

• BIOS: Award integrated 256KB ROM in Advantech EVA-

X4300

• System memory: Onboard 64 MB DDR2 and optionally

supports up to 128 MB

• Enhanced IDE interface: 1 EIDE channel for two devices.

BIOS auto-detects up to UDMA -100

• USB interface: Supports 4 USB 2.0 ports and USB

1.1under DOS

• Serial ports: One RS-232 on real I/O, one RS-232/RS-

422/RS-485 on one 2.54mm pitch wafer box and two

RS-232 on one 2.0mm pitch wafer box

• Parallel port: One parallel port, supports SPP/EPP mode

• Infrared port: One, supports IrDA version 1.0 SIR protocol

up to 115K bps, supports SHARP ASK-IR protocol up to

57600 bps.

• Keyboard/mouse connector: Mini-Din connector supports

standard PC/AT keyboard and PS/2 mouse

• Watchdog timer: 255 level timer interval. System reset or

IRQ11

Local-bus Flat Panel/VGA Interface

• Chipset: SM712 graphic chip

• Display memory: 4 MB display memory

• Display type: Supports CRT, TFT and LVDS (optional)

LCDs. Able to display both CRT and at panel simultane-

ously

• Flat-panel display mode: Panel resolution supports up to

1024 x 768 @ 18/24-bit TFT LCD Panel and LVDS LCD

Panel (Optional)

• CRT display mode: CRT monitor resolutions up to 1024 x

768 @ 24-bit true color

Ethernet Interface (PCA-6740)

• Chipset: Realtek RTL8100CL

• Ethernet interface: PCI 10/100 Mbps Ethernet. IEEE

802.3 U protocol compatible

• Connection: On-board RJ-45 connector

• Built-in boot ROM

Solid State Disk

• Supports CompactFlash™ Type I/II, shared with second-

ary IDE

Specications

Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit

our support website at:

http://www.advantech.com/support

This manual is for the PCA-6742 Series Rev.A1.

Part No. 2002674212

Printe d i n China

3rd Edition,

June, 2013

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

All manuals and user guides at all-guides.com

2 PCA-6742 Startup Manual

Mechanical and Environmental

• Dimensions (L x W): 185 mm x 122 mm

• Power supply voltage: +5 V (4.75 V ~ 5.25 V)

• Power requirements: 1.6 A @ 5 V

• Operating temperature: 0 ~ 60° C (32 ~ 140° F)

• Weight: 0.185 kg ( 0.4 lbs.)

Jumpers and Connectors

Connectors on the board link it to external devices such as

hard disk drives, a keyboard or expansion bus connectors.

In addition, the board has a number of jumpers that allow

you to congure your system to suit your application.

The tables below list the functions of each of the board’s

jumpers and connectors:

Jumpers

Label Function

CMOS1 CMOS Clear

JSETCOM2 COM2 function selection

JWDT1 Watchdog timer output selection

JOBS1 HW Monitor Alarm

VGASW1 LCD settings

VGASW2 LCD settings

Connectors

Label Function

JFP1(1-2) HDD LED

JFP1(3-4) Power LED

JFP1(5-6) N/C

JFP1(7-8) Reset switch

JFP1(9-10) N/C

JFP2(1-2) Fail LED

JFP2(3-4) Buzzer Enable

JIR1 IR connector

IDE1 IDE connector (Primary channel)

CF1 CF connector (Secondary channel)

LPT1 Parallel port

USB12 USB port 1,2

USB34 USB port 3,4

COMD1 Serial Port: COM1

COM2 Serial Port: COM2 (RS232/422/485)

COM34 Serial Port COM3/COM4

KBMS1 PS/2 keyboard and mouse connector

KBMS2 External keyboard and mouse con-

nector

Front Panel Connectors (JFP1)

Pin Signal

1 HDD LED+

2 HDD LED-

3 Power LED+

4 Power LED-

5 N/C

6 N/C

7 Reset Switch

8 GND

9 5 VSB (Reserved)

10 Power Switch (Reserved)

CMOS1 CMOS Clear

Setting Function

1-2 CMOS Clear

2-3 Normal operation

JSETCOM2 COM2 Function Selection

JWDT1 Watchdog Timer Output Selection

Setting Function

1-2 IRQ11

2-3 System reset

JOBS1 HW Monitor Alarm

Setting Function

1-2 Closed Enable OBS alarm

1-2 Open Disable OBS alarm

RS232 RS422 RS485

1 2 3

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

All manuals and user guides at all-guides.com

PCA-6742 Startup Manual 3

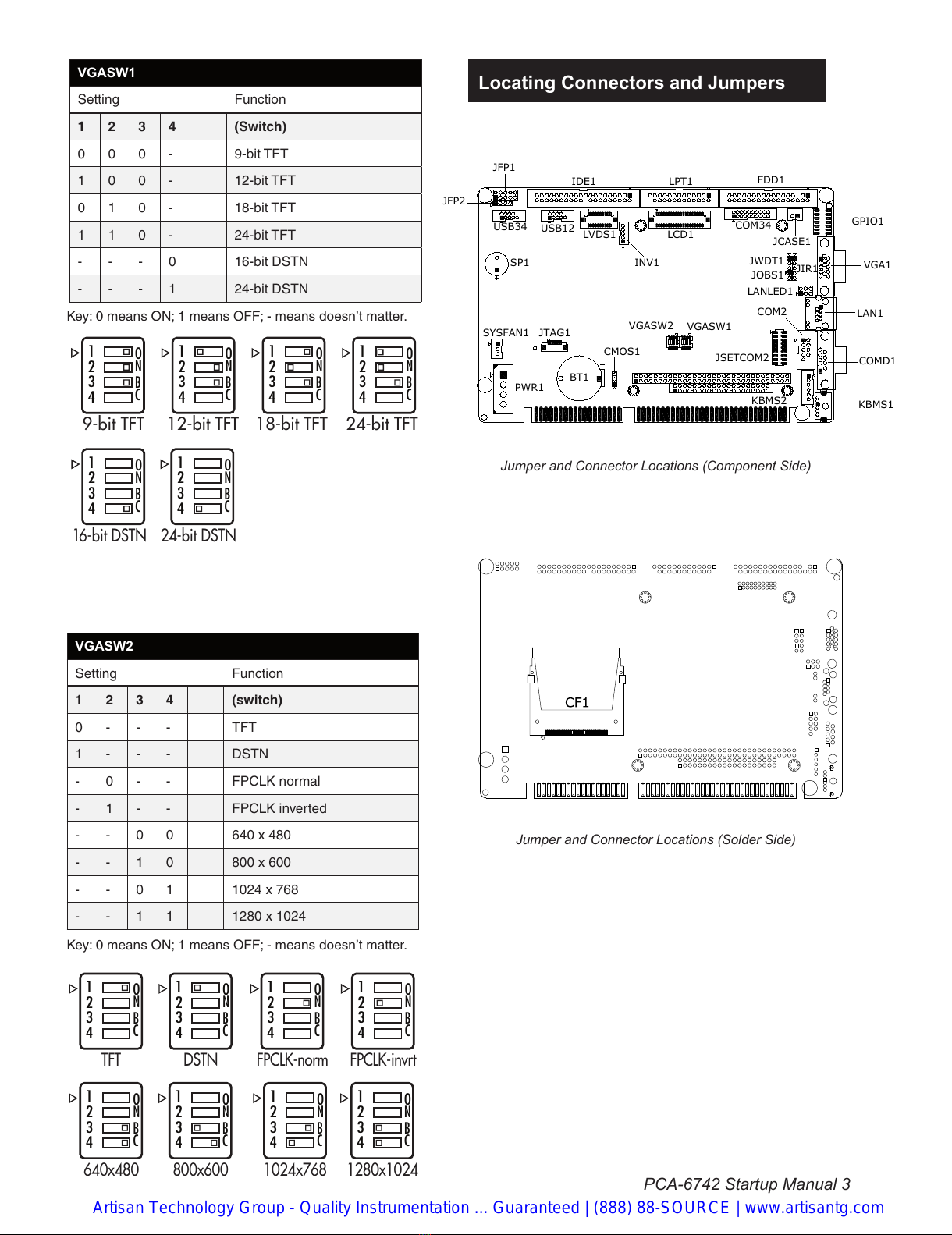

Jumper and Connector Locations (Component Side)

Jumper and Connector Locations (Solder Side)

Locating Connectors and Jumpers

USB34 USB12

JFP1

JFP2

SP1

LVDS1

IDE1

INV1

LCD1

LPT1

JTAG1

BT1

CMOS1

SYSFAN1

PWR1

VGASW1

VGASW2

JSETCOM2

COM34

JCASE1

FDD1

GPIO1

VGA1

JWDT1

JOBS1 JIR1

LANLED1

LAN1

COM2

COMD1

KBMS1

KBMS2

VGASW1

Setting Function

1 2 3 4 (Switch)

0 0 0 - 9-bit TFT

1 0 0 - 12-bit TFT

01 0 - 18-bit TFT

1 1 0 - 24-bit TFT

- - - 0 16-bit DSTN

- - - 1 24-bit DSTN

Key: 0 means ON; 1 means OFF; - means doesn’t matter.

VGASW2

Setting Function

1 2 3 4 (switch)

0 - - - TFT

1 - - - DSTN

- 0 - - FPCLK normal

- 1 - - FPCLK inverted

- - 0 0 640 x 480

- - 1 0 800 x 600

- - 0 1 1024 x 768

- - 1 1 1280 x 1024

Key: 0 means ON; 1 means OFF; - means doesn’t matter.

9-bit TFT

12-bit TFT

16-bit DSTN

18-bit TFT

24-bit TFT

24-bit DSTN

TFT

DSTN

FPCLK-norm

FPCLK-invrt

640x480

800x600

1024x768

1280x1024

Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

All manuals and user guides at all-guides.com

4 PCA-6742 Startup Manual

The CD disc contains a driver installer program that will lead

you through the installation of various device drivers needed

to take full advantage of your CPU card.

The computer is provided with a battery-powered real-time

Clock circuit. There is a danger of explosion if battery is

incorrectly replaced. Replace only with same or equivalent

type recommended by the manufacturer. Discard used

batteries according to manufacturer’s instructions.

This device complies with the requirements in Part 15 of the

FCC rules. Operation is subject to the following two condi-

tions:This device may not cause harmful interference.This

device must accept any interference received, including

interference that may cause undesired operation.

Installation

Caution

Safety Information

Mechanical Drawings

Board Dimensions (Solder Side)

Board Dimensions (Component Side)

USB 34 USB 12

JFP1

JFP2

SP1

LVDS 1

IDE1

INV 1

LCD1

LPT1

JTAG1

BT1

CMOS 1

SYS FAN1

PWR 1

VGAS W1VGAS W2

JSET COM 2

COM 34 JC ASE1

FDD1

GPIO 1

VGA 1

JWDT 1

JOBS1 J IR1

LAN LED 1

LAN1

COM 2

COM D1

KBMS 1

KBM S2

0.00

181.99

16.51

0.00

185.00

8.68

24.45

82.87

103.19

104.46

172.34

19.51

24.72

79.12

100.65

106.55

65.41

13.84

4.01

26.99

122.00

102.32

16.59

9.51

CF1

151.32

0.00

32.41
