Advantech MIC-7 Series Manuel d'installation et d'exploitation

MIC-75M10 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

1. MIC-75M10 i-Module x1 P/N: MIC-75M10-00A1/

MIC-75M10-00A2

2. MIC-75M10 Startup Manual x1 P/N: 20415M1000

3. Mounting bracket (I-type) x1 P/N: 1960070543T00A

4. Mounting bracket (C-Type) x1 P/N: 1960070545N006

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

Note: Acrobat Reader is required to view any PDF le.

Acrobat Reader can be downloaded at: get.

adobe.com/reader (Acrobat is a trademark of

Adobe)

MIC-75M10

PCIE Expansion Module for MIC-7 Series Embedded

System

Startup Manual

PCIe Slots

• One PCIe x16 socket

Note 1: PCIe x16 power consumes 75W.

Environment

• Operating Temperature:

-20 ~ 60° C with 0.7 m/sec air ow

• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)

• Relative Humidity: 95% @ 40° C (non-condensing)

Mechanical

• i-Module Dimensions (H x W x D): 24 x 192 x 230 mm

• With MIC-7 series (H x W x D): 97 x 192 x 230 mm

Note: Width will be increased by 4mm with MIC-77xx.

The table below lists the functions of each of the connectors.

PCIE x16 Socket FAN Conn

12V Extra Power

Connectors

No. Item Function

1 PPCIE1 PCIEx16 Socket

2 DC12VOUT1 4 Pin Power Connector (12V)

3 SYSFAN1 4 Pin FAN connector

SpecicationsPacking List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://support.advantech.com.tw/support/

default.aspx

This manual is for the MIC-75M10 Rev. A1.

Part No. 20415M1000

Printed in China

1st Edition

April 2022

Jumpers and Connectors

2 MIC-75M10 Startup Manual

4. Align MIC-75M10 and MIC-7 and secure 4 x screws.

5. Reassmble the cover and secure with screws.

Note: The chassis cover has a special notch which

must mate with the hook on the chassis.

Chassis Cover

Chassis hook

Chengyang.Hsu

3/22/2022

James.Chen

3/22/2022

James Chen

3/22/2022

Chengyang.Hsu

3/22/2022

Zone

Mark

Description

Date

Sign

123456 7 8 9 10 11 12 13 14 15 16 17 18 19 20

0.20

0.05

SIZE

UNITS

SHEET

2 Of 2

APPROVED

DESIGNER

CHECKED

DRAWER

SCALE

THIRD ANGLE

PROJECTION

0.25

0.30

0.40

0.60

D=3L/1000

0.50

0.20

(Max)

1:1

S2S1

0.10

0.40

0.70

0.40

0.15

0.25

0.20

0.30

0.25

0.50

0.80

1.0

0.50 0.35 0.60

1.10

0.25

0.30

0.45

0.20

0.10 0.15

DIMENSIONAL

TOLERANCES

0.10

0.15

0.30

0.20

ANGLE

6~29.99

30~79.99

80~179.99

180~314.99

315~800

0.05

0~5.99

Other

1.5

0.60

1.00

0.15

0.10

0.40

0.50

TOLERANCES

DESCRIPTION/PART NAME

MATERIAL

FINISHING

PART NO.

DRAWER

CHECKED

DESIGNER

APPROVED

REV.

MIC-75M10

MODEL NAME

P/N ADDED CODE

00-SYSTEM_ASSY_MIC-75M10

FILE NAME

INTERIOR

PART

APPEARANCE

PART

System Installation

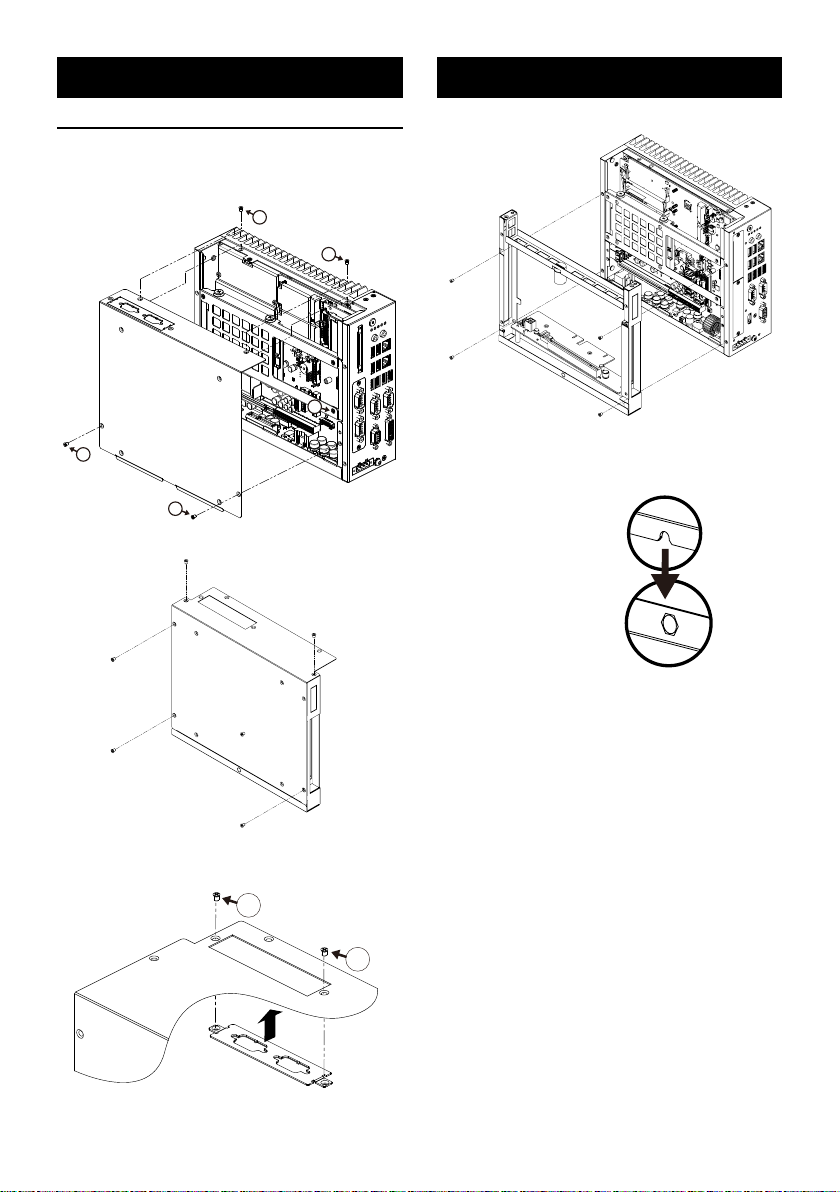

MIC-7 series i-module can be assembled with all MIC-7

series IPC systems.

1. Undo MIC-7 series system screws and remove the

bottom cover.

2. Undo the 6 x screws of MIC-75M10.

3. Remove i-door cover on system bottom and assemble

and secure cover into i-module’s bottom cover.

Chengyang.Hsu

3/22/2022

James.Chen

3/22/2022

James Chen

3/22/2022

Chengyang.Hsu

3/22/2022

Zone

Mark

Description

Date

Sign

123456 7 8 9 10 11 12 13 14 15 16 17 18 19 20

0.20

0.05

SIZE

UNITS

SHEET

2 Of 2

APPROVED

DESIGNER

CHECKED

DRAWER

SCALE

THIRD ANGLE

PROJECTION

0.25

0.30

0.40

0.60

D=3L/1000

0.50

0.20

(Max)

1:1

S2S1

0.10

0.40

0.70

0.40

0.15

0.25

0.20

0.30

0.25

0.50

0.80

1.0

0.50 0.35 0.60

1.10

0.25

0.30

0.45

0.20

0.10 0.15

DIMENSIONAL

TOLERANCES

0.10

0.15

0.30

0.20

ANGLE

6~29.99

30~79.99

80~179.99

180~314.99

315~800

0.05

0~5.99

Other

1.5

0.60

1.00

0.15

0.10

0.40

0.50

TOLERANCES

DESCRIPTION/PART NAME

MATERIAL

FINISHING

PART NO.

DRAWER

CHECKED

DESIGNER

APPROVED

REV.

MIC-75M10

MODEL NAME

P/N ADDED CODE

00-SYSTEM_ASSY_MIC-75M10

FILE NAME

INTERIOR

PART

APPEARANCE

PART

Simple Maintenace Process (Cont.)

Simple Maintenace Process

MIC-75M10 Startup Manual 3

Chengyang.Hsu

3/22/2022

James.Chen

3/22/2022

James Chen

3/22/2022

Chengyang.Hsu

3/22/2022

101

192

197.20

235.20

230

Zone

Mark

Description

Date

Sign

123456 7 8 9 10 11 12 13 14 15 16 17 18 19 20

0.20

0.05

SIZE

UNITS

SHEET

1 Of 1

APPROVED

DESIGNER

CHECKED

DRAWER

SCALE

THIRD ANGLE

PROJECTION

0.25

0.30

0.40

0.60

D=3L/1000

0.50

0.20

(Max)

1:1

S2S1

0.10

0.40

0.70

0.40

0.15

0.25

0.20

0.30

0.25

0.50

0.80

1.0

0.50 0.35 0.60

1.10

0.25

0.30

0.45

0.20

0.10 0.15

DIMENSIONAL

TOLERANCES

0.10

0.15

0.30

0.20

ANGLE

6~29.99

30~79.99

80~179.99

180~314.99

315~800

0.05

0~5.99

Other

1.5

0.60

1.00

0.15

0.10

0.40

0.50

TOLERANCES

DESCRIPTION/PART NAME

MATERIAL

FINISHING

PART NO.

DRAWER

CHECKED

DESIGNER

APPROVED

REV.

MIC-75M10

MODEL NAME

P/N ADDED CODE

00-SYSTEM_ASSY_MIC-75M10

FILE NAME

INTERIOR

PART

APPEARANCE

PART

PCIE x16 Socket FAN Conn

12V Extra Power

IO Connectors

System Dimensions
