ADJ StarTec Series Manuel utilisateur

User Instructions

STARBAR WASH

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical prod-

ucts when they are not in use. To avoid power consumption in idle mode, disconnect all electrical

equipment from power when not in use. Thank you!

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

FCC RADIO FREQUENCY INTERFERENCE WARNINGS & INSTRUCTIONS

This product has been tested and found to comply with the limits as per Part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference in a residential installa-

tion. This device uses and can radiate radio frequency energy and, if not installed and used in accordance

with the included instructions, may cause harmful interference to radio communications. However, there is

no guarantee that interference will not occur in a particular installation. If this device does cause harmful

interference to radio or television reception, which can be determined by turning the device off and on, the

user is encouraged to try to correct the interference by one or more of the following methods:

· Reorient or relocate the device.

· Increase the separation between the device and the receiver.

· Connect the device to an electrical outlet on a circuit different from which the radio receiver is

connected.

· Consult the dealer or an experienced radio/TV technician for help.

Date Document

Version

DMX

Channel

Modes

Notes

05/30/19 1 4/5/6/17/19 Initial Release

DOCUMENT VERSION

Due to additional product features and/or enhancements, an updated version of this document

may be available online.

Please check www.adj.com for the latest revision/update of this manual before beginning

installation and/or programming.

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 2

Starbar Wash Table of Contents

Introduction

Features I Warranty Registration I Installation

Safety Precautions

Installation

Overview

DMX Set Up

DMX Addressing

DMX Modes

Color Macro Chart

System Menu

Operating Instructions

Master-Slave Set Up

Foot Controller

ADJ UC IR/Airstream IR Control

Set Up

Dimensional Drawings

Power Linking I Trouble Shooting I Cleaning

Limited Warranty (USA Only)

Specications

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 3

Starbar Wash Introduction

Unpacking: Thank you for purchasing the Starbar Wash by ADJ Products, LLC. Every Starbar Wash

has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged,

carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit

has arrived intact. In the case damage has been found or parts are missing, please contact our toll free

customer support number for further instructions. Do not return this unit to your dealer without rst

contacting customer support.

Introduction: The Starbar Wash is a DMX intelligent, LED wash lighting par system. This system has

five operating modes: Sound Active mode, Auto Run mode, RGBW dimmer mode, Static Color mode,

and DMX control mode. The Starbar Wash has 5 DMX channel modes; 4/5/6/17/19.

These instructions contain important safety information regarding the use and maintenance of this

unit. Please keep this manual with the unit, for future reference.

Customer Support: Contact ADJ Service for any product related service and support needs. Also visit

forums.adj.com with questions, comments or suggestions.

Parts: To purchase parts online visit http://parts.americandj.com

ADJ SERVICE USA - Monday - Friday 8:00am to 4:30pm PST

Voice: 800-322-6337 | Fax: 323-832-2941 | [email protected]

ADJ SERVICE EUROPE - Monday - Friday 08:30 to 17:00 CET

Voice: +31 45 546 85 60 | Fax: +31 45 546 85 96 | [email protected]

ADJ PRODUCTS LLC USA

6122 S. Eastern Ave. Los Angeles, CA. 90040

323-582-2650 | Fax 323-532-2941 | www.adj.com | info@adj.com

ADJ SUPPLY Europe B.V

Junostraat 2 6468 EW Kerkrade, The Netherlands

+31 (0)45 546 85 00 | Fax +31 45 546 85 99

www.adj.eu | [email protected]

ADJ PRODUCTS GROUP Mexico

AV Santa Ana 30 Parque Industrial Lerma, Lerma, Mexico 52000

+52 (728) 282-7070

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufactures warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Starbar Wash Features

Starbar Wash Warranty Registration

The Starbar Wash carries a 1 year limited warranty. Please fill out the enclosed warranty card to

validate your purchase. All returned service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on

the outside of the return package. A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,

you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by con-

tacting our customer support team on our customer support number. All packages returned to the

service department not displaying a R.A. number on the outside of the package will be returned to the

shipper.

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 4

• Multi-Colors

• Five Operating Modes

• Electronic Dimming 0-100%

• DMX-512 protocol

• 3-Pin DMX Connection

• Five DMX Modes: 4/5/6/17/19

• UC IR & Airstream IR Compatiable (Not Included)

• Multiple Unit Power Linking (See page 28)

Included:

1 x Light Bar with 4 x LED Pars

1 x Tripod

1 x Foot Controller

2 x Brackets

1 x Carrying Bag

1 x Power Cable

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 5

Starbar Wash Safety Precautions

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to

remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 28

for cleaning details.

• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the fixture.

C. The fixture has been exposed to rain or water.

D. The fixture does not appear to operate normally or exhibits a marked change in performance.

E. The fixture has fallen and/or subjected to extreme handling.

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 6

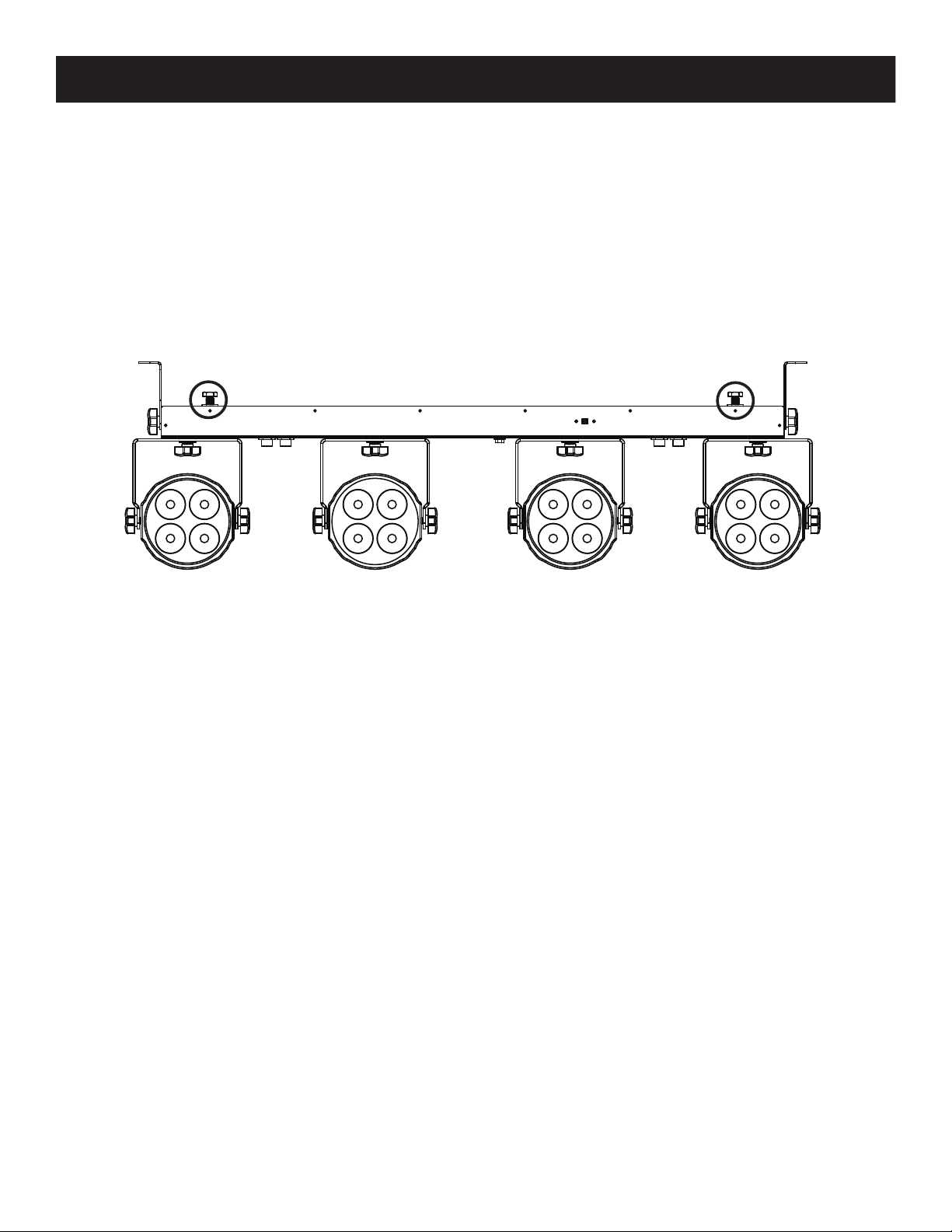

Starbar Wash Installation

The unit can be mounted using mounting clamps (not provided), axing them to either the mount-

ing brackets that are provided with the unit or the rigging points located at the top of the bar. Always

ensure that the unit is rmly xed to avoid vibration and slipping while operating. Always ensure

that the structure to which you are attaching the unit is secure and is able to support a weight of

10 times the unit’s weight. When hanging the unit by the rigging points or brackets, always use and

install a safety cable as a safety measure to prevent accidental damage and/or injury in the event the

clamp fails. The equipment must be installed by a professional, and it must be installed in a place

where it is out of the reach of people’s grasp.

Bracket Bracket

Rigging Point

(M10 Bolt)

Rigging Point

(M10 Bolt)

OVERHEAD INSTALLATION

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 7

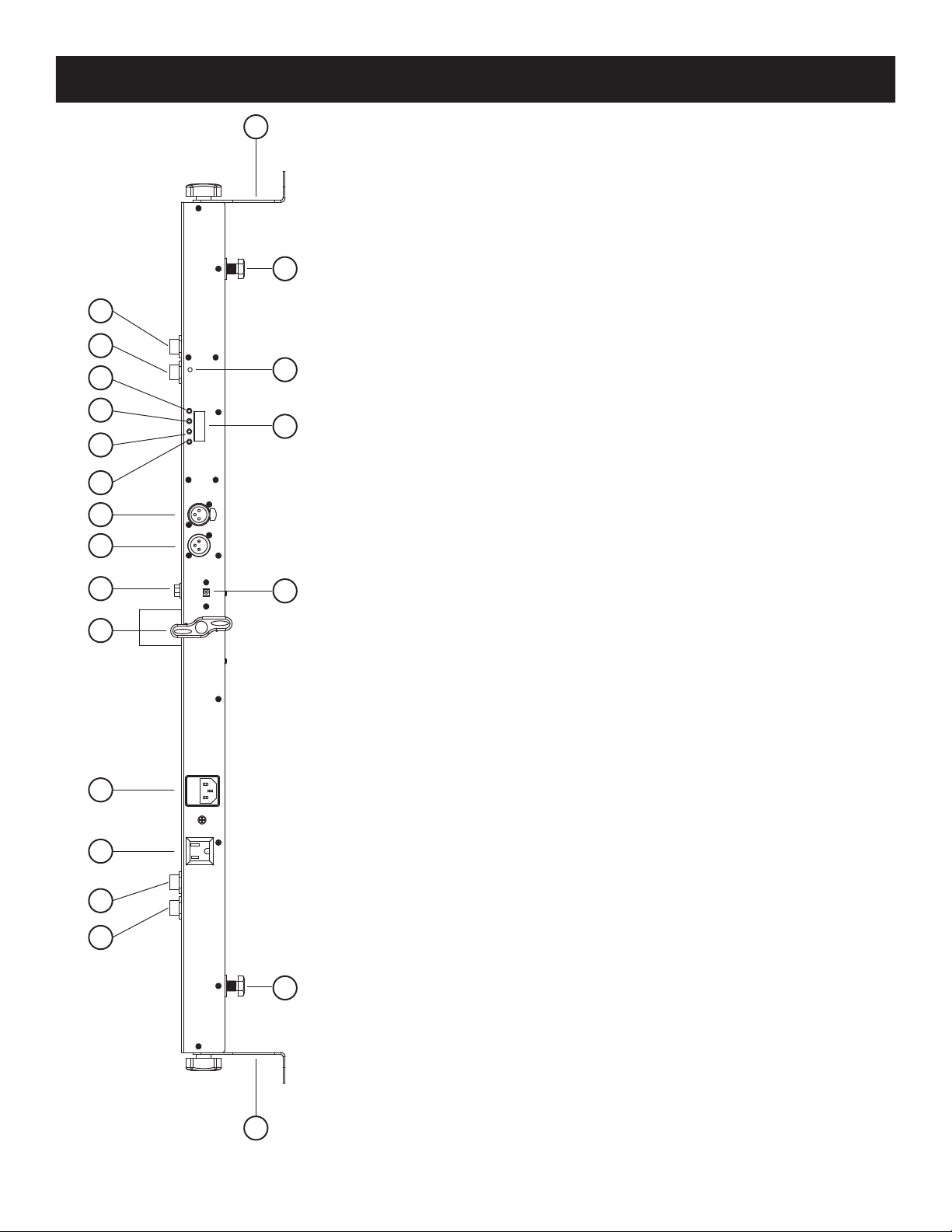

Starbar Wash Overview

1. 2 x Brackets

2. 2 x Rigging Points (M10 Bolts Included)

3. Microphone

4. LCD Display

5. IR Sensor

6. 4 x Par 6-Pin Connections

7. MENU Button

8. UP Button

9. DOWN Button

10. ENTER Button

11. 3-Pin DMX Out

12. 3-Pin DMX In

13. Foot Controller 3-Pin Connection

14. Light Bar Adjustment Knob

15. I.E.C. Power Input & Fuse Holder

16. Power Output (Edison Socket)

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 8

17 18

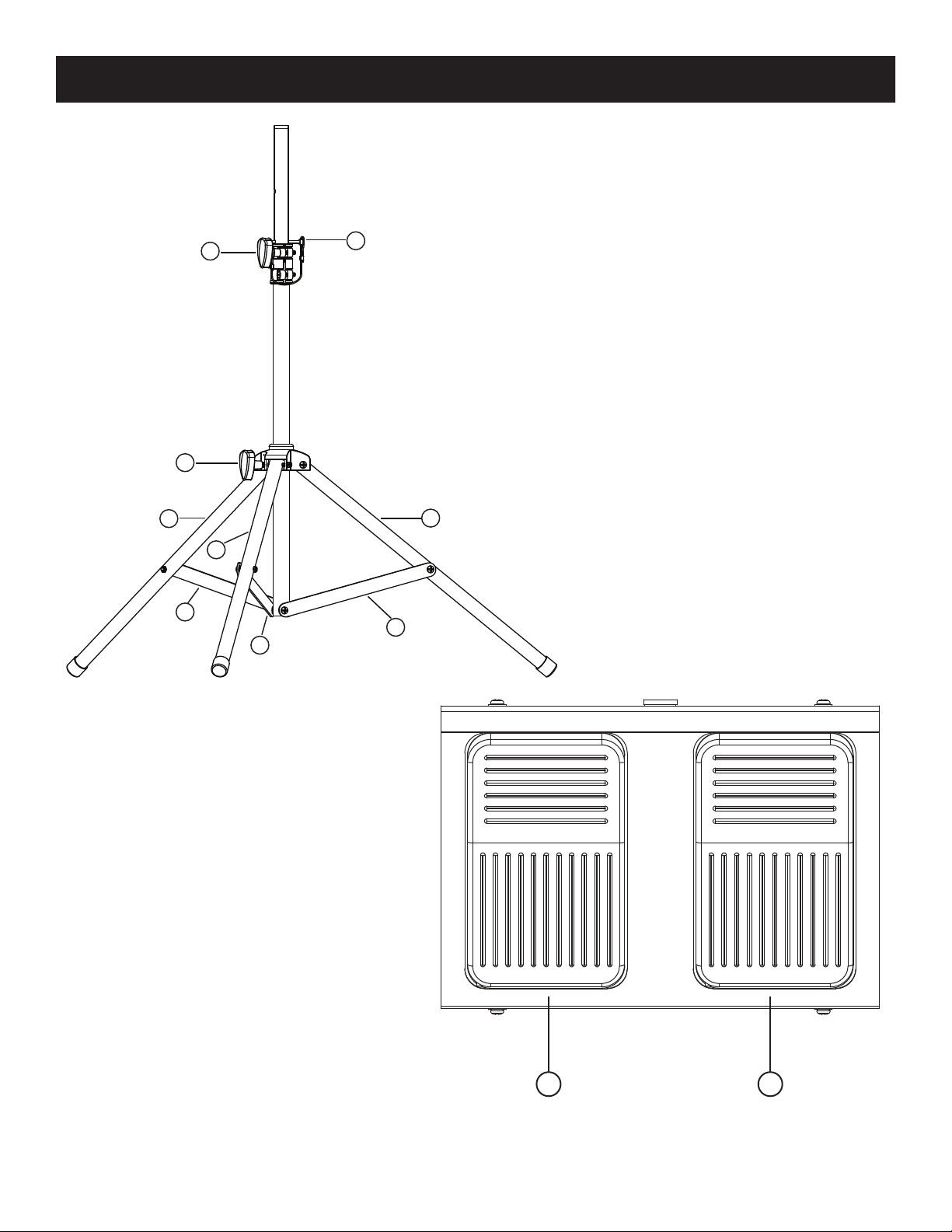

Starbar Wash Overview

17. Center Adjustment Knob

18. Locking Pin

19. Base/Leg Adjustment Knob

20. 3 x Tripod Legs

21. 3 x Tripod Stays

22. Left Foot Pedal

23. Right Foot Pedal

22 23

ADJ Products, LLC - www.adj.com - Starbar Wash User Manual Page 9

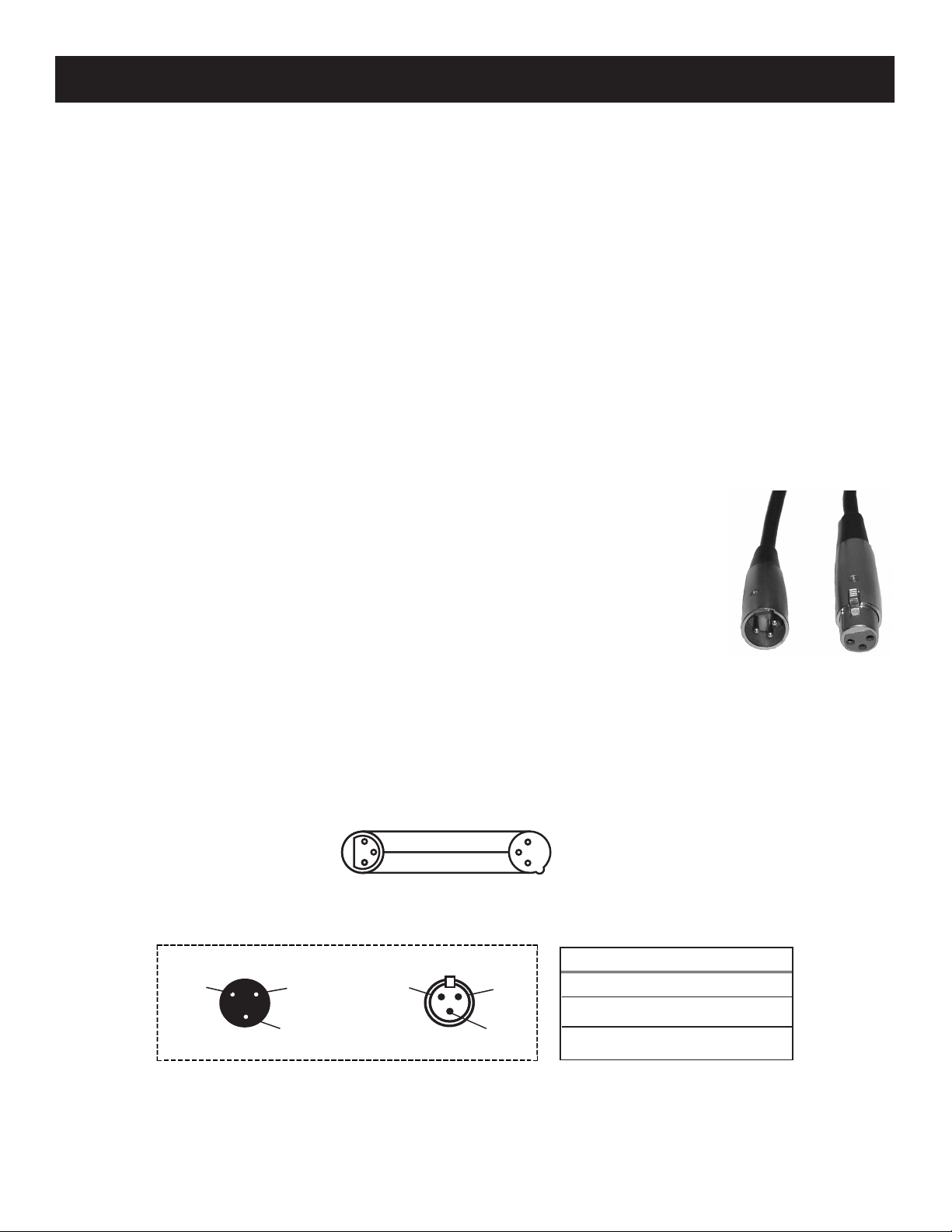

Starbar Wash DMX Set Up

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of communication

between intelligent fixtures and controllers. A DMX controller sends DMX data instructions from

the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the

DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a

DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use

the shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed

anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The Starbar Wash can be controlled

via DMX-512 protocol. The Starbar Wash has 5 DMX channel modes. The DMX address is set on the

back panel of the Starbar Wash. Your unit and your DMX controller require a standard 3-pin XLR connector

for data input and data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making your

own cables, be sure to use standard 110-120 Ohm shielded cable (This cable may

be purchased at almost all pro lighting stores). Your cables should be made with a

male and female XLR connector on either end of the cable. Also remember that

DMX cable must be daisy chained and cannot be split.

Figure 1

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground

lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the

shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a

short circuit and erratic behavior.

DMX512 IN

3-PIN XLR

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

DMX +

DMX -

COMMON

DMX512 OT

3-PIN XLR

Figure 2

Figure 3

1 Ground 1 Ground

XLR Male Socket XLR Pin Conguration

3 Hot

2 Cold 2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Autres manuels pour StarTec Series

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ TRI18XS Manuel utilisateur

ADJ

ADJ WOLFMIX WMX1 Manuel utilisateur

ADJ

ADJ DMX OPERATOR 384 Manuel utilisateur

ADJ

ADJ UV Panel HP Manuel utilisateur

ADJ

ADJ SCENE SETTER 48 Manuel utilisateur

ADJ

ADJ Vizi BSW 300 Manuel utilisateur

ADJ

ADJ VIZI BEAM 5RX Manuel utilisateur

ADJ

ADJ MEGA TRI BAR Manuel utilisateur

ADJ

ADJ Vizi Q Wash7 Manuel utilisateur

ADJ

ADJ MEGA HEX PAR Manuel utilisateur

ADJ

ADJ stinger ii Manuel utilisateur

ADJ

ADJ ECO UV BAR PLUS IR Manuel utilisateur

ADJ

ADJ Mega Go Bar 50 Manuel d'utilisation et d'entretien

ADJ

ADJ WOLFMIX WMX1 Manuel utilisateur

ADJ

ADJ MDF2PSUX117 Guide de l'utilisateur

ADJ

ADJ ENTOUR HAZE PRO Manuel utilisateur

ADJ

ADJ POCKET PRO Manuel utilisateur

ADJ

ADJ StarTec Series Manuel utilisateur

ADJ

ADJ INNO POCKET ROLL Manuel utilisateur

ADJ

ADJ M-1212 Manuel utilisateur

ADJ

ADJ Color Stand LED Manuel utilisateur

ADJ

ADJ Flat Par Tri18 Manuel utilisateur

ADJ

ADJ Eliminator Lighting FROST FX BAR W Manuel utilisateur

ADJ

ADJ VIZI CMY300 Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
