ADJ ENCORE FR50Z Manuel utilisateur

User Instructions

10/17

ENCORE FR50Z

instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying

product names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection

claimed includes all forms and matters of copyrightable materials and information now allowed by

statutory or judicial law or hereinafter granted. Product names used in this document may be

trademarks or registered trademarks of their respective companies and are hereby acknowledged.

All non-ADJ Products, LLC brands and product names are trademarks or registered trademarks of

their respective companies.

ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property,

equipment, building, and electrical damages, injuries to any persons, and direct or indirect economic

loss associated with the use or reliance of any information contained within this document, and/or as

a result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and opera-

tion of this product.

Europe Energy Saving Notice

Energy Saving Matters (EuP 2009/125/EC)

Saving electric energy is a key to help protecting the enviroment. Please turn o all electrical products when

they are not in use. To avoid power consumption in idle mode, disconnect all electrical equipment from power

when not in use. Thank you!

Date Document

Version

Software

Version

DMX

Channel

Mode

Notes

DOCUMENT VERSION

Please check www.adj.com for the latest revision/update of this guide.

10/18/17 1 1.03 1/2/3/4 Initial Release

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 2

Encore FR50z Table of Contents

Introduction

Features

Warranty Registration

Installation

Safety Precautions

DMX Set Up

System Menu

Operating Instructions

Master-Slave Conguration

DMX Channel Modes

Dimmer Curve Chart

Dimensional Drawing

Warranty

Technical Specications

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 3

Encore FR50z Introduction

Unpacking: Thank you for purchasing the Encore FR50z by ADJ Products, LLC. Every Encore FR50z

has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping. If the carton appears to be dam-

aged, carefully inspect your xture for any damage and be sure all accessories necessary to operate

the unit has arrived intact. In the case damage has been found or parts are missing, please contact our

toll free customer support number for further instructions. Do not return this unit to your dealer without

rst contacting customer support.

Introduction: The ADJ Encore FR50z is a DMX intelligent, high powered LED fresnel fixture. This xture

can be used in a stand alone set up or connected in a Master/Slave set up. The Encore FR50z has two

operating modes: dimmer control and DMX controlled. To optimize the performance of this product,

please read these operating instructions carefully to familiarize yourself with the basic operations of

this unit. These instructions contain important safety information regarding the use and maintenance

of this unit. Please keep this manual with the unit, for future reference.

Customer Support: ADJ provides a customer support line, to provide set up help and to answer any

question should you encounter problems during your set up or initial operation. You may also visit us

on the web at www.adj.com for any comments or suggestions. Service Hours are Monday through

Friday 8:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: (323) 582-3322

Fax: (323) 582-3108

E-mail: support@AmericanDJ.com

Warning! To prevent or reduce the risk of electrical shock or re, do not expose this unit to rain or

moisture.

Caution! There are no user serviceable parts inside this unit. Do not attempt any repairs yourself,

doing so will void your manufactures warranty. In the unlikely event your unit may require service

please contact ADJ Products, LLC.

PLEASE recycle the shipping carton when ever possible.

Encore FR50z Features

• Two Operating Modes

• Electronic Dimming 0-100%

• DMX-512 protocol

• 4 DMX Channel Modes

• 3-Pin In/Out DMX Connection

• PowerCON In/Out Connection

• USB Data Update

• Gamma Adjustment

• 5 Dimmer Curves

• Multiple Unit Power Linking (See page 14)

Encore FR50z Warranty Registration

Encore FR50z Installation

The Encore FR50z carries a 2 year limited warranty. Please fill out the enclosed warranty card to

validate your purchase. All returned service items whether under warranty or not, must be freight pre-

paid and accompany a return authorization (R.A.) number. The R.A. number must be clearly written on

the outside of the return package. A brief description of the problem as well as the R.A. number must

also be written down on a piece of paper included in the shipping carton. If the unit is under warranty,

you must provide a copy of your proof of purchase invoice. You may obtain a R.A. number by con-

tacting our customer support team on our customer support number. All packages returned to the

service department not displaying a R.A. number on the outside of the package will be returned to the

shipper.

The unit should be mounted using a mounting clamp (not provided), axing it to the mounting

bracket that is provided with the unit. Always ensure that the unit is rmly xed to avoid vibration

and slipping while operating. Always ensure that the structure to which you are attaching the unit is

secure and is able to support a weight of 10 times the unit’s weight. Also, always use a safety cable

that can hold 12 times the weight of the unit when installing the xture.

The equipment must be installed by a professional, and it must be installed in a place where it is out

of the reach of people’s grasp.

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 4

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 5

Encore FR50z Safety Precautions

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• Do not spill water or other liquids into or on to your unit.

• Do not attempt to operate this unit if the power cord has been frayed or broken. Do not attempt to

remove or break o the ground prong from the electrical cord. This prong is used to reduce the risk

of electrical shock and re in case of an internal short.

• Disconnect from main power before making any type of connection.

• Do not remove the cover under any conditions. There are no user serviceable parts inside.

• Never operate this unit when it’s cover is removed.

• Never plug this unit in to a dimmer pack

• Always be sure to mount this unit in an area that will allow proper ventilation. Allow about 6”

(15cm) between this device and a wall.

• Do not attempt to operate this unit, if it becomes damaged.

• This unit is intended for indoor use only, use of this product outdoors voids all warranties.

• During long periods of non-use, disconnect the unit’s main power.

• Always mount this unit in safe and stable matter.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by

items placed upon or against them, paying particular attention to the point they exit from the unit.

• Cleaning -The fixture should be cleaned only as recommended by the manufacturer. See page 15

for cleaning details.

• Heat -The appliance should be situated away from heat sources such as radiators, heat registers,

stoves, or other appliances (including amplifiers) that produce heat.

• The fixture should be serviced by qualified service personnel when:

A. The power-supply cord or the plug has been damaged.

B. Objects have fallen, or liquid has been spilled into the fixture.

C. The fixture has been exposed to rain or water.

D. The fixture does not appear to operate normally or exhibits a marked change in performance.

E. The fixture has fallen and/or subjected to extreme handling.

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 6

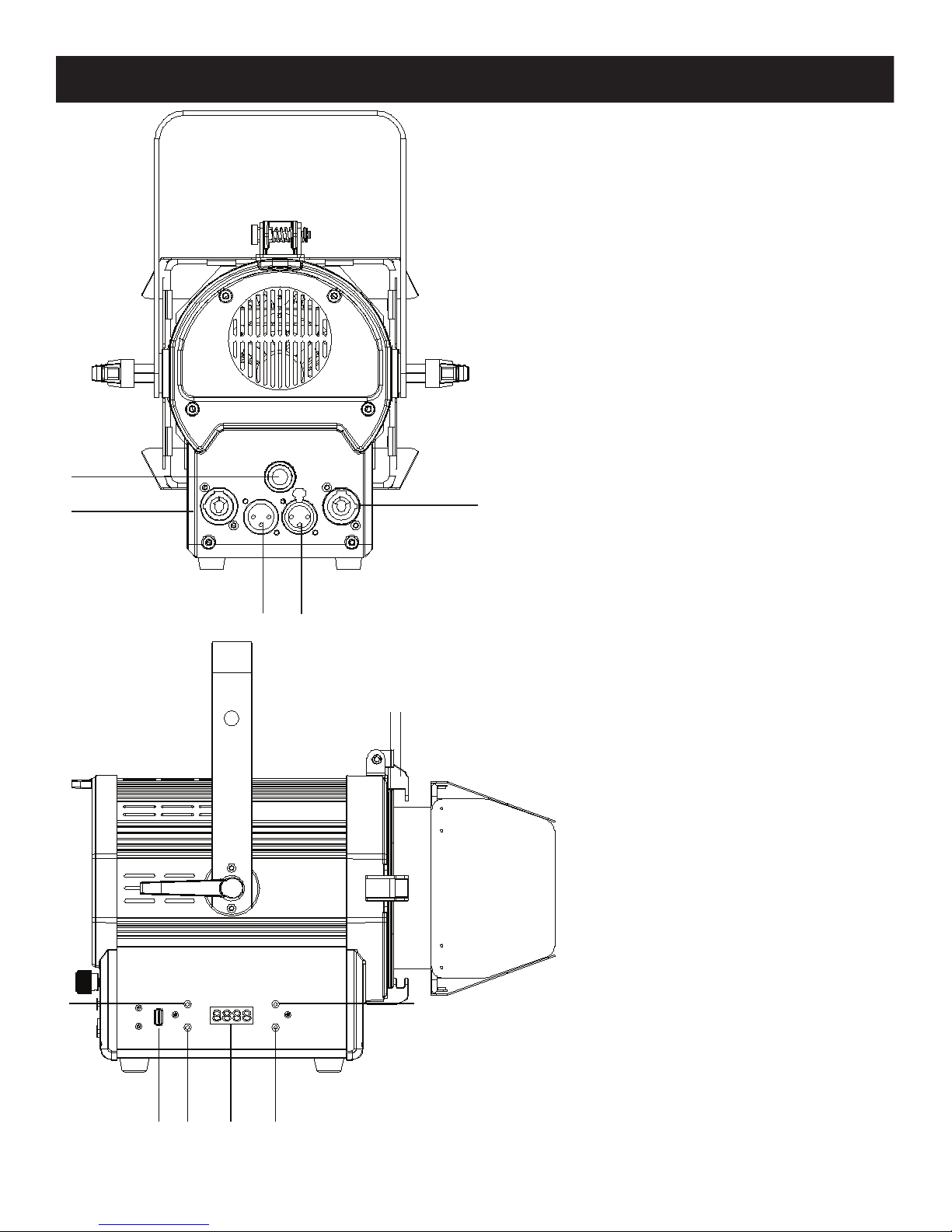

Encore FR50z Layout

1. Zoom Adjustment Knob

2. PowerCON In

3. 3-Pin DMX In

4. 3-Pin DMX Out

5. PowerCON Out

6. Mode Button

7. USB Port

8. Enter Button

9. LCD Menu Control Display

10. Down Button

11. Up Button

12. Barn Door Secure Lock

13. Gel Frame

3 4

611

7 8 9 10

1213

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 7

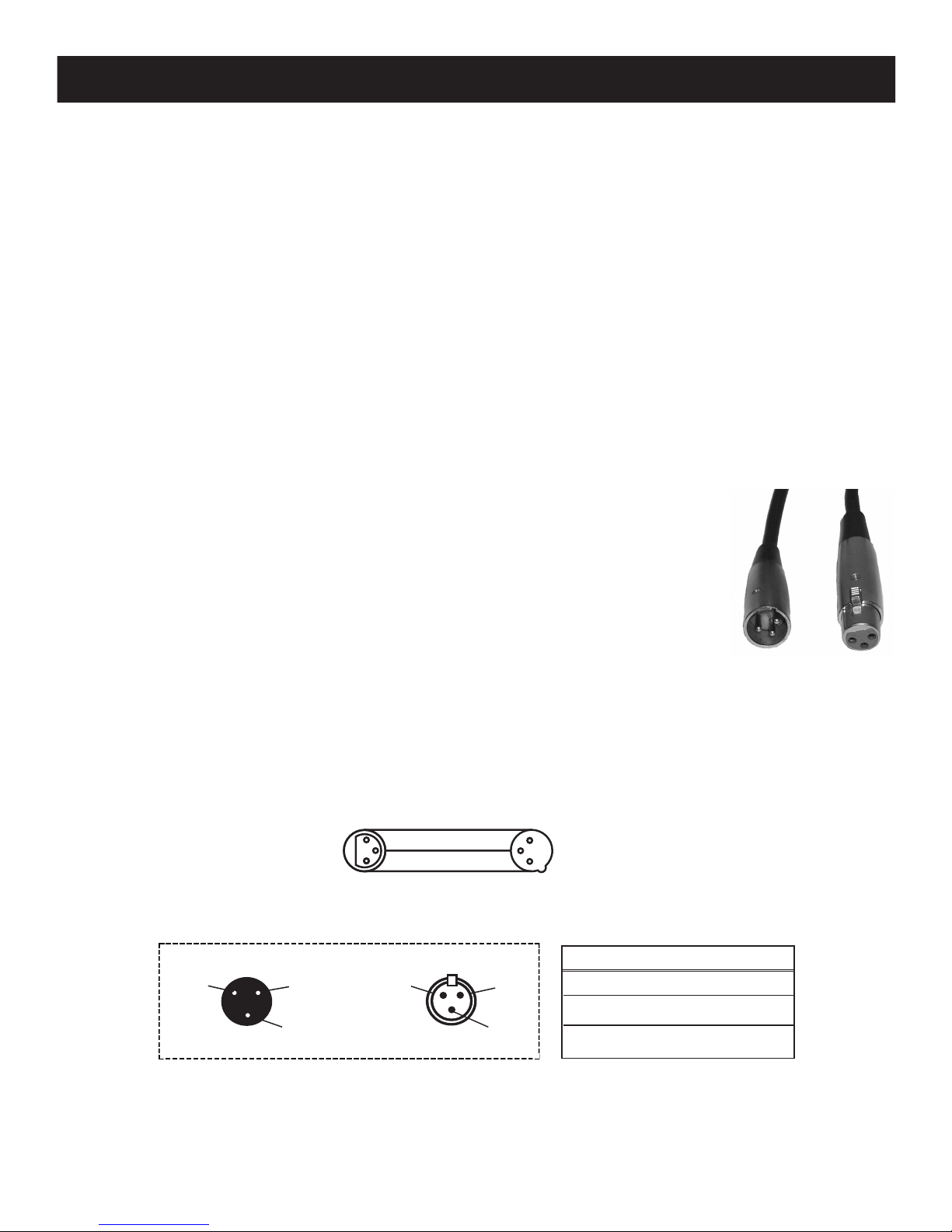

Encore FR50z DMX Set Up

Power Supply: The ADJ Encore FR50z contains a automatic voltage switch, which will auto sense the

voltage when it is plugged into the power source. With this switch there is no need to worry about the

correct power voltage, this unit can be plugged in anywhere.

DMX-512: DMX is short for Digital Multiplex. This is a universal protocol used as a form of commu-

nication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions

from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only

have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of dierent manufactures to be

linked together and operate from a single controller, as long as all xtures and the controller are DMX

compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use

the shortest cable path possible. The order in which fixtures are connected in a DMX line does not

influence the DMX addressing. For example; a fixture assigned a DMX address of 1 may be placed

anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that

unit, no matter where it is located in the DMX chain.

Data Cable (DMX Cable) Requirements (For DMX Operation): The Encore FR50z

can be controlled via DMX-512 protocol. The Encore FR50z has 5 DMX channel

modes. The DMX address is set on the back panel of the Encore FR50z. Your unit

and your DMX controller require a standard 3-pin XLR connector for data input and

data output (Figure 1). We recommend Accu-Cable DMX cables. If you are making

your own cables, be sure to use standard 110-120 Ohm shielded cable (This cable

may be purchased at almost all pro lighting stores). Your cables should be made

with a male and female XLR connector on either end of the cable. Also remember

that DMX cable must be daisy chained and cannot be split. Figure 1

Notice: Be sure to follow gures two and three when making your own cables. Do not use the ground

lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the

shield conductor to come in contact with the XLR’s outer casing. Grounding the shield could cause a

short circuit and erratic behavior.

DMX512 IN

3-PIN XLR

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

DMX +

DMX -

COMMON

DMX512 OT

3-PIN XLR

Figure 2

Figure 3

1 Ground 1 Ground

XLR Male Socket XLR Pin Conguration

3 Hot

2 Cold 2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are used, you may need to use a termina-

tor on the last unit to avoid erratic behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is

connected between pins 2 and 3 of a male XLR connector (DATA + and DATA -). This unit is inserted

in the female XLR connector of the last unit in your daisy chain to terminate the line. Using a cable

terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic behavior.

Encore FR50z DMX Set Up

DMX512 IN

3-PIN XLR

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

DMX +

DMX -

COMMON

DMX512 OT

3-PIN XLR

Figure 4

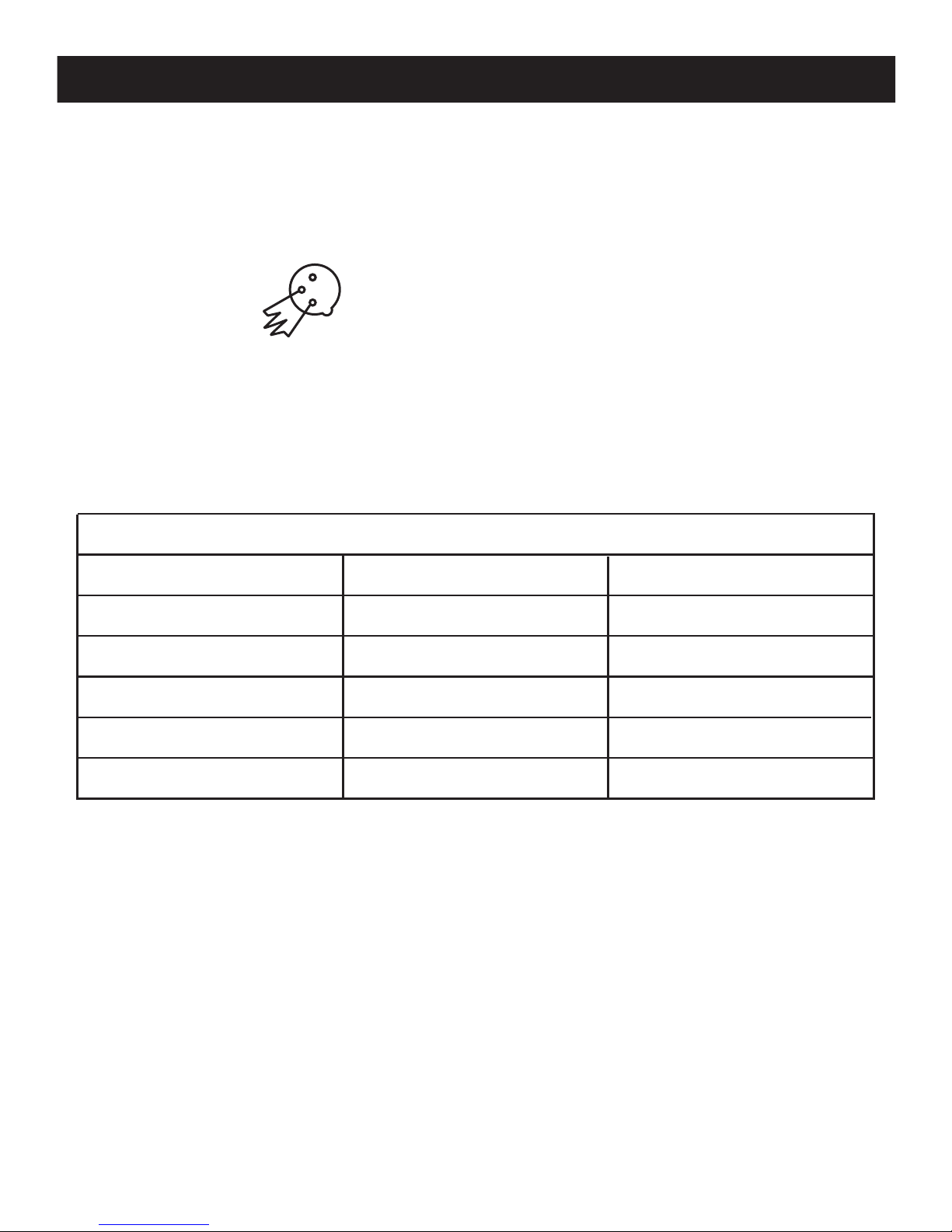

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin DMX-512 data cables for DATA transmis-

sion in place of 3-pin. 5-pin DMX xtures may be implemented in a 3-pin DMX line. When inserting

standard 5-pin data cables in to a 3-pin line a cable adaptor must be used, these adaptors are readily

available at most electric stores. The chart below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 8

ADJ Products, LLC - www.adj.com - Encore FR50z User Manual Page 9

Encore FR50z System Menu

Ope ning Display

Update Wait…

EFR50Z

V1.03

Interface Display DMX:2CH

ADDR:001

Addre s s

001 001-509

User Mode

1CH

2CH

3CH

4CH

Function

Status Los t Dmx Bla ck/Hold

LCD.S e t

Display

Key Lock

Flash

ON/OFF

Temp. C/F C

Di m Curve

Standard

Stage

Architec

Theatre

Dis p.S e t

ADDR

Disp. CH

Slave

Ga mma2.0/2.2/2.4/2.8

USB Data Off ON/OFF

DFS E ON/OFF

Info

Time Info

Curre nt

Tota l

La s t

P a s sword

Cle a r

Current Running Time

(Hours)

Tota l Running Time (Hours)

Last RunningTime Cleared

Clear Running Time

（P a s sword=05 0）

ON/OFF

TempInfo LED Te mp

Err. Info TempErr

Model Inf Encore FR50Z

S oftware V1.03

Ma nCtrl Dimmer=XXX

S trobe =XXX

MENU SUBMENU OPTIONS (Default Settings in BOLD)DESCRIPTION

Specications are subject to change without any prior written notice

(Hours)

Return to Default Settings

Software Upload

Gamma Brightness

Main Display Setting

Dimming Curve Modes

Temperature Setting

Display Settings

DMX Lost Status

DMX Channel Mode

Selection

DMX Addressing

Main Display

Start Up Display

Current LED Temperature

Error Information

Model Identification

Current Software Version

Manual Control Mode

Autres manuels pour ENCORE FR50Z

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels ADJ Matériel de DJ

ADJ

ADJ INNO ROLL HP Manuel utilisateur

ADJ

ADJ PAR Z120 RGBW Manuel utilisateur

ADJ

ADJ AV6XS Manuel utilisateur

ADJ

ADJ UV LED BAR20 IR Manuel utilisateur

ADJ

ADJ MDF2PSUX156 Guide de l'utilisateur

ADJ

ADJ Encore Profile 1000 WW Manuel utilisateur

ADJ

ADJ UV Panel HP Manuel utilisateur

ADJ

ADJ Inno Pocket Wash Manuel utilisateur

ADJ

ADJ H20 IR Manuel utilisateur

ADJ

ADJ HYDRO WASH X7 Manuel utilisateur

ADJ

ADJ M-103HD Manuel utilisateur

ADJ

ADJ WOLFMIX WMX1 Manuel utilisateur

ADJ

ADJ BubbleTron Xl Manuel utilisateur

ADJ

ADJ PIXIE DRIVER 2000 Manuel utilisateur

ADJ

ADJ PinPoint Gobo COLOR Manuel utilisateur

ADJ

ADJ StarTec Series Manuel utilisateur

ADJ

ADJ FLAT PAR QWH5XS Manuel utilisateur

ADJ

ADJ Vizi BSW 300 Manuel utilisateur

ADJ

ADJ VIZI BEAM 5RX Manuel utilisateur

ADJ

ADJ ELEMENT H6 PAK Manuel utilisateur

ADJ

ADJ ENCORE PROFILE PRO COLOR Manuel utilisateur

ADJ

ADJ MOD STQ Manuel utilisateur

ADJ

ADJ ENCORE PROFILE MINI COLOR Manuel utilisateur

ADJ

ADJ LTS COLOR Manuel utilisateur

Manuels Matériel de DJ populaires d'autres marques

ALPHA LITE

ALPHA LITE ALPHA 1500 Manuel du propriétaire

Chauvet

Chauvet OVATION E-930VW Manuel utilisateur

Zumtobel

Zumtobel APHRODITE Home Manuel utilisateur

Snow Masters

Snow Masters Zig Oscillator Manuel utilisateur

EuroLite

EuroLite 50530554 Manuel utilisateur

Beamz

Beamz BUV243 Manuel utilisateur

thomann

thomann Stairville DJ Lase 40-G MK-III Manuel utilisateur

Eagletone

Eagletone 6 Eyes Flower Manuel utilisateur

EuroLite

EuroLite FLD-1508 Manuel utilisateur

Technical Pro

Technical Pro LG8xSEA Manuel utilisateur

JB Systems

JB Systems Lounge Laser DMX Manuel utilisateur

Lightmaxx

Lightmaxx Vega Halo 90 Manuel utilisateur

Elation

Elation FUZE WASH Z350 Manuel utilisateur

Maverick

Maverick MK3 WASH Manuel utilisateur

Infinity

Infinity TF-260C7 Fresnel Manuel utilisateur

Chauvet

Chauvet EVE E-50Z Manuel utilisateur

Eliminator Lighting

Eliminator Lighting E 138 Manuel utilisateur

EuroLite

EuroLite Mini Multicolor LED Flashing Light SC Manuel utilisateur
