ADF Web HD67771-A1 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 1 of 31

User Manual

Revision 1.000

En lish

IEC61850 Client / EtherNet/IP Slave -

Converter

(Order Code: HD67771-A1)

for Website information:

http://www.adfweb.com/?Product=HD67771

for Price information:

http://www.adfweb.com/?Price=HD67771-A1

Benefits and Main Features

Triple electrical isolation

Two Ethernet ports

Temperature ran e: -40°C/+85°C (-40°F/+185°F)

For others IEC61850 Client devices, see also the followin links:

IEC61850 Client from/to …

www.adfweb.com?Product=HD67765 (Modbus Slave)

www.adfweb.com?Product=HD67766 (Modbus TCP Slave)

www.adfweb.com?Product=HD67767 (BACnet Slave)

www.adfweb.com?Product=HD67768 (CAN)

www.adfweb.com?Product=HD67769 (CANopen)

www.adfweb.com?Product=HD67770 (DeviceNet Slave)

www.adfweb.com?Product=HD67772 (J1939)

www.adfweb.com?Product=HD67773 (KNX)

www.adfweb.com?Product=HD67774 (MQTT)

www.adfweb.com?Product=HD67775 (NMEA0183)

www.adfweb.com?Product=HD67776 (NMEA2000)

www.adfweb.com?Product=HD67777 (PROFIBUS Slave)

www.adfweb.com?Product=HD67778 (PROFINET)

www.adfweb.com?Product=HD67779 (SNMP Agent)

Do you have an your customer protocol?

See the followin links:

www.adfweb.com?Product=HD67003

Do you need to choose a device? do you want help?

Ask it to the followin link:

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 2 of 31

INDEX

Pa e

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

ETHERNET 10

USE OF COMPOSITOR SW67771 11

NEW PROJECT / OPEN PROJECT 12

SOFTWARE OPTIONS 13

SET COMMUNICATION 15

IEC61850 ACCESS 16

UPDATE DEVICE 22

PLC CONFIGURATION 24

MECHANICAL DIMENSIONS 28

ORDERING INFORMATIONS 29

ACCESSORIES 29

DISCLAIMER 30

OTHER REGULATIONS AND STANDARDS 30

WARRANTIES AND TECHNICAL SUPPORT 31

RETURN POLICY 31

Pagina 2 di 31

UPDATED DOCUMENTATION

Dear customer, we thank you for your attention and we remind you that

you need to check that the followin document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top ri ht-hand corner of each pa e of this document.

With this “Document Code” o to web pa e www.adfweb.com/download/

and search for the correspondin code on the pa e. Click on the proper

“Document Code” and download the updates.

REVISION LIST

Revision

Date Author

Chapter

Description

1.000 14/09/2020 Ff All First release version

WARNING

ADFweb.com reserves the ri ht to chan e information in this manual about

our product without warnin .

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS

All trademarks mentioned in this document belon to their respective

owners.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 3 of 31

SECURITY ALERT

ENERAL

NFORMATION

To ensure safe operation, the device must be operated accordin to the instructions in the manual. When usin the device, le al and

safety re ulation are required for each individual application. The same applies also when usin accessories.

NTENDED

Machines and systems must be desi ned so the faulty conditions do not lead to a dan erous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissionin and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the followin symbol:

This symbol indicates that non-observance of the safety instructions is a dan er for people that could lead to serious injury or

death and / or the possibility of dama e.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or ive us a call if you need it.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 4 of 31

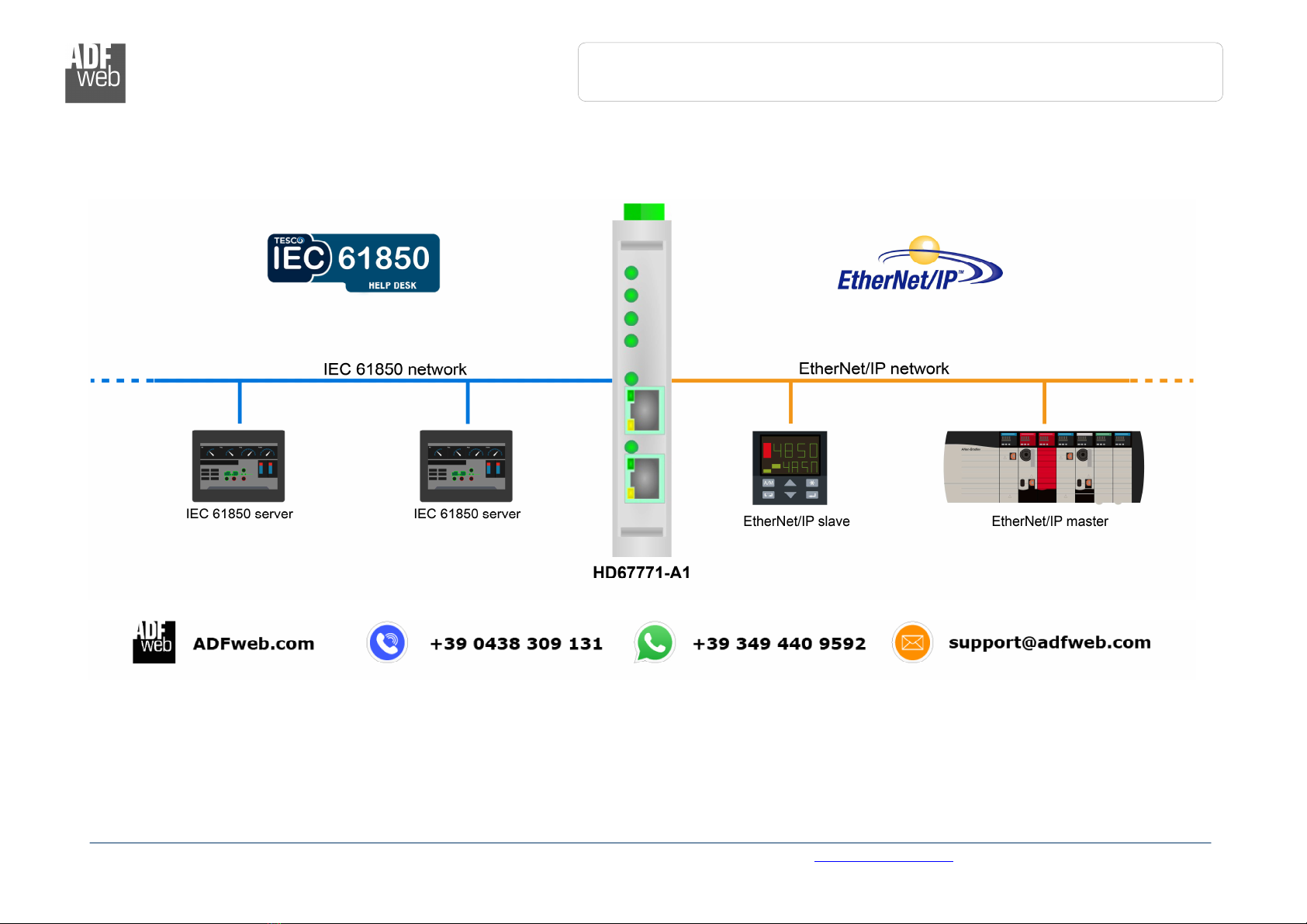

EXAMPLE OF CONNECTION

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 5 of 31

CONNECTION SCHEME

Figure

: Connection scheme for HD67

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 6 of 31

CHARACTERISTICS

The HD67771-A1 is a IEC61850 Client / EtherNet/IP Slave converter.

It allows the followin characteristics:

Up to 496 bytes in readin and 496 bytes in writin ;

Two-directional information between EtherNet/IP and IEC61850;

Mountable on 35mm Rail DIN;

Wide power supply input ran e: 8…24V AC or 12…35V DC;

Wide temperature ran e: -40°C / 85°C [-40°F / +185°F].

CONFIGURATION

You need Compositor SW67771 software on your PC in order to perform the followin :

Define the parameters of the IEC61850;

Define the parameters of the EtherNet/IP;

Define IEC61850 variables to be read by the EtherNet/IP master;

Define IEC61850 variables to be written by the EtherNet/IP master;

Update the device.

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 7 of 31

POWER SUPPLY

The devices can be powered between a wide ran e of tensions. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

HD67771-A1 8V 24V 12V 35V

Consumption at 24V DC:

Device W/VA

HD67771-A1 4

Caution Not reverse the polarity power

HD67771-A1

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 8 of 31

FUNCTION MODES

The device has ot two functions mode dependin of the position of the Dip1 of ‘Dip-Switch A’:

The first, with Dip1 in Off position (factory settin ), is used for the normal workin of the device.

The second, with Dip1 in On position, is used for upload the Project/Firmware.

For the operations to follow for the updatin (see ‘UPDATE DEVICE’ section).

Accordin to the functionin mode, the LEDs will have specifics functions (see ‘LEDS’ section).

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 9 of 31

LEDS

The device has ot six LEDs that are used to ive information of the functionin status.

The various meanin s of the LEDs are described in the table below.

LED Normal Mode Boot Mode

1: ON [supply volta e ]

( reen)

ON Device powered

OFF Device not powered

ON Device powered

OFF Device not powered

2: Device State ( reen) Blinks slowly (~1Hz) Blinks quickly Boot state

Blinks very slowly (~0.5Hz) update in pro ress

3: IEC61850 comm. ( reen)

ON At least one IEC61850 Server is disconnected

Flashing IEC61850 response

OFF No IEC61850 response

Blinks quickly Boot state

Blinks very slowly (~0.5Hz) update in pro ress

4: EtherNet/IP comm.

( reen)

Flashing EtherNet/IP communication

OFF No EtherNet/IP communication

Blinks quickly Boot state

Blinks very slowly (~0.5Hz) update in pro ress

5: Ethernet1 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state

Blinks very slowly (~0.5Hz) update in pro ress

6: Ethernet2 Tx ( reen) Blinks when is transmittin Ethernet frames Blinks quickly Boot state

Blinks very slowly (~0.5Hz) update in pro ress

Industrial Electronic Devices

ADFweb.com Srl – IT31010 – Mareno – Treviso INFO: www.adfweb.com hone +39.0438.30.91.31

User Manual

IEC61850 Client /

ther

et/

Slave

Document code: MN67771_ENG Revision 1.000 Pa e 10 of 31

ETHERNET

The Ethernet connection must be made usin Connector3 or Connector4 of HD67771-A1 with at least a Cate ory 5E cable. The maximum

len th of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To

connect the device to an Hub/Switch is recommended the use of a strai ht cable, to connect the device to a PC/PLC/other is recommended

the use of a cross cable.
