ADF Web HD67044- B2-80 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page of 37

User Manual

Revision 2. 00

English

M-Bus Master / Modbus TCP Slave - Converter

(Order Code: HD67044-B2-20, HD67044-B2-40, HD67044-

B2-80, HD67044-B2- 60, HD67044-B2-250)

For Website information:

www.adfweb.com?Product=HD67044-B2

For Price information:

www.adfweb.com?Price=HD67044-B2-20

www.adfweb.com?Price=HD67044-B2-40

www.adfweb.com?Price=HD67044-B2-80

www.adfweb.com?Price=HD67044-B2- 60

www.adfweb.com?Price=HD67044-B2-250

Benefits and Main Features:

Very easy to configure

Up to 250 standard M-Bus devices connected to the Converter

Power Supply 5…2 V AC or 8…35V DC

mperature ra

nge:

0°C/+

°C (

°F/+

°F)

For other M-Bus products see also the following link:

Converter - M-Bus /

www.adfweb.com?Product=HD6702 (RS232)

www.adfweb.com?Product=HD67022 (RS4 5)

www.adfweb.com?Product=HD67030 (Ethernet)

Analyzer & Scanner M-Bus

www.adfweb.com?Product=HD6703

M-Bus – Repeater - Isolator

www.adfweb.com?Product=HD67032

Converter - M-Bus Master/ Modbus Slave

www.adfweb.com?Product=HD67029M-232 (on RS232)

www.adfweb.com?Product=HD67029M-485 (on RS4 5)

M-Bus Master / PROFIBUS Slave - Converter

www.adfweb.com?Product=HD67053M

M-Bus – Concentrator - Datalogger

www.adfweb.com?Product=HD67054M

M-Bus Slave / Modbus Master - Converter

www.adfweb.com?Product=HD67059M-232

Do you need to choose a device? Do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 2 of 37

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

MODBUS TCP 0

M-BUS 0

USE OF COMPOSITOR SW67044

NEW PROJECT / OPEN PROJECT 2

SOFTWARE OPTIONS 3

SET COMMUNICATION 4

M-BUS 6

MANUFACTURER SPECIFIC DATA 30

UPDATE DEVICE 3

SCAN & DECODE FUNCTION 33

MECHANICAL DIMENSIONS 34

ORDER CODES 35

ACCESSORIES 35

DISCLAIMER 36

OTHER REGULATIONS AND STANDARDS 36

WARRANTIES AND TECHNICAL SUPPORT 37

RETURN POLICY 37

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION LIST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

2.000 03/ 2/20 2

Fl All New hardware version

2.00 29/03/20 3

Fl All Added new chapters

2.0 0 9/09/20 4

Fl All Software changed (v .800)

2. 00 5/06/20 7

Ff All New hardware version

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 3 of 37

SECURITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUAL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 4 of 37

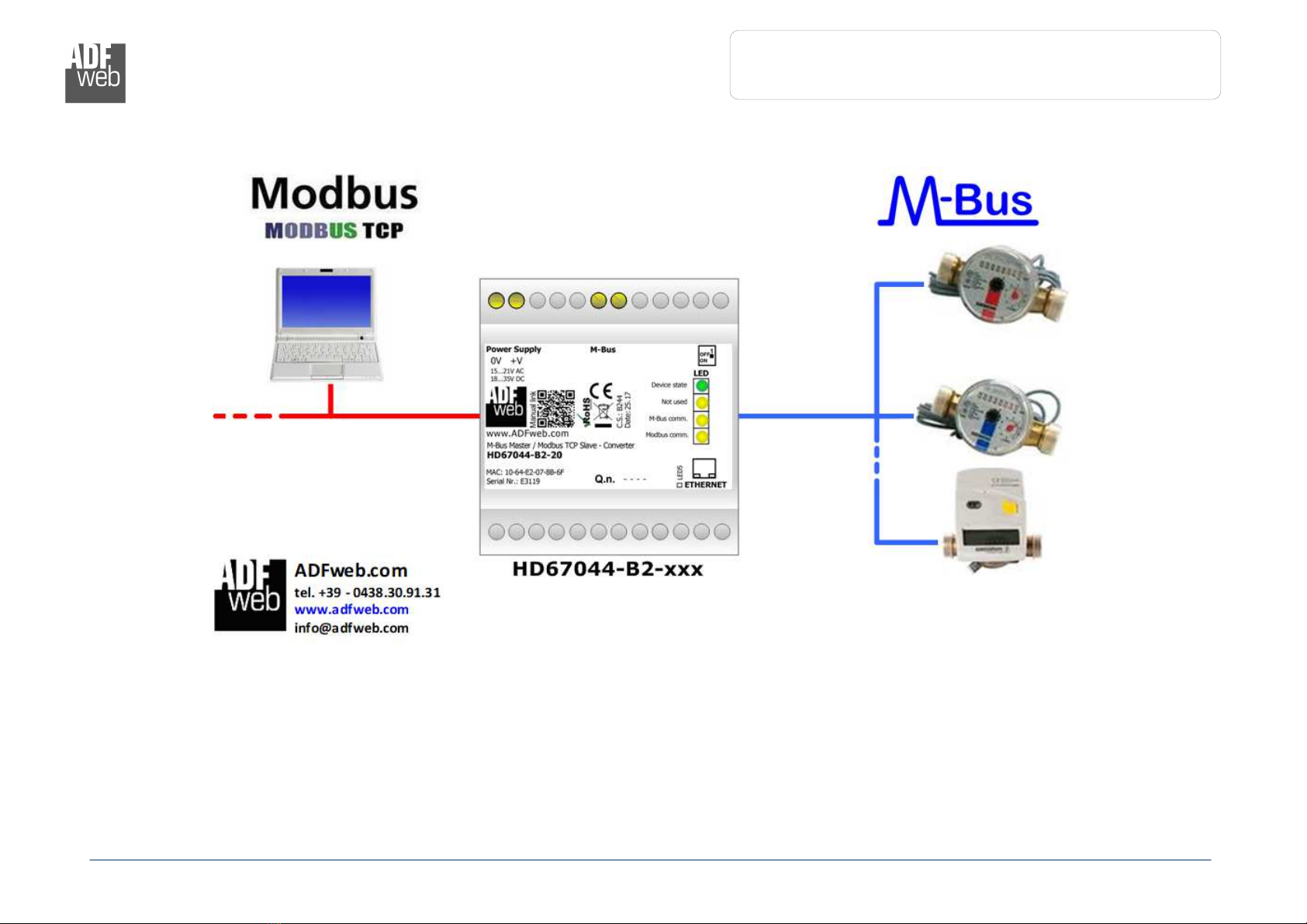

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 5 of 37

CONNECTION SCHEME:

Figure

: Connection scheme for HD670

xxx

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 6 of 37

CHARACTERISTICS:

The HD67044-B2-xxx is a M-Bus Master / Modbus TCP Slave Converter.

It allows the following characteristics:

Electrical isolation between Ethernet and M-Bus;

Mountable on 35mm Rail DIN;

Power Supply 5…2 V AC or 8…35V DC;

Temperature range -40°C to 85°C.

At the Converter can be connected up to 250 standard M-Bus devices. This number depends of the code expressed by the xxx number:

HD67044-B2-20 support up to 20 M-Bus devices;

HD67044-B2-40 support up to 40 M-Bus devices;

HD67044-B2-80 support up to 80 M-Bus devices;

HD67044-B2- 60 support up to 60 M-Bus devices;

HD67044-B2-250 support up to 250 M-Bus devices.

In the case of HD67044-B2- 60 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet

back-plate. To avoid obstructions to the airflow around the unit it is recommended to not cover the paths of air.

In the case of HD67044-B2-250 the device must be mounted on 35mm DIN rail which is horizontally mounted on a wall or cabinet

back-plate. These units have a fan in the top of the enclosure. To avoid obstructions to the airflow around the unit it is recommended

to not cover the paths of air. Take care to not cover the fan. It is recommended to put the device into a ventilated cabinet.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 7 of 37

POWER SUPPLY:

The devices can be powered at 5…2 V AC and 8…35V DC. The consumption depends to the code of the device. For more details see the

two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

15V 21V 1 V 35V

Consumption at 24V DC:

Device No Load [W/VA] Full Load [W/VA]*

HD67044-B2-20

3.5

HD67044-B2-40 5

HD67044-B2-80 8

HD67044-B2- 60 4

HD67044-B2-250 30

* This value is with all the Slave M-Bus devices of the code (20, 40, 80, 60, 250) connected to the line

HD670

xxx

Caution: Not reverse the polarity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 8 of 37

FUNCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip of Dip-Switch A’:

The first, with ‘Dip of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip of Dip-Switch A’ at “ON” position, is used for upload the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 9 of 37

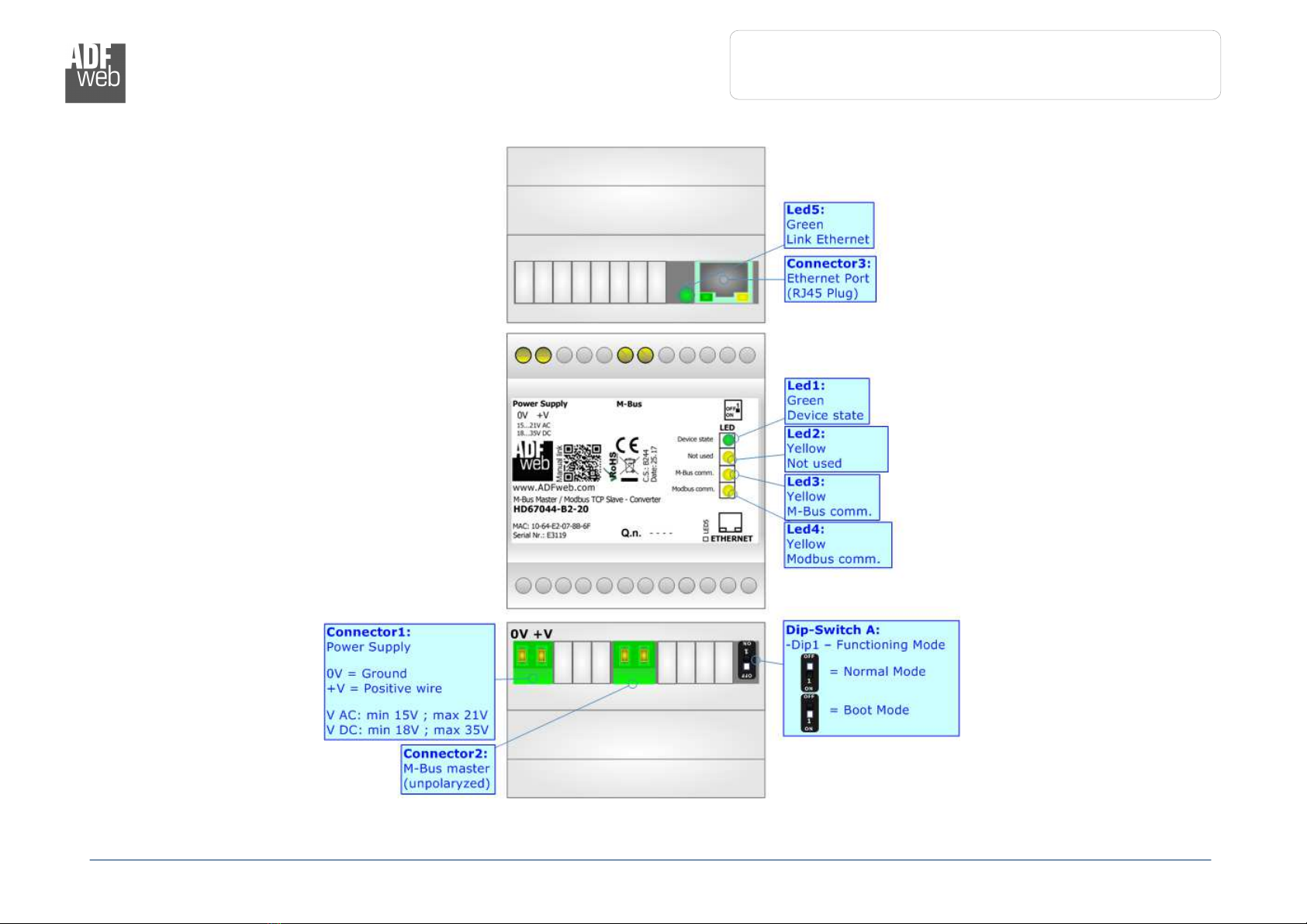

LEDS:

The device has got two LEDs that are used to give information of the functioning status.

The various meanings of the LEDs are described in the table below.

LED Normal Mode Boot Mode

: Device State (green) Blinks slowly (~ Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

2: Not used OFF Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: M-Bus Comm. Blinks quickly when a reply to a M-

Bus request arrives

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Modbus Comm. Changes state when receive a

correct Modbus request

Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Ethernet Link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Bus Mast

er / Modbus TCP Slave

Document code: MN67044_ENG Revision 2. 00 Page 0 of 37

MODBUS TCP :

The Modbus TCP connection must be made using Connector3 of HD67044-B2 with at least a Category 5E

cable. The maximum length of the cable should not exceed 00m. The cable has to conform to the T568

norms relative to connections in cat.5 up to 00 Mbps. To connect the device to an Hub/Switch is

recommended the use of a straight cable, to connect the device to a PC/PLC/other is recommended the

use of a cross cable.

M-BUS:

The M-Bus is a unpolarized bus.

A two wire standard telephone cable (JYStY N*2*0.8 mm) is used as the transmission medium for the M-Bus. The maximum distance

between a slave and the repeater is 350m; this length corresponds to a cable resistance of up 29Ω. This distance applies for the standard

configuration having Baud rates between 300 and 9600 Baud, and a maximum of 250 slaves. The maximum distance can be increased by

limiting the Baud rate and using fewer slaves, but the bus voltage in the space state must at no point in a segment fall below 2V, because

of the remote powering of the slaves. In the standard configuration the total cable length should not exceed 000m, in order to meet the

requirement of a maximum cable capacitance of 80nF. (Taken from M- us specifics)
