ADF Web HD67235-A1 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 1 of 26

User Manual

Revision 2.

English

DeviceNet Slave / CAN - Converter

(Order Code: HD67235-A1, HD67235-A3, HD67235-A4)

For Website information:

www.adfweb.com?Product=HD67235-A1

www.adfweb.com?Product=HD67235-A3

www.adfweb.com?Product=HD67235-A4

For Price information:

www.adfweb.com?Price=HD67235-A1

www.adfweb.com?Price=HD67235-A3

www.adfweb.com?Price=HD67235-A4

Benefits and Main Features:

Very easy to configure

Triple electrical isolation

Ethernet programmation

Temperature range: -4 °C/85°C (-4 °F/185°F)

For others Gateways / Bridges:

CANopen to DeviceNet

See also the following link:

www.adfweb.com?Product=HD67221

Do you have an your customer protocol?

www.adfweb.com?Product=HD67 3

Do you need to choose a device? do you want help?

www.adfweb.com?Cmd=helpme

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 2 of 26

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 7

CONFIGURATION 8

POWER SUPPLY 9

FUNCTIONING MODE 1

LEDS 11

CAN 12

DEVICENET 13

ETHERNET 13

USE OF COMPOSITOR SW67235 14

NEW CONFIGURATION / OPEN CONFIGURATION 15

SOFTWARE OPTIONS 16

SET COMMUNICATION 18

RECEIVE FRAMES 19

SEND FRAMES 2

UPDATE DEVICE 21

MECHANICAL DIMENSIONS 23

ORDERING INFORMATIONS 24

ACCESSORIES 24

DISCLAIMER 25

OTHER REGULATIONS AND STANDARDS 25

WARRANTIES AND TECHNICAL SUPPORT 26

RETURN POLICY 26

PRODUCTS AND RELATED DOCUMENTS 26

PDATED DOC MENTATION:

Dear customer, we thank you for your attention and we remind you

that you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document

code” that appears at the top right-hand corner of each page of this

document.

With this “Document Code” go to web page

www.adfweb.com/download/ and search for the corresponding code on

the page. Click on the proper “Document Code” and download the

updates.

REVISION LIST:

Revision

Date Author

Chapter

Description

1. 1 23/ 4/2 1 Fl All Change Fig.1

1. 2 16/ 7/2 1 FT All Revison

1. 3 11/ 2/2 13 Nt All Added new chapters

2. 16/ 2/2 16 Fl All New hardwre version

WARNING:

ADFweb.com reserves the right to change information in this manual

about our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 3 of 26

SEC RITY ALERT:

ENERAL

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e. independent

limit switches, mechanical interlocks, etc.).

ALIFIED

ERSONNEL

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESID AL

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 4 of 26

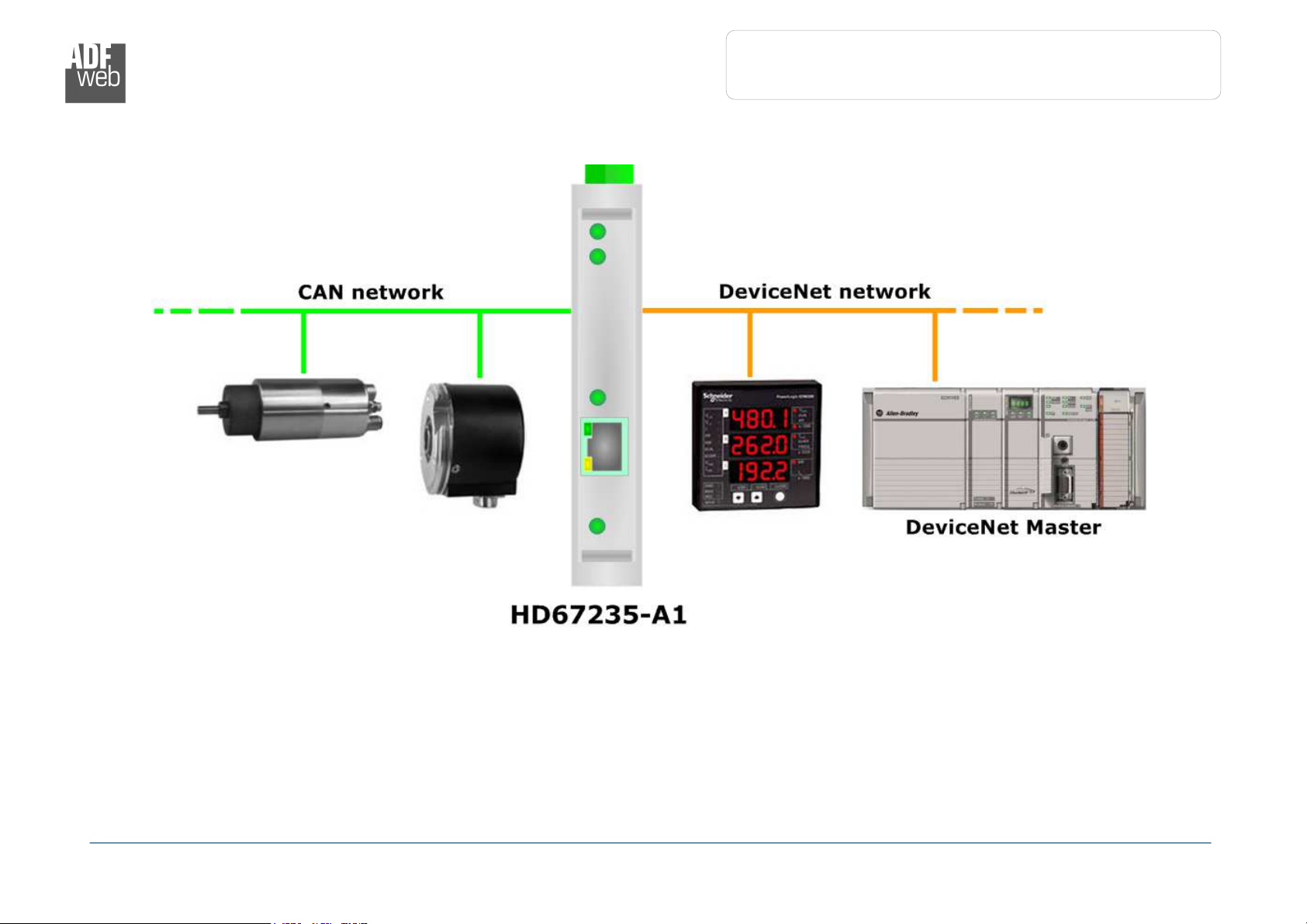

EXAMPLE OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 5 of 26

CONNECTION SCHEME:

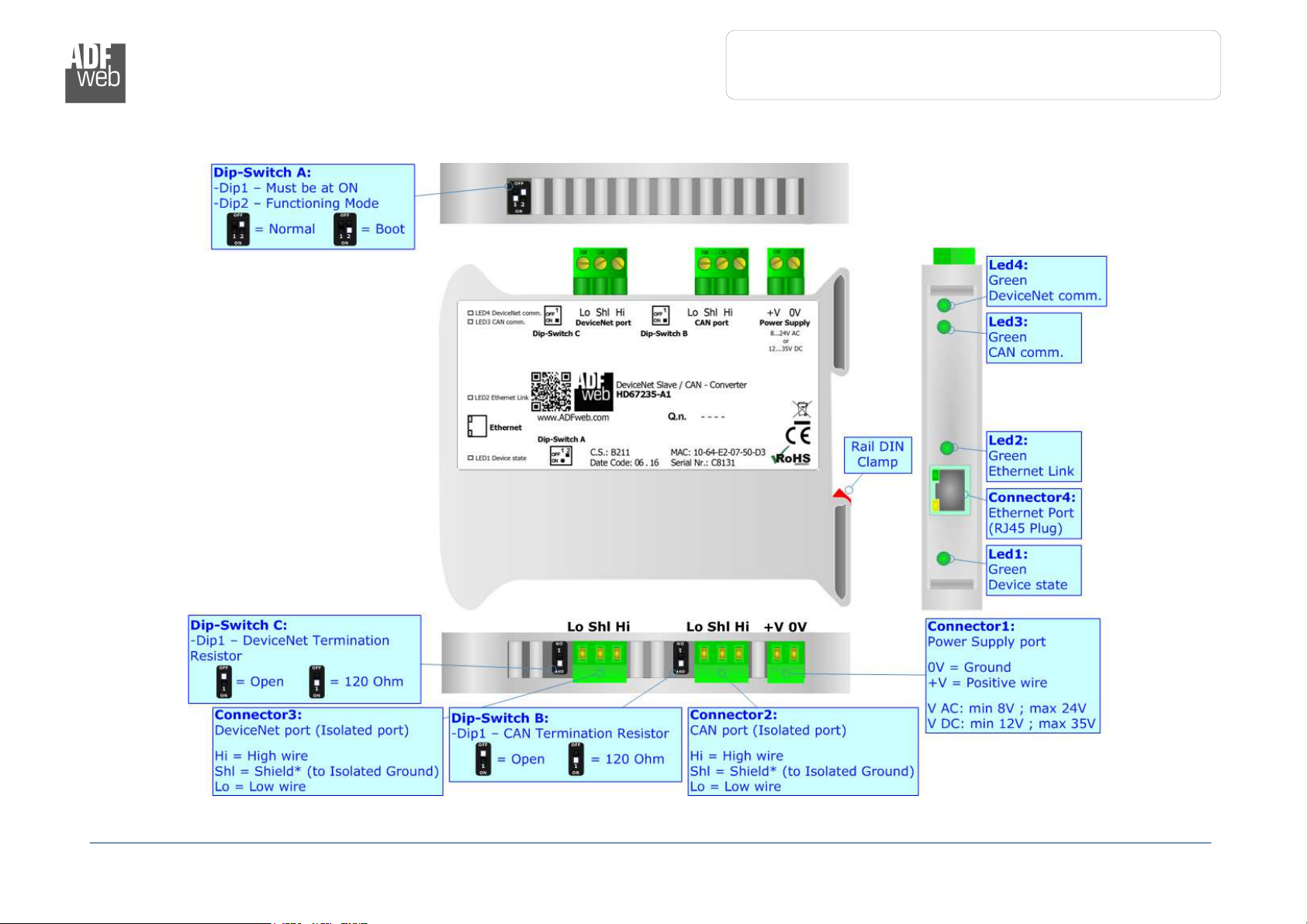

Figure 1a: Connection scheme for HD6723 -A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 6 of 26

Figure 1b: Connection scheme for HD6723 -A3

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 7 of 26

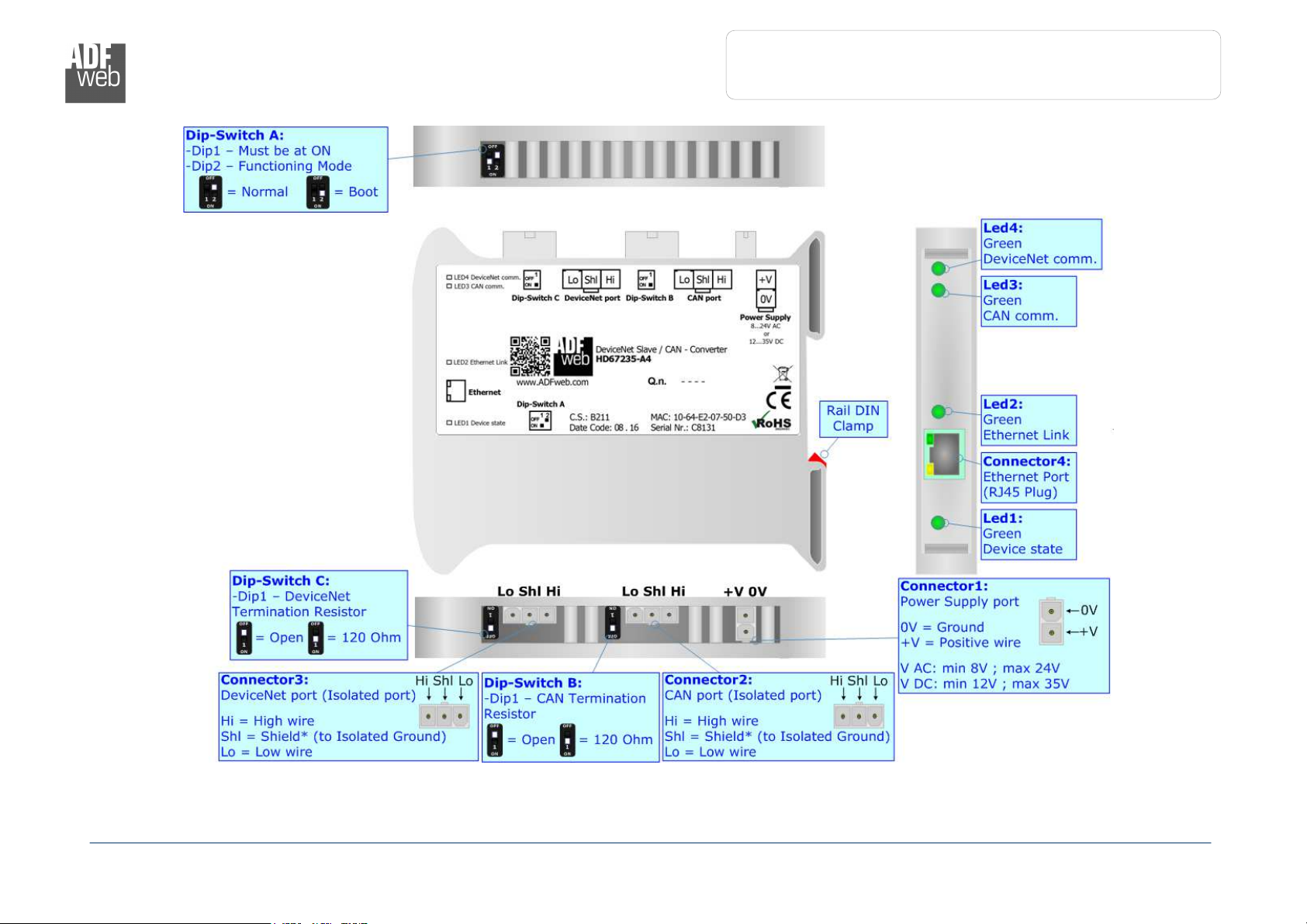

Figure 1c: Connection scheme for HD6723 -A4

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 8 of 26

CHARACTERISTICS:

The HD67235-A1, HD67235-A3 and HD67235-A4 are converters from DeviceNet slave to CAN and vice-versa.

They allows the following characteristics:

Up to 455 bytes in reading and 455 bytes in writing;

Triple isolation between CAN - Power Supply, CAN - DeviceNet, Power Supply - DeviceNet.

Two-directional information between BACnet bus and DeviceNet bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIG RATION:

You need Compositor SW67235 software on your PC in order to perform the following:

Define the parameter of CAN line;

Define the parameter of Devicenet line;

Define the CAN frames that the Converter can accept;

Define the CAN frames that the Converter sends trough the CAN line;

Define the map of CAN byte that must be written in the DeviceNet array;

Define the map of which DeviceNet bytes must be written in CAN frames;

Update the device

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 9 of 26

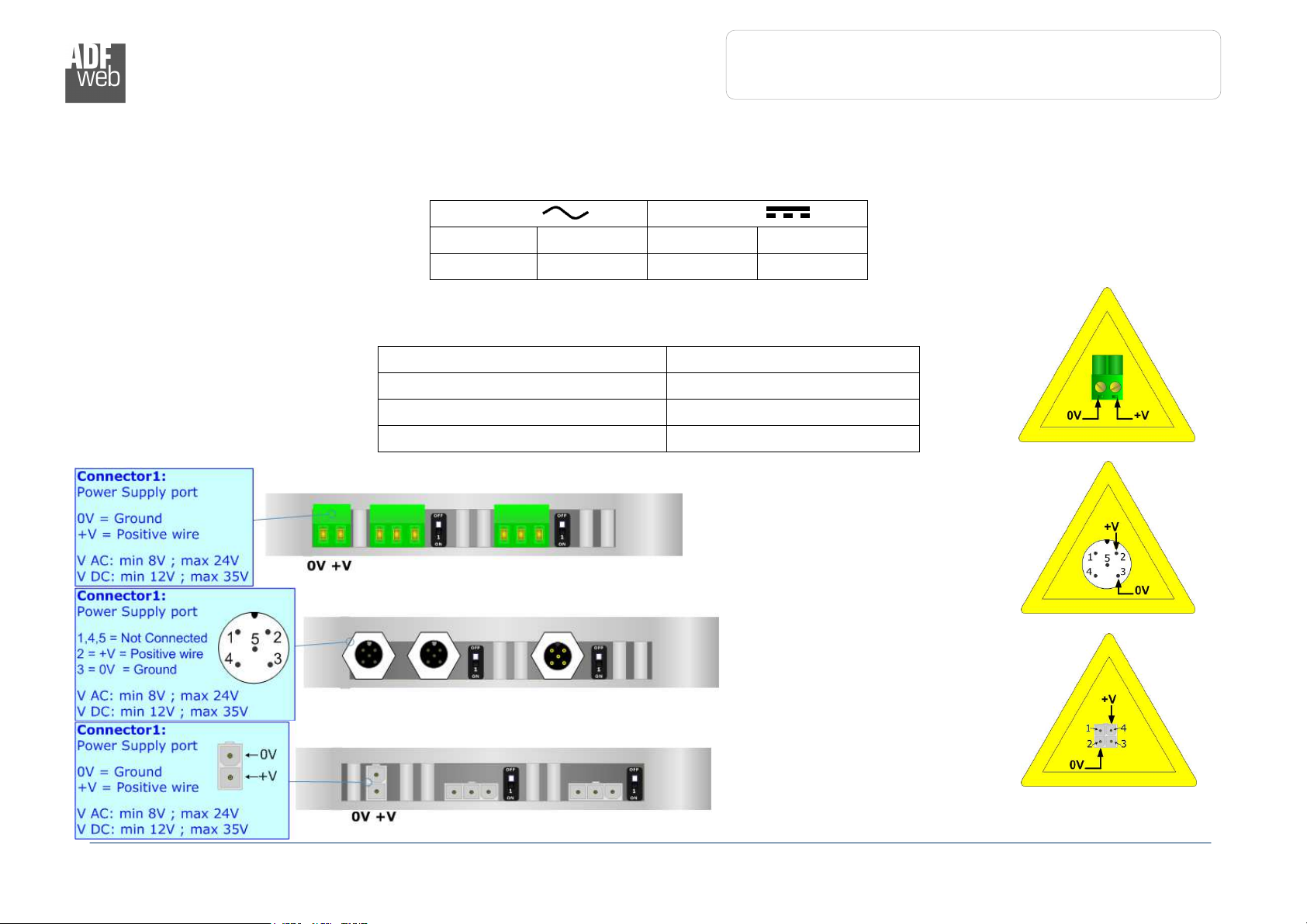

POWER S PPLY:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67671-IP-2-A1 3.5

HD67671-IP-4-A1 3.5

HD67671-MSTP-2-A1 3.5

Caution: Not reverse the polarity power

HD6723 -A1

HD6723 -A3

HD6723 -A4

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

DeviceNet Slave

/ CAN

Converter

Document code: MN67235_ENG Revision 2. Page 1 of 26

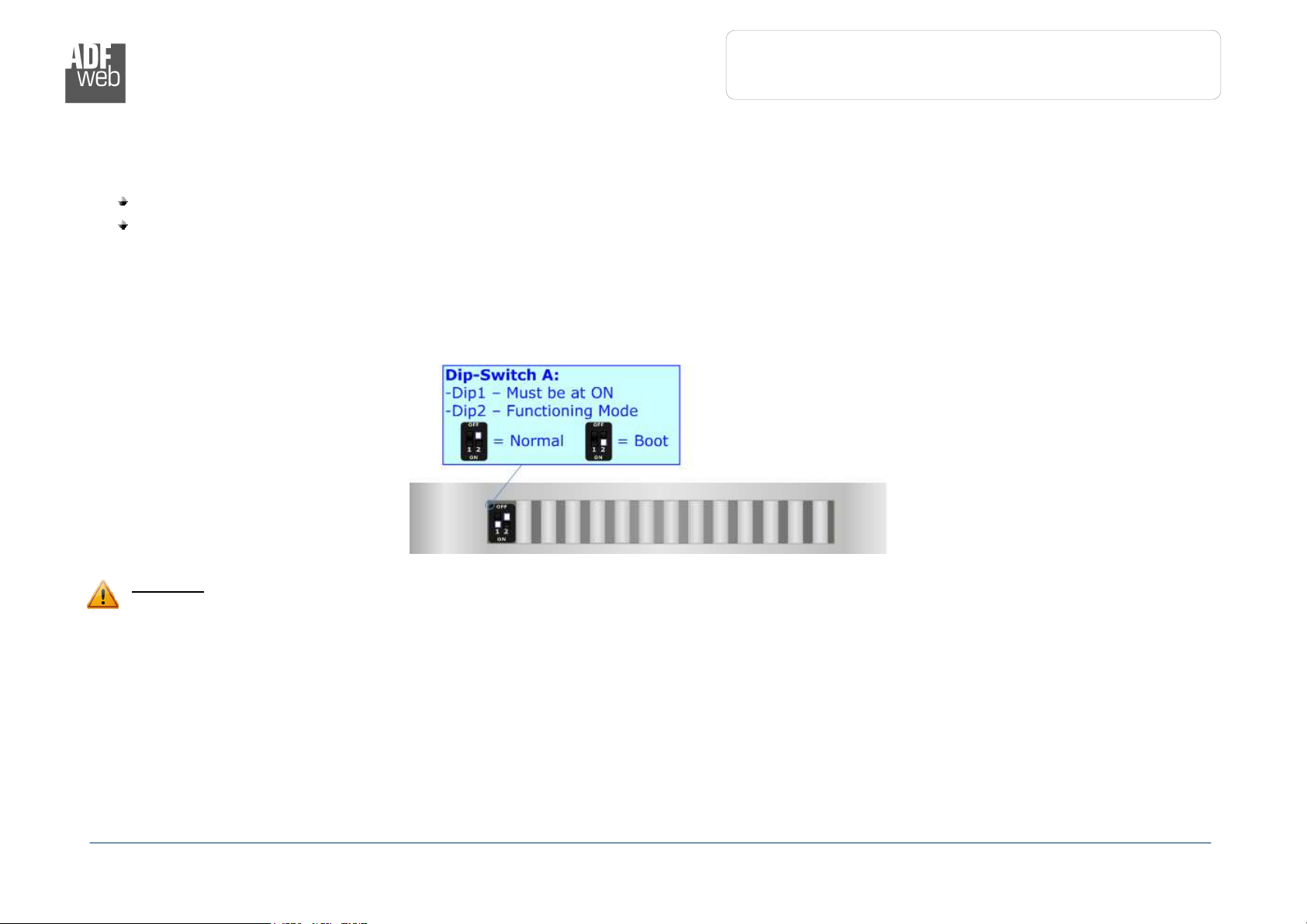

F NCTION MODES:

The device has got two functions mode depending of the position of the ‘Dip2 of Dip-Switch A’:

The first, with ‘Dip2 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip2 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specifics functions, see ‘LEDS’ section.

Warning:

Dip1 of ‘Dip-Switch A’ must be at ON position to work even if the Ethernet cable is not inserted.
