ADF Web HD67595 Manuel utilisateur

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 1 of 27

User Manual

Revision 1.

English

EtherNet/IP Master / CAN - Converter

(Order Code: HD67645-A1 )

For Website information:

www.adfweb.com?Product=HD67645

For Price information:

www.adfweb.com?Price=HD67645-A1

Benefits and Main Features:

Very easy to configure

Triple Electrical isolation

Temperature range: -4 °C/+85°C (-4 °F/+185°F)

For other EtherNet/IP Master products see also the following link:

Converter EtherNet/IP Master to

www.adfweb.com?Product=HD67B38 (OPC UA Server)

www.adfweb.com?Product=HD67D24 ( oRaWAN)

www.adfweb.com?Product=HD67E26 (EtherCAT)

www.adfweb.com?Product=HD67158 (SNMP Agent)

www.adfweb.com?Product=HD67643 (PROFIBUS Slave)

www.adfweb.com?Product=HD67645 (CAN)

www.adfweb.com?Product=HD67646 (CANopen)

www.adfweb.com?Product=HD67647 (DeviceNet Slave)

www.adfweb.com?Product=HD67661 (PROFINET)

www.adfweb.com?Product=HD67665 (Modbus TCP Slave)

www.adfweb.com?Product=HD67667 (Serial)

www.adfweb.com?Product=HD67668 (Ethernet)

www.adfweb.com?Product=HD67669 (Modbus Slave)

www.adfweb.com?Product=HD67689 (BACnet Slave)

www.adfweb.com?Product=HD67743 (IEC 61850 Server)

www.adfweb.com?Product=HD678 6 (KNX)

www.adfweb.com?Product=HD67955 (MQTT)

www.adfweb.com?Product=HD67973 (IO- ink Slave)

User Manual

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 2 of 27

INDEX:

Page

INDEX 2

UPDATED DOCUMENTATION 2

REVISION LIST 2

WARNING 2

TRADEMARKS 2

SECURITY ALERT 3

EXAMPLE OF CONNECTION 4

CONNECTION SCHEME 5

CHARACTERISTICS 6

CONFIGURATION 6

POWER SUPPLY 7

FUNCTION MODES 8

LEDS 9

CAN 1

ETHERNET 11

USE OF COMPOSITOR SW67645 12

NEW CONFIGURATION / OPEN CONFIGURATION 13

SOFTWARE OPTIONS 14

SET COMMUNICATION 16

ETHERNET/IP ACCESS 17

RECEIVE FRAMES 18

SEND FRAMES 2

UPDATE DEVICE 22

MECHANICAL DIMENSIONS 24

ORDERING INFORMATIONS 25

ACCESSORIES 25

DISCLAIMER 26

OTHER REGULATIONS AND STANDARDS 26

WARRANTIES AND TECHNICAL SUPPORT 27

RETURN POLICY 27

UPDATED DOCUMENTATION:

Dear customer, we thank you for your attention and we remind you that

you need to check that the following document is:

Updated

Related to the product you own

To obtain the most recently updated document, note the “document code”

that appears at the top right-hand corner of each page of this document.

With this “Document Code” go to web page www.adfweb.com/download/

and search for the corresponding code on the page. Click on the proper

“Document Code” and download the updates.

REVISION IST:

WARNING:

ADFweb.com reserves the right to change information in this manual about

our product without warning.

ADFweb.com is not responsible for any error this manual may contain.

TRADEMARKS:

All trademarks mentioned in this document belong to their respective

owners.

Revision

Date Author Chapter

Description

1. 18/ 9/2 2

Ff All First Release

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 3 of 27

SECURITY A ERT:

ENERA

NFORMATION

To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and

safety regulation are required for each individual application. The same applies also when using accessories.

NTENDED

Machines and systems must be designed so the faulty conditions do not lead to a dangerous situation for the operator (i.e.

independent limit switches, mechanical interlocks, etc.).

UA IFIED

ERSONNE

The device can be used only by qualified personnel, strictly in accordance with the specifications.

Qualified personnel are persons who are familiar with the installation, assembly, commissioning and operation of this equipment and

who have appropriate qualifications for their job.

ESIDUA

ISKS

The device is state-of-the-art and is safe. The instruments can represent a potential hazard if they are inappropriately installed and

operated by untrained personnel. These instructions refer to residual risks with the following symbol:

This symbol indicates that non-observance of the safety instructions is a danger for people that could lead to serious injury or

death and / or the possibility of damage.

CONFORMITY

The declaration is made by our company. You can send an email to [email protected]om or give us a call if you need it.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 4 of 27

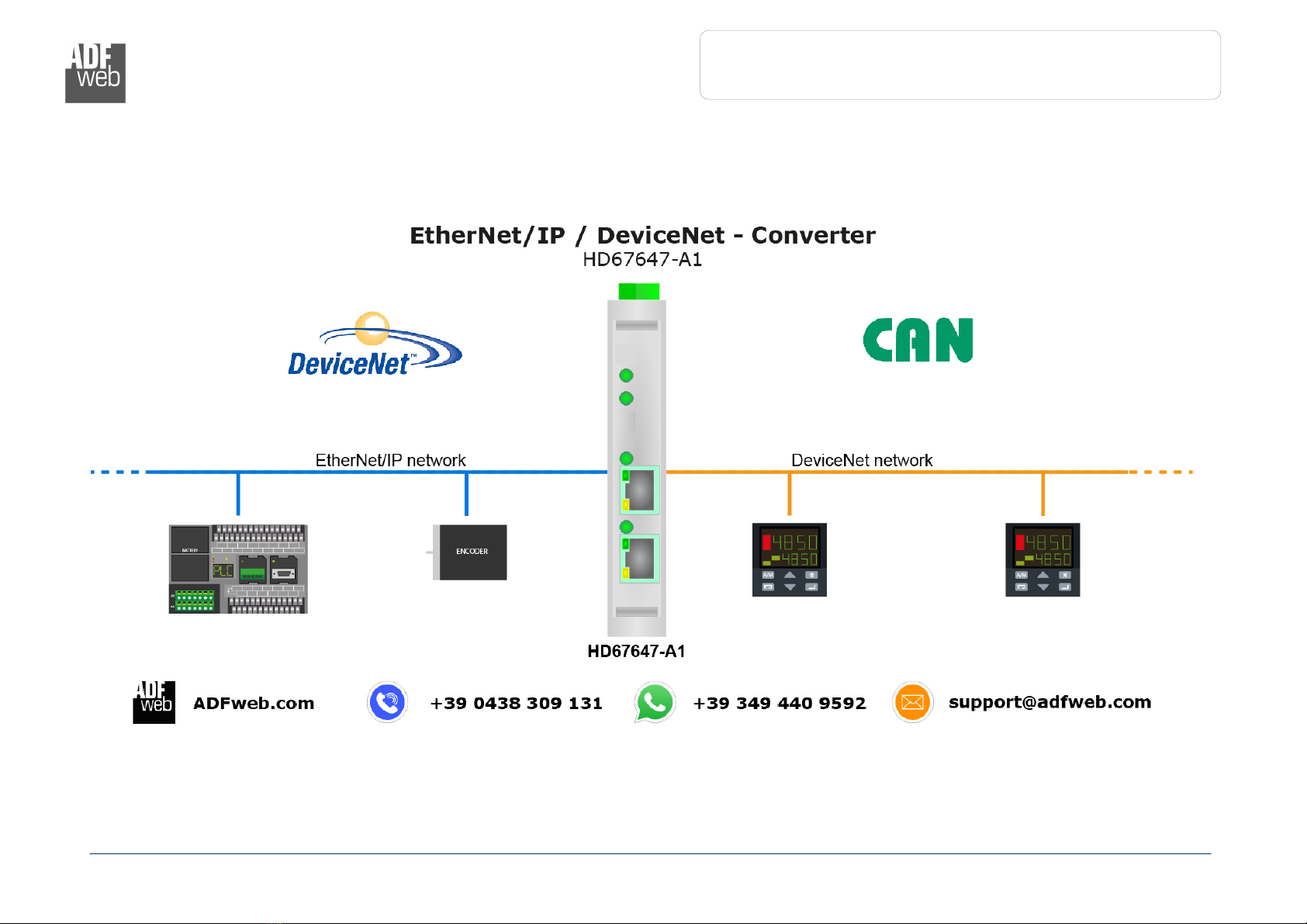

EXAMP E OF CONNECTION:

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 5 of 27

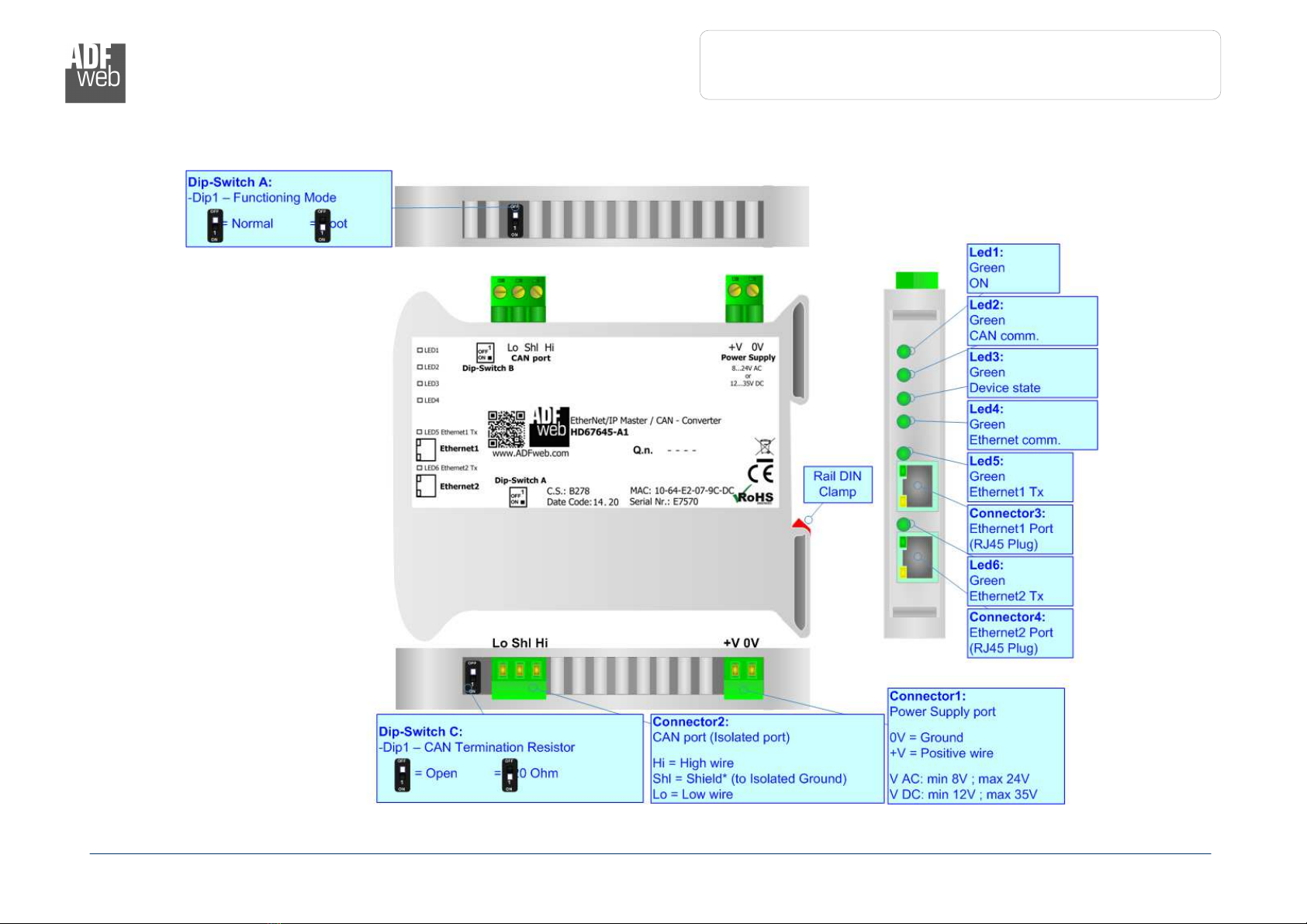

CONNECTION SCHEME:

Figure 1: Connection scheme for HD67645-A1

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 6 of 27

CHARACTERISTICS:

The HD67645-A1 are EtherNet/IP / CAN - Converters.

It allows for the following characteristics:

Isolation between EtherNet/IP – CAN – Power Supply;

Two-directional information between EtherNet/IP bus and CAN bus;

Mountable on 35mm Rail DIN;

Wide power supply input range: 8…24V AC or 12…35V DC;

Wide temperature range: -4 °C / 85°C [-4 °F / +185°F].

CONFIGURATION:

You need Compositor SW67645 software on your PC in order to perform the following:

Define the parameters of EtherNet/IP line;

Define the parameters of CAN line;

Define the list of EtherNet/IP slaves connected to the converter;

Define CAN messages in rx and tx;

Update the device.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 7 of 27

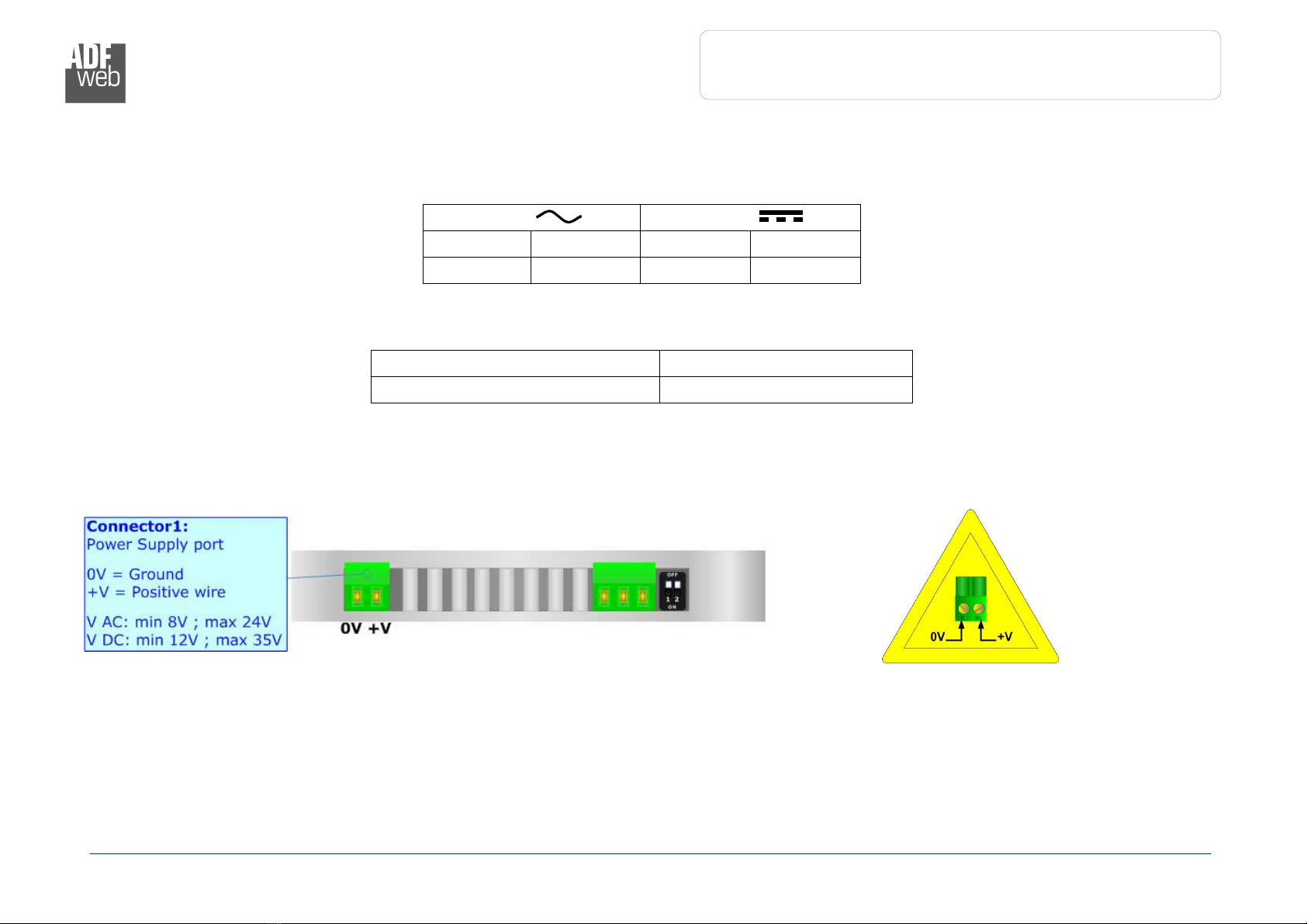

POWER SUPP Y:

The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below.

VAC

VDC

Vmin Vmax Vmin Vmax

8V 24V 12V 35V

Consumption at 24V DC:

Device Consumption [W/VA]

HD67645-A1 3.5

HD67645-A1

Caution:

Do n

ot reverse the polarity power

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 8 of 27

FUNCTION MODES:

The device has got two function modes depending on the position of the ‘Dip1 of Dip-Switch A’:

The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

The second, with ‘Dip1 of Dip-Switch A’ at “ON” position, is used for uploading the Project and/or Firmware.

For the operations to follow for the updating, see ‘UPDATE DEVICE’ section.

According to the functioning mode, the LEDs will have specific functions, see ‘LEDS’ section.

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 9 of 27

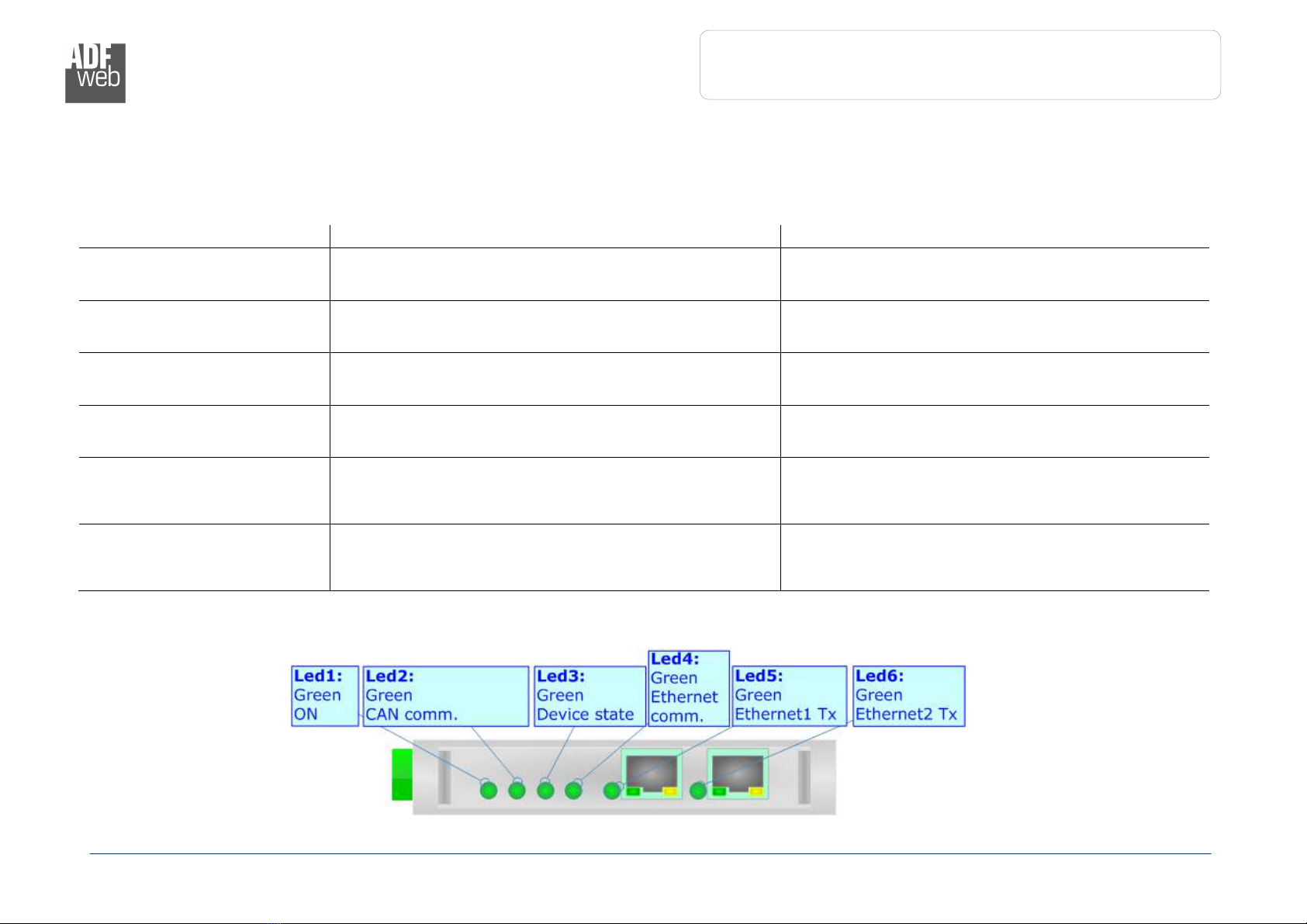

EDS:

The device has got seven LEDs that are used to give information about the functioning status.

The various meanings of the LEDs are described in the table below.

ED Normal Mode Boot Mode

1: ON (green) ON: Device powered

OFF: Device not powered

ON: Device powered

OFF: Device not powered

2: CAN comm. (green) It blinks when a CAN message is received Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

3: Device State (green) Blinks slowly (~1Hz) Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

4: Ethernet comm. (green) It blinks when EtherNet/IP communication is running Blinks quickly: Boot state

Blinks very slowly (~0.5Hz): update in progress

5: Ethernet1 link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

6: Ethernet2 link (green) ON: Ethernet cable connected

OFF: Ethernet cable disconnected

ON: Ethernet cable connected

OFF: Ethernet cable disconnected

Industrial Electronic Devices

ADFweb.com S.r.l.

User Manual

Ether

Net/IP Master

CAN

Document code: MN67645_ENG Revision 1. Page 1 of 27

CAN:

For terminating the CAN line with a 12 Ω resistor it is necessary that the Dip1 of ‘Dip-Switch C’ is at ON position.

Cable characteristics:

DC parameter: Impedance 7 Ohm/m

AC parameters: Impedance 12 Ohm/m

Delay 5 ns/m

ength Baud Rate [bps] ength MAX [m]

1 K 5

2 K 25

5 K 1

1 K 65

125 K 5

25 K 25

5 K 1

8 K 5

1 K 25
