INTRODUCTION

With the SCSI Card 2940UW Pro, you can connect up to 15

SCSI devices to any IBM-compatible computer with PCI

expansion slots.

This installation guide provides step-by-step instructions for

• Installing the SCSI Card 2940UW Pro

• Connecting internal SCSI devices

• Connecting external SCSI devices

• Installing the SCSI Card 2940UW Pro software

See the SCSI Card 2940UW Pro User’s Reference for additional

information on using the SCSI Card 2940UW Pro.

After you turn off your computer and unplug the power cord,

remove the cover from the computer.

If you need guidance, refer to your computer manual for

instructions on removing the cover.

Discharge any static electricity build-up before handling your

SCSI card by touching a grounded metal object (like the

exposed metal parts on the back of your computer).

INSTALLING THE SCSI CARD 2940UW PRO

STEP 1

STEP 2

Turn OFF power to the computer and disconnect the

power cord.

WARNING

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 1

Locate an unused PCI expansion slot (typically white or ivory)

and remove the expansion slot cover.(The expansion slot

must be PCI Rev. 2.0 or higher compliant and must support

Bus Mastering.) Save the slot

cover screw for use in Step 4.

Computers may have vertical

or horizontal expansion slots.

Refer to your computer

manual to locate

the PCI slots.

STEP 3

STEP 4

PCI Expansion Slots

(Typically White or Ivory)

Insert the SCSI Card 2940UW Pro

into the PCI expansion slot; push

down firmly until it clicks into

place, then replace the slot cover

screw.

You are ready to install

internal SCSI devices.

To install external SCSI

devices only, replace

your computer cover

and skip to Connecting

External SCSI Devices.

SCSI Card 2940UW Pro

Installed in a PCI Expansion

Slot

Slot Cover

Screw

Expansion

Slot Cover

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 2

Verify that each internal SCSI device you are installing has a

unique SCSI ID from 0 to 6 (0 to 6 and 8 to 15 for“Wide”SCSI

devices). Refer to the device’s documentation to determine the

SCSI ID setting.

If any two SCSI devices (internal or external) you are connect-

ing to the SCSI Card 2940UW Pro share the same SCSI ID,

change the SCSI ID on one device.The SCSI Card 2940UW Pro

is preset to SCSI ID 7 and should not be changed. See the SCSI

Card 2940UW Pro User’s Reference for additional information

on SCSI IDs.

If you are installing only one internal SCSI device,terminate

that device. If you have two or more devices on each cable,ter-

minate one device on each cable; the remaining devices must

not be terminated. (The terminated device must be connected

to the end of each cable, as explained in Step 5 below.)

The termination setting usually is controlled by setting a

jumper or a switch, or by physically removing or installing a

terminator module(s).Refer to the device’s documentation

to enable or disable termination on your device. See the SCSI

Card 2940UW Pro User’s Reference for additional information

on termination.

CONNECTING INTERNAL SCSI DEVICES

STEP 1

STEP 2

Mount each internal SCSI

device in an available

drive bay inside your

computer.

Refer to your computer

and device documenta-

tion for instructions on

installing devices inside

your computer.

Internal SCSI Device Mounted in

Drive Bay Inside Your Computer

If it is difficult to reach the back of your internal SCSI

devices when they are mounted in a drive bay, you can connect the

internal SCSI devices to the SCSI cable and power supply (Steps 5-7

below) before mounting each device inside your computer.

NOTE

STEP 3

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 3

Connect one end of the internal SCSI cable to the

SCSI Card 2940UW Pro’s internal SCSI connector.

Each cable included in this package allows you to connect up to

two internal SCSI devices. To connect more than two internal

SCSI devices to each internal connector on the SCSI Card

2940UW Pro,you will need an internal SCSI cable with enough

connectors to accommodate all of your devices. See the SCSI

Card 2940UW Pro User’s Reference for additional information

on connecting your SCSI devices and ordering cables.

Internal 68-pin SCSI Connector

(Use with Wide and Ultra Wide SCSI

Devices)

Internal 50-pin SCSI Connector

(Use with Standard and Ultra SCSI

Devices)

High-density 68-pin Internal SCSI Cable

Standard 50-pin Internal SCSI Cable

STEP 4

Terminated Internal SCSI Device

Unterminated Internal SCSI Device

Connect the other end of the cable to the last internal device

(this device must be terminated;

see Step 2 above).

Connect the remaining connectors

on the cable to any remaining inter-

nal devices (these devices must not

be terminated; see Step 2 above).

Internal SCSI Cable

Terminated Internal SCSI Device

STEP 6

STEP 5

Do not connect SCSI devices to all three connectors of a

SCSI Card 2940UW Pro host adapter.

CAUTION

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 4

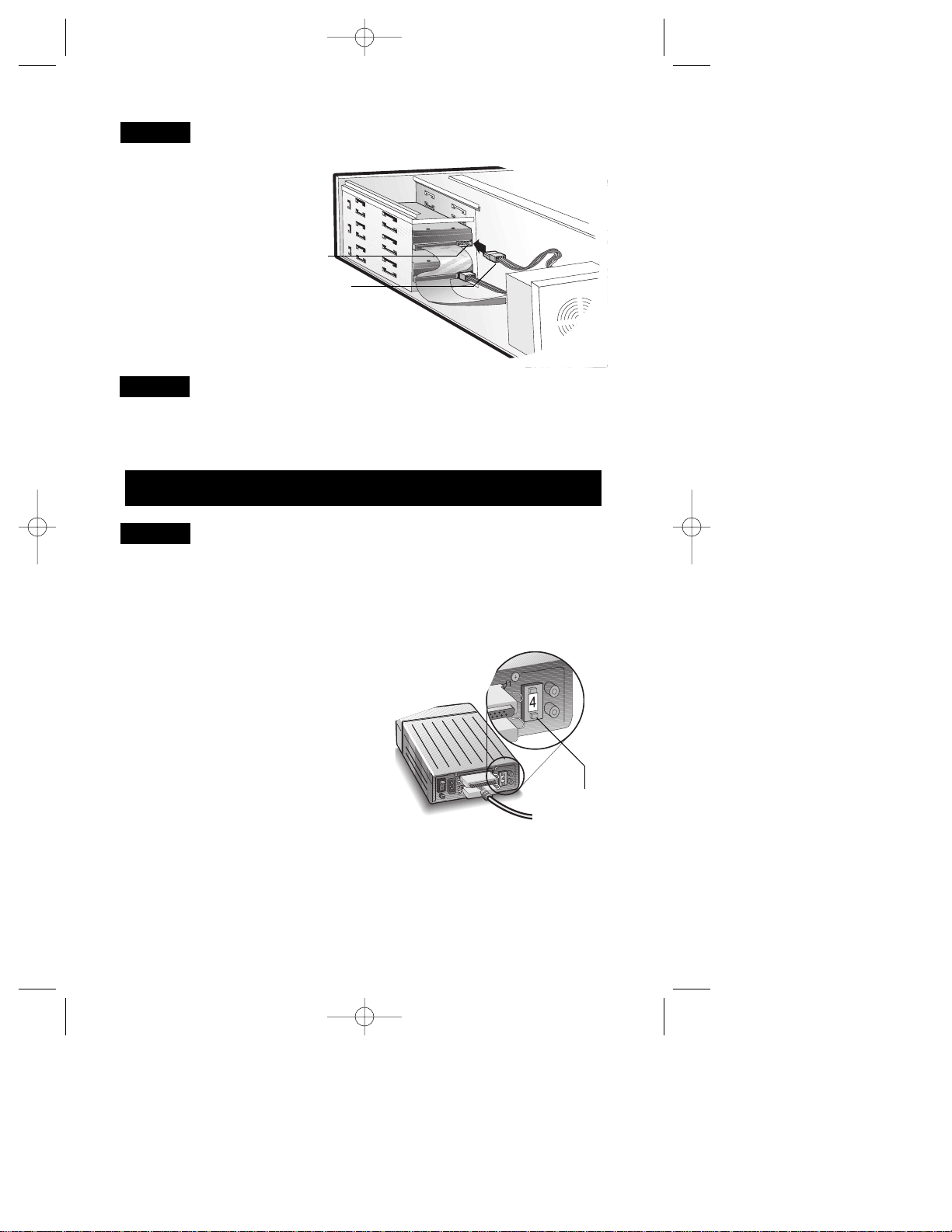

Power Input Connector on

the Back of the Drive

Power Cable (From the Power

Supply Inside the Computer)

Connect a power cable from your computer’s power supply to

the power input connector on each SCSI device.

Replace your computer cover.

If you are installing external SCSI devices,continue with the

next section; otherwise, skip to Installing the SCSI Card

2940UW Pro Software.

STEP 7

STEP 8

Verify that each external SCSI device you are installing has a

unique SCSI ID from 0 to 6 (0 to 6 and 8 to 15 for“Wide”SCSI

devices). Refer to the device’s documentation to determine the

SCSI ID setting.

If any two devices (external or internal) you are connecting to

the SCSI Card 2940UW Pro share the same SCSI ID, change the

SCSI ID on one device. The SCSI Card 2940UW

Pro is preset to SCSI ID 7 and should not be

changed.

For most external SCSI devices, the

SCSI ID usually is set with a

switch on the back of the

device. See the SCSI Card

2940UW Pro User’s Reference

for additional information on

SCSI IDs.

CONNECTING EXTERNAL SCSI DEVICES

SCSI ID Switch

STEP 1

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 5

68-pin External SCSI Cable

50-pin External SCSI Cable

68-pin to 50-pin Adapter

(Adaptec Part # ACK-68P-50P-E)

Connect one end of the external SCSI cable to the SCSI Card

2940UW Pro’s external SCSI connector. Push the connectors

together until they lock in place.

For each external SCSI device you install, you need a high-

quality external SCSI cable. If you need to connect an

external SCSI device with a 50-pin cable, then you also need a

68-pin to 50-pin external converter that actively terminates the

high byte. This converter is available through Adaptec

(Part # ACK-68P-50P-E). See the SCSI Card 2940UW Pro User’s

Reference for additional information on connecting your SCSI

devices and ordering cables and adapters.

STEP 2

Connect the other end of the cable to a SCSI connector on the

back of the external SCSI device.If you are installing only one

external device, terminate the device and skip to Step 5.

Termination usually is controlled by installing or removing a

SCSI terminator. On some devices,

you use a switch or button on

the back of the device. Refer

to the device’s documenta-

tion to determine how to

enable or disable termina-

tion. See the SCSI Card

2940UW Pro User’s

Reference for additional

information on

termination.

SCSI Terminator

STEP 3

External Cable

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 6

Connect each additional SCSI device to the previous one until

all devices are connected.The device at the end of the chain

must be the only external device terminated.

Connect all power cables to the external devices and

computer.

Continue with the

next section to install

the SCSI Card

2940UW Pro software

driver for your operat-

ing system.

Terminated SCSI Device

STEP 4

STEP 5

To install the SCSI Card 2940UW Pro software (software driver),

go to the section below for the operating system (for example,

Windows®95) installed on your computer.If the operating sys-

tem is not yet installed,install it now. Refer to your operating

system documentation for instructions.

INSTALLING THE SCSI CARD 2940UW PRO

SOFTWARE

If you have installed a new SCSI hard drive in a computer

running Windows or DOS, you will need to partition and format the

drive with the DOS ffddiisskkand ffoorrmmaattcommands before it can be used.

Refer to yourWindows and DOS documentation for instructions.

NOTE

A narrow external device at the end of the chain may cause

a termination problem if a 68-pin to 50-pin adapter is not used.

NOTE

(Continued on the other side)

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 7

Turn on all external devices and then the computer. Windows

95/98 now will recognize the SCSI Card 2940UW Pro installed

in your computer and will install the software driver for it.

If prompted, restart your computer to finish setting up your

new hardware.

Click the Start button, point to Settings, then click Control

Panel.

Double-click the System icon.

Click the Device Manager tab.

Double-click the SCSI Controller icon. The driver for the SCSI

Card 2940UW Pro is listed as the“Adaptec AHA-2940UW

Pro/AIC-788x PCI SCSI Controller.”

• If the driver is listed, the driver is loading properly.

• If the driver is listed but has an exclamation mark inside a

yellow circle, the driver is in a problem state (usually a con-

flict with other hardware using the same resources).

• If the driver is listed but has an“X”inside a red circle,the

Computers with Windows 95/Windows 98

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

You may be asked to insert the Windows 95/98 CD-ROM

into the CD-ROM drive. Follow the instructions that appear

onscreen.

NOTE

driver is disabled and isn’t loading.

• If the driver is not listed or is not loading properly,see the

SCSI Card 2940UW Pro User’s Reference for troubleshooting

information.

• If the SCSI Controller icon or the SCSI Card 2940UW Pro

driver is not listed, try reinstalling the driver.

If the driver is not listed or is not loading properly,see the

SCSI Card 2940UW Pro User’s Reference for troubleshooting

information.

NOTE

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 8

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

Computers with Windows NT

Turn on all external devices and then the computer.

Start Windows NT on your computer.

Click the Start button, point to Settings, then click Control

Panel.

Double-click the SCSI Adapters icon.

Click the Drivers tab; add the 2940UW Pro driver if it is not

listed.

Follow the instructions that appear onscreen.

Computers with Windows 3.1

Turn on all external devices and then the computer.

Start Windows 3.1x on your computer.

Insert the Adaptec EZ-SCSI Setup Disk in your floppy disk

drive.

Select File/Run from the Program Manager menu.

When the Run dialog box appears, type aa::\\sseettuuppif you are

using the Adrive, or bb::\\sseettuuppif you are using the Bdrive. Then

click OK.

Follow the instructions that appear onscreen.

STEP 1

STEP 2

STEP 3

STEP 4

STEP 5

STEP 6

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 9

Computers with DOS 6.x or Above

Turn on all external devices and then the computer.

Insert the Adaptec EZ-SCSI Setup Disk in your floppy disk drive.

At the DOS prompt, type aa::\\ddoossiinnssttif you are using the Adrive,

or bb::\\ddoossiinnssttif you are using the Bdrive.Then press Enter.

Follow the instructions that appear onscreen.

Computers with NetWare, OS/2, SCO UNIX,

and UnixWare

The Adaptec 7800 Family Manager Set included in this package

allows you to install or update existing drivers for NetWare,OS/2,

SCO UNIX, and UnixWare. Refer to the 7800 Family Manager Set

User's Guide for installation instructions.

CONGRATULATIONS!

You’ve finished installing SCSI Card 2940UW Pro.

Troubleshooting hints are in the next section. For additional

troubleshooting hints and information on using and configuring

the SCSI Card 2940UW Pro and SCSI devices, see the SCSI Card

2940UW Pro User’s Reference.

STEP 1

STEP 2

STEP 3

STEP 4

2940UWPro-ig.qxd 12/21/98 9:55 AM Page 10

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Adaptec Matériel informatique

Adaptec

Adaptec AAA-130U2 SERIES Instructions de montage

Adaptec

Adaptec ACB-2370 Manuel utilisateur

Adaptec

Adaptec RAID 6805Q Manuel utilisateur

Adaptec

Adaptec GDT6111RP Manuel utilisateur

Adaptec

Adaptec AUA-3100LP Manuel

Adaptec

Adaptec ATA II 1220SA Manuel utilisateur

Adaptec

Adaptec 2100S - SCSI RAID Controller Guide de sécurité

Adaptec

Adaptec 2940U2W - Storage Controller U2W SCSI 80... Manuel utilisateur

Adaptec

Adaptec AAA-131U2 Manuel utilisateur

Adaptec

Adaptec ACB-2010A Manuel utilisateur

Adaptec

Adaptec 2410SA - Serial ATA RAID Controller Manuel utilisateur

Adaptec

Adaptec ASA-7211C Manuel utilisateur

Adaptec

Adaptec Ultra Wireless AWN-8030 Manuel utilisateur

Adaptec

Adaptec RAID Solutions Manuel

Adaptec

Adaptec ARO-1130SA Instructions de montage

Adaptec

Adaptec 1220SA - RAID Controller Manuel utilisateur

Adaptec

Adaptec AHA-1520 Manuel utilisateur

Adaptec

Adaptec PM3754U2 Manuel utilisateur

Adaptec

Adaptec 2100S - SCSI RAID Controller Manuel utilisateur

Adaptec

Adaptec AAA-130SA SERIES Instructions de montage

Adaptec

Adaptec AAR-1220SA Mode d’emploi

Adaptec

Adaptec ASR-3085 Manuel d'utilisation

Adaptec

Adaptec DuraStor 6200S Manuel utilisateur

Adaptec

Adaptec AFM-600 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
