ACU-RITE 01010 Manuel utilisateur

Professional Weather Center

Instruction Manual

CONTENTS

Unpacking Instructions ........... 2

Package Contents .................. 2

Product Registration ............... 2

Features & Benets: 5-in-1....... 3

Features: Display Unit ............ 4

Back of Display Unit............... 6

Setup .................................... 7

5-in-1 Sensor Setup ................ 7

Display Unit Setup ................. 8

Set the Time & Date ............... 9

Measurement Units ...............10

Placement Guidelines ............11

5-in-1 Sensor Installation........12

Using the Weather Center .....13

Programmable Alarms...........14

Troubleshooting ....................16

Care & Maintenance.............18

Calibration ...........................18

Specications....................... 20

FCC Information .................. 20

Customer Support .................21

Warranty..............................21

model 01010

Questions? Contact Customer Support at

(877) 221-1252 or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

Archived Products

Congratulations on your new AcuRite product. To ensure the best

possible product performance, please read this manual in its entirety

and retain it for future reference.

Unpacking Instructions

Remove the protective lm that is applied to the LCD screen prior to using this

product. Locate the tab and peel off to remove.

Package Contents

1. Display unit with tabletop stand

2. 5-in-1 sensor

3. Sensor mounting bracket

4. Mounting hardware

5. Snap-in debris lter for rain collector

6. Instruction Manual

IMPORTANT PRODUCT MUST BE REGISTERED

TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

to receive 1 year

warranty protection

www.AcuRite.com

►

Features & Benets

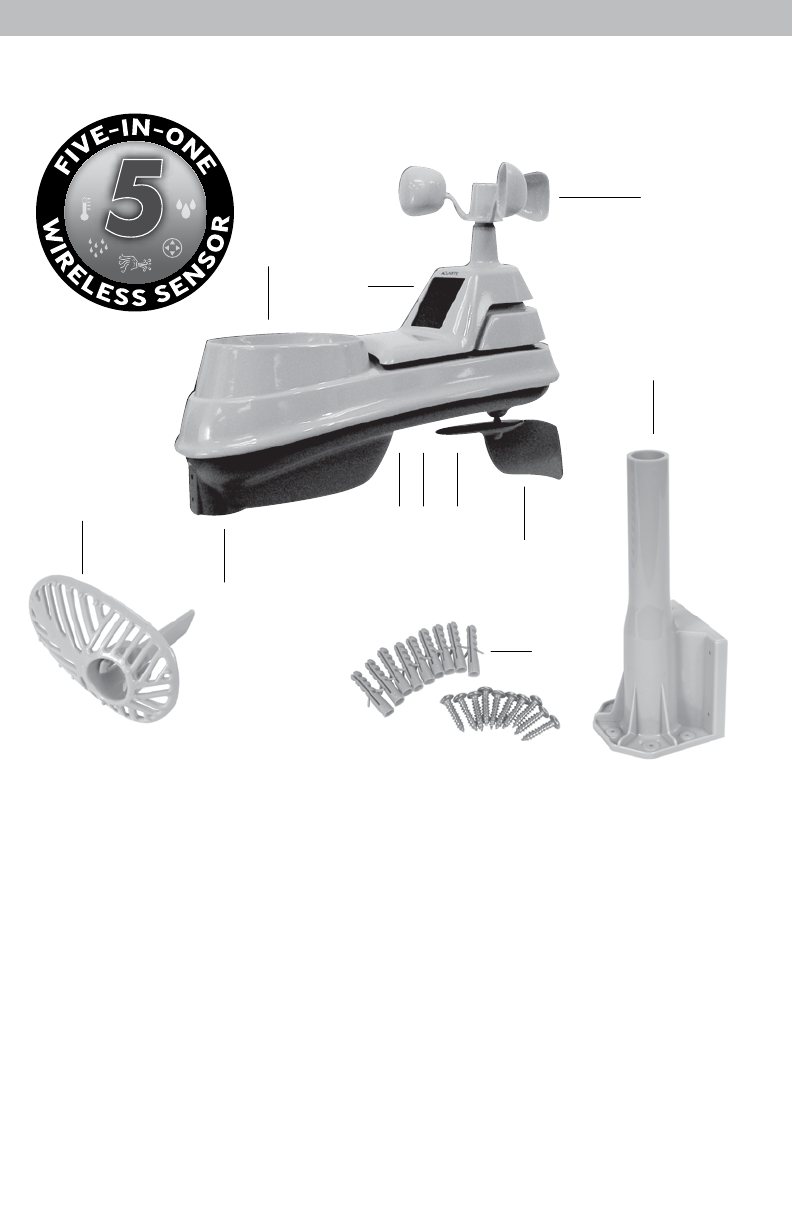

5-IN-1 SENSOR

1. Rainfall Collector Funnel

2. Solar Cell Panel

Converts sunlight into power to run

internal aspirating fan.

Internal Aspirating Fan

(not shown)

Draws ambient air into

sensor to reduce solar radiation

heating, resulting in more accurate

temperature measurement.

3. A-B-C Switch

ID code that must match display’s

A-B-C switch to ensure units

synchronize.

4. Battery Compartment

3 4 5

5. Temperature & Humidity Sensors

(internal)

6. Mounting Bracket

7. Wind Speed Anemometer

8. Wind Direction Vane

9. Mounting Bracket

10. Mounting Hardware

Includes anchors and screws.

Qty Diameter Length

4 #4 1”

2 #6 ½”

11. Debris Filter

Snaps into rain collector to lter out

twigs, leaves, etc.

, NE

wt-~ro':E

--_;_~~----'---~- /11~) I

ft_ATINDE.X

DfWPOINT

WIN:.l.:ilLL

►

INDOOR

RAN~A L RA E

,oches/hr

SW , _, SE

TullseMorbaueries low 12=35PM

n, 1TilnnR

UUI.UUU

TEf'1P

Features & Benets

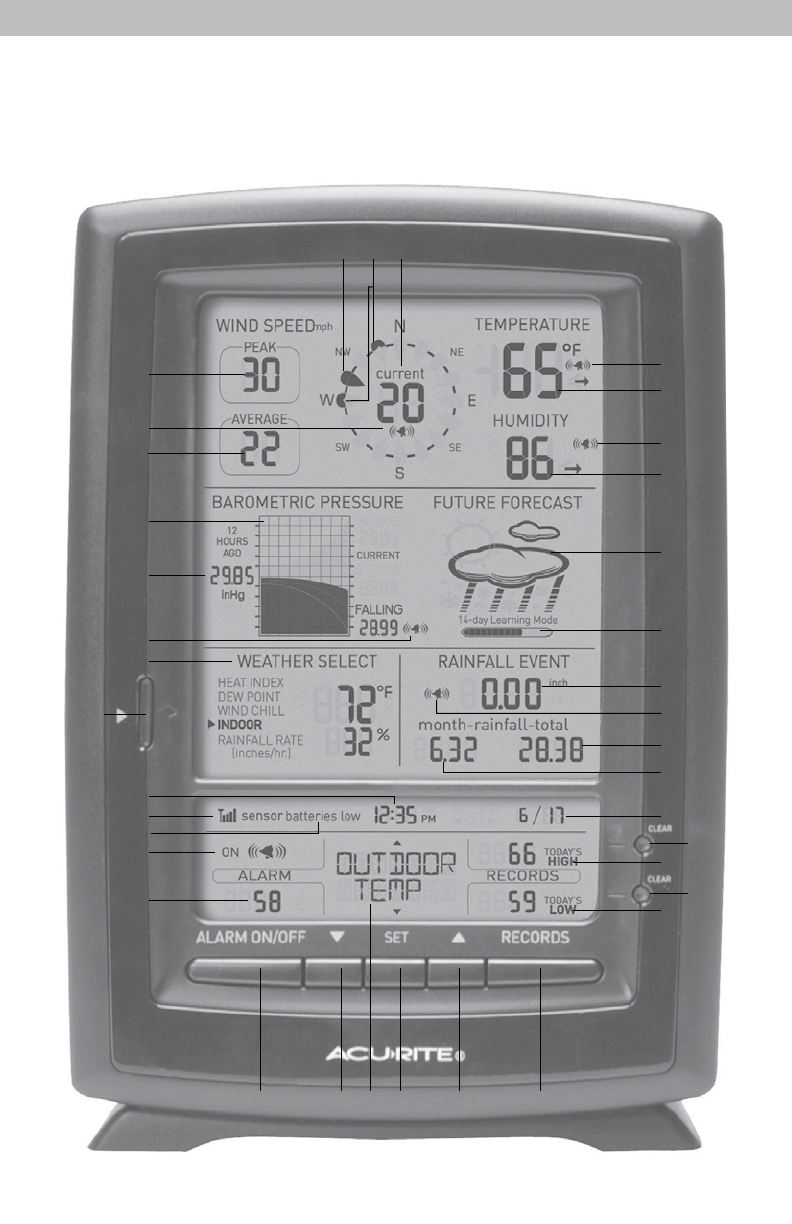

Display Unit

36 35 34

13 14 15 16 17 18

1. Peak Wind Speed

Highest speed from past 60 minutes.

2. Wind Speed Alarm On Indicator

3. Average Wind Speed

of all speeds from past 2 minutes.

4. Pressure History Graph

Current pressure on right with trend

(Rising, Steady or Falling).

5. Historical Barometric Pressure

Pressure reading 12 hours ago.

6. Storm Alert Alarm On Indicator

7. Weather Select

Heat index, dew point, wind chill,

indoor temperature / humidity, and

rainfall rate (inches of rain per hour)

8. Weather Select Button

Press to change the Weather Select

category data being display.

9. Clock

10. Outdoor Sensor Signal Strength

11. Alarm On/Off Indicator

for Selectable Category (#15)

12. Programmable Alarm Settings

13. Alarm On/Off Button

Activate alarm; press and hold to

adjust alarm values.

14.

▼

Button

Press to select Category (shown in

#15) and change settings.

15. Selectable Category

16. SET Button

For setup preferences

17.

▲

Button

Press to select Category (shown in

#15) and change settings.

18. Records Button

Press for all-time low and date

recorded for current category

selected on display (#15). Press twice

for all-time high and date recorded.

19. Record Lows

Shown for current category selected

on the display (#15).

20. Clear Button

Deletes record low (#19) shown.

21. Record Highs

Shown for current category selected

on the display (#15).

22. Clear Button

Deletes record high (#21) shown.

23. Date

24. Current Month Total Rainfall

25. All-Time Rainfall

26. Rainfall Alarm On Indicator

27. Current Rainfall

Accumulates data during rainfall.

28. Learning Mode Icon

Disappears after weather forecast

self-calibration is complete.

29. 12 to 24 Hour Weather Forecast

Self-Calibrating Forecasting pulls

data from your 5-in-1 sensor to

generate your personal forecast.

30. Current Outdoor Humidity

Arrow icon indicates the direction the

humidity is trending.

31. Outdoor Humidity Alarm On

Indicator

32. Current Outdoor Temperature

Arrow icon indicates direction the

temperature is trending.

33. Outdoor Temperature Alarm On

Indicator

34. Current Wind Speed

35. Previous 2 Wind Directions

36. Current Wind Direction

37. Sensor Low Battery Indicator

...... .

. . . . . .

Back of Display Unit

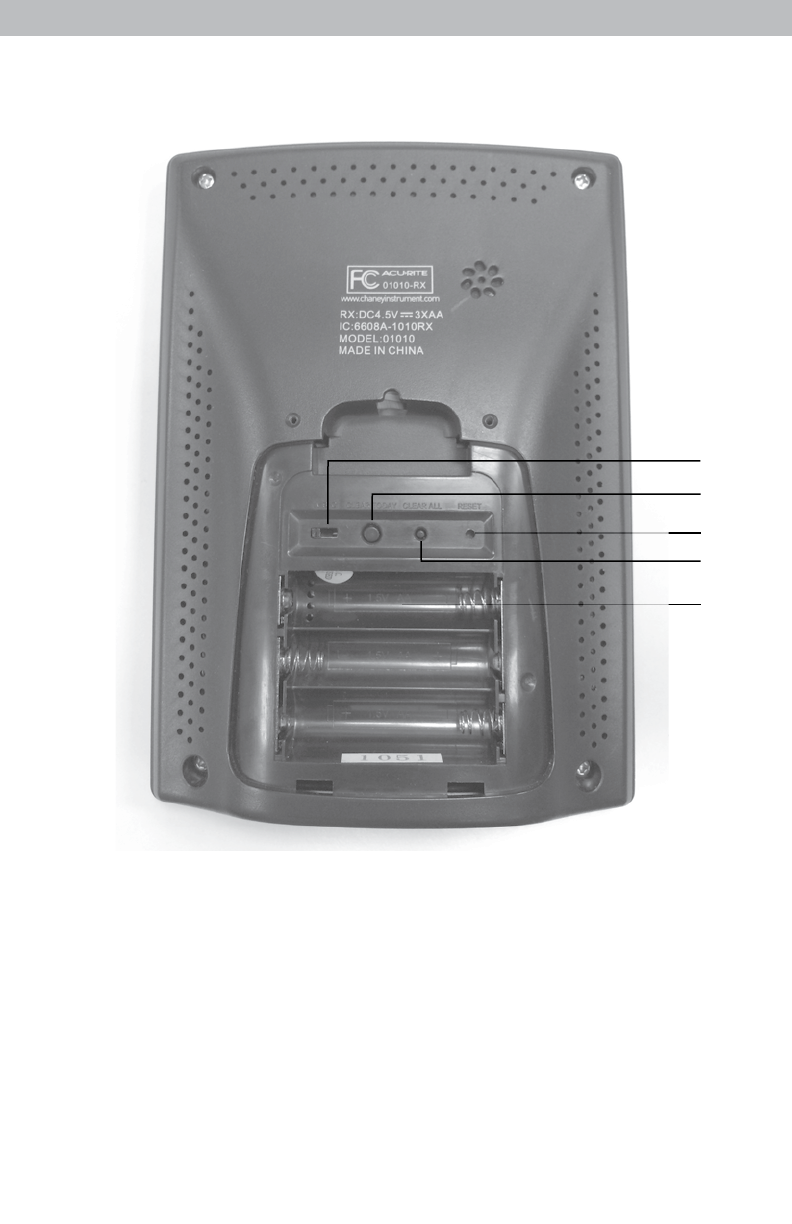

BACK OF DISPLAY UNIT

1. A-B-C Switch 4. Clear All

ID code that must match 5-in-1 Clears all data recorded without

sensor’s A-B-C switch to ensure having to reset time and date.

units synchronize. 5. Battery Compartment

2. Clear Today 6. Battery Compartment Cover

Clears data recorded since 12:00am. (Not shown.)

3. Reset

Full reset to factory defaults.

•

• •

•

SETUP

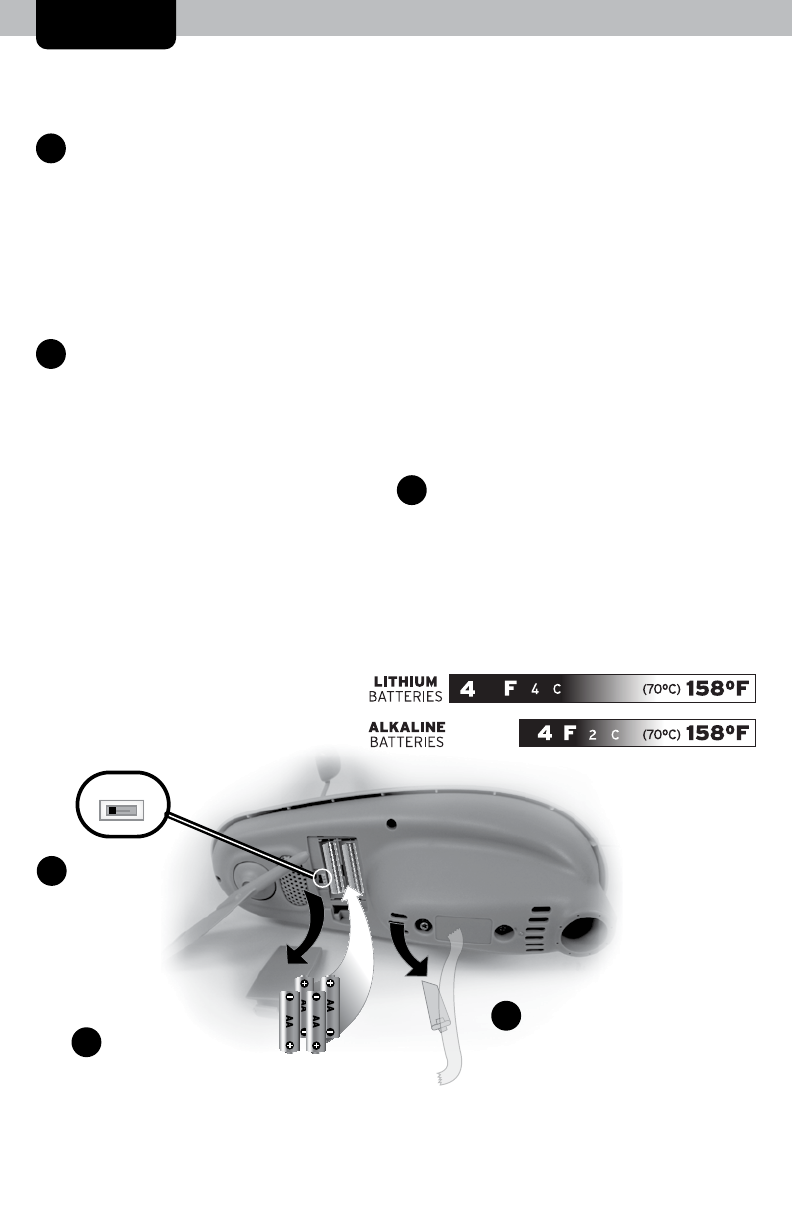

5-in-1 Sensor Setup

1 Set the A-B-C Switch

Locate the A-B-C switch inside the

battery compartment. Set the A-B-C

switch to A, B or C. You must select

the same letter choices for both the

sensor and the display unit in order

for the units to synchronize.

2 Install or Replace Batteries

Batteries MUST be installed for

this product to operate. AcuRite

recommends high quality alkaline

or lithium batteries for the best

product performance. Heavy duty

or rechargeable batteries are not

recommended.

The 5-in-1 sensor requires lithium

batteries in low temperature

conditions. Cold temperatures can

cause alkaline batteries to function

improperly. Use lithium batteries in

the 5-in-1 sensor for temperatures

below -4ºF / -20ºC.

1. Slide off the battery

compartment cover.

2. Insert 4 x AA batteries into the

battery compartment, as

shown. Follow the polarity

(+/-) diagram in the battery

compartment.

3. Replace the battery cover.

Remove Rain Gauge Stabilizer

Locate and remove the rain gauge

stabilizer (plastic tab) taped into

the bottom of the sensor. The rain

gauge will not function until this is

removed.

A B C

1 A-B-C Switch

Set to match

display unit

2 Install Batteries

4 AA Batteries

3 Rain Gauge Stabilizer

Remove and discard

• •

•

Display Unit Setup

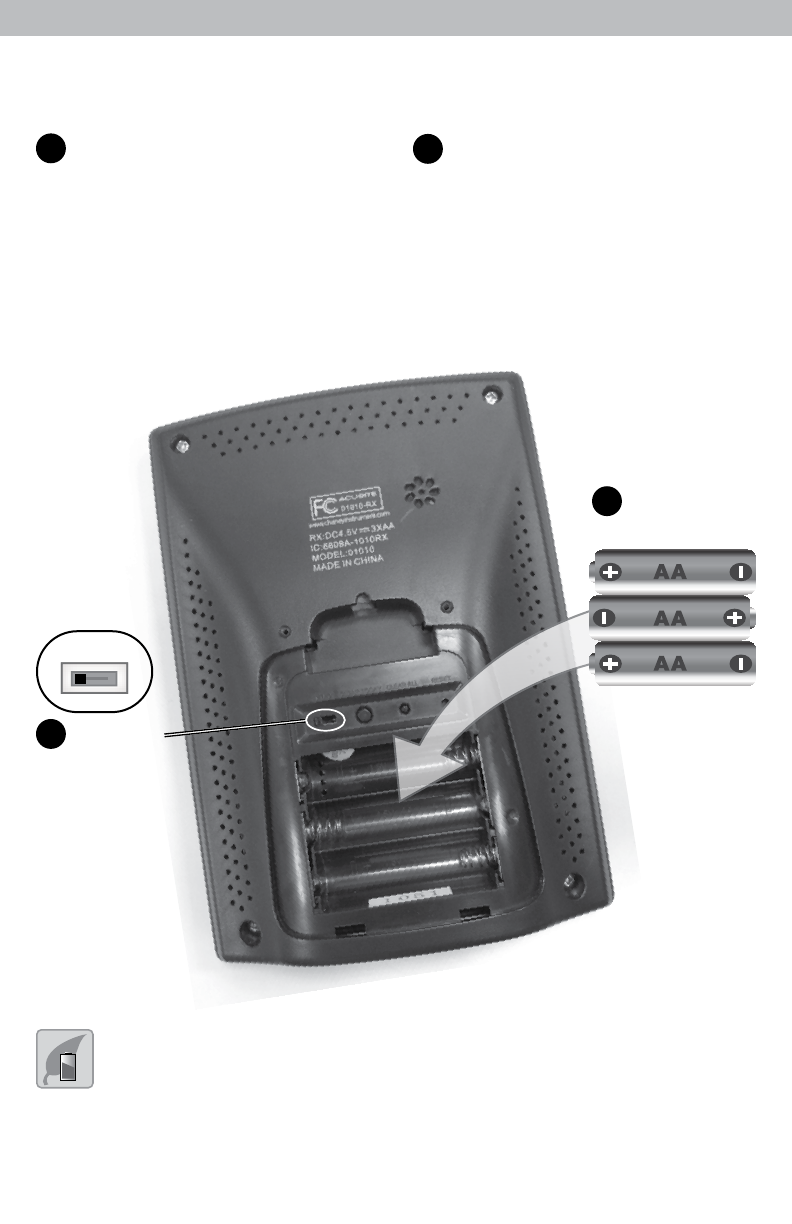

Set the A-B-C Switch Install or Replace Batteries

The A-B-C switch is located inside Insert 3 x AA alkaline batteries

the battery compartment. It can into the battery compartment,

be set to A, B or C. However, as shown. Follow the polarity

you must select the same letter (+/-) diagram in the battery

choices for both the sensor and compartment.

the display unit in order for the

units to synchronize.

A B C

1 A-B-C Switch

set to match

sensor

2 Install Batteries

3 AA Batteries

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE

WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be

used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used

batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in ﬁre,

as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge

non-rechargeable batteries. DO NOT short-circuit the supply terminals.

l.?=OOAM

SET

r1 nrL,7

LLULf\

. .

12=38PM

6 SET A

12:38PM

SET

]RTE?

. .

T ~T A

12/0 I

6 SET A

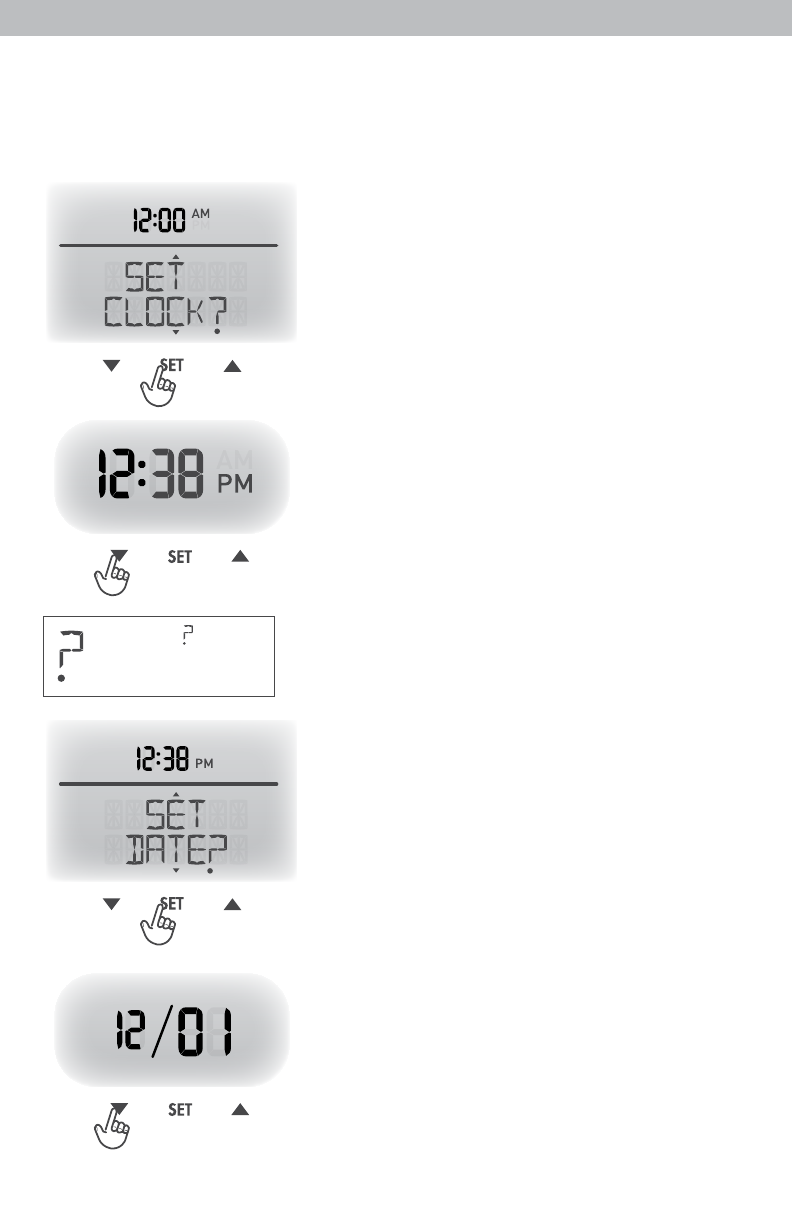

Set the Time & Date

The clock and calendar are utilized to time stamp history records and other

data, so it is important to set the time and date soon after you power on the

display unit.

Set the Time

1. Press the “

▲

” or “

▼

” buttons until

“SET CLOCK?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the clock.

3. Press the “

▲

” or “

▼

” to adjust the hour.

Note the “AM” and “PM” indicators.

4. Press the “SET” button to conrm hour

selection.

5. Press the “

▲

” or “

▼

” to adjust minutes.

6. Press the “SET” button to conrm minute

selection.

The clock is now set.

Set the Date

Note: The “ ” stays in 1. Press the “

▲

” or “

▼

” buttons until

Selectable Categories, “SET DATE?” is displayed on the

even after setup. Selectable Category part of the display unit.

2. Press the “SET” button to set the date.

3. Press the “

▲

” or “

▼

” to adjust the month.

4. Press the “SET” button to conrm month

selection.

5. Press the “

▲

” or “

▼

” to adjust the day.

6. Press the “SET” button to conrm day

selection.

7. Press the “

▲

” or “

▼

” to adjust the year.

8. Press the “SET” button to conrm year

selection.

The date is now set.

lc'=38PM

SET

UNIT57

T •

T SET .A.

lc'=38PM

WIN]

mPH

T SET .A.

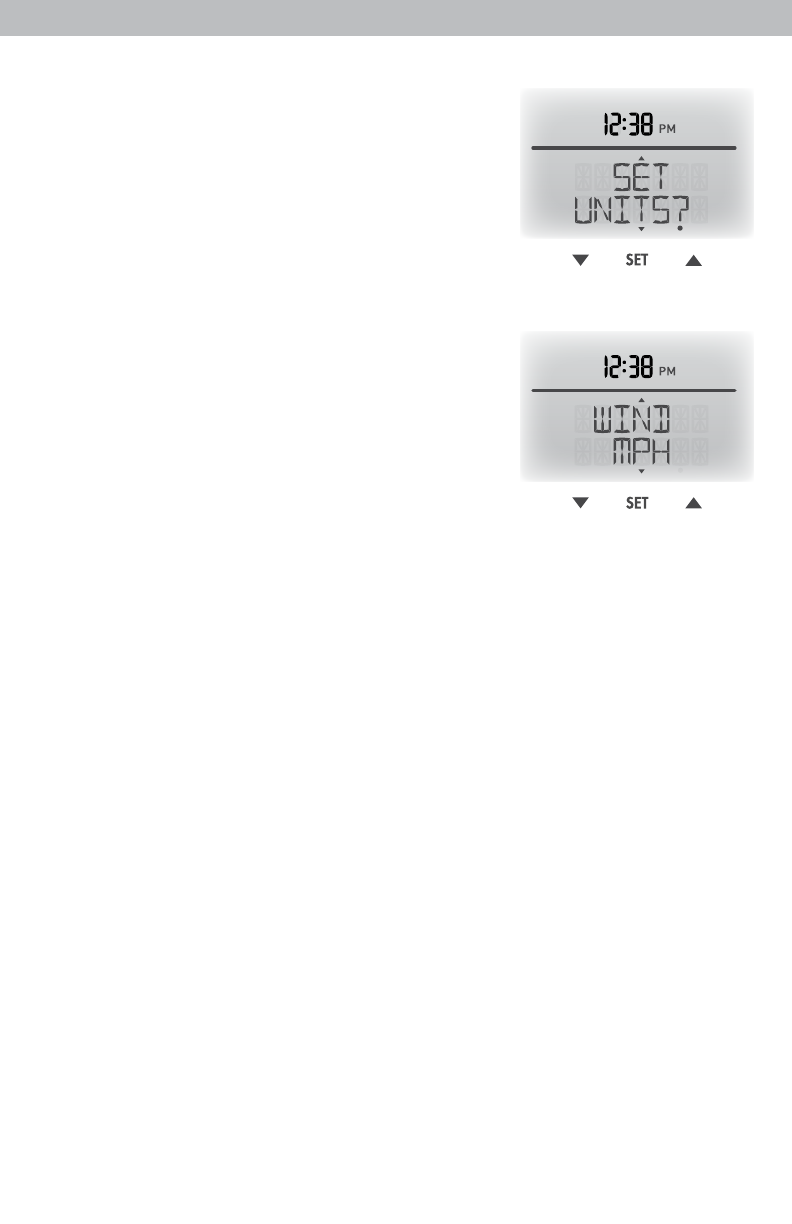

Select Measurement Units

To select between standard units (mph, ºF, etc.) or

metric units (kph, ºC, etc.):

1. Press the “

▲

” or “

▼

” buttons until

“SET UNITS?” is displayed on the

Selectable Category part of the display unit.

2. Press the “SET” button to set the unit

preference.

3. Press the “

▲

” or “

▼

” to select “STAND” for

standard or “METRIC” for metric units.

4. Press the “SET” button to conrm your selection.

5. Next, you will see “WIND MPH”. Press the

“

▲

” or “

▼

” to select MPH, KPH, or KNOTS

for wind speed units.

6. Press the “SET” button to conrm your selection.

Units are now set.

Table des matières

Autres manuels ACU-RITE Station météorologique

ACU-RITE

ACU-RITE 01010 Manuel utilisateur

ACU-RITE

ACU-RITE 01608 Manuel utilisateur

ACU-RITE

ACU-RITE 02016 Manuel utilisateur

ACU-RITE

ACU-RITE 02050CAUDI Manuel utilisateur

ACU-RITE

ACU-RITE 01540M Manuel utilisateur

ACU-RITE

ACU-RITE 01118 Manuel utilisateur

ACU-RITE

ACU-RITE 01536 Manuel utilisateur

ACU-RITE

ACU-RITE 1602RX Manuel utilisateur

ACU-RITE

ACU-RITE 1525 Manuel utilisateur

ACU-RITE

ACU-RITE 75077 Manuel utilisateur

ACU-RITE

ACU-RITE 06100M Manuel utilisateur

ACU-RITE

ACU-RITE 00899 Manuel utilisateur

ACU-RITE

ACU-RITE 00439DI Manuel utilisateur

ACU-RITE

ACU-RITE 518346 Manuel utilisateur

ACU-RITE

ACU-RITE 00593W Manuel utilisateur

ACU-RITE

ACU-RITE 250 Manuel utilisateur

ACU-RITE

ACU-RITE 825 Manuel utilisateur

ACU-RITE

ACU-RITE 00806SBDI Manuel utilisateur

ACU-RITE

ACU-RITE 00634 Manuel utilisateur

ACU-RITE

ACU-RITE 01201 Manuel utilisateur

ACU-RITE

ACU-RITE 736 Manuel utilisateur

ACU-RITE

ACU-RITE 1050 Manuel utilisateur

ACU-RITE

ACU-RITE 75110 Manuel utilisateur

ACU-RITE

ACU-RITE 06095 Manuel utilisateur

Manuels Station météorologique populaires d'autres marques

Auriol

Auriol AHFL 433 A1 Manuel utilisateur

NexSens

NexSens G2-HYDROMET Manuel utilisateur

Hyundai

Hyundai WS 2202 Manuel utilisateur

IROX

IROX HBVR761 UV-X Manuel utilisateur

La Crosse Technology

La Crosse Technology C86371 Manuel utilisateur

ADE

ADE WS 1711 Manuel utilisateur

Auriol

Auriol z29592 Manuel utilisateur

Auriol

Auriol 296289 Manuel utilisateur

Hyundai

Hyundai WS 2266 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-2210 Manuel utilisateur

La Crosse Technology

La Crosse Technology WS-811561 Manuel utilisateur

Ventus

Ventus W177 Manuel utilisateur

National Geographic

National Geographic VA Colour RC Manuel utilisateur

Renkforce

Renkforce 1208067 Manuel utilisateur

Levenhuk

Levenhuk Discovery Report WA40 Manuel utilisateur

Instant Transmission

Instant Transmission MA 10410 Manuel utilisateur

Lutron Electronics

Lutron Electronics PHB-318 Manuel utilisateur

WAREMA

WAREMA EWFS Weather station eco Manuel utilisateur
