ACTi A425 Manuel utilisateur

A4x Bullet Camera Series

Hardware Manual

A44, A45, A46, A48, A421, A425

Ver. 2022/09/27

www.acti.com
  Hardware Manual
         2
Table of Contents
Precautions 3
Safety Instructions ...........................................................................5
Introduction 6
List of Models....................................................................................6
Package Contents.............................................................................7
Physical Description ........................................................................8
Mounting Options ...........................................................................10
Installation Procedures 11
Step 1: Prepare for Installation...................................................... 11
Step 2: Mount the Camera .............................................................12
Step 3: Waterproof and Connect the Cable(s)..............................13
Connect the Ethernet Cable.........................................................13
Connecting a Power Adapter (Optional).......................................17
How to Connect Audio Input / Output Devices (Optional).............17
Connecting the Digital Input / Output Devices (Optional).............18
Step 4: Connect to Network...........................................................19
Step 5: Access the Camera Live View........................................... 19
Other Adjustments and Accessories 20
How to Install / Remove the Memory Card ...................................20
How to Insert the Memory Card ...................................................20
How to Remove the Memory Card...............................................20
Accessing the Camera 21
Configure the IP Addresses........................................................... 21
Access the Camera......................................................................... 25


www.acti.com

Hardware Manual

Precautions

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to other

equipment.

Servicing

Do not attempt to service this video device yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

www.acti.com

Hardware Manual

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two

conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause

undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class A digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio frequency energy, and if it

is not installed and used in accordance with the instruction manual, it may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely

to cause harmful interference, in which case the user will be required to correct the interference

at their own expense.

European Community Compliance Statement

This product has been tested and found to comply with the limits for Class A

Information Technology Equipment according to European Standard EN 55022

and EN 55024. In a domestic environment, this product may cause radio interference in which

cause the user may be required to take adequate measures.

www.acti.com

Hardware Manual

Safety Instructions

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Water and Moisture

Do not use this video product near water, for example, near a bathtub, washbowl, kitchen sink, or

laundry tub, in a wet basement, or near a swimming pool and the like.

Don’t use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself as opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the video product has been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.

www.acti.com

Hardware Manual

Introduction

List of Models

This hardware manual contains the following models:

A44

12MP Video Analytics Zoom Bullet with D/N, Adaptive IR,

Extreme WDR, SLLS, 3x Zoom lens

A45

2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS,

4.3x Zoom lens

A46

5MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, SLLS,

5x Zoom lens

A48

2MP Video Analytics Zoom Bullet with D/N, Adaptive IR,

Extreme WDR, ELLS, 10x Zoom lens

A421

8MP Face, People and Car Detection Zoom Bullet with D/N,

Adaptive IR, Extreme WDR, SLLS, 4.3x Zoom lens

A425

2MP Zoom Bullet with D/N, Adaptive IR, Extreme WDR, ELLS,

4.3x Zoom lens

www.acti.com

Hardware Manual

Package Contents

Camera

Mounting Screw Kit

Hex Wrench

Drill Template

Quick Installation Guide

& Warranty Card

Cable Gland

(for A45, A46, A421 only)

DI/DO Terminal Block

(A44, A48)

NOTE: For other models, the terminal block comes

connected to the DIO port of the camera

Drill Template

WARRANTY

CARD

www.acti.com

Hardware Manual

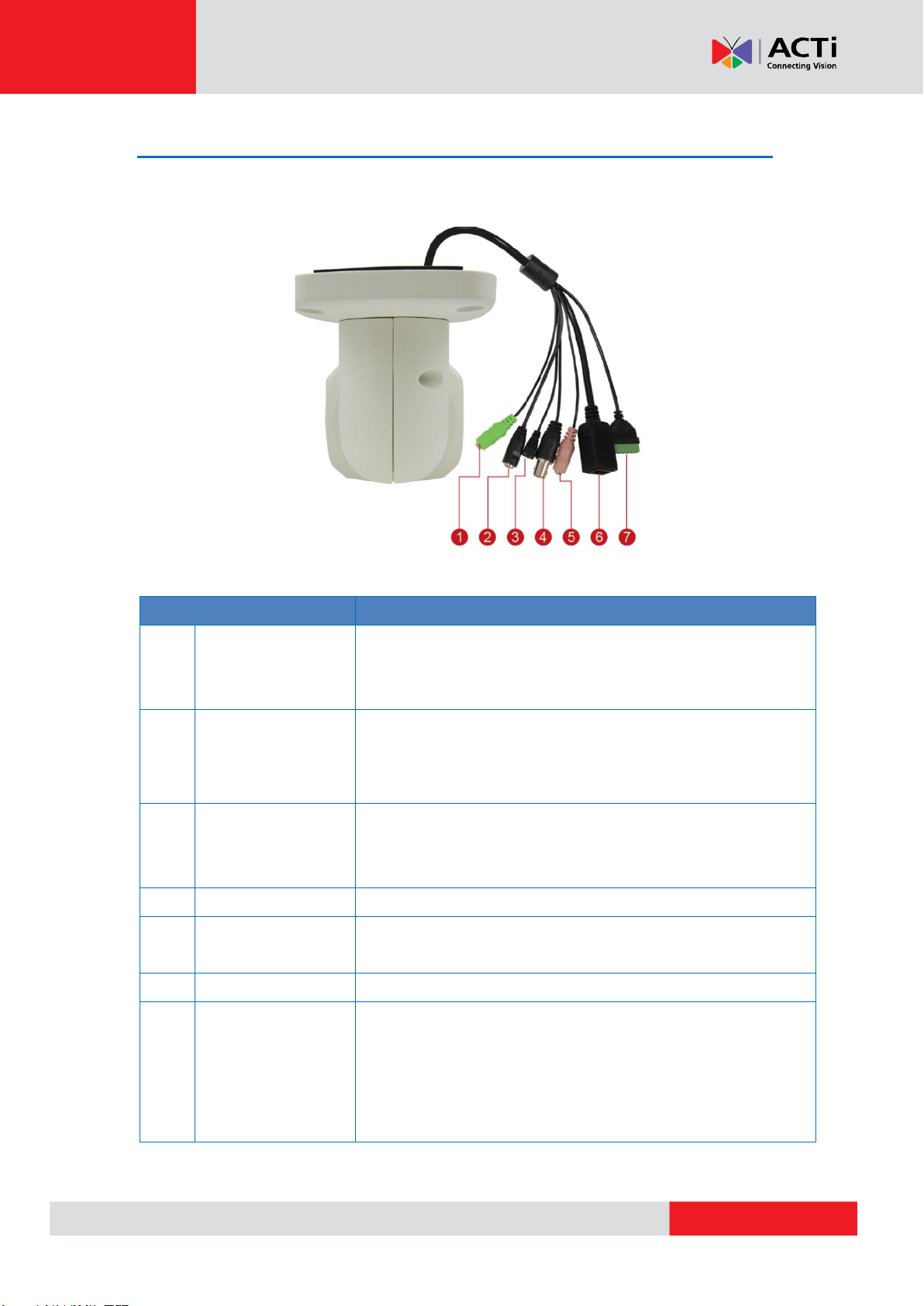

Physical Description

A44, A48

Item

Description

Audio Output

This jack connects to an audio output device, such as a

speaker. See How to Connect Audio Input / Output Devices

(Optional) on page 17.

DC 12V Power Input

Connects the camera to an external power adapter (not

included). See Connecting a Power Adapter (Optional) on

page 17 for more information.

Reset Button

Restores the factory default settings of the camera, including the

administrator’s password. To reset the camera, press and hold

the Reset button for at least 10 seconds.

BNC Video Output

Connects the camera directly to a monitor with BNC input.

Audio Input

This jack connects to a microphone. See How to Connect

Audio Input / Output Devices (Optional) on page 17.

Ethernet Port

Connects to a network using a standard Ethernet cable.

Digital Input / Output

Connects to digital input or output devices, such as an alarm

trigger, panic button, etc. Digital Input (DI) and Digital Output

(DO) devices are used in applications like motion detection,

event triggering, alarm notifications, etc. See Connecting the

Digital Input / Output Devices (Optional) on page 18.

www.acti.com

Hardware Manual

A45, A46, A421, A425

Item

Description

Audio Output

This jack connects to an audio output device, such as a

speaker. See How to Connect Audio Input / Output Devices

(Optional) on page 17.

DC 12V Power Input

Connects the camera to an external power adapter (not

included). See Connecting a Power Adapter (Optional) on

page 17 for more information.

Reset Button

Restores the factory default settings of the camera, including the

administrator’s password. To reset the camera, press and hold

the Reset button for at least 10 seconds.

Audio Input

This jack connects to a microphone. See How to Connect

Audio Input / Output Devices (Optional) on page 17.

Ethernet Port

Connects to a network using a standard Ethernet cable.

Digital Input / Output

Connects to digital input or output devices, such as an alarm

trigger, panic button, etc. Digital Input (DI) and Digital Output

(DO) devices are used in applications like motion detection,

event triggering, alarm notifications, etc. See Connecting the

Digital Input / Output Devices (Optional) on page 18.

www.acti.com

Hardware Manual

Mounting Options

There are several mounting options that you can use to install the camera. Select the most

suitable solution for your installation environment.

Mount Types

Accessories

Wall

Suitable when mounting the camera directly on walls using the integrated

bracket. See Installation Procedures on page 11.

Ceiling

Suitable when mounting the camera directly on walls using the integrated

bracket. See Installation Procedures on page 11.

Vertical Pole

Suitable when mounting the camera on vertical poles.

NOTE:

•For more information about the mounting solutions and accessories, please check the

Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).

•The above mounting accessories are not included in the package. Contact your sales

agents to purchase.
