ACTi ACM-3211 Manuel utilisateur
3-Axis Indoor Fixed IR Dome
(with DC 12V / PoE)
ACM-3211
Ver. 070412
Quick Installation Guide
0-1
0Getting Started
1.1 PACKAGE CONTENTS
ACM-3211 Power Adaptor (Option)
(DC12V / PoE)
Product CD Accessory
Warranty Card Drill Template
Drill template
1
0-2
1.2 PHYSICAL DESCRIPTION
1. Ethernet Port
The IP device connects to the Ethernet via a standard RJ45
connector. Supporting NWAY, this IP device can auto detect the
speed of local network segment (10Base-T/100Base-TX
Ethernet).
2. Power Input
If your power input is DC12V. Please follow the description on
the connector to connect to power.
3. Reset Button
Step 1: Switch off IP device by disconnecting the power cable
Step 2: Press and continue to hold the Reset Button. Reconnect
PIN NAME DESCRIPTION
1 12V DC Power Input
2 GND Ground Pin
0-3
the power cable while continuing to hold the reset button.
Step 3: Keep holding the reset button depressed for a while,
release the reset button. The unit will start up with factory default
settings.
4. Audio Input / Output
The IP device supports audio input and output with terminal
block.

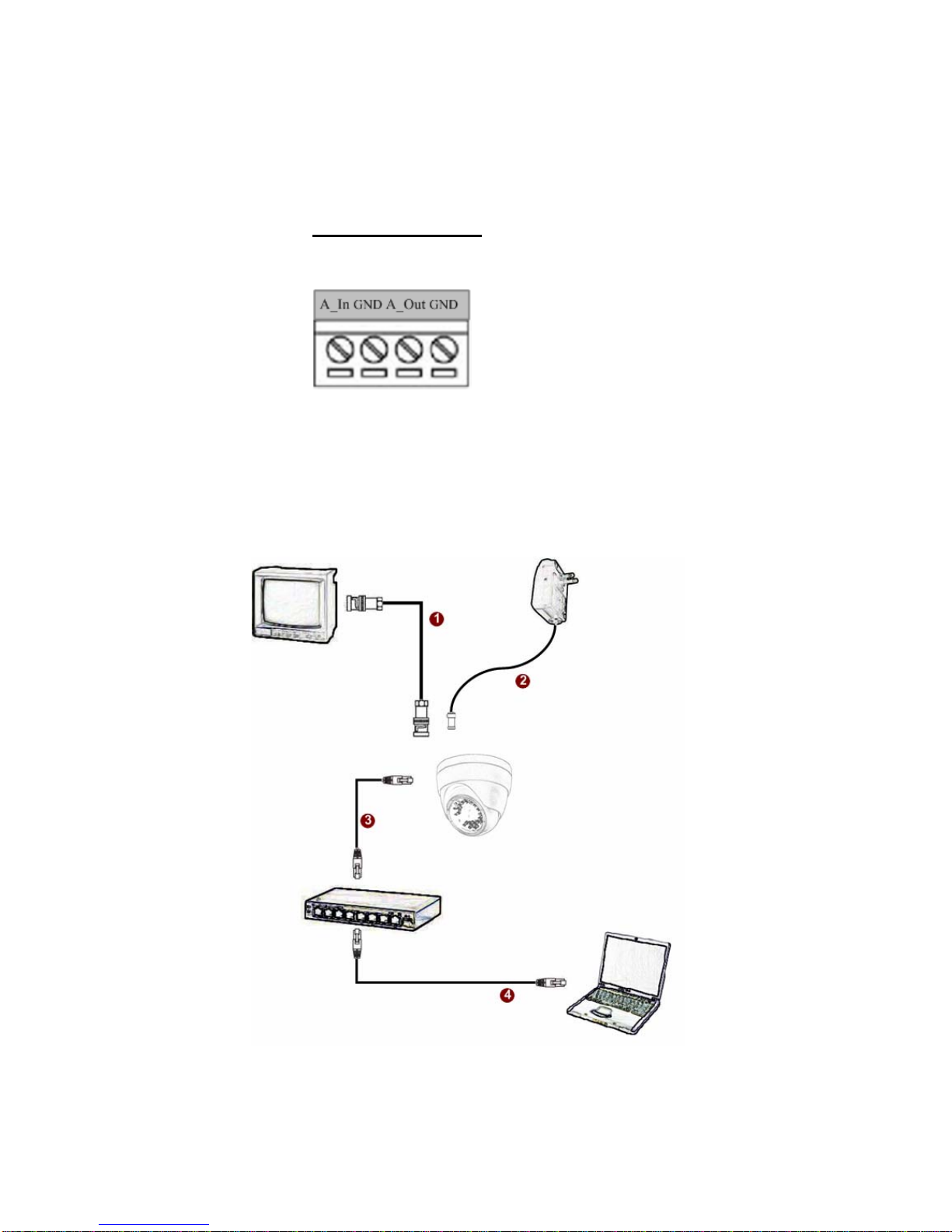

1.3 BASIC CONNECTIONS
Follow the procedures below to connect the IP device to the respective
apparatuses.
0-4
1. Connect an analog monitor to IP device video out (BNC connector).
2. Connect the power adaptor to IP device
3. Connect IP device’s ethernet port to an Ethernet (RJ45 connectors). If your
IP device has PoE built-in, you can regard it as a PD and connect it
directly to a PSE device like PoE switch.
4. Connect a PC to the Ethernet hub (RJ45 connectors)
1
1.4 Installation Procedure
NOTE: You may find a support package for help you getting familiar
with PoE. Please visit our web site, and get the support document
TS-00040.
1-5
1Quick Tour
This section guides you with a quick tour on this IP device.
2.1 Configure this IP Device
2.1.1 Make sure network environment
Default IP of this IP device is 192.168.0.100. Please make sure this IP device and
your PC are on the same network segment before running the installation.
2.1.2 Open Internal Explorer with IP address
2
Please set the settings as below.
IP address: 192.168. 0.xxx
Subnet mask: 255.255.255. 0
(NOTE: xxx should be a number
from 1 to 254, but 100 is
excepted.)
1-6
NOTE: If your web browser is earlier than IE6, then download IE6 is
recommended.
NOTE: This IP device default IP address is set to 192.168.0.100
2.1.3 Login with default administrator’s account & password
NOTE: Default administrator account is set to Admin, password is set to
123456, and click button.
2.1.4 Preview the video
1-7
2.1.5 Set the new IP address
*IP Address : The default IP address is 192.168.0.100.
*Subnet Mask : The default subnet mask is 255.255.255.0
*Click button
NOTE: In your Client PC, please make sure the setting of Network
Connections Type is set to Auto Negotation, since this IP device follows
MII standard. Otherwise, you might not see the live image.
IMPORTANT: After the IP address is changed, please record this IP
address. There’s no way to connect to the IP device if user forgets the
new IP address.
1-8
2.1.6 Check Default Video Setting
NOTE: Please make sure the TV Input (NTSC / PAL) is meet your
requirement, and click button.
2.1.7 Click Save Reboot to restore all settings and please wait about 30 seconds
for system reboot.
