ACTi I91 Manuel utilisateur

2013/12/09

Indoor PTZ

Mounting on the Ceiling

Using Pendant Mount

Installation Guide

For Models:

I91, I92, KCM-8111

www.acti.com

Installation Guide

Table of Contents

Installation Procedures .....................................................3

Step 1: Install the Straight Tube ............................................................... 4

Step 2: Install the Mount Kit (PMAX-0110)............................................... 5

Step 3: Install the Camera......................................................................... 6

Step 4: Access the Camera Live View...................................................... 7

Safety Information..............................................................8

www.acti.com

Installation Guide

Installation Procedures

In case of high ceilings, the camera can be lowered by pendant mount.

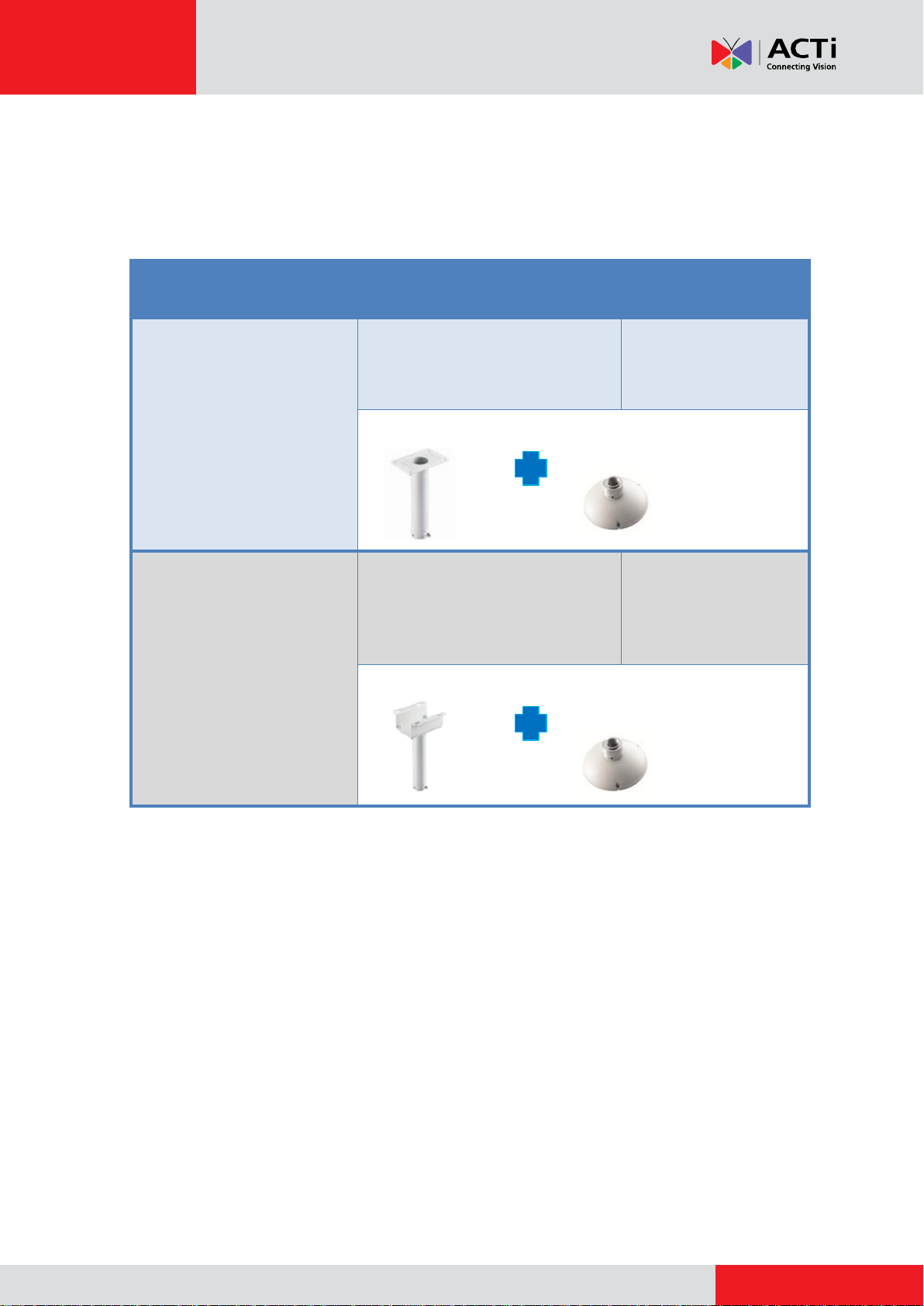

Mounting Solution

Cabling Solution

Must Drill a Hole

on the Ceiling

Straight Tube

(SMAX-0052)

Use this configuration if the

cable can directly enter the

ceiling.

Yes

PMAX-0102 PMAX-0110

Straight Tube with

Bracket

(SMAX-0053)

Use this configuration if the

cable cannot directly enter the

ceiling and must go along the

ceiling.

PMAX-0103 PMAX-0110

NOTE: The accessories are not included in the camera package. Contact your sales agents to

purchase.

Prepare the following:

Pendant Mount with Mount Kit (SMAX-0052 or SMAX-0054)

Mounting Screws (included in the mount kit package)

Network Extension Cable (included in the PMAX-0110 kit)

Screwdriver (not included)

www.acti.com

Installation Guide

Step 1: Install the Straight Tube

1. Use the drill template (included in the straight tube package) to mark and drill the mounting

holes on the ceiling.

2. Insert the power adaptor, network cable, and other necessary cables (if any) to pass through

the straight tube. Note that you must insert the power adaptor cable first to fit the tube.

NOTE:

If using a straight tube without bracket, route the cables to pass through the hole on

the ceiling.

The following illustrations show the installation using a straight tube with bracket.

3. Install the straight tube on the ceiling.

NOTE: If the straight tube is not long enough, you may use one or more extension tubes

(purchased separately).

www.acti.com

Installation Guide

Step 2: Install the Mount Kit (PMAX-0110)

1. Insert the cables from the tube into the mount kit and route them to pass through the outer

bracket.

2. Align the slot of the mount kit to the tab inside the straight tube and install the mount kit.

3. Twist the mount kit to align the screw holes and attach the two (2) mounting screws (included

in the mount kit package).

www.acti.com

Installation Guide

Step 3: Install the Camera

1. If necessary, insert a memory card into the card slot of the camera.

2. Connect the network cable to the Ethernet port of the camera. If necessary, connect the other

cables (such as power adaptor, DI/DO, etc.) to the corresponding connectors.

NOTE: Try to push the network cable further into the mount.

T I P: If the network cable texture is rough and not easily bent, use the bundled network

extension cable (included in the mount kit package) to easily route the cables because of its

flexibility.

3. Align and insert the camera base hooks to the mounting holes.

4. Slide the camera counter-clockwise to secure the hooks to the mount.

www.acti.com

Installation Guide

5. On the top of the mount kit, attach three (3) screws (included in the mount kit package) to

secure the camera to the mount.

The final installation would look similar to the one below:

Step 4: Access the Camera Live View

Refer to the camera Hardware Manual downloadable from the website (www.acti.com) for more

information.

www.acti.com

Installation Guide

Safety Information

Read these instructions

You should read all the safety and operating instructions before using this product.

Heed all warnings

You must adhere to all the warnings on the product and in the instruction manual. Failure to follow

the safety instruction given may directly endanger people, cause damage to the system or to

other equipment.

Trademarks

All names used in this manual are probably registered trademarks of respective companies.

Liability

Every reasonable care has been taken during the writing of this manual. Please inform your local

office if you find any inaccuracies or omissions. We cannot be held responsible for any

typographical or technical errors and reserve the right to make changes to the product and

manuals without prior notice.

Cleaning

Disconnect this video product from the power supply before cleaning.

Attachments

Do not use attachments not recommended by the video product manufacturer as they may cause

hazards.

Do not use accessories not recommended by the manufacturer

Only install this device in a dry place protected from weather

Servicing

Do not attempt to service this video product yourself. Refer all servicing to qualified service

personnel.

www.acti.com

Installation Guide

Damage Requiring service

Disconnect this video product from the power supply immediately and refer servicing to qualified

service personnel under the following conditions.

1) When the power-supply cord or plug is damaged

2) If liquid has been spilled, or objects have fallen into the video product.

3) If the inner parts of video product have been directly exposed to rain or water.

4) If the video product does not operate normally by following the operating Instructions in this

manual. Adjust only those controls that are covered by the instruction manual, as an improper

adjustment of other controls may result in damage, and will often require extensive work by a

qualified technician to restore the video product to its normal operation.

Safety Check

Upon completion of any service or repairs to this video product, ask the service technician to

perform safety checks to determine if the video product is in proper operating condition.
